Plan 39126ST
Front to Back Views
Heated S.F.
2,873
Beds
4
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • This beautiful home plan has much to offer with a large great room, kitchen/hearth room/breakfast area combination, a formal dining room, various ceiling treatments and 3 bedrooms.
  • The beautiful foyer offers a view through the great room to the rear covered deck showcasing indoor and outdoor gathering spaces.
  • A wet bar becomes a divider between the great room and kitchen and a large island with seating defines the latter.
  • A raised ceiling tops the hearth room and breakfast area and a gas fireplace creates a warm environment.
  • The master suite highlights a whirlpool tub, shower, double bowl vanity, and raised ceiling.
  • Access to the rear deck from the master bedroom is a delightful surprise.
  • A mud room and laundry room near the three car garage aids in an orderly transition from the outdoors.
  • This house plan is designed with a full walk-out basement foundation that can be finished to offer additional living space.
What's Included
  • General notes and specifications

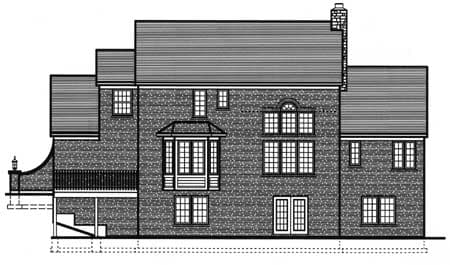

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Front to Back Views

  • 2,873

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

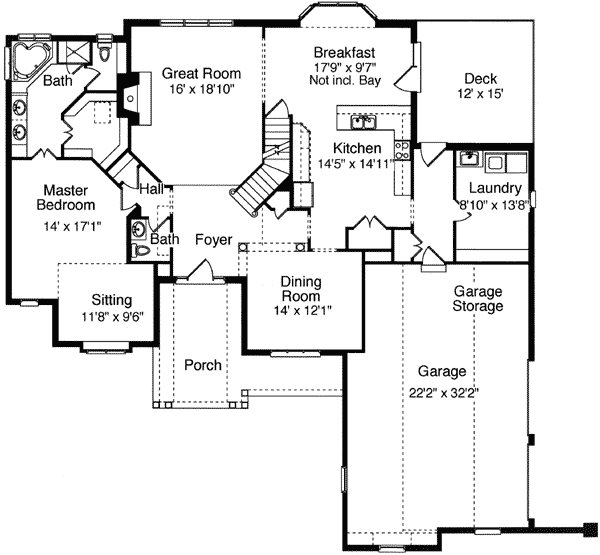

Floor Plan

  • Main Level

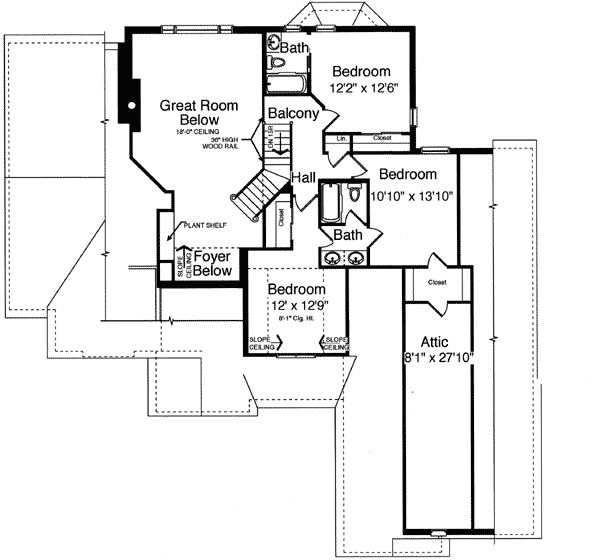

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,873 sq. ft.
  • 1st Floor: 2,050 sq. ft.
  • 2nd Floor: 823 sq. ft.

Dimensions

  • Width: 64' 4"
  • Depth: 66' 8"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 710 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
