Plan 39067ST

Full Walkout Offers Possibilities

Heated S.F.
1,321
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 39067ST

Main Level
Main Level

Plan 39067ST

M-F 9am-5pm EST |

1-203-761-8500

Main Level

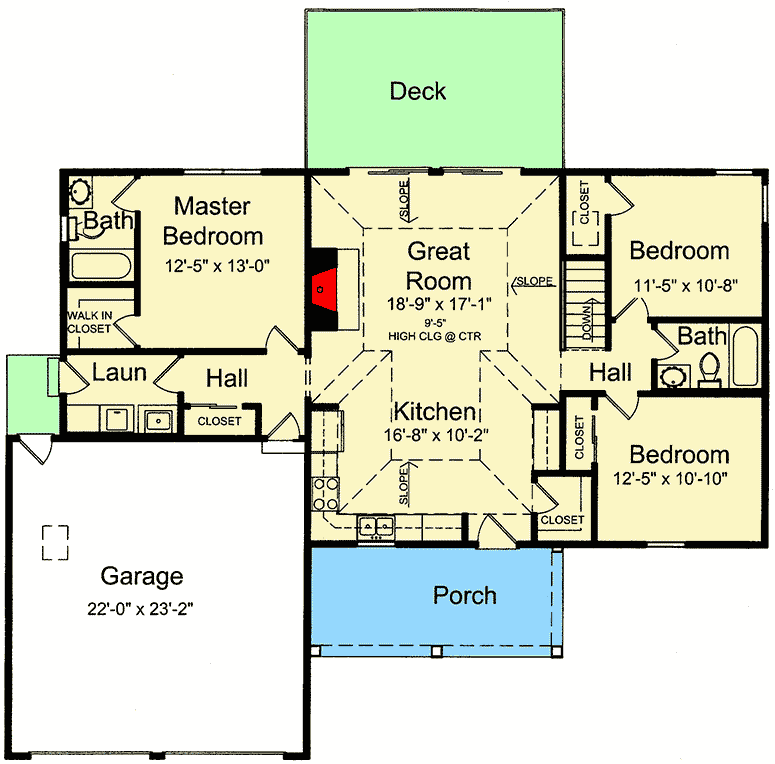

Plan 39067ST: Full Walkout Offers Possibilities - Floor Plan - Main Level - Cottage, Traditional

Plan Details

  • A covered porch, two gables, and horizontal siding create a warm and inviting exterior to this charming one level home plan.
  • Split bedrooms, sloped ceilings, a gas fireplace and an open great room and kitchen set the stage for a home that is dedicated to a casual lifestyle. Double sliding doors across the rear of the great room create a wonderful indoor outdoor relationship.
  • The master bedroom with private bath and walk-in closet also enjoys a view to the rear yard.
  • A full walkout basement foundation to the rear makes this home perfect for a lake front or mountain home.

What's Included

  • General notes and specifications

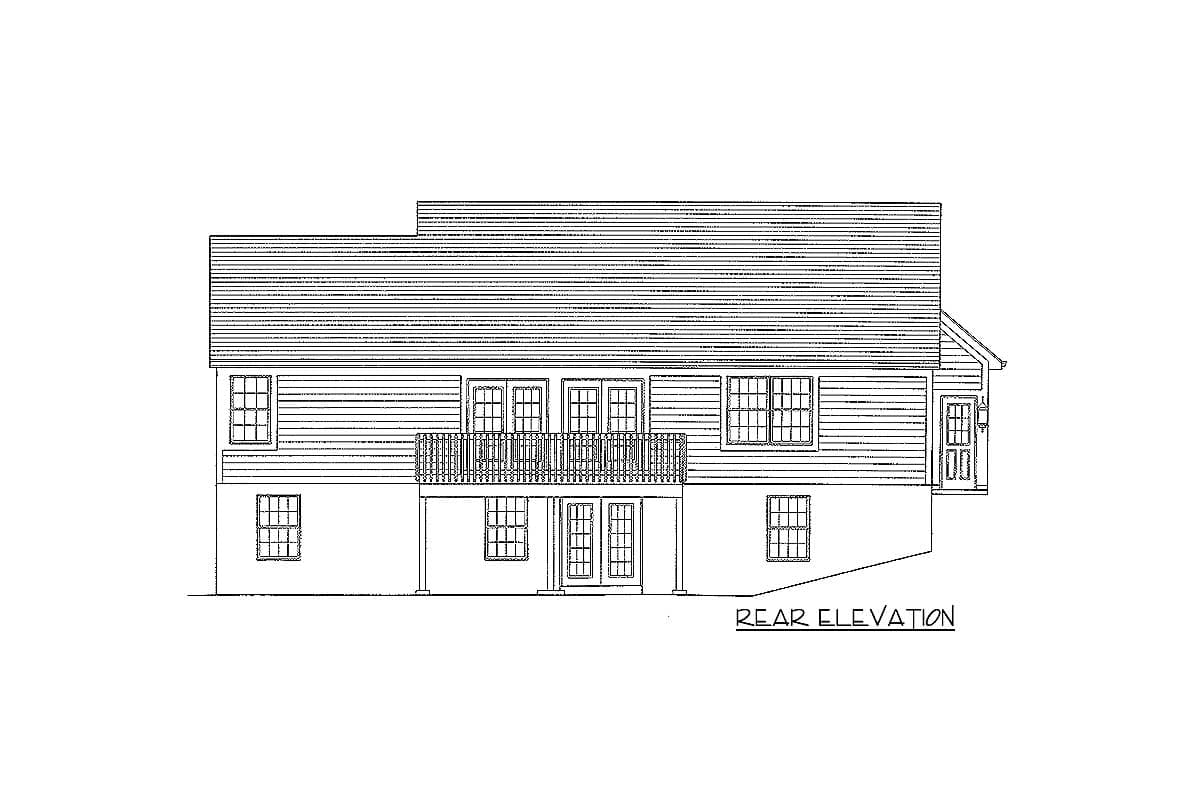

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,321 sq. ft.

1st Floor

1,321 sq. ft.

Porch, Front

152 sq. ft.

Deck

229 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

56' 10"

Depth

43' 7"

Max Ridge Height

20' 11"

Garage

Type

Attached

Area

510 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

1,321 sq. ft.

1st Floor

1,321 sq. ft.

Porch, Front

152 sq. ft.

Deck

229 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

56' 10"

Depth

43' 7"

Max Ridge Height

20' 11"

Garage

Type

Attached

Area

510 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Lake House Plans
