Functional Modern One-Story House Plan

Plan 85228MS

  • 1,607

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This charming, functional, one-story house plan gives you three bedrooms, a patio, and a large open concept kitchen, dining area, and great room.
  • The master suite features side by side sinks, private toilet, and a large walk in closet.
  • Related Plan: Get an alternate exterior with house plan 85229MS.
  • NOTES: This house plan may not be built in Clark County, Washington.

Each plan set is drawn to 1/4" scale and includes the following:

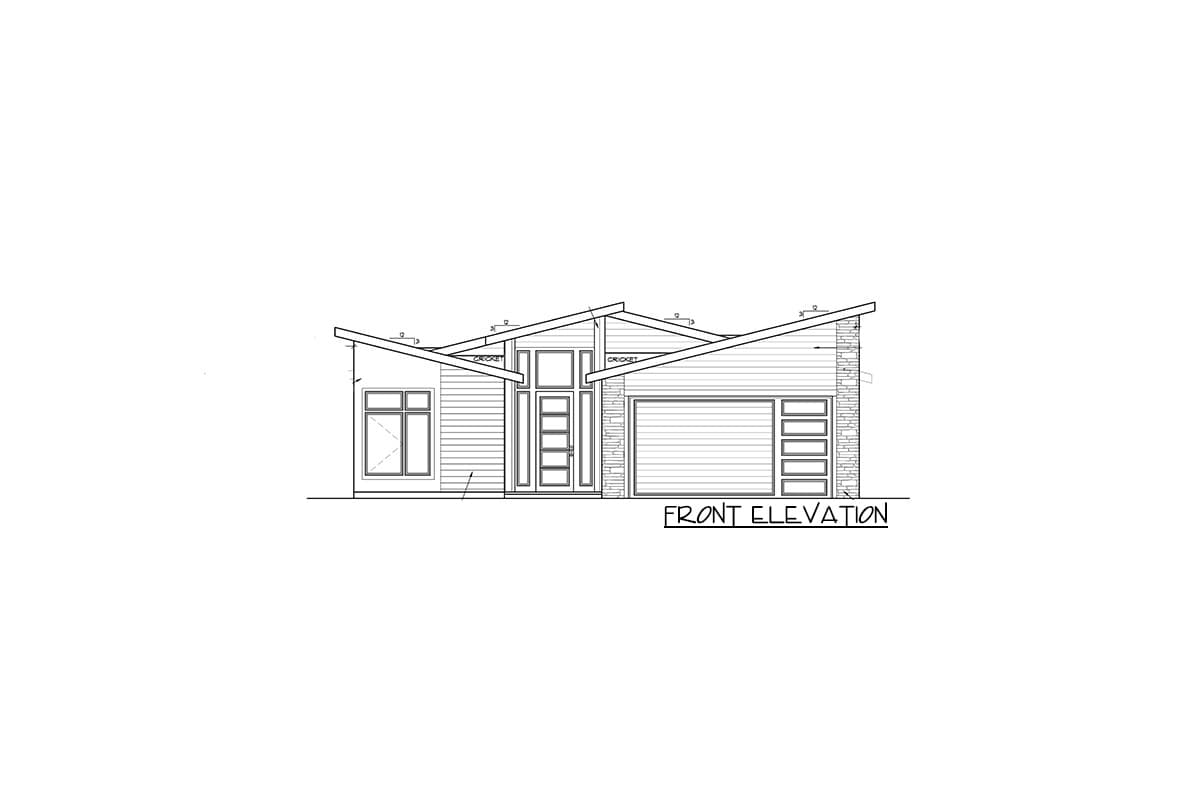

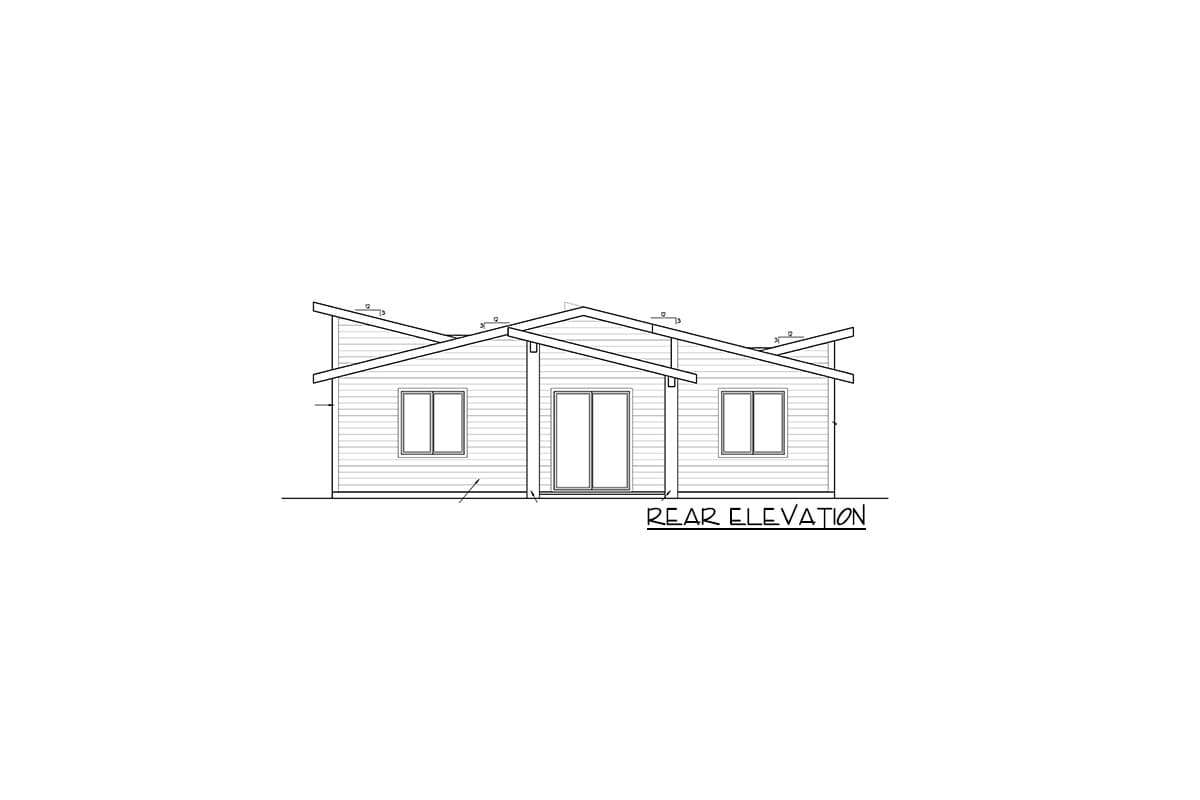

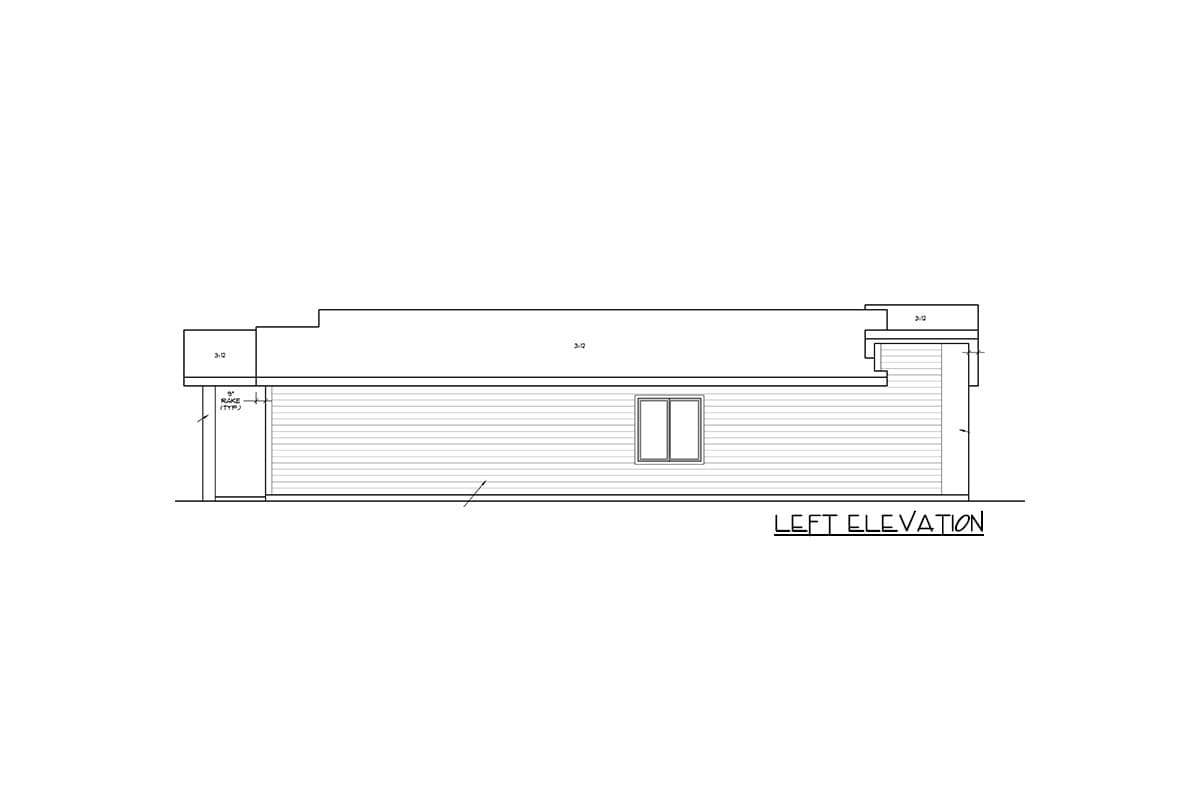

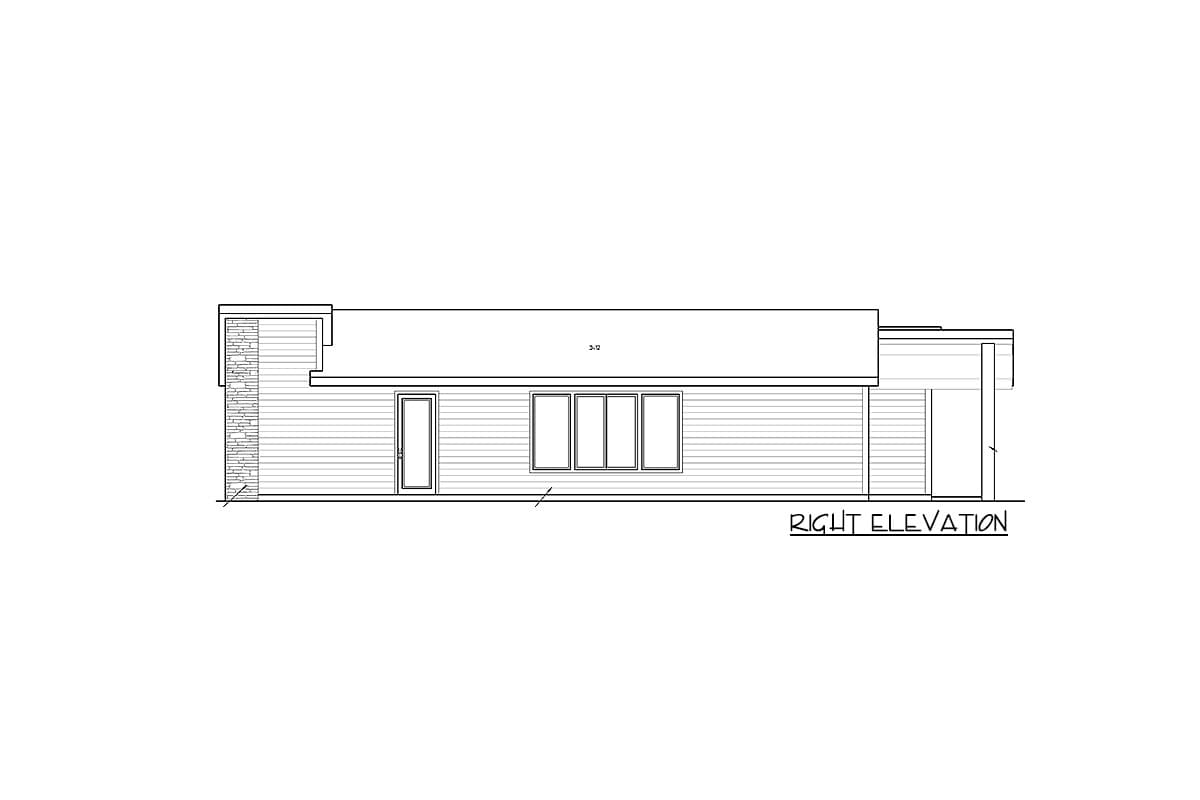

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

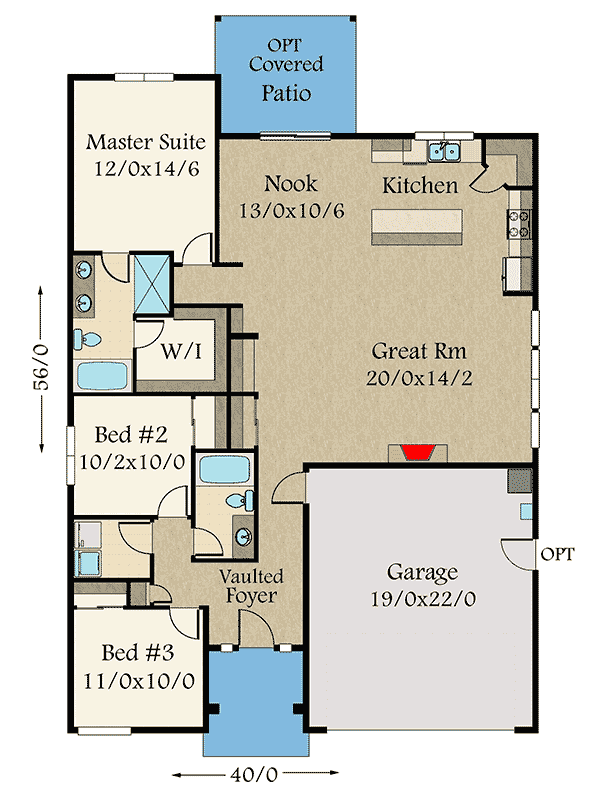

Functional Modern One-Story House Plan - 85228MS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,607 sq. ft.
  • 1st Floor: 1,607 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 56' 0"
  • Max ridge height: 15' 9"

Garage

  • Type: Attached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Functional Modern One-Story House Plan

  • 1,607

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $948
  • 6 Sets + PDF $1,124
  • CAD + PDF - Single-Build $1,607
  • View all purchase option online

About This Plan

  • This charming, functional, one-story house plan gives you three bedrooms, a patio, and a large open concept kitchen, dining area, and great room.
  • The master suite features side by side sinks, private toilet, and a large walk in closet.
  • Related Plan: Get an alternate exterior with house plan 85229MS.
  • NOTES: This house plan may not be built in Clark County, Washington.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,607 sq. ft.
  • 1st Floor: 1,607 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 56' 0"
  • Max ridge height: 15' 9"

Garage

  • Type: Attached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Truss
Plan 85228MS
