Plan 51192MM

Functional Split-Bed House Plan with Bonus Room above Garage

Heated S.F.
2,066
Beds
4
Baths
3.5
Stories
1-2
Cars
2

Floor Plan

Plan 51192MM

Main Level
Main Level
Bonus Level
Bonus Level

Plan 51192MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

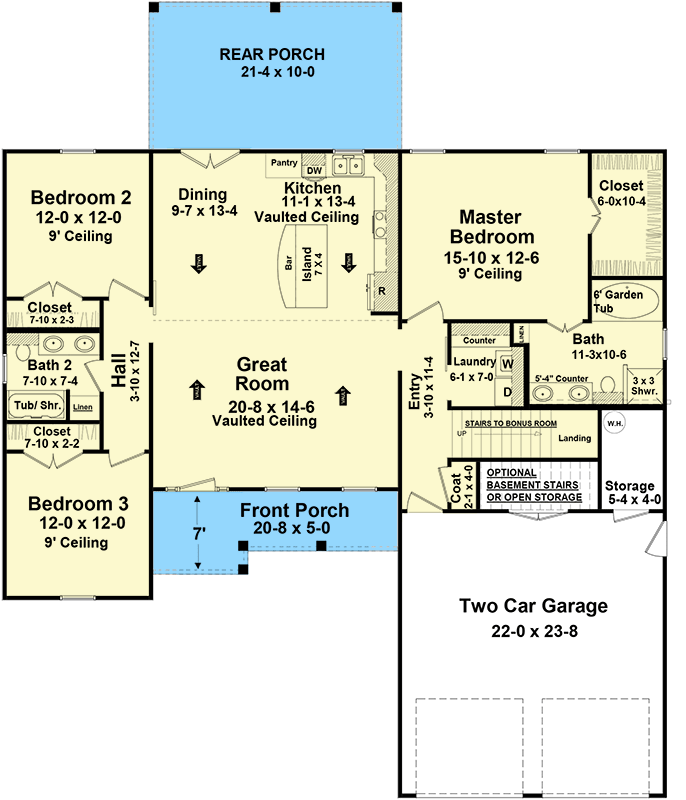

Plan 51192MM: Functional Split-Bed House Plan with Bonus Room above Garage - Floor Plan - Main Level - Country, Craftsman, New American

Bonus Level

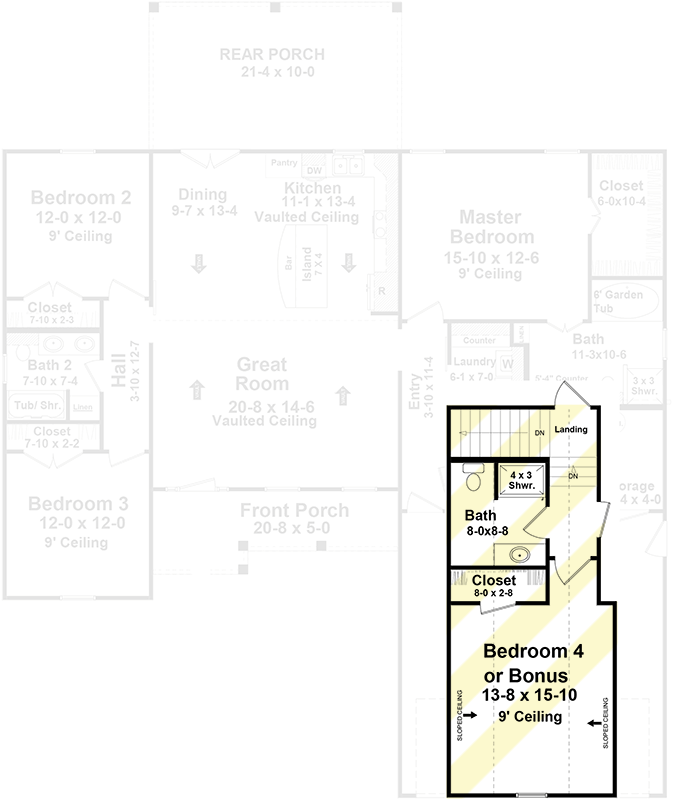

Plan 51192MM: Functional Split-Bed House Plan with Bonus Room above Garage - Floor Plan - Bonus Level - Country, Craftsman, New American

Plan Details

  • This home provides a very functional split-bedroom layout with many of the features that your family desires.
  • The homeowner will appreciate the expansive master bedroom and attached bath with plenty of storage space in the large master walk-in closet.
  • A vaulted ceiling rises above the combined kitchen and great room, and french doors off the dining area make it easy to slip outside to BBQ or enjoy some fresh air.
  • A fourth bedroom, or bonus room, is located above the garage with its own bathroom.
  • The forward-facing double garage includes dedicated storage and a coat closet just inside awaits your jacket and shoes.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,066 sq. ft.

1st Floor

2,066 sq. ft.

Porch, Front

119 sq. ft.

Porch, Rear

213 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

64' 8"

Max Ridge Height

22' 2"

Garage

Type

Attached

Area

651 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,066 sq. ft.

1st Floor

2,066 sq. ft.

Porch, Front

119 sq. ft.

Porch, Rear

213 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

64' 8"

Max Ridge Height

22' 2"

Garage

Type

Attached

Area

651 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Optionally Finished Bonus Room
