Garage Plan with Natural Light

Plan 88321SH

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 1

    Cars

  • When you want to protect your home-away-from-home in style, this garage plan can provide the solution.

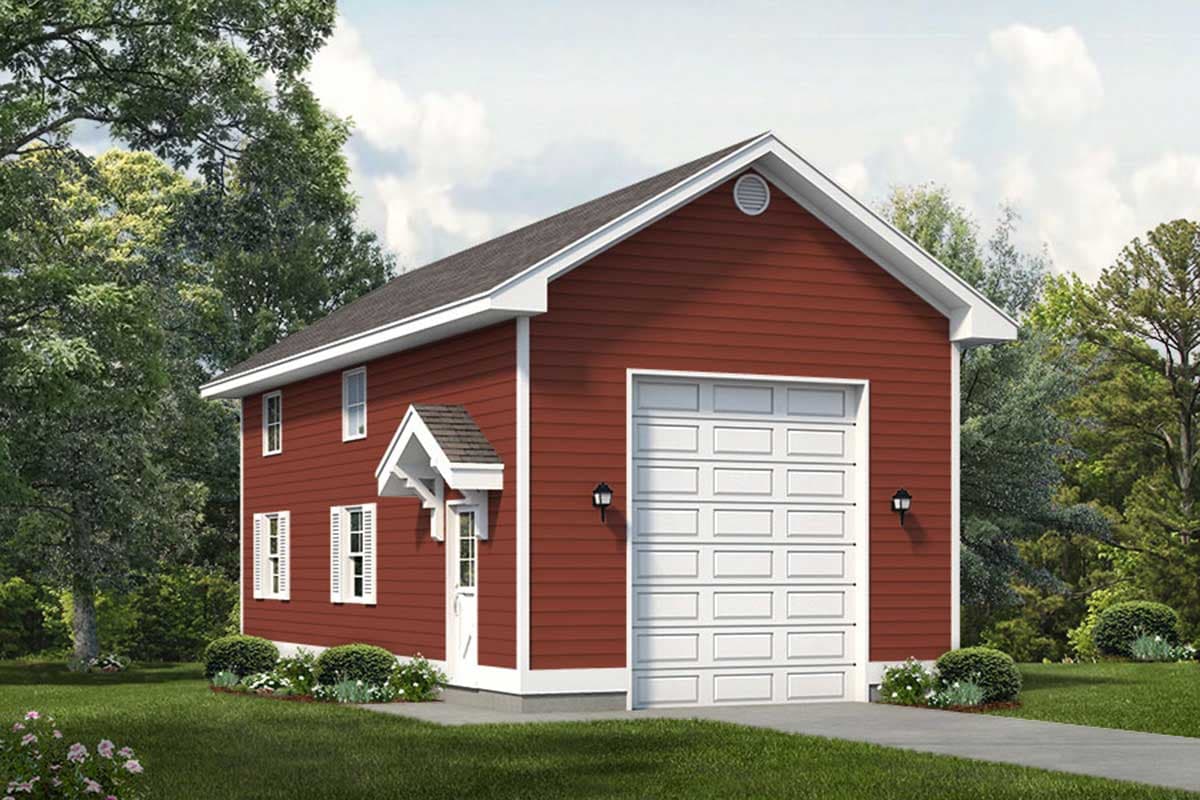

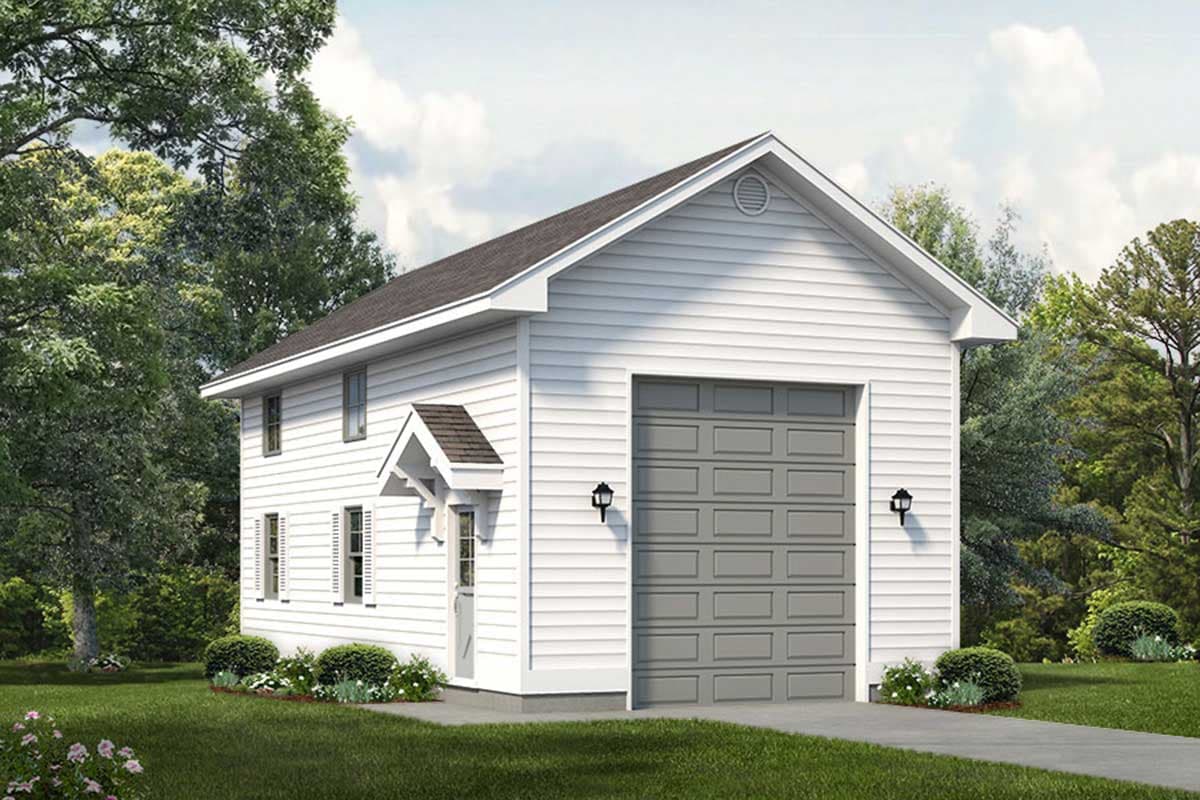

  • A full 648 square feet of space is available with this plan. Natural light is directed through two sets of windows, to illuminate the top and bottom of the RV when its safely tucked inside the garage.
  • A side-entry door allows access to the interior of the garage without raising the main garage door.

Each plan set includes the following:

  • Front perspective
  • Foundation plan
  • Fully dimensioned floor plans
  • Cross sections
  • Floor structural suppports
  • Electrical plans
  • All four elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Garage Plan with Natural Light - 88321SH floor plan - Main Level

Garage Plan with Natural Light

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 18' 0"
  • Depth: 36' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached, RV Garage
  • Area: 648 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 14' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
