Garage with Three Workshops, Office Space and a Working Kitchen
Heated S.F.
1,947
Beds
0
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This garage plan was designed for someone looking not only for vehicle storage but also workshop space, office space and a working kitchen.
  • The ground level gives you a huge open parking space with two workshops: one to the right and a second one in the back.
  • On the upper level, there are four individual offices and a large conference room.
  • The lower level gives you a huge kitchen space and a third workshop.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

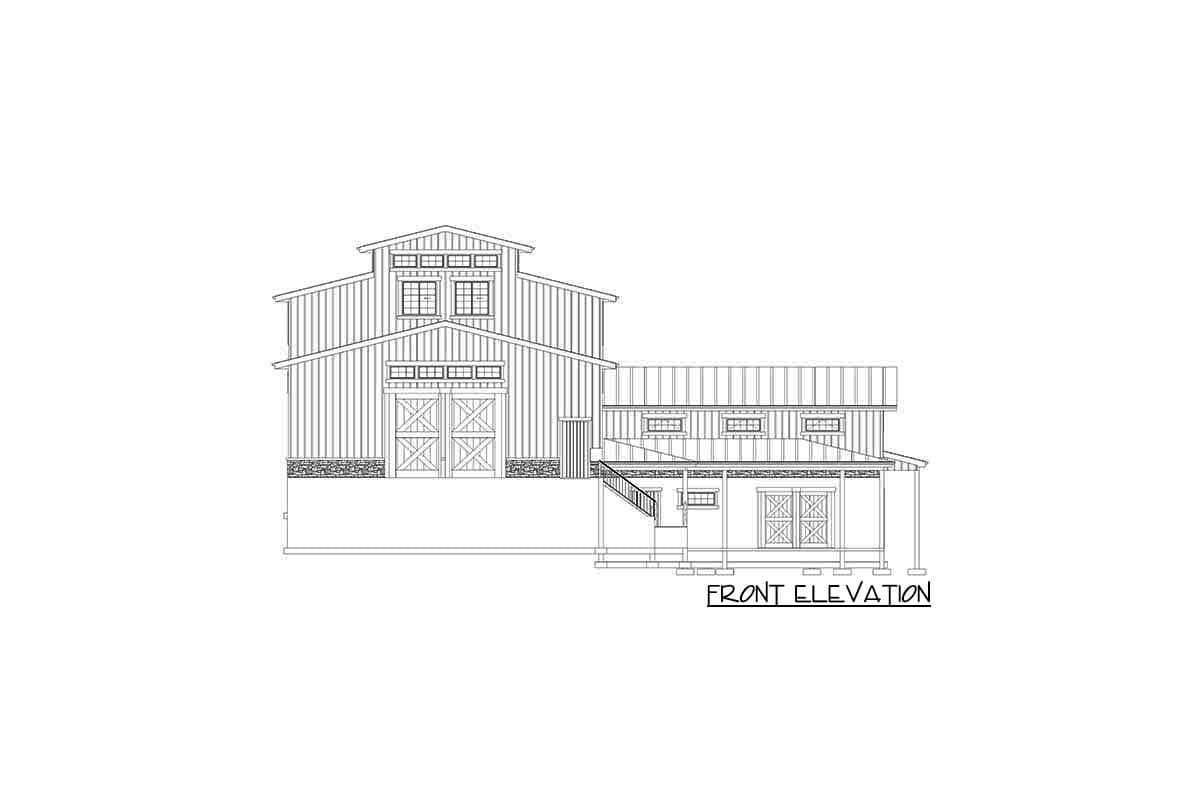

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Garage with Three Workshops, Office Space and a Working Kitchen

  • 1,947

    Heated s.f.

  • 0

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

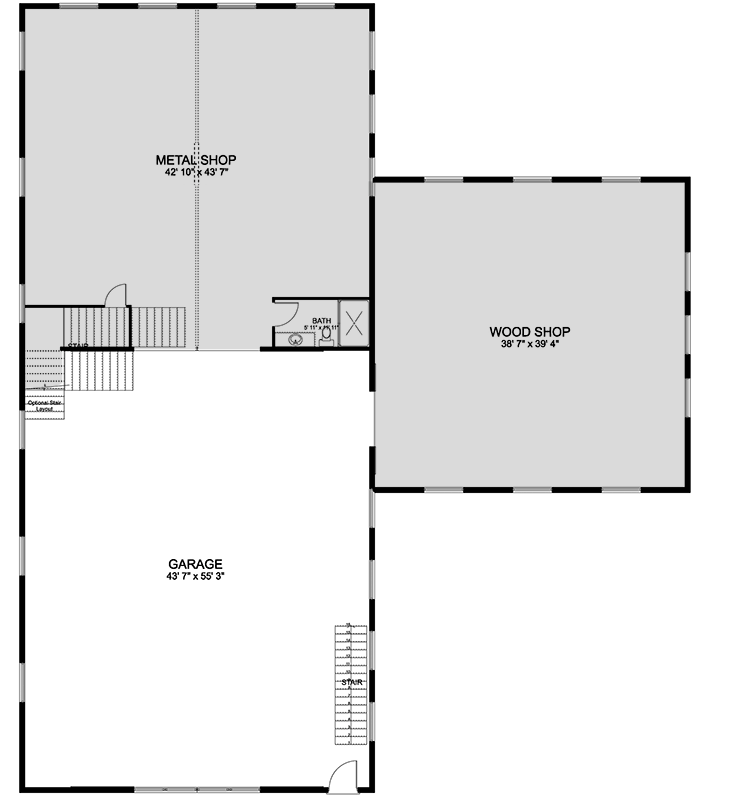

Floor Plan

  • Main Level

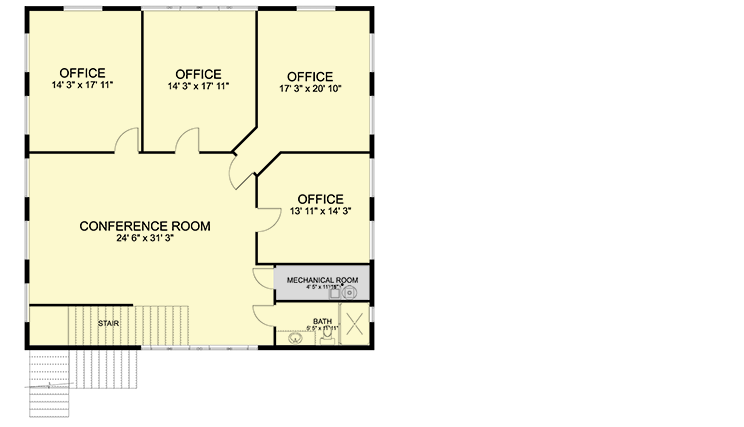

  • 2nd Floor

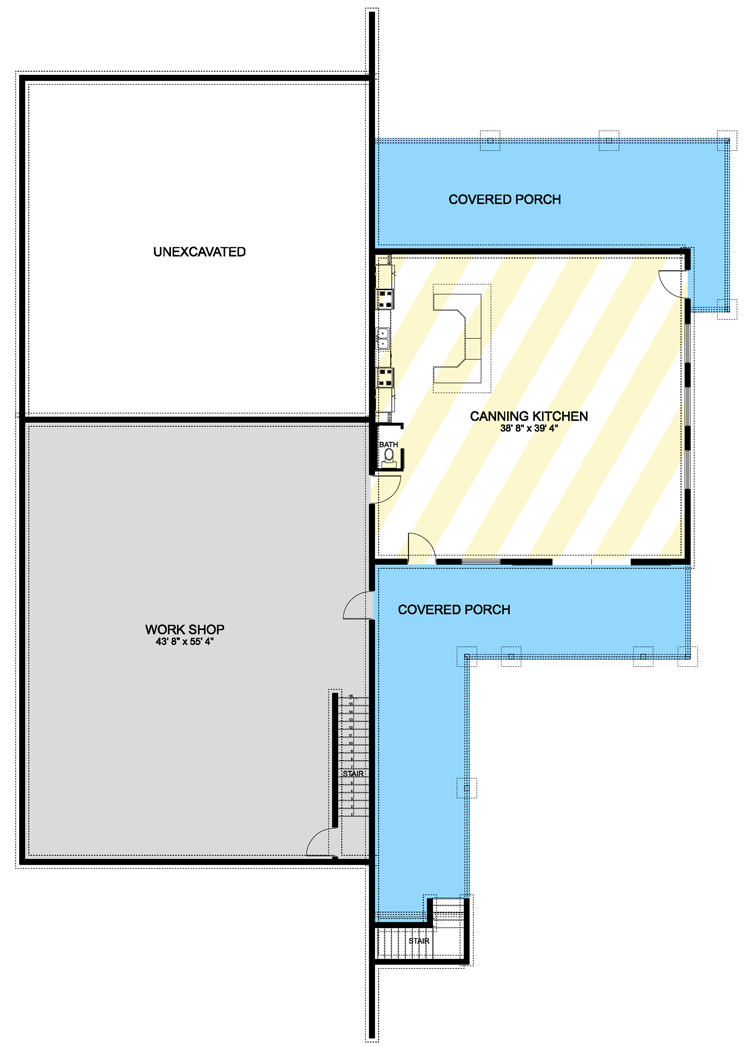

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,947 sq. ft.
  • 2nd Floor: 1,947 sq. ft.

Dimensions

  • Width: 85' 0"
  • Depth: 100' 0"
  • Max ridge height: 36' 0"

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Area: 6052 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 11' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
