Plan 61213UT Garage Workshop with Storage on the Main Level and Large Bonus Room Above

0 0 0.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Garage Workshop with Storage on the Main Level and Large Bonus Room Above

Plan 61213UT

  • 0

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 2

    Stories

  • 3

    Cars

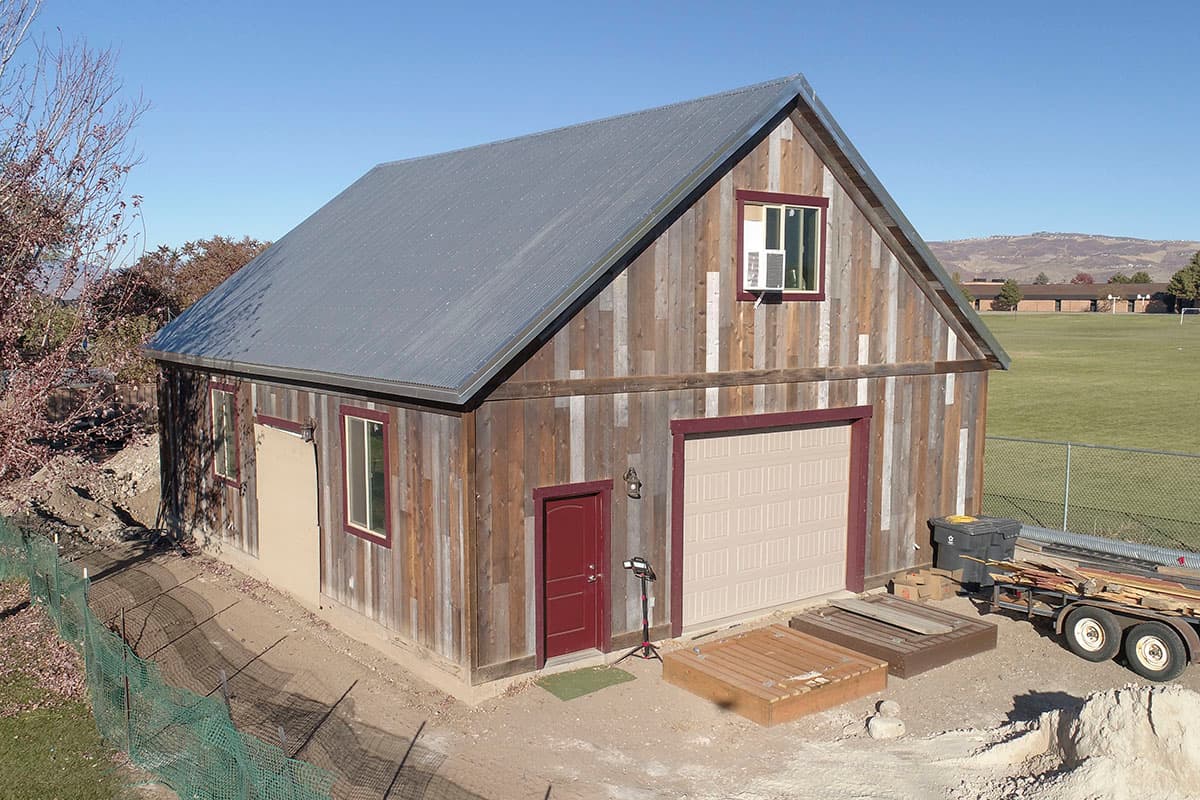

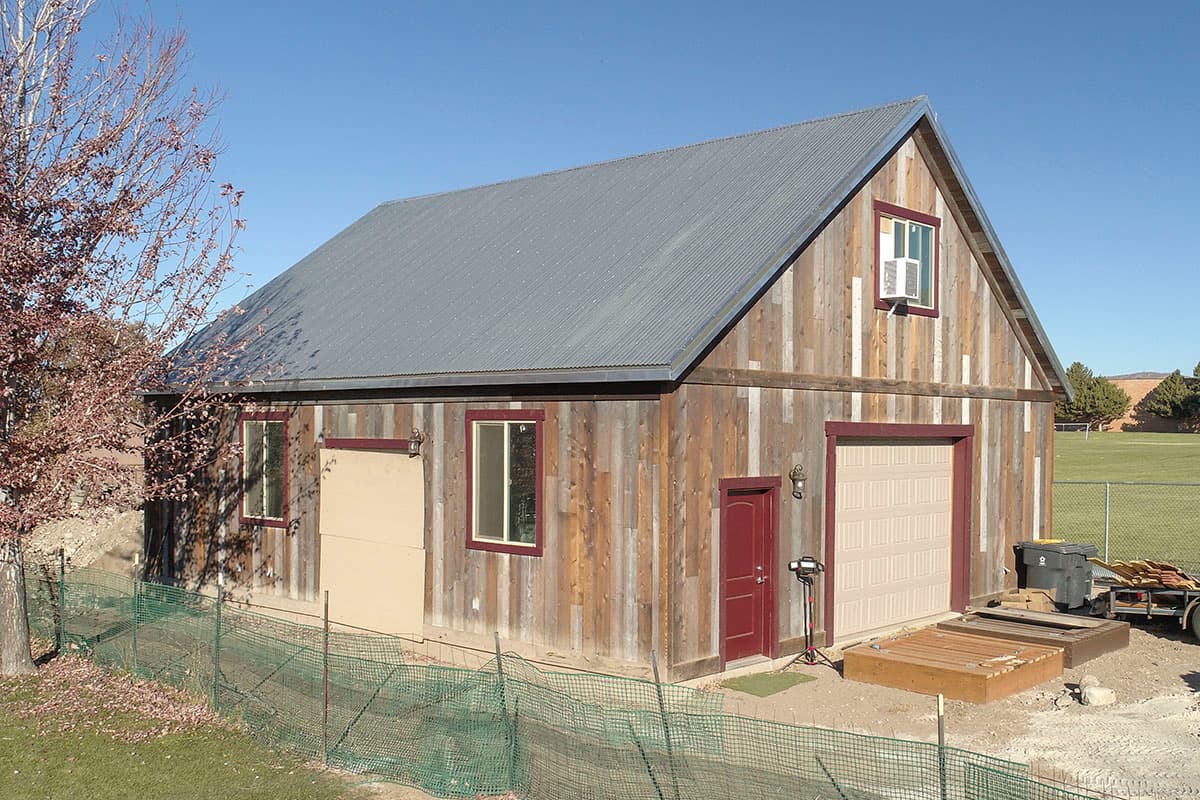

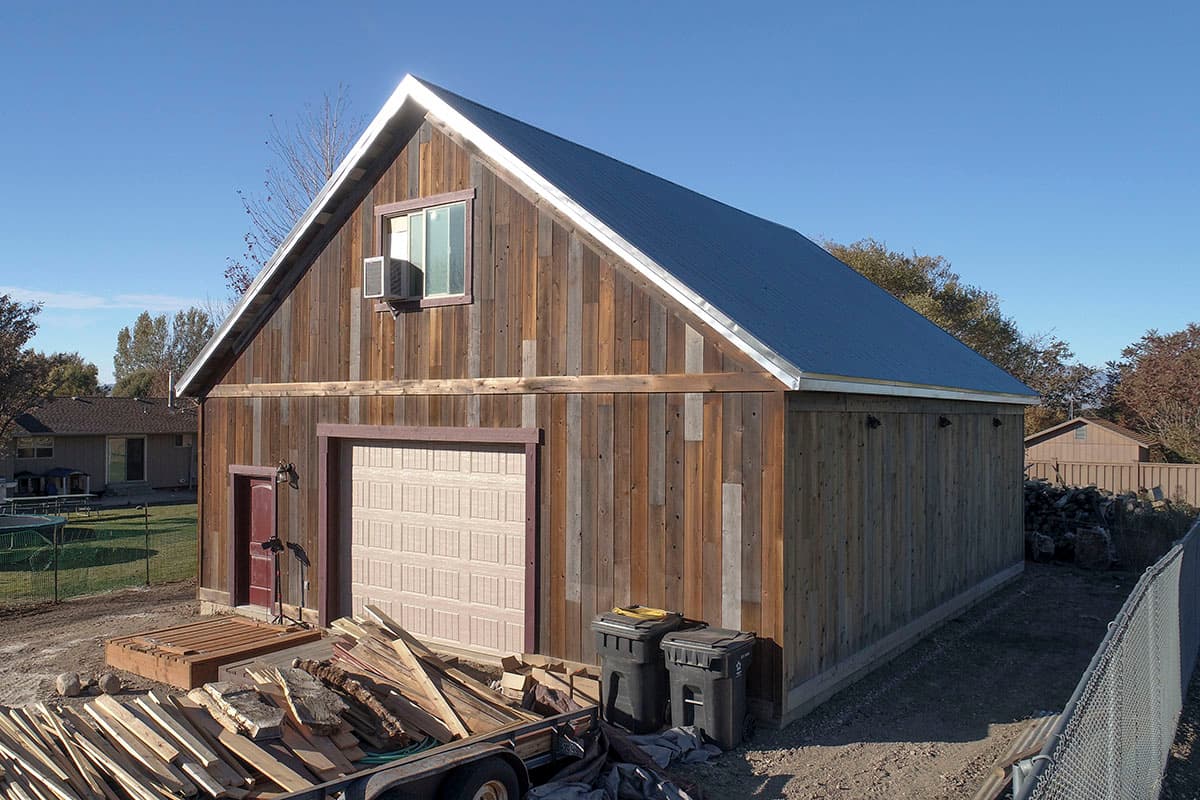

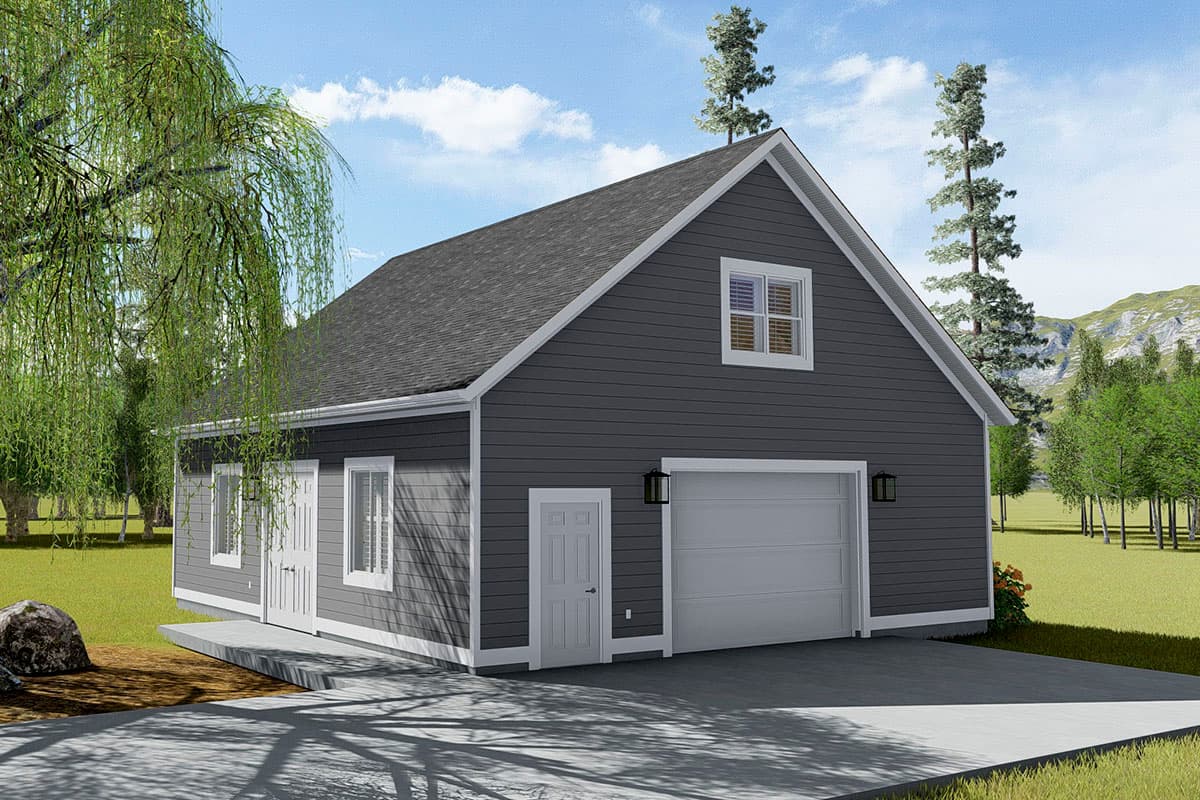

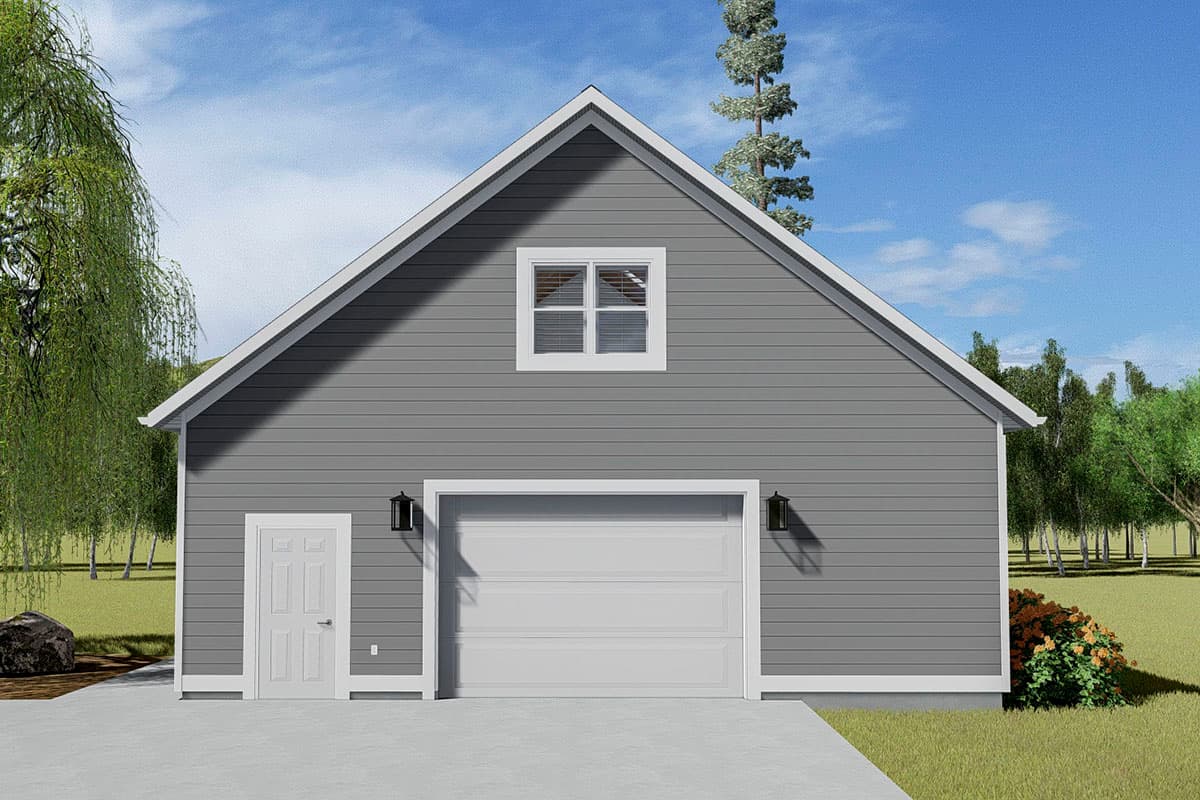

  • A 12' by 9' garage door gives your vehicles access to this detached garage plan. A pair of French doors - 6' by 8' - give you access on the side.

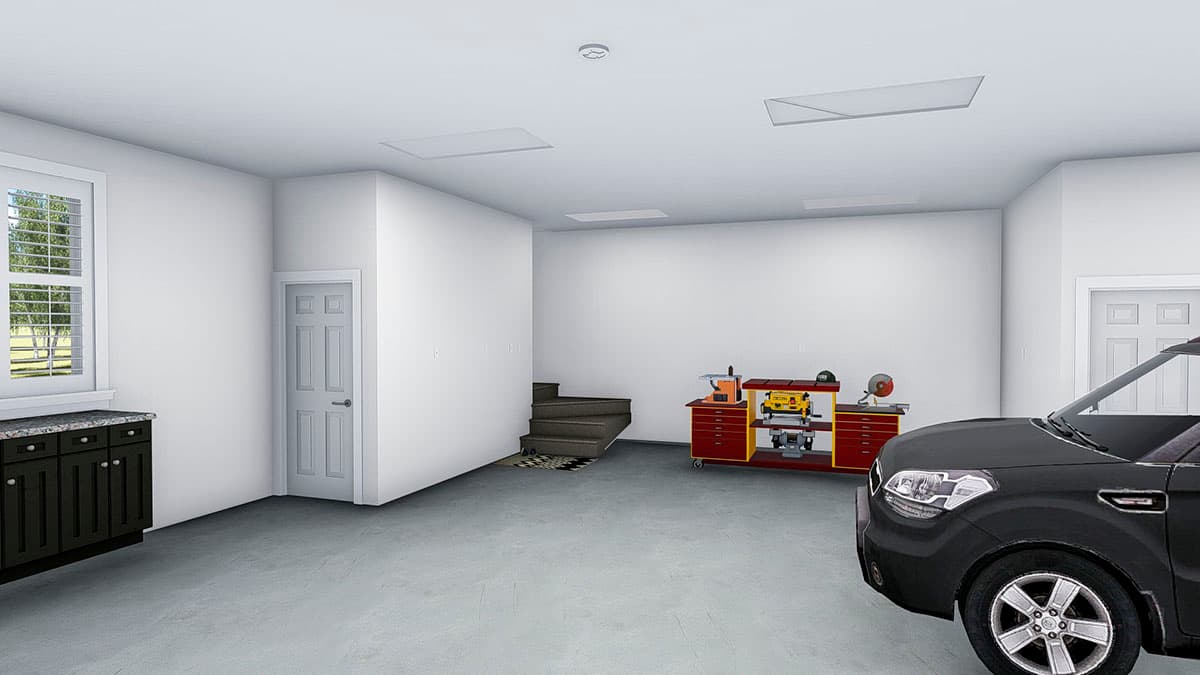

  • A dedicated storage room keeps your valuable equipment out of site and safely secured.

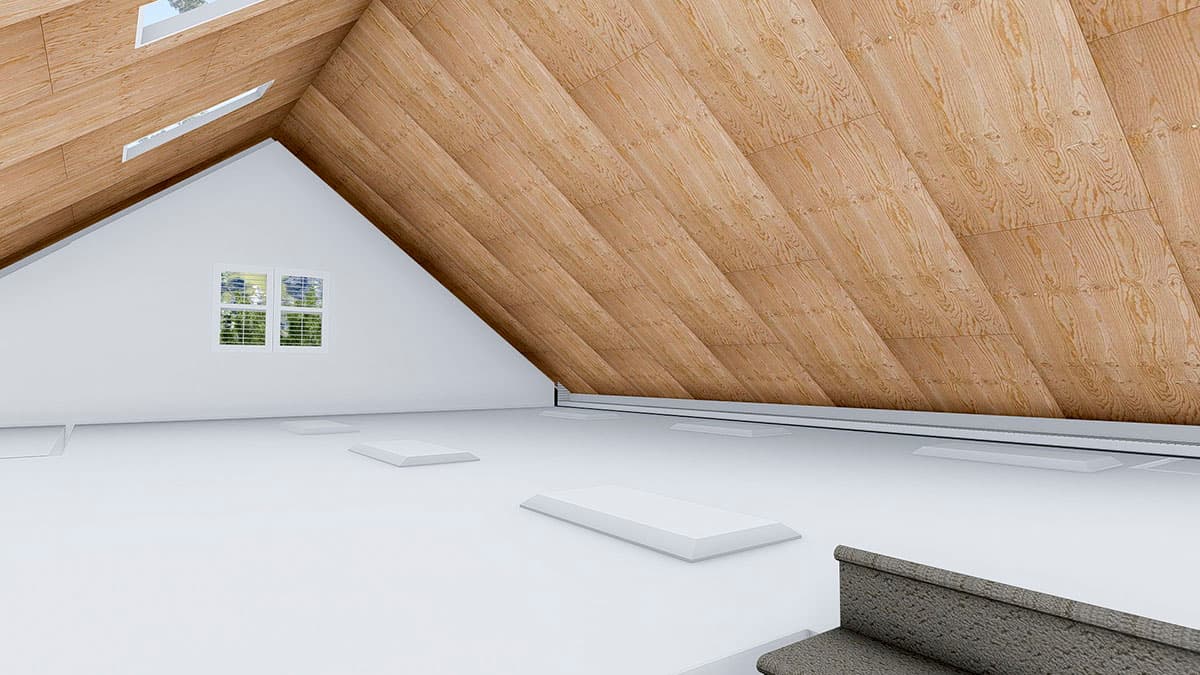

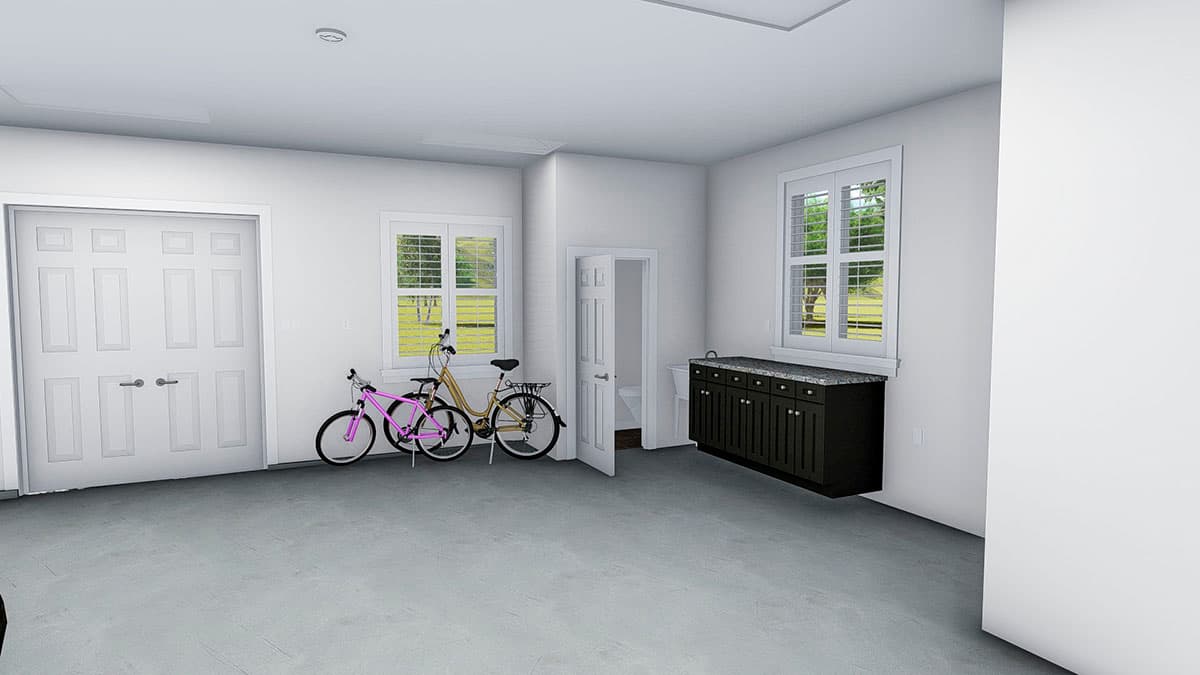

  • A sink with a private toilet is tucked in the corner. Stairs in the opposite corner take you to the large bonus area above.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

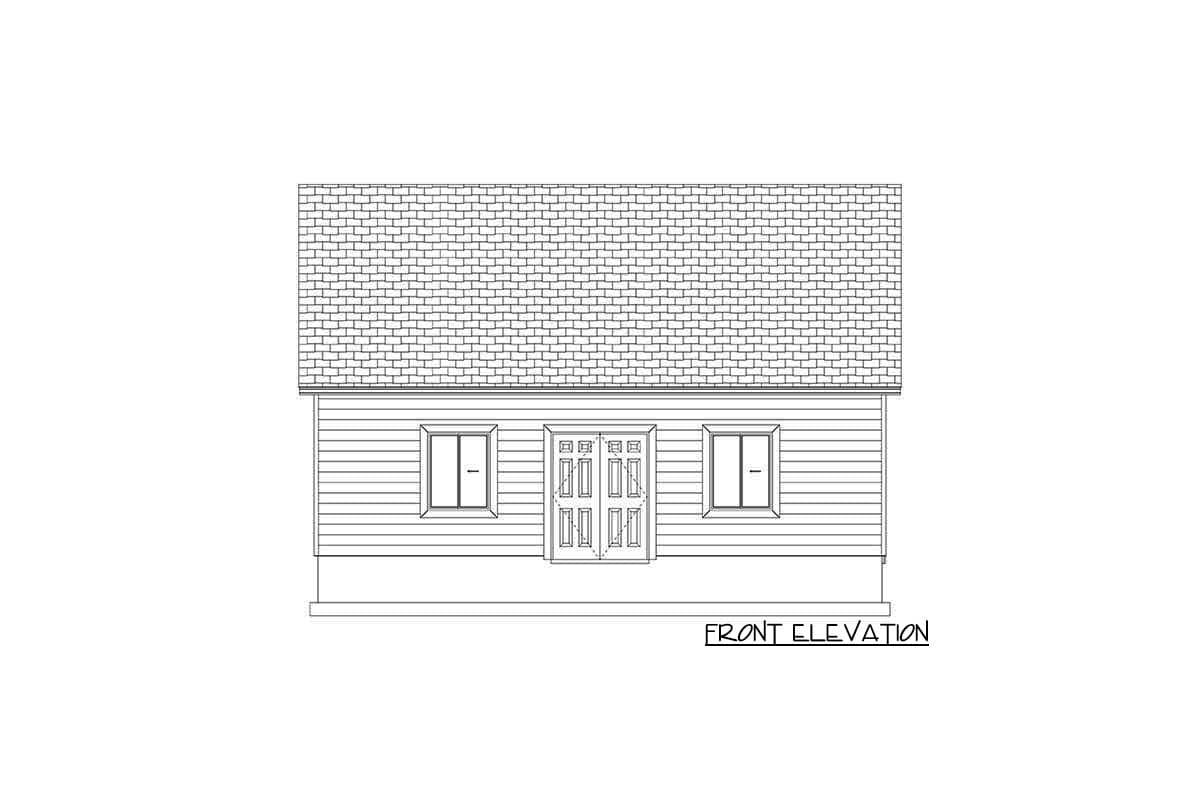

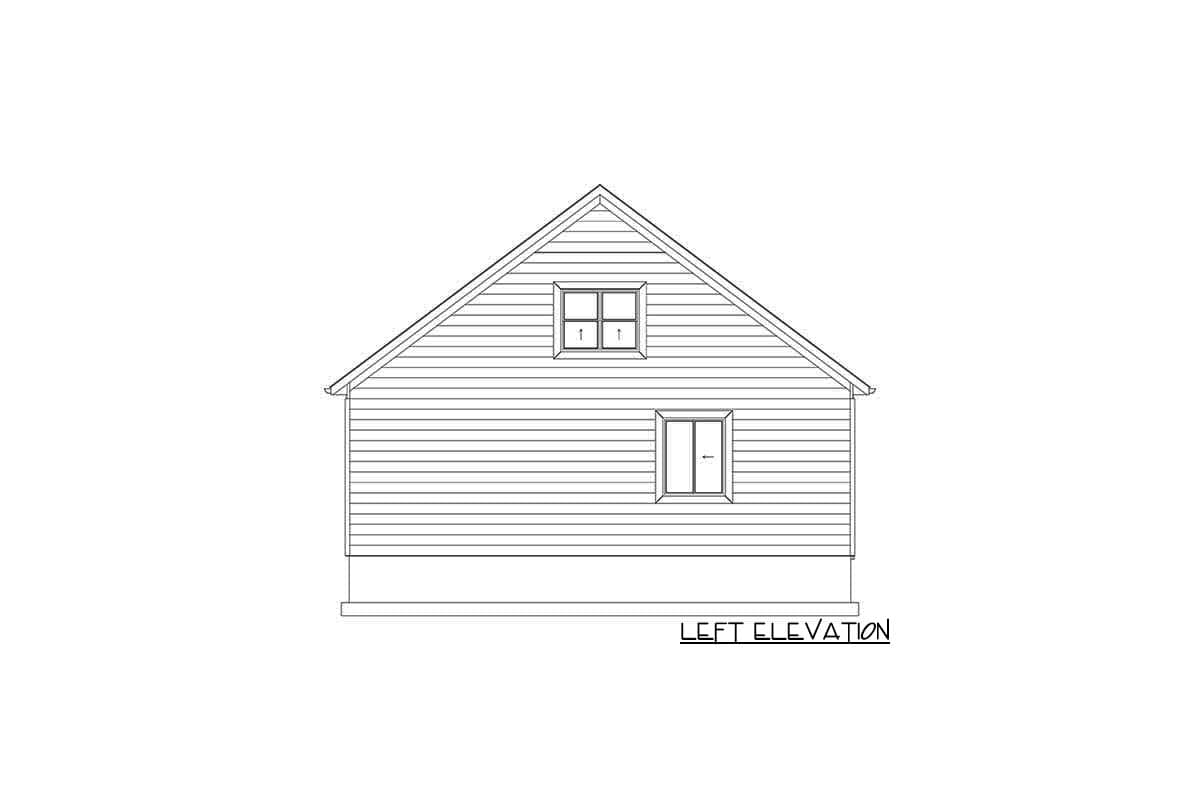

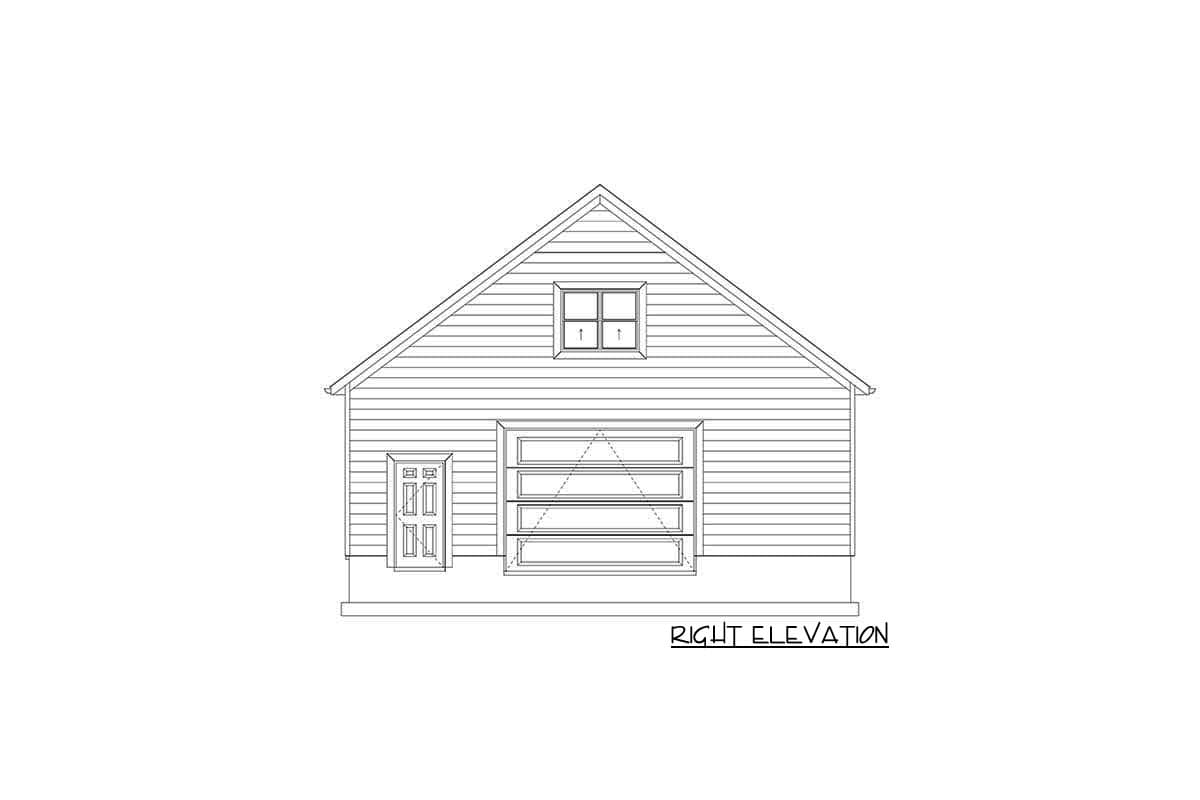

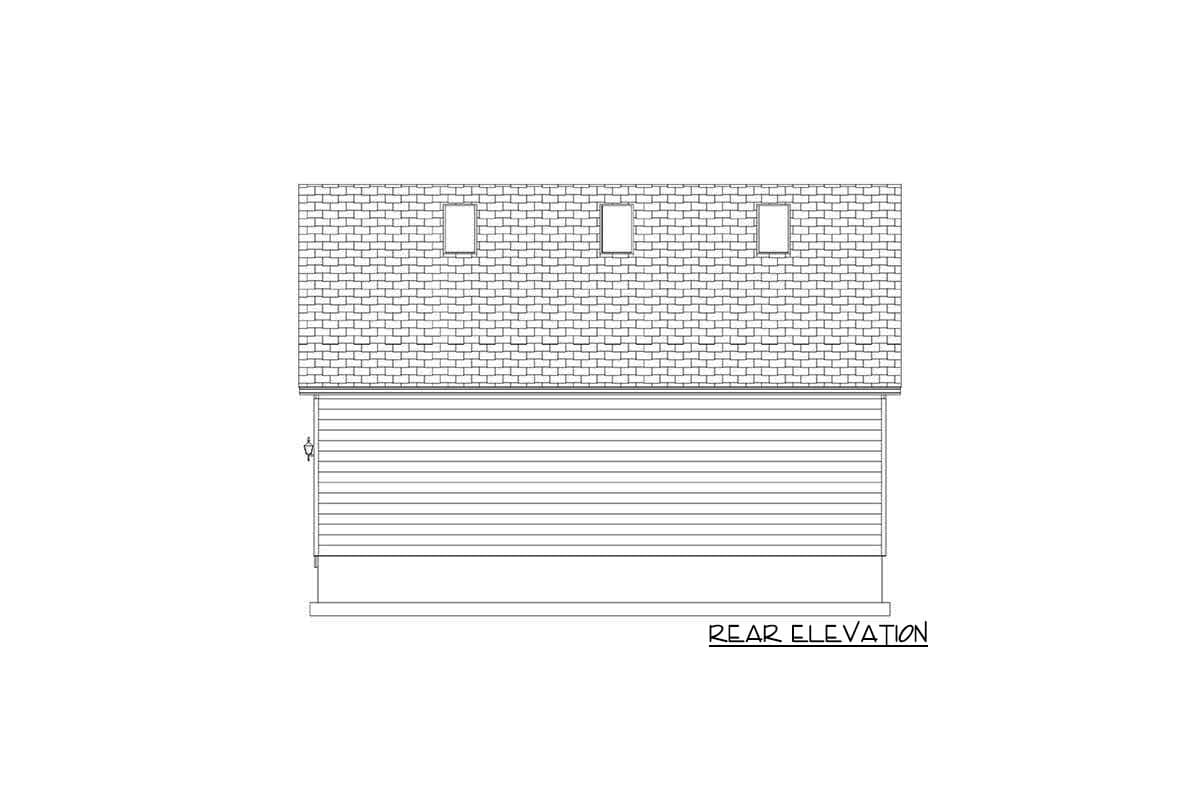

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

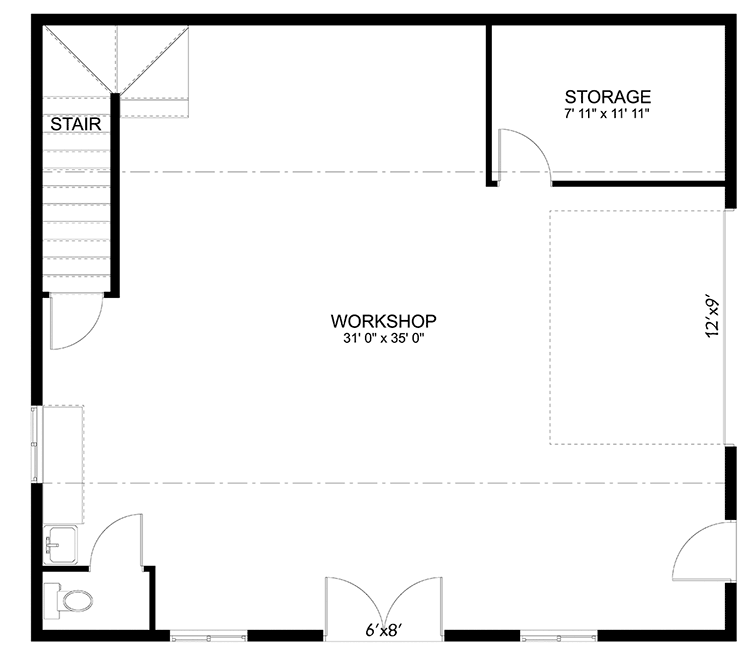

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Garage Workshop with Storage on the Main Level and Large Bonus Room Above - 61213UT floor plan - Main Level

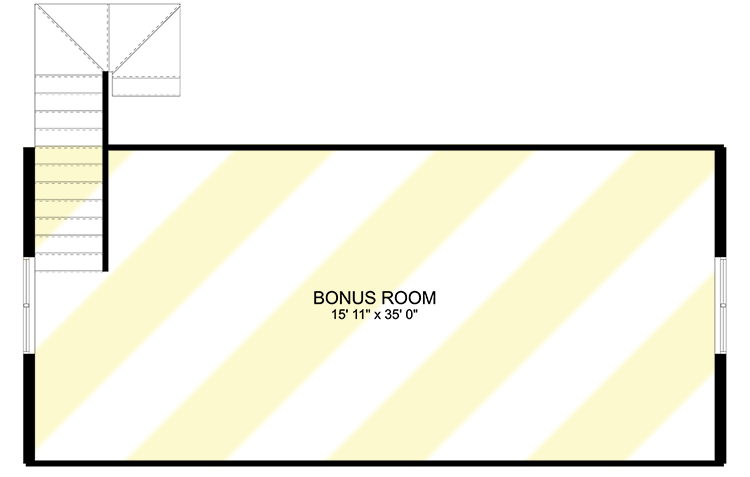

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Garage Workshop with Storage on the Main Level and Large Bonus Room Above - 61213UT floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Bonus: 597 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Stem Wall
  • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 32' 0"
  • Max ridge height: 23' 8"

Garage

  • Area: 1152 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Garage Workshop with Storage on the Main Level and Large Bonus Room Above

  • 0

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $575
  • PDF - Unlimited Build $725
  • 5 Sets + PDF $925
  • CAD - Single-Build $1,050
  • CAD Unlimited + PDF $1,175
  • View all purchase option online

About This Plan

  • A 12' by 9' garage door gives your vehicles access to this detached garage plan. A pair of French doors - 6' by 8' - give you access on the side.
  • A dedicated storage room keeps your valuable equipment out of site and safely secured.
  • A sink with a private toilet is tucked in the corner. Stairs in the opposite corner take you to the large bonus area above.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Bonus: 597 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 32' 0"
  • Max ridge height: 23' 8"

Garage

  • Area: 1152 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
Plan 61213UT
View this and more for this plan by visiting www.architechtecturaldesigns.com/61213UT
|
