Plan 70616SND

Gorgeous Bungalow House Plan with Bonus Office Above Garage - 2430 Sq Ft

Heated S.F.
2,430
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 70616SND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 70616SND

M-F 9am-5pm EST |

1-203-761-8500

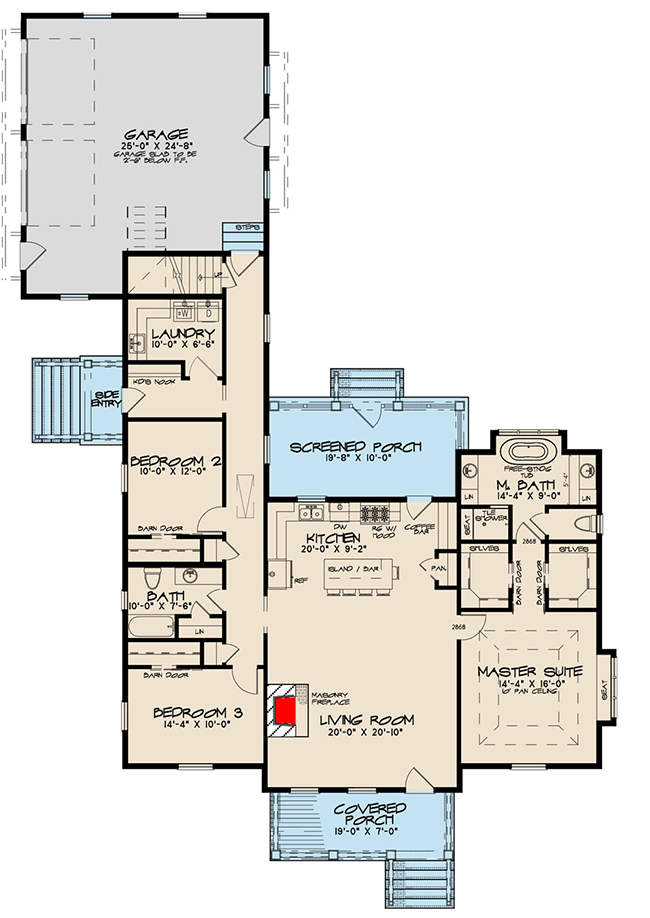

Main Level

Plan 70616SND: Gorgeous Bungalow House Plan with Bonus Office Above Garage - 2430 Sq Ft - Floor Plan - Main Level - Country, Southern, Traditional

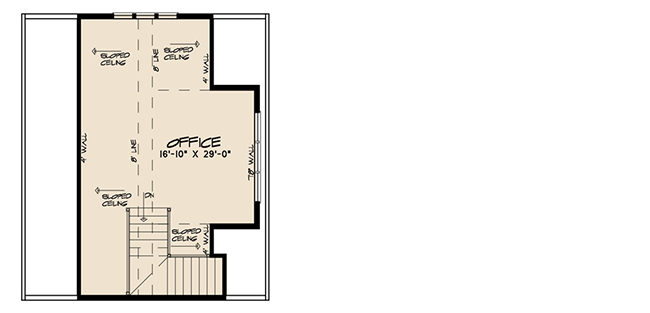

2nd Floor

Plan 70616SND: Gorgeous Bungalow House Plan with Bonus Office Above Garage - 2430 Sq Ft - Floor Plan - 2nd Floor - Country, Southern, Traditional

Plan Details

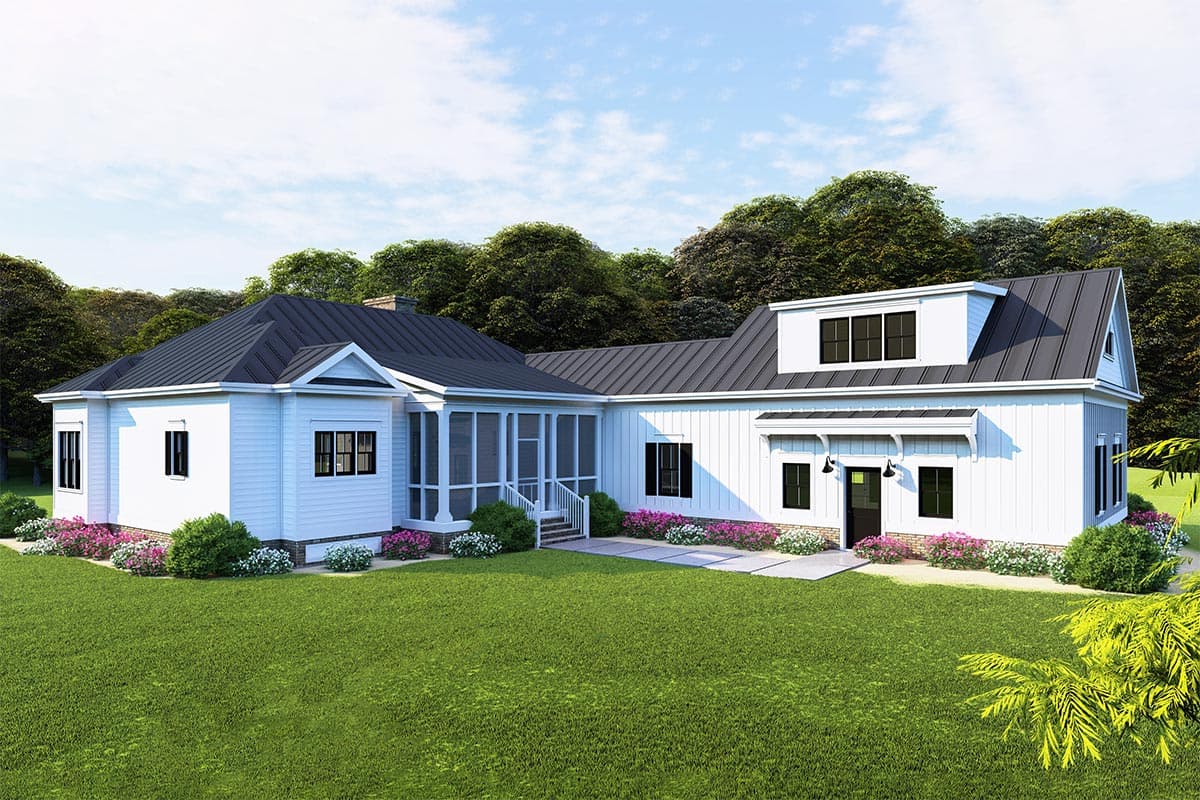

  • This beautiful bungalow exudes farmhouse charm with the eye-catching dark window sashes and shutters against bright-white siding, a welcoming front porch, and a modern metal roof.
  • The formal entry leads into an open-concept layout, combining the living room and kitchen. A central island with seating stands between the two rooms, and a must-have coffee bar sits next to the pantry.
  • The fully-appointed master suite is privately situated on the right side of the home and boasts a tray ceiling, dual closets, and a bathroom with a toilet room, standalone tub and shower, and two vanities.
  • Two additional bedrooms are located on the other side of the home and share a full bathroom. The 2-car garage is located towards the back of the home with entry from the left side. A second, side entrance leads to a mudroom, and makes this a great home for a corner lot.
  • Above the garage, resides a quiet, flex space which could be an office for the work-at-home resident.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,430 sq. ft.

1st Floor

1,988 sq. ft.

2nd Floor

442 sq. ft.

Porch, Combined

373 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 6"

Depth

88' 10"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

703 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office
