Gorgeous Coastal Contemporary House Plan with Cabana Above 3-Car Garage - 4630 Sq Ft
Heated S.F.
4,630
Beds
5
Baths
5.5+
Stories
2
Cars
3
Floor Plan

Plan 66331WE

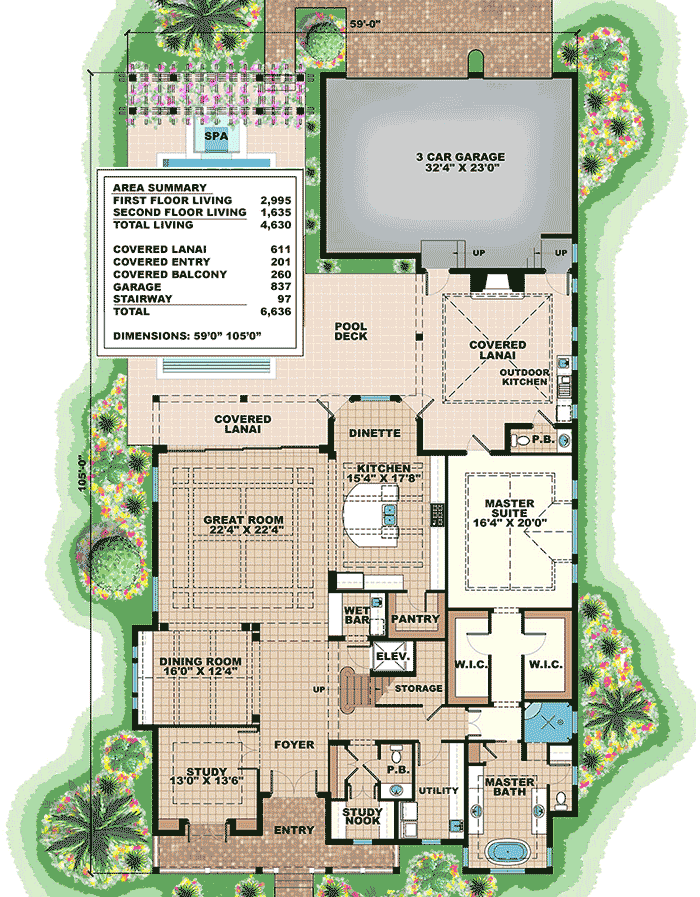

Main Level
slide image 0
2nd Floor
slide image 1

Plan 66331WE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

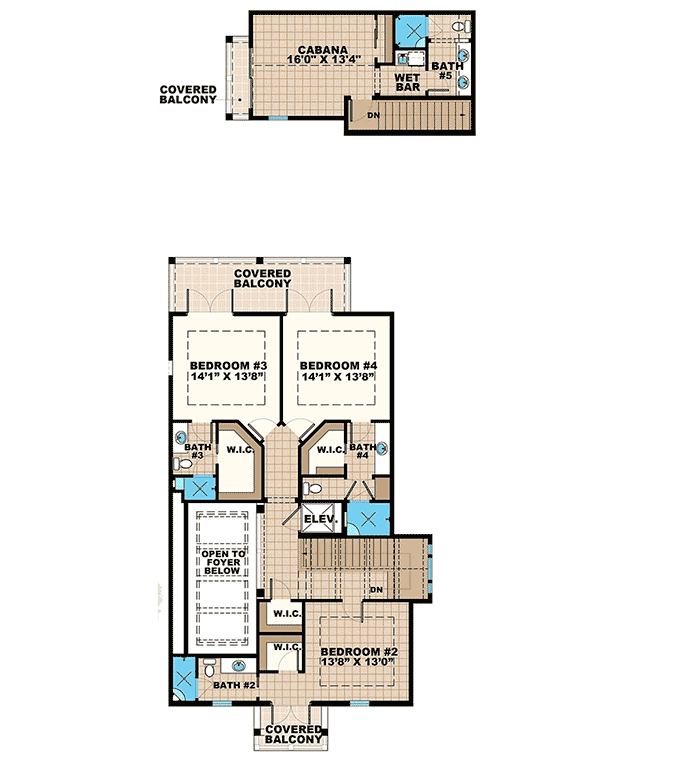

2nd Floor
floor plan image 2nd Floor
Plan Details
  • From top to bottom, the detailing in this luxurious Coastal Contemporary house plan will take your breath away.
  • The standing seam metal roof provides a lovely accent and draws attention to the decorative detailing.
  • You couldn't ask for a better layout, with a quiet study off the foyer and a huge open living space in back.
  • Beamed, coffered and vaulted ceilings crown most of the main rooms.
  • A wet bar and residential elevator are upscale perks that announce that this is truly a custom home.
  • The master suite also has a stunning ceiling treatment and a door to the outdoor living space in back with its summer kitchen, outdoor fireplace and pool bath.
  • Stairs in the garage lead up to a cabana guest suite with its own wet bar and covered balcony.
  • All the bedrooms on the second floor have access to covered balconies through grand double doors.
  • An open rail balcony looks down into the spacious open foyer below.
  • NOTE: This plan is not available to build in Collier County, Florida. Contact us for details.
