Graceful Arched Entry

Plan 48370FM

  • 2,013

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • An arched entry door guides you into this charming European home plan with a shed dormer.
  • The great room is huge with a warm fireplace as the focal point.
  • A raised eating bar in the kitchen encourages informal meals and gives your guests a place to chat with the family chef while dinner is cooking.
  • Both a whirlpool tub and walk-in shower can be found in the deluxe master bath, along with double sinks.
  • Two guest bedrooms lie on the opposite side of the house with Bedroom 2 enjoying a bay window.

Each plan set includes the following:

  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

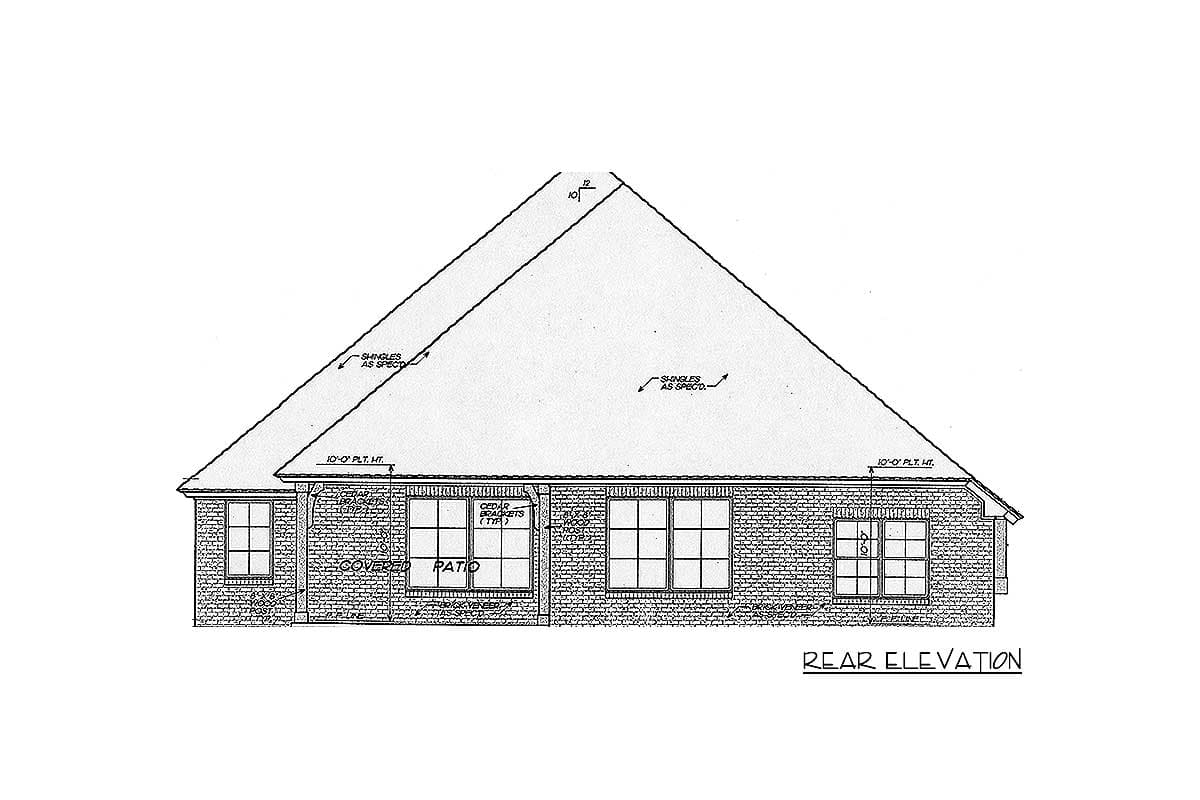

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section


Floor Plan

Plan details



Graceful Arched Entry

  • 2,013

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $990
  • 5 Sets $1,045
  • 8 Sets $1,185
  • Reproducible Set $1,335
  • PDF - single-use $1,335
  • CAD $2,015
  • View all purchase option online

About This Plan

  • An arched entry door guides you into this charming European home plan with a shed dormer.
  • The great room is huge with a warm fireplace as the focal point.
  • A raised eating bar in the kitchen encourages informal meals and gives your guests a place to chat with the family chef while dinner is cooking.
  • Both a whirlpool tub and walk-in shower can be found in the deluxe master bath, along with double sinks.
  • Two guest bedrooms lie on the opposite side of the house with Bedroom 2 enjoying a bay window.

Floor Plans

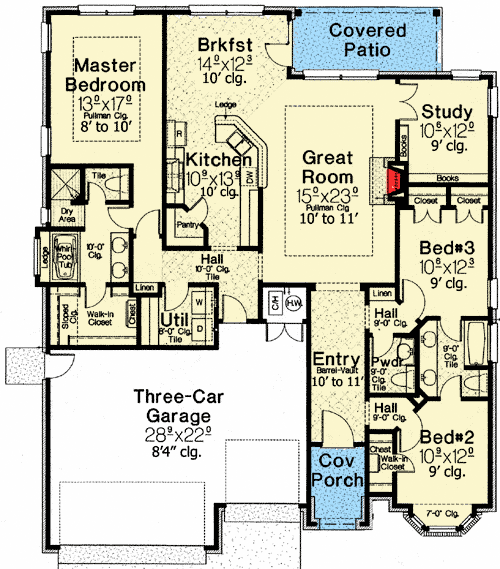

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,013 sq. ft.
  • 1st Floor: 2,013 sq. ft.
  • Porch, Combined: 60 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 60' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 661 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

  • European
  • Traditional

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • PDF
  • Split Bedrooms

Plan Collections
