Gracious European House Plan with Front Courtyard
Heated S.F.
3,752
Beds
5
Baths
5
Stories
2
Cars
3
What's Included
Plan Details
  • This European house plan has a stately and gracious presence plus lots of amenities your family will love.
  • A vaulted ceiling tops the large living room that has a two-way fireplace shared by the keeping room.
  • 10' high ceilings are standard on the first floor.
  • The huge rear porch has plenty of room for table and chairs plus your grill.
  • The gorgeous master suite is set off by itself in the back of the home and boasts a sitting room, tray ceiling and a corner fireplace.
  • Every one of the five bedrooms comes with a walk-in closet.
  • A media room on the second floor will be a family favorite.
What's Included
This plan has 10 sheets as follows:
  1. Coversheet Color Rendering

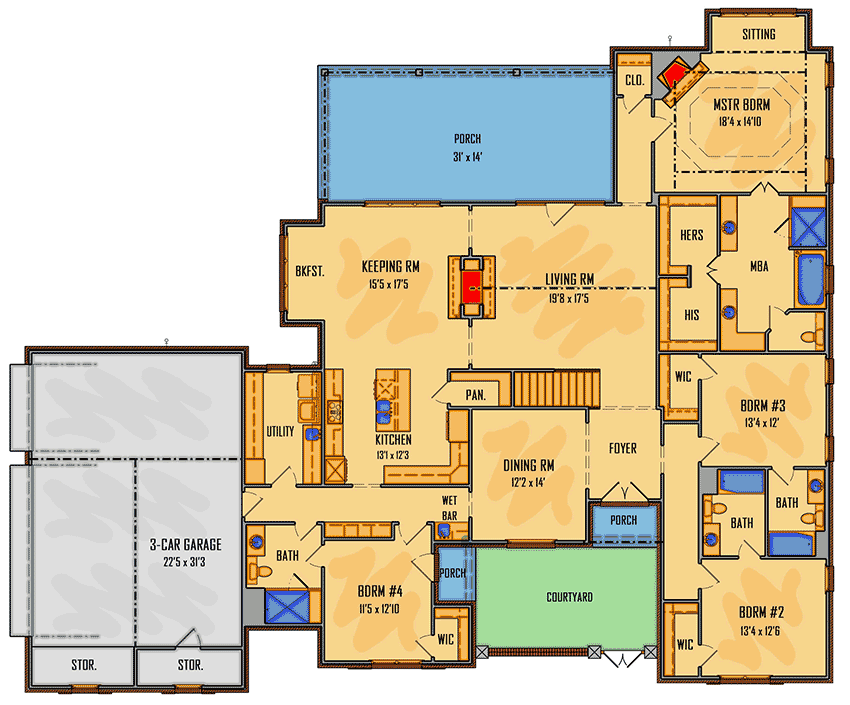

  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

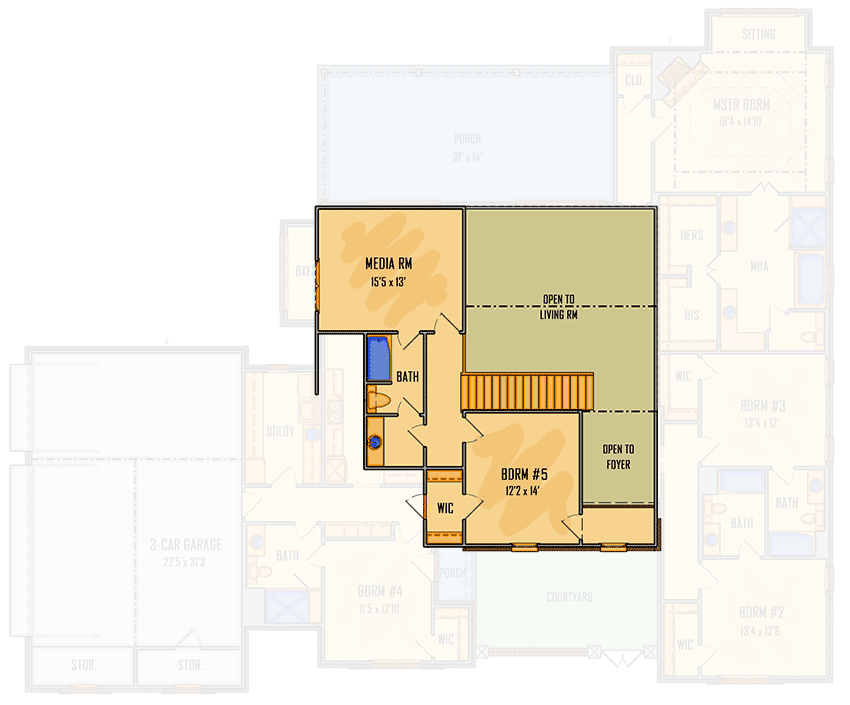

  3. 2nd Floor Plan with Notes and Stair Details

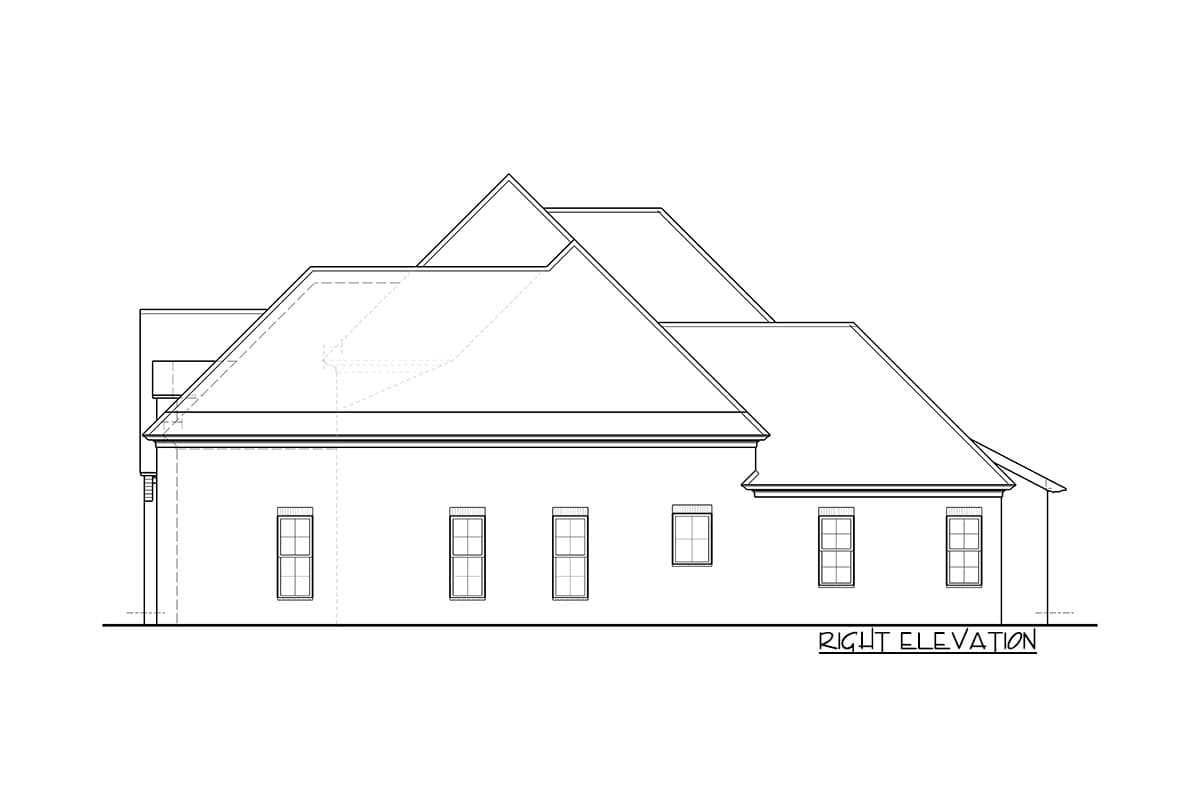

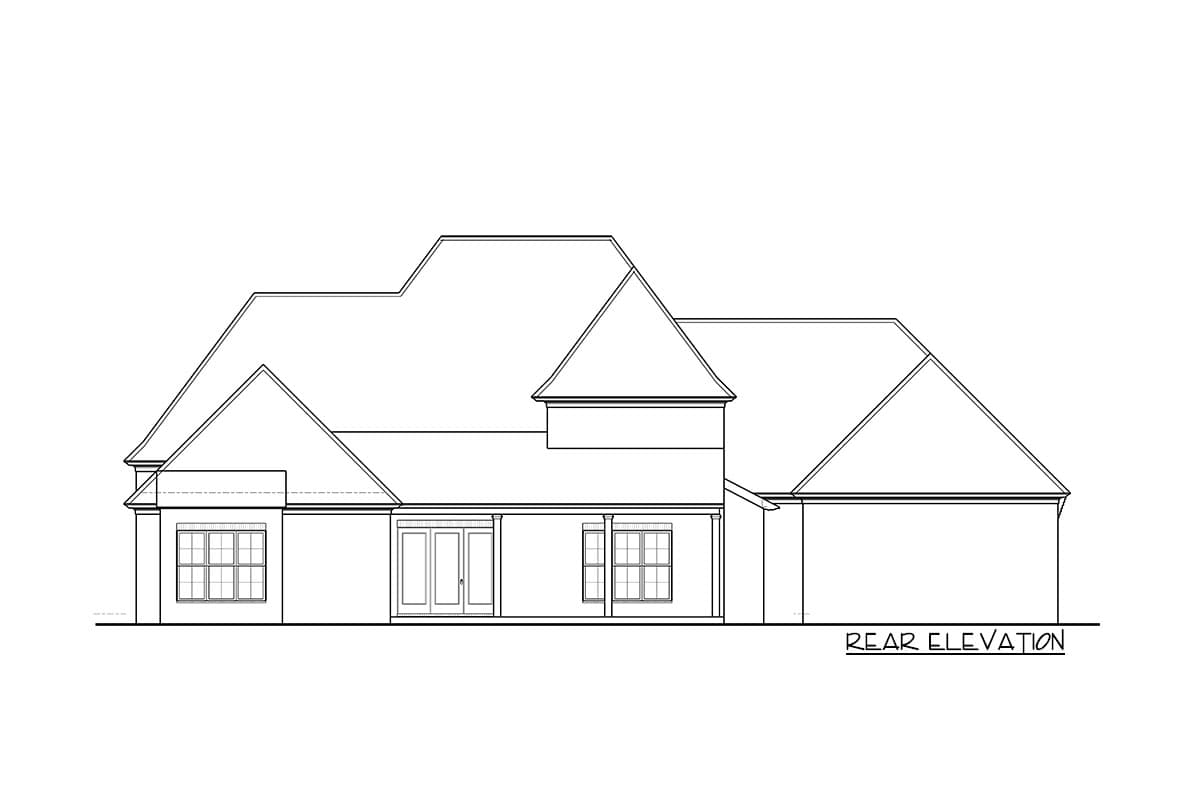

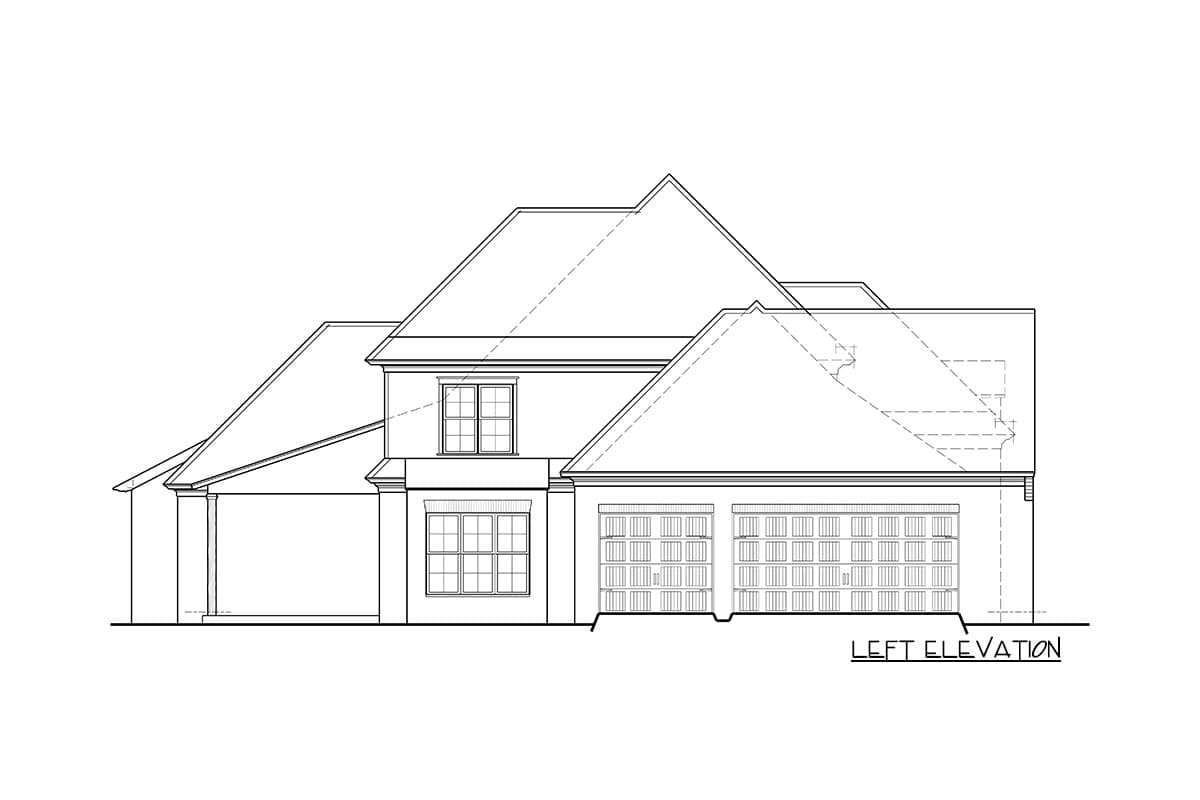

  4. Front, Left, Rear, Right Sides and Dormer Details
  5. Building Sections, Roof Plan, Cornice Details
  6. Rafter Schedule / Misc. Details
  7. First Floor Electrical Plans and Schedule
  8. Second Floor Electrical Plans and Schedules
  9. Slab Foundation
  10. Slab Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Gracious European House Plan with Front Courtyard

  • 3,752

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,752 sq. ft.
  • 1st Floor: 3,158 sq. ft.
  • 2nd Floor: 592 sq. ft.

Dimensions

  • Width: 86' 2"
  • Depth: 72' 10"
  • Max ridge height: 35' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5

Garage

  • Type: Attached
  • Area: 821 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
