Gracious Facade

Plan 77611FB

  • 1,961

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • An elegant hip roof and sheltered front porch give this Southern house plan its gracious facade.
  • The open floor plan expands the main living area, making it feel huge.
  • From the kitchen sink, you can see the living room fireplace and large rear porch.
  • A walk-in storage pantry lies close by, along with the laundry room so you can keep things moving without going far.
  • The split bedroom configuration separates the master suite from the family bedrooms.
  • Note the generous size of bedroom 3 with its walk-in closet.

The plan includes:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan

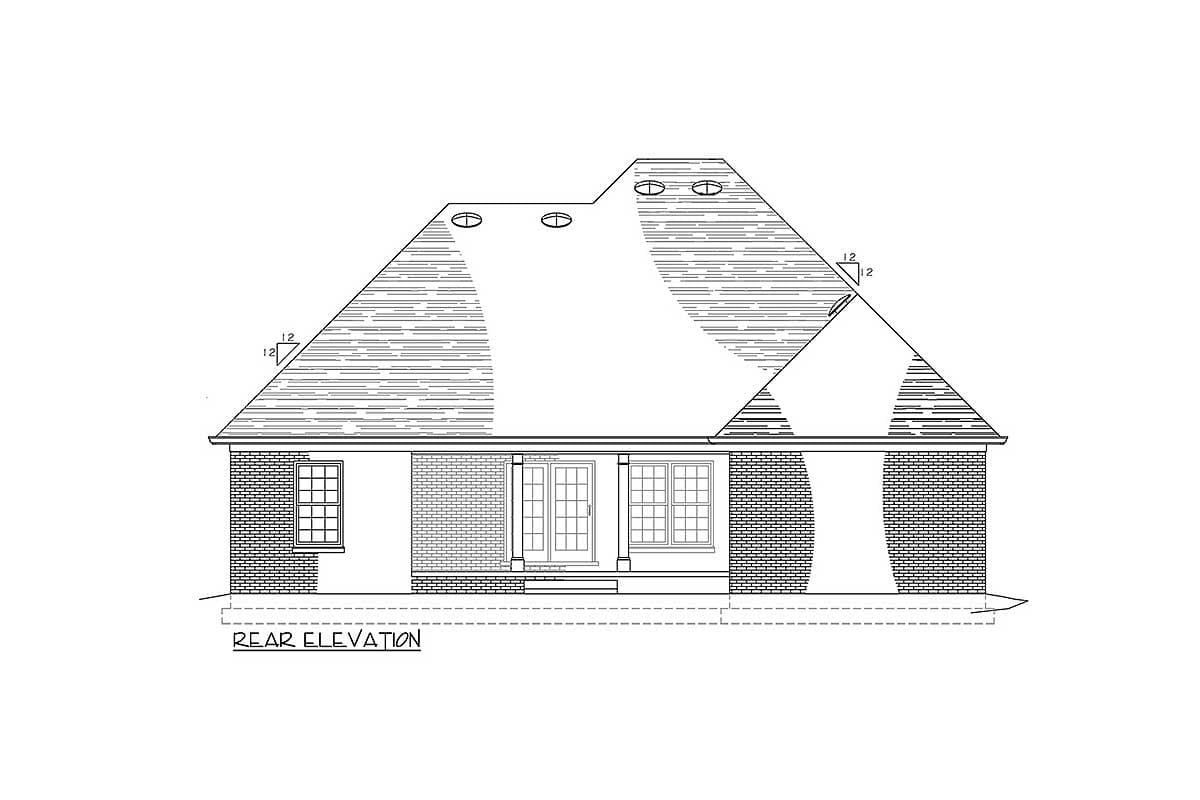

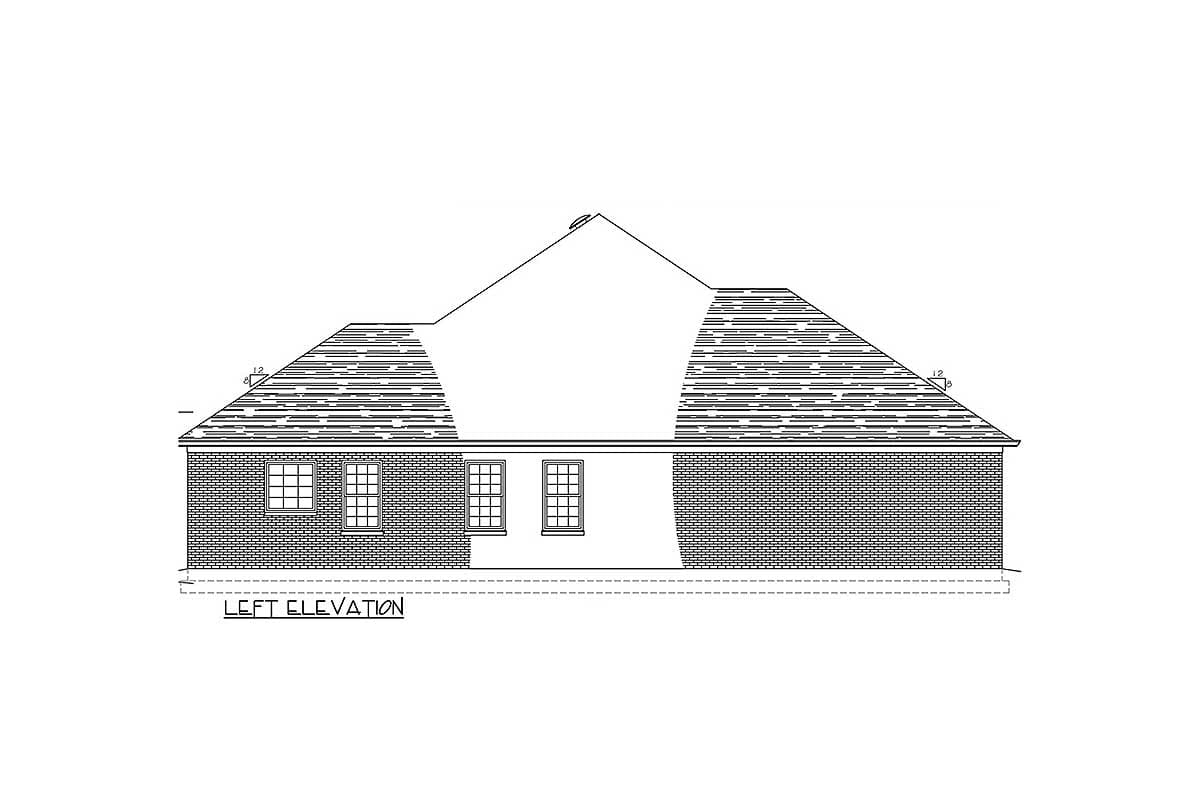

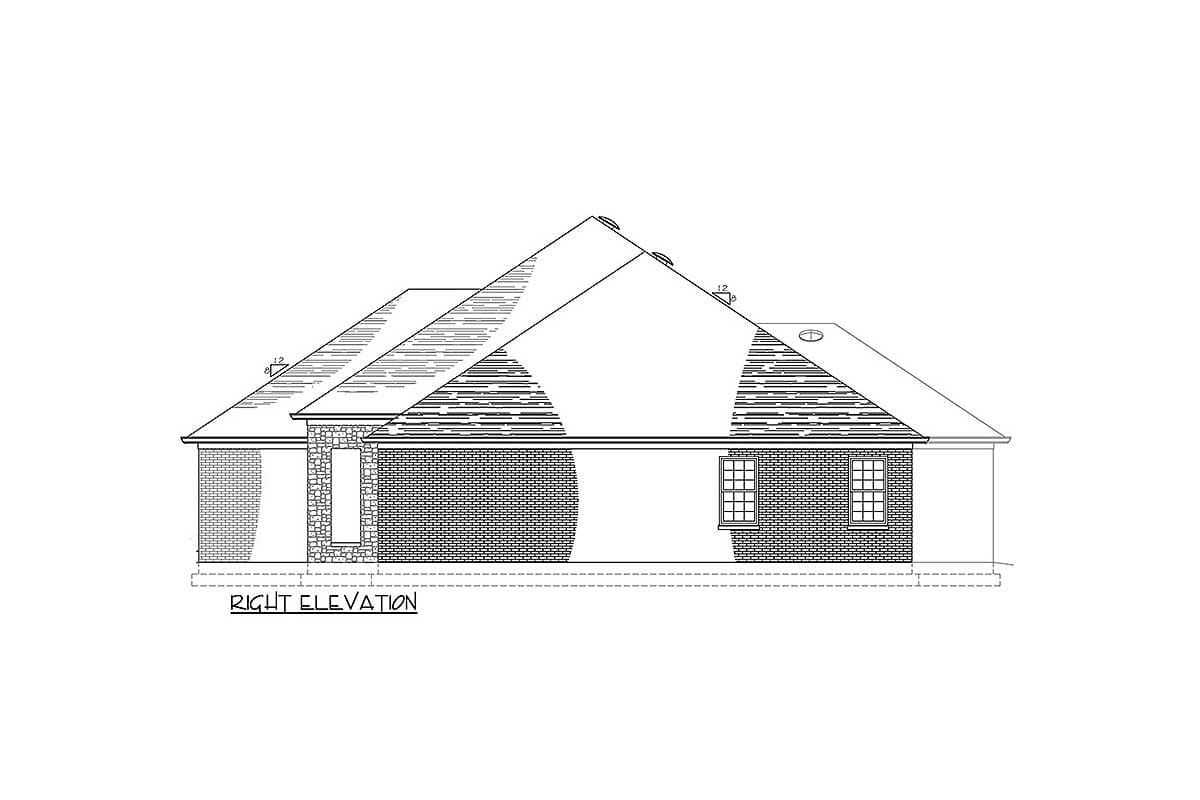

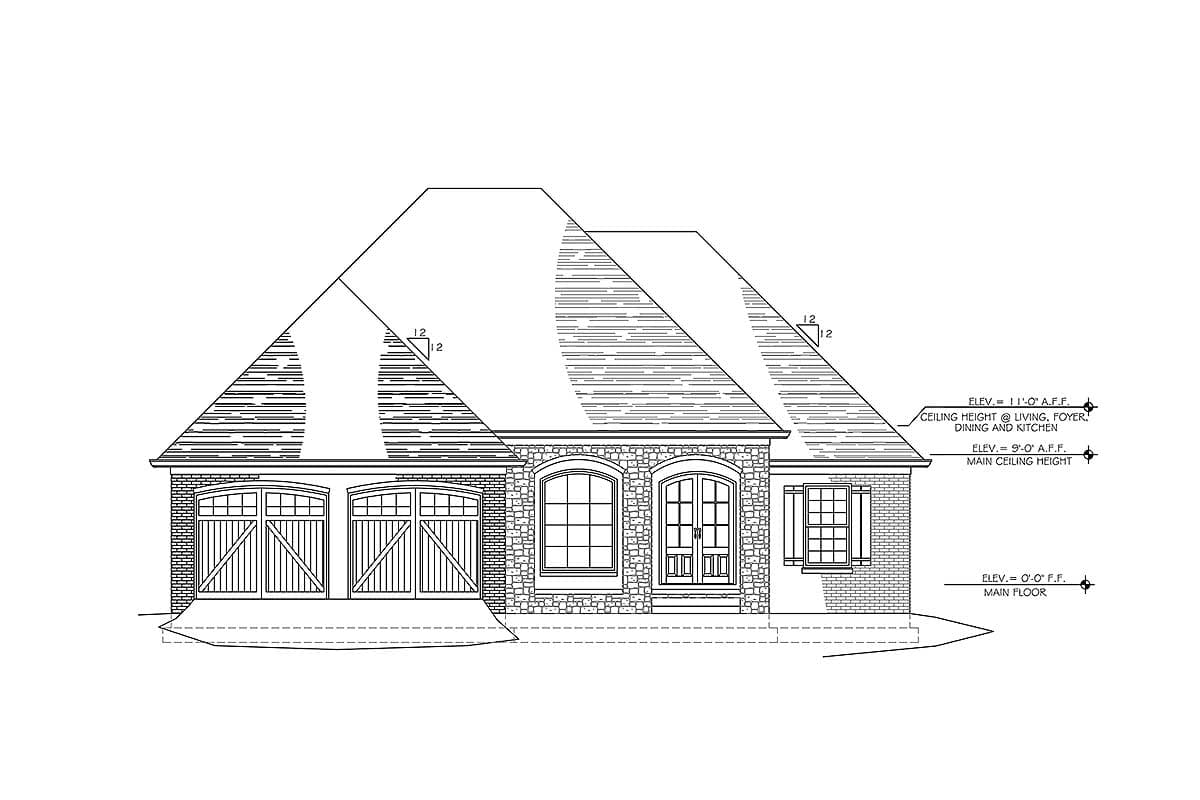

  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally whe

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

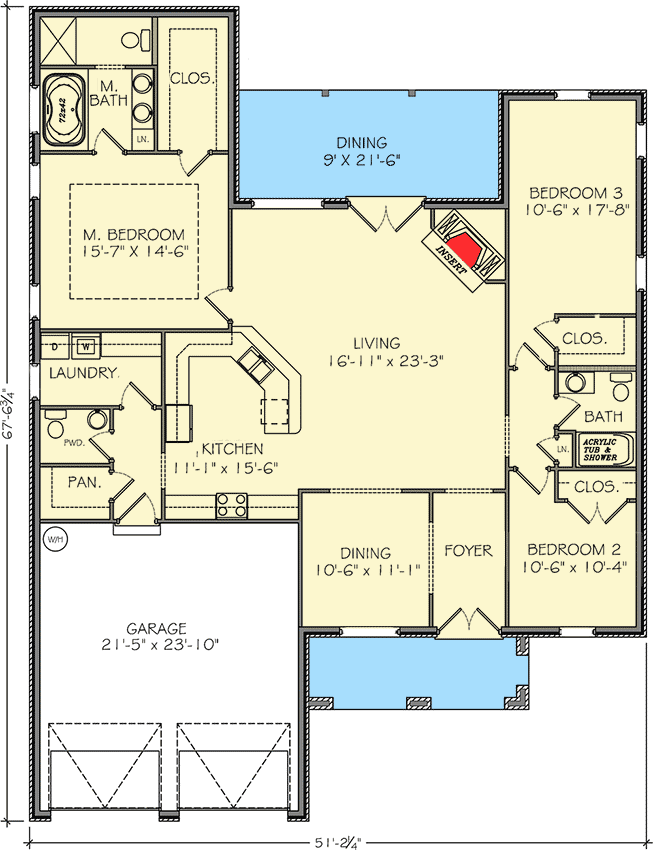

Gracious Facade - 77611FB floor plan - Main Level

Gracious Facade

  • 1,961

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,961 sq. ft.
  • 1st Floor: 1,961 sq. ft.

Dimensions

  • Width: 51' 2"
  • Depth: 67' 6"
  • Max ridge height: 29' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 541 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick And Truss
