Gracious Lodge Home Plan

Plan 11576KN

  • 7,597

    Heated s.f.

  • 6

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • A craftsman exterior graces this mountain lodge home plan with three levels of living space.
  • A covered entry shelters you and makes a grand statement at the same time.
  • Both the formal dining room and the private study that flank the foyer have tray ceilings and fireplaces.
  • A massive great room with wet bar and yet another fireplace, opens to the deck in the rear.
  • The first floor master suite also enjoys views from its private deck with a bayed sitting area close by.
  • The master bath is enormous, as is the compartmented walk-in closet.
  • Garages to house 4 cars can be found on the main floor and the lower level, with extra space for storage.
  • Each bedroom on the second floor has its own bath, walk-in closet and sitting area or even sitting room.
  • A favorite gathering spot will be the lower level with its exercise room complete with sauna for those sore muscles.
  • Wine enthusiasts will appreciate the large wine cellar and two extra bedrooms can house your overnight guests.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

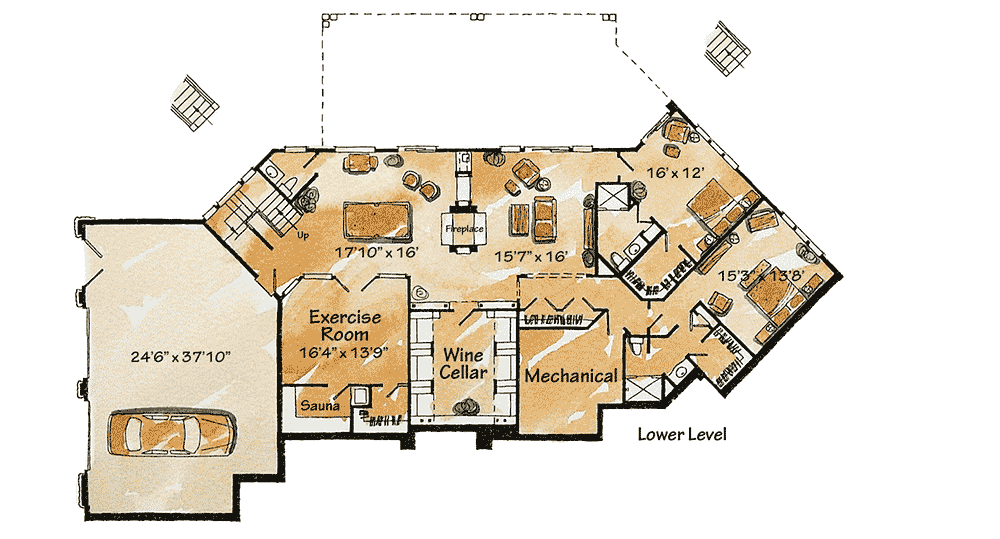

Gracious Lodge Home Plan - 11576KN floor plan - Lower Level

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

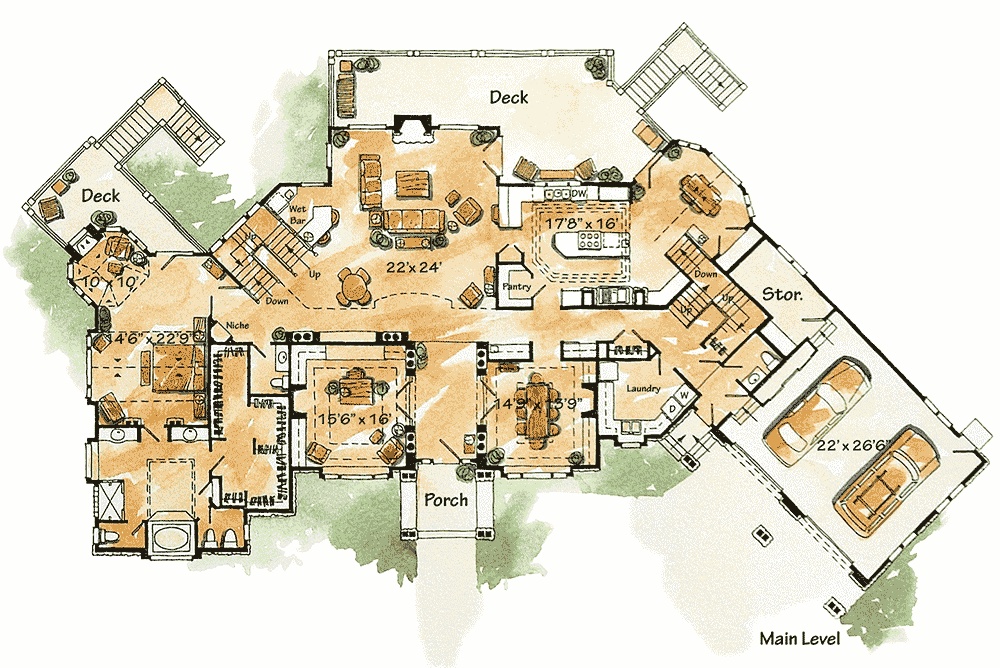

Gracious Lodge Home Plan - 11576KN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

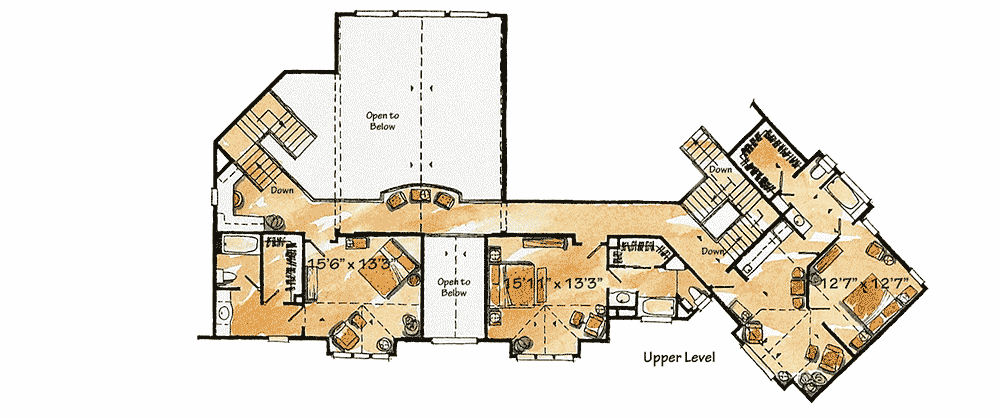

Gracious Lodge Home Plan - 11576KN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 7,597 sq. ft.
  • Lower Level: 2,267 sq. ft.
  • 1st Floor: 3,618 sq. ft.
  • 2nd Floor: 1,712 sq. ft.
  • Basement Unfinished: 185 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

  • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 125' 0"
  • Max ridge height: 35' 6"

Garage

  • Type: Attached
  • Area: 1689 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
