Plan: 59582ND

Grand Appearance

3,946 4-5 4 2 3
Pageloader

Grand Appearance

Plan 59582ND

  • 3,946

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This beautiful home plan beckons you into the grand foyer accented by corner niches. The great room pleads for entertaining opportunities with media center.
  • The kitchen features a large pantry and the snack bar opens to the fireplace accented hearth room.
  • The master suite affords entry to the rear-grilling porch while the bath stands ready for relaxation in the whirlpool tub, glass shower and large walk-in closet. Ascending the stairway the remaining bedrooms share full bath access and central computer center.
  • A game/TV room stands ready for entertaining with window seat accents. Attic storage and future space completes the design.
  • For a related house plan, see 59553ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Grand Appearance

  • 3,946

    Heated s.f.

  • 4 - 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $700
  • 5 Sets $830
  • 8 Sets $1,020
  • Reproducible Set $1,560
  • PDF - single-use $1,560
  • CAD $2,400
  • View all purchase option online

About This Plan

  • This beautiful home plan beckons you into the grand foyer accented by corner niches. The great room pleads for entertaining opportunities with media center.
  • The kitchen features a large pantry and the snack bar opens to the fireplace accented hearth room.
  • The master suite affords entry to the rear-grilling porch while the bath stands ready for relaxation in the whirlpool tub, glass shower and large walk-in closet. Ascending the stairway the remaining bedrooms share full bath access and central computer center.
  • A game/TV room stands ready for entertaining with window seat accents. Attic storage and future space completes the design.
  • For a related house plan, see 59553ND.

Floor Plans

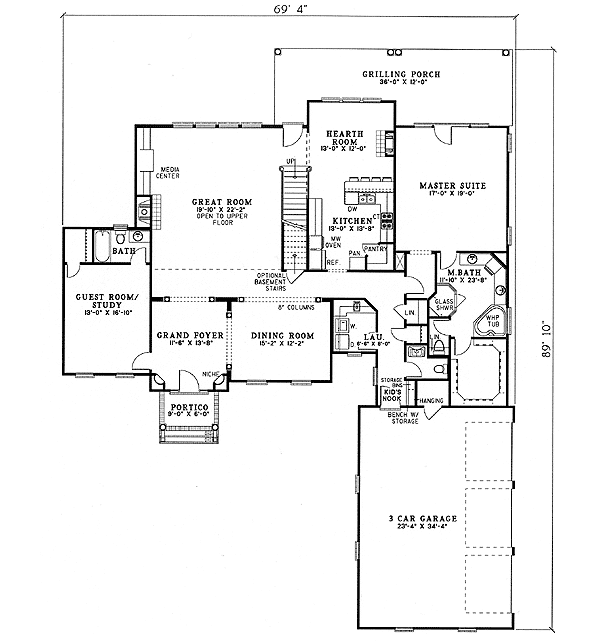

  • Main Level

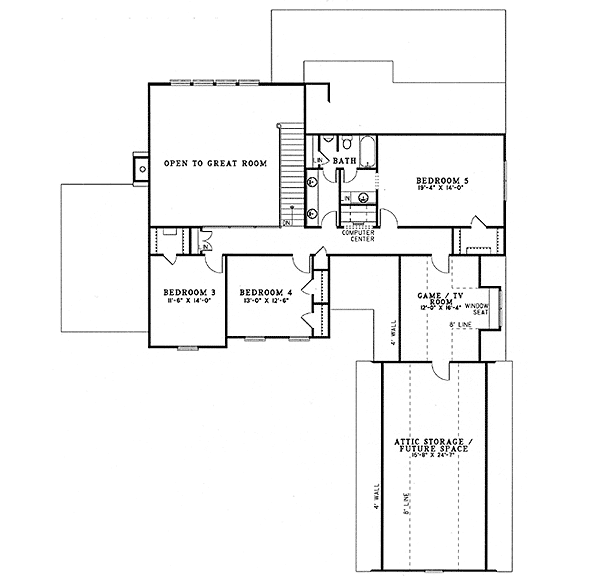

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,946 sq. ft.
  • 1st Floor: 2,636 sq. ft.
  • 2nd Floor: 1,310 sq. ft.
  • Bonus: 539 sq. ft.
  • Porch, Combined: 432 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 4"
  • Depth: 89' 10"
  • Max ridge height: 40' 0"

Garage

  • Type: Attached
  • Area: 842 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

  • Traditional

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • Media-Game-Home Theater
  • PDF
