Grand Hill Country House Plan

Plan 36548TX

  • 7,138

    Heated s.f.

  • 6

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

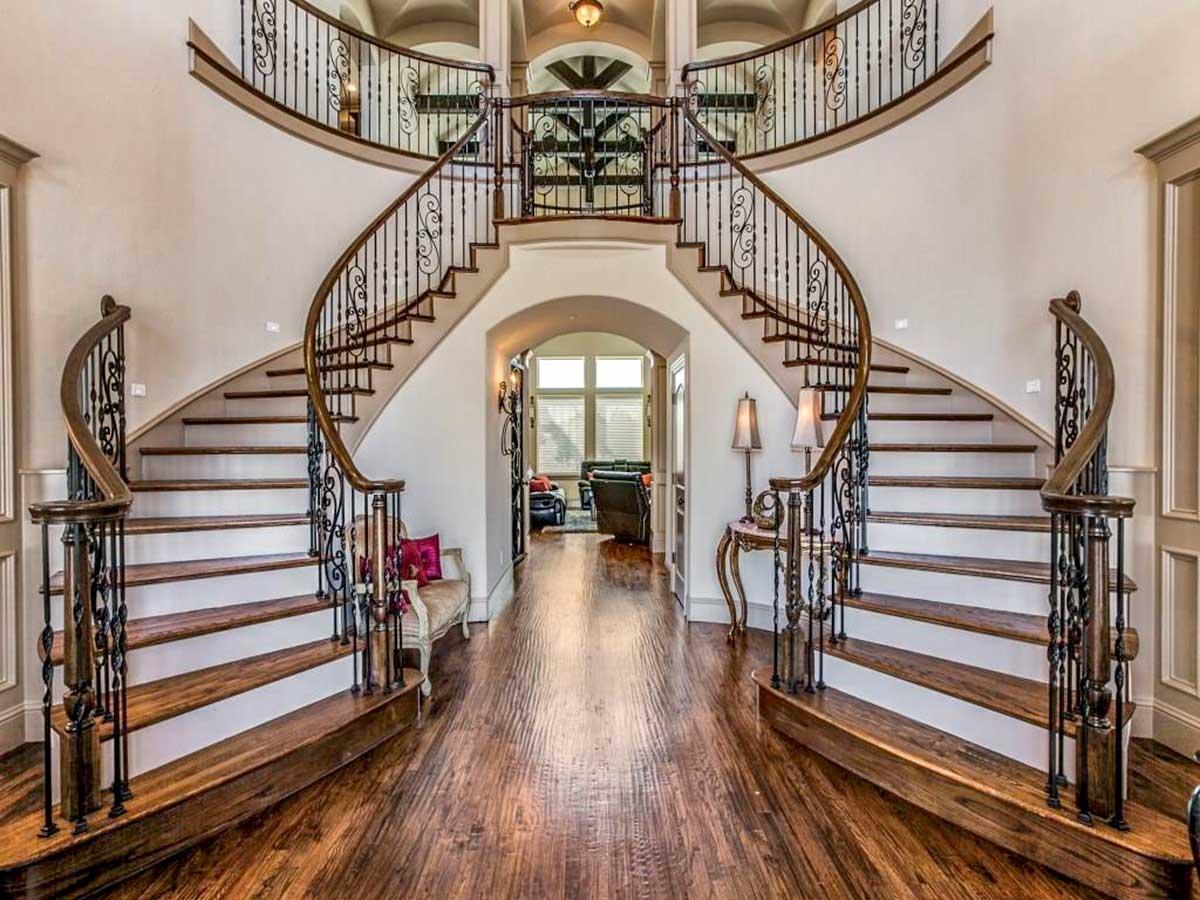

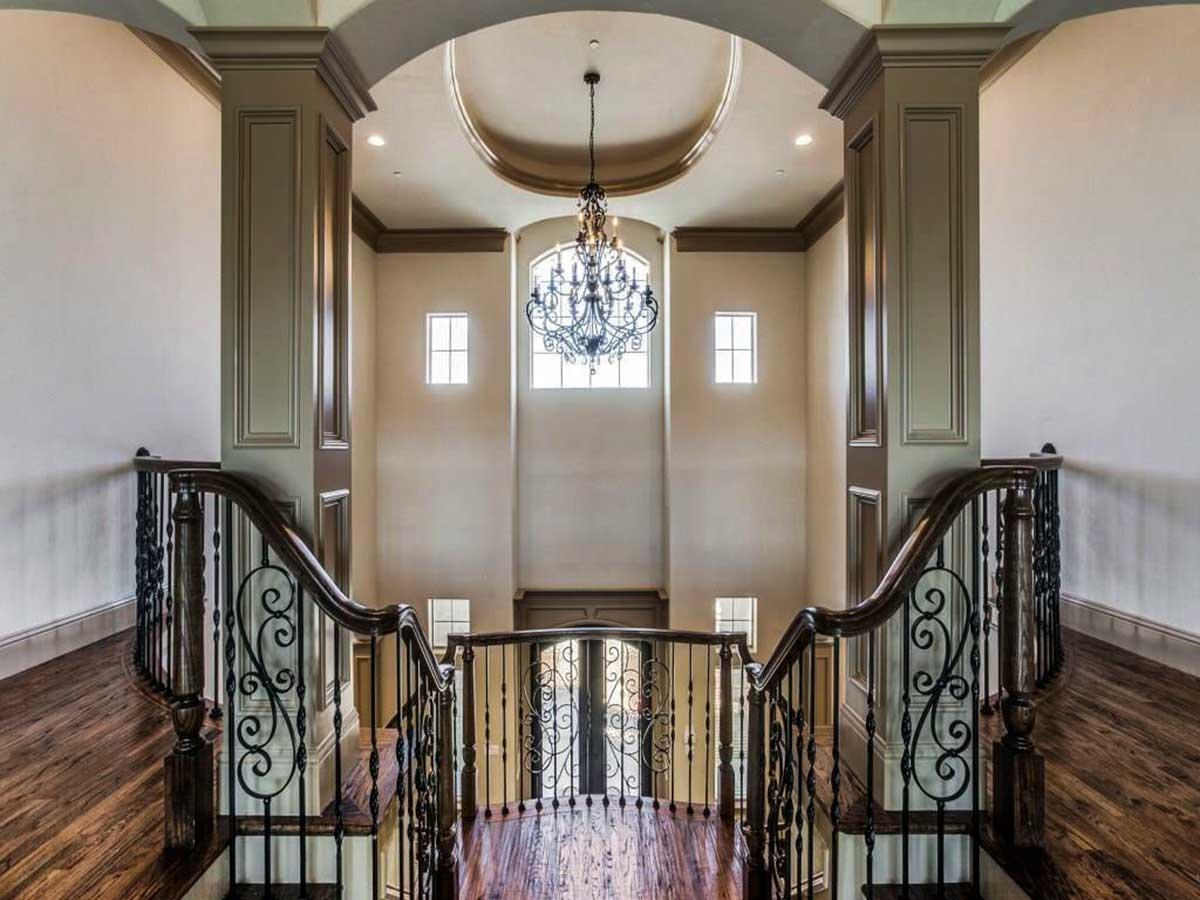

  • Spacious and luxurious, this grand Hill Country house plan grabs your attention right from the moment the double front doors open to reveal two sweeping curved staircases.
  • Every high end amenity you could want has been built into the home including a wine room, special ceiling treatments and built-ins.

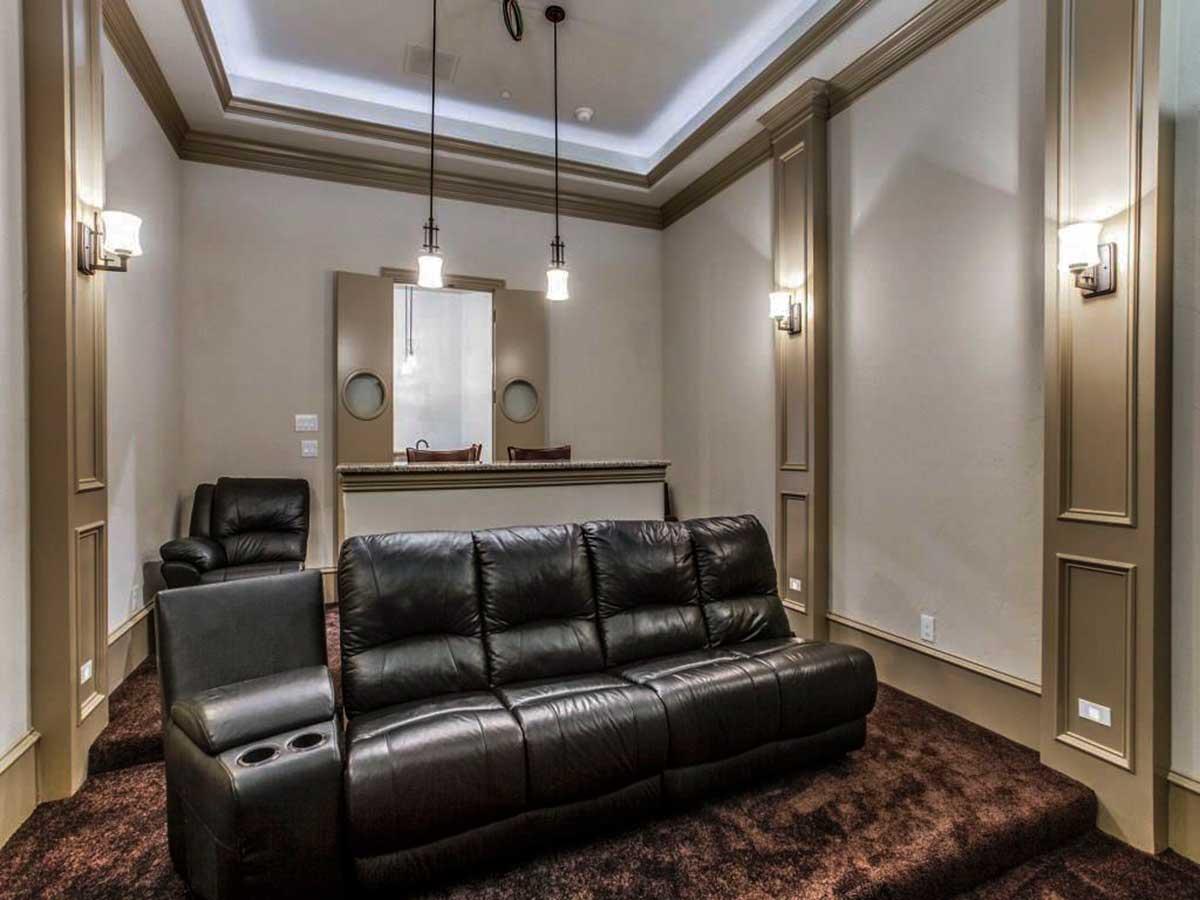

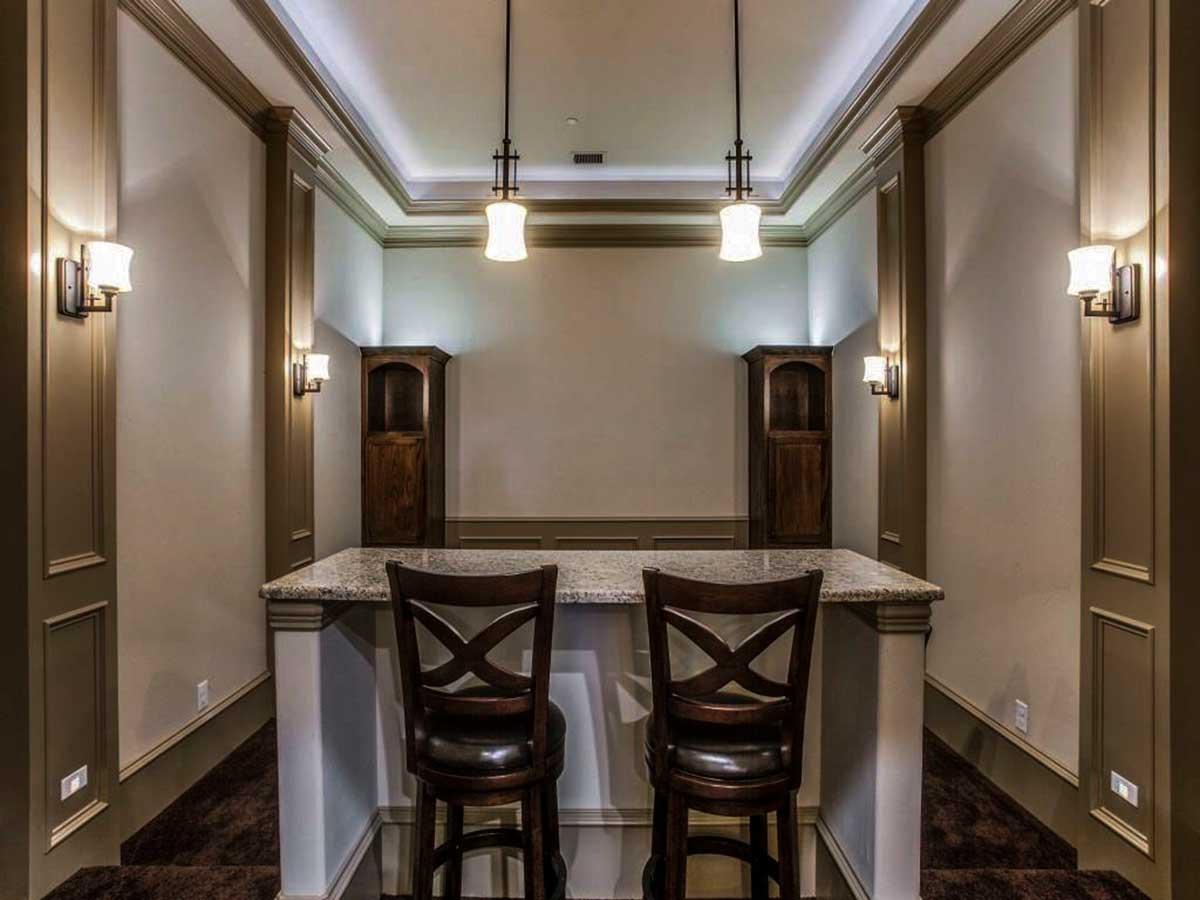

  • The home was designed with entertaining on a grand scale in mind with large walk-in pantry and giant wet bar near the media room.

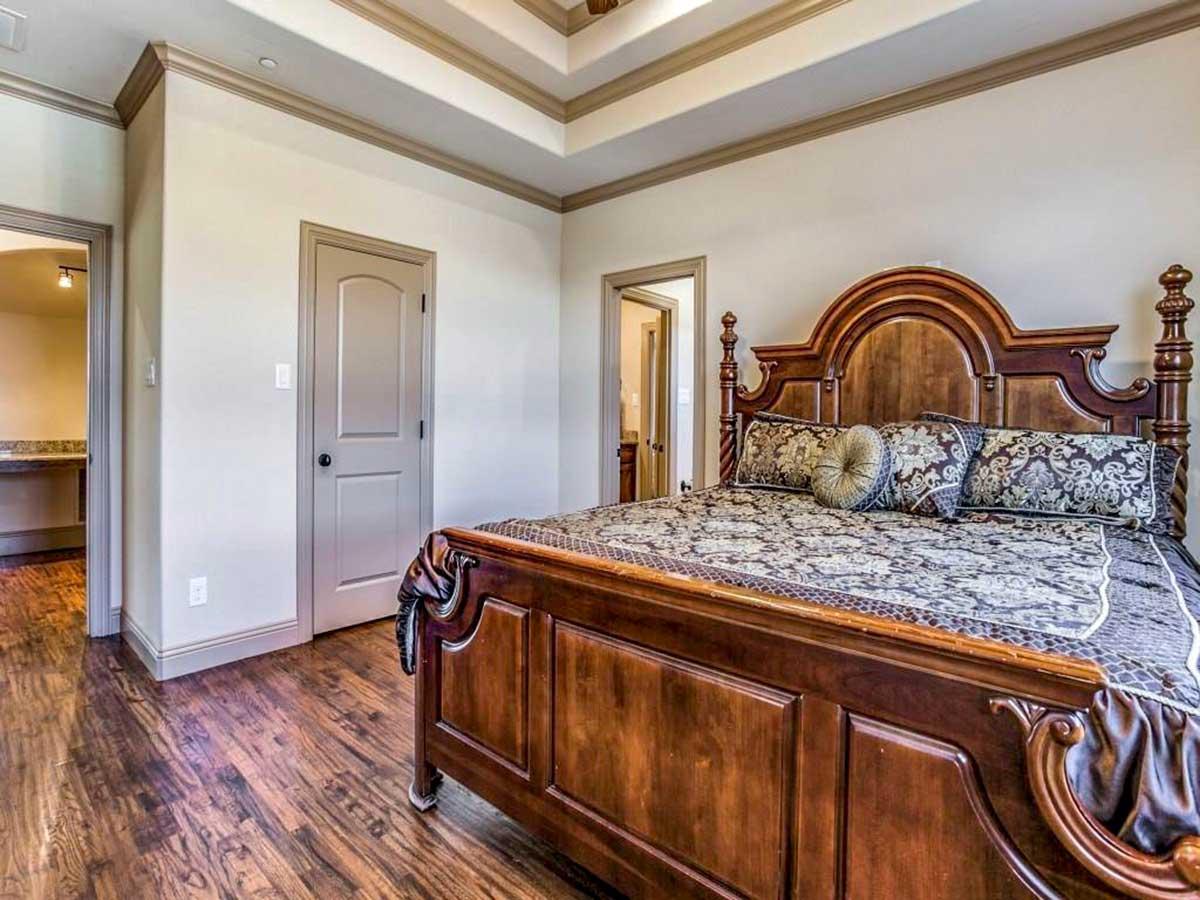

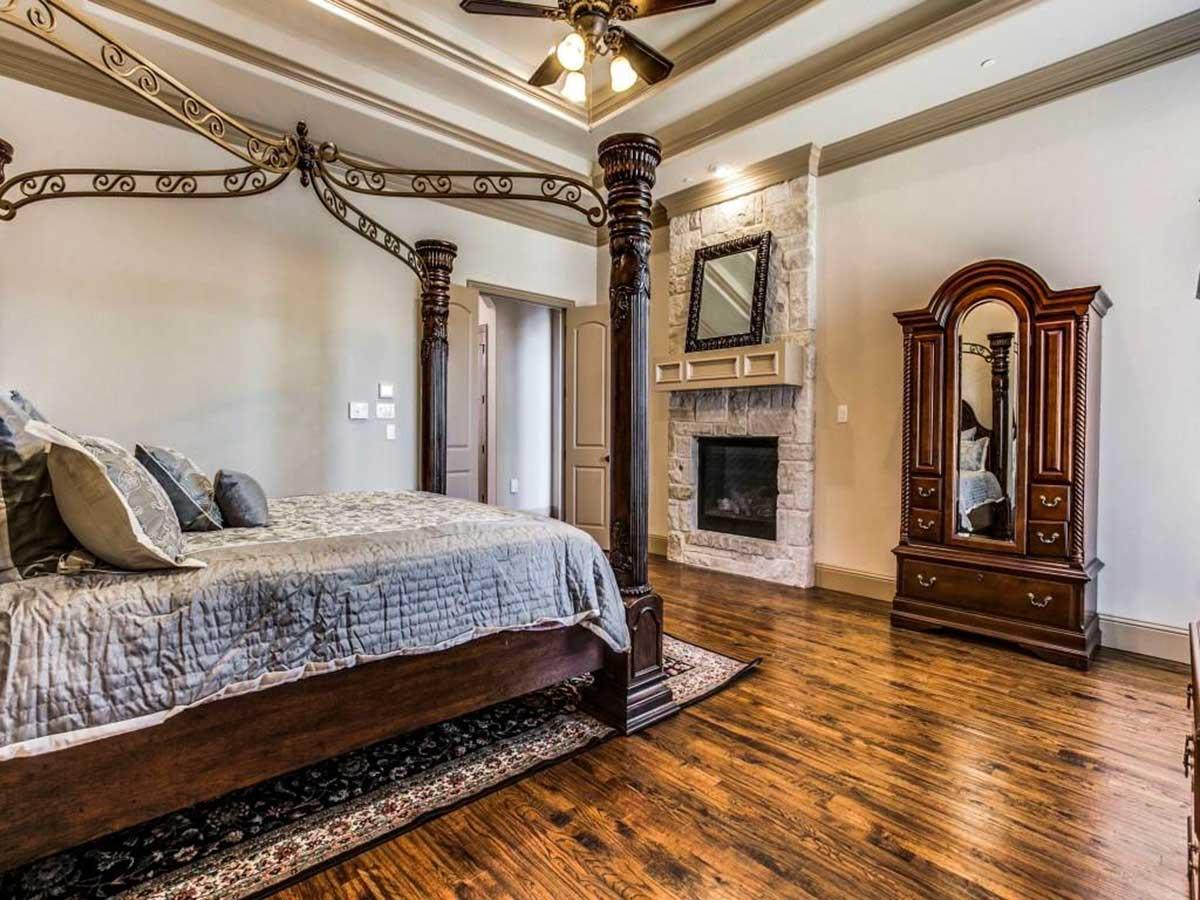

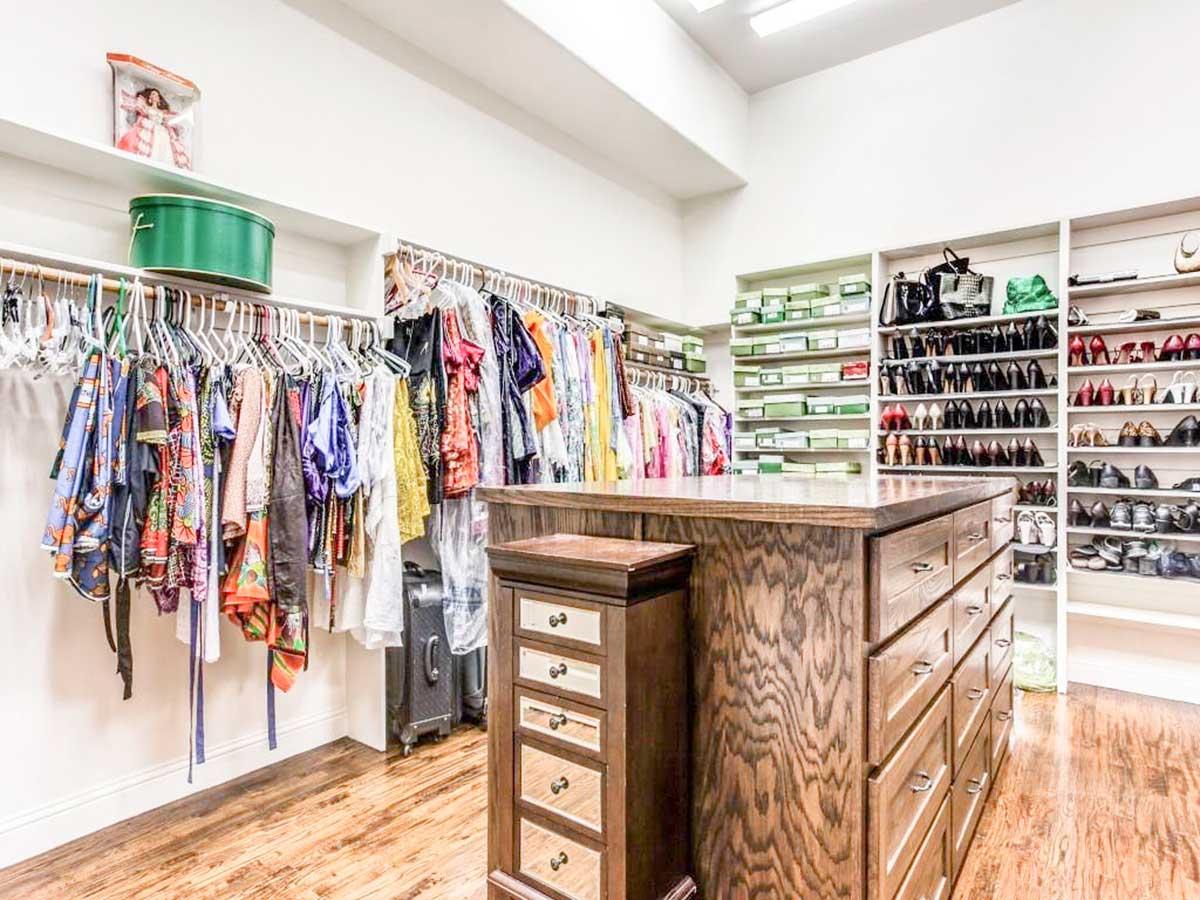

  • Pampering the homeowners is high on the design list too with a spectacular master suite complete with massive walk-in closets.

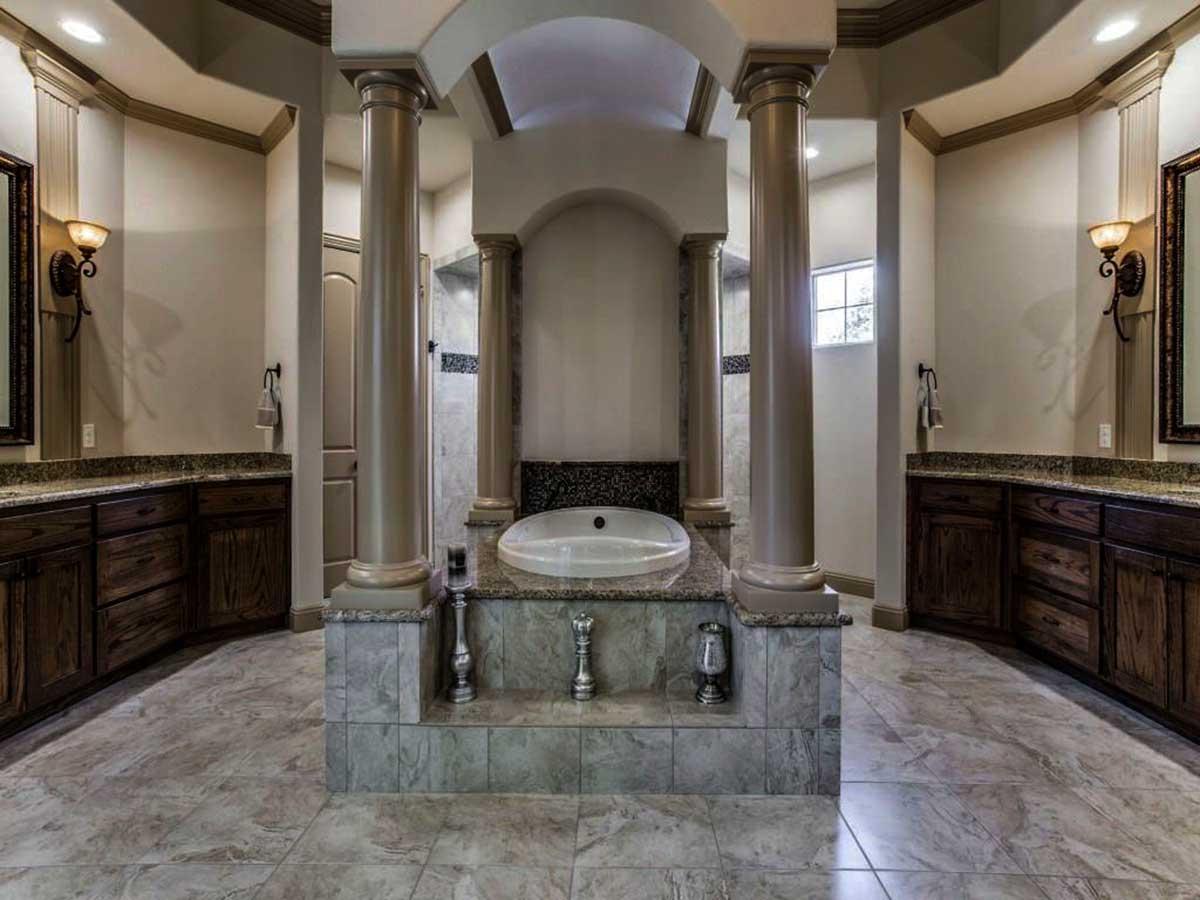

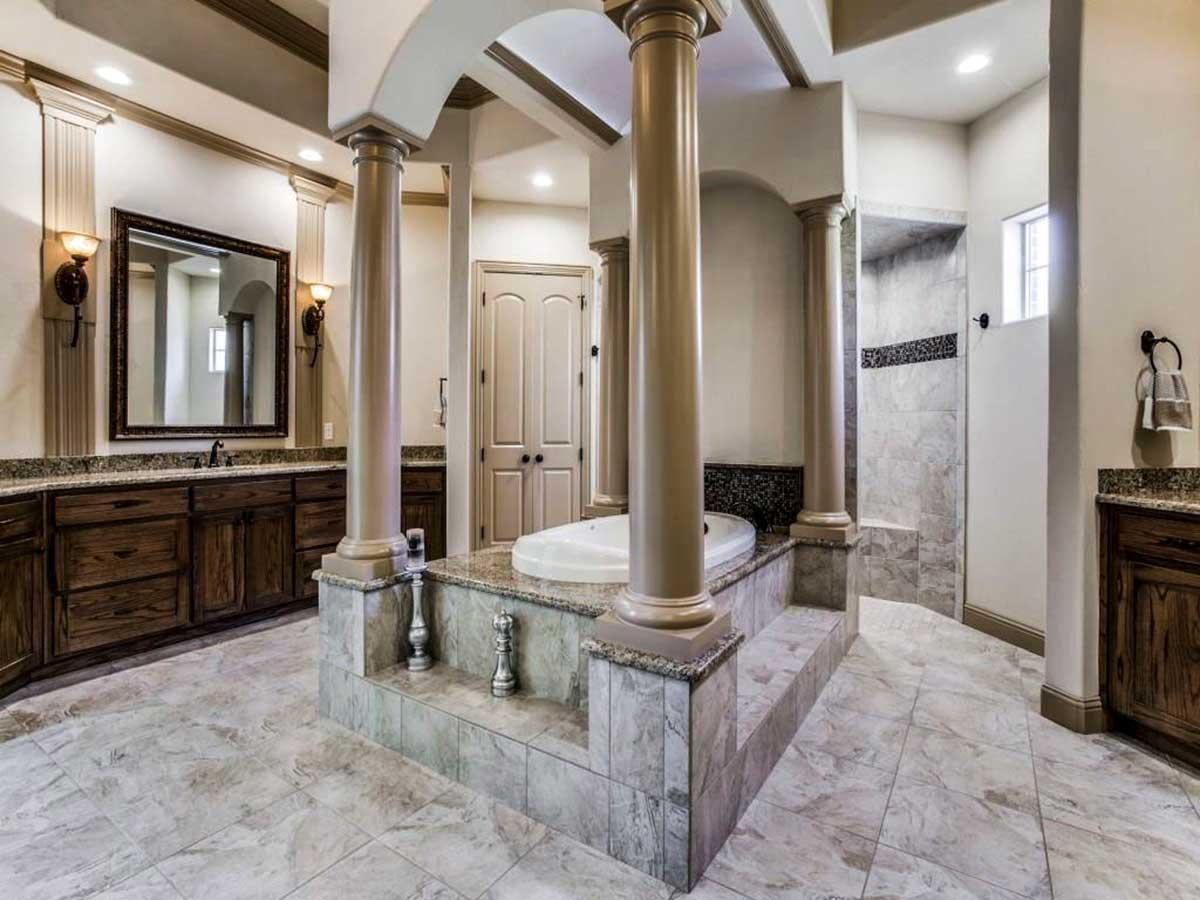

  • You'll feel like you are in a spa in the opulent master bathroom where the grand soaking tub is framed by four interior columns.

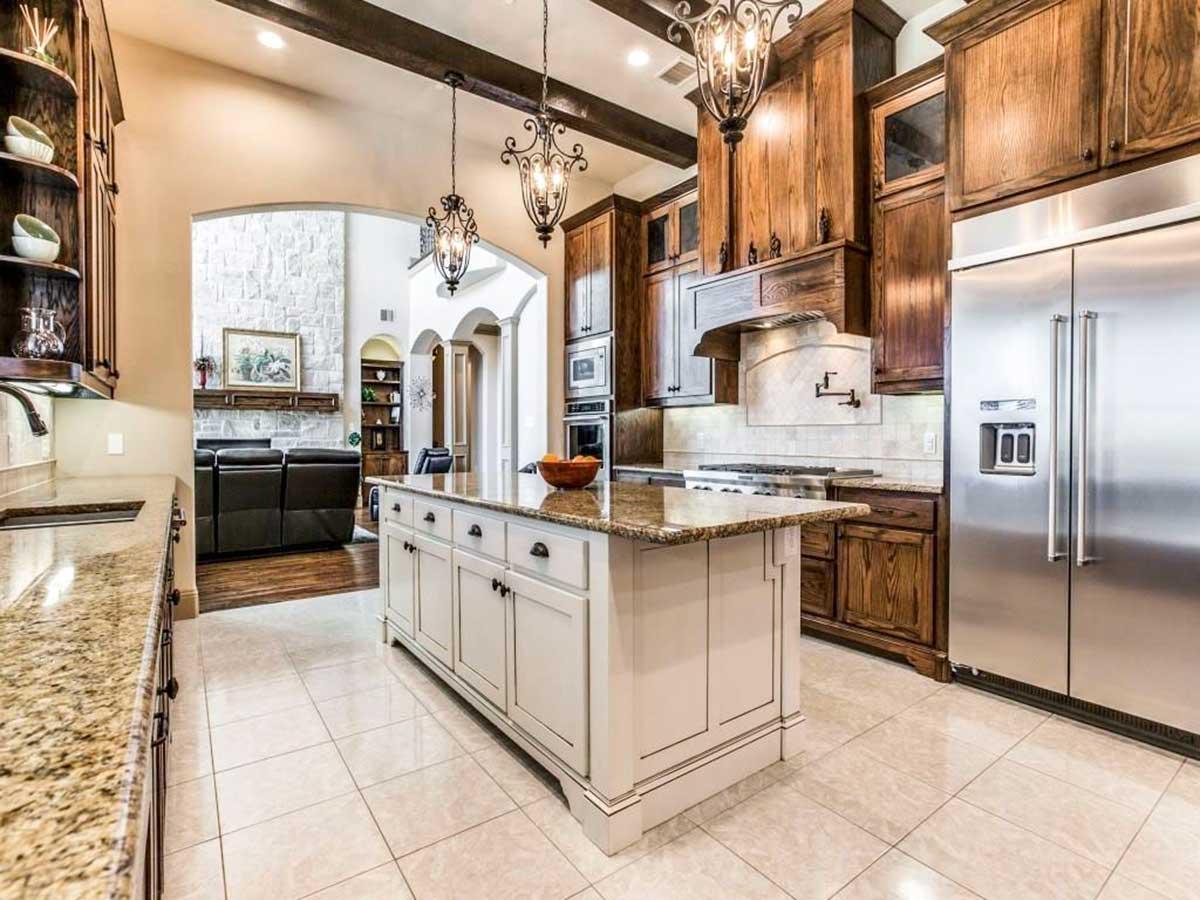

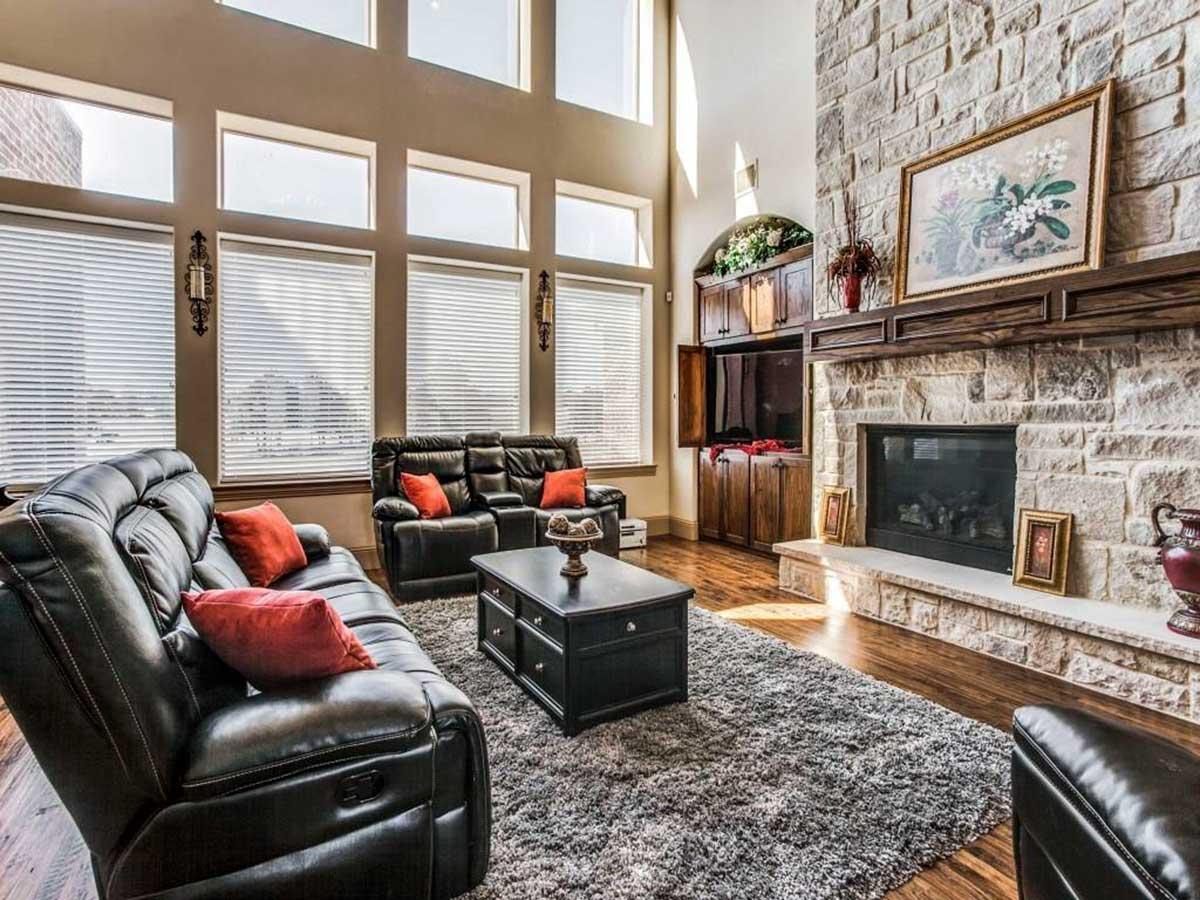

  • Beams top the kitchen and huge breakfast room while the family room has an impressive vaulted and beamed ceiling.
  • Almost every bedroom has a private bathroom, with bedrooms 5 and 6 sharing a connected bathroom with two sinks.
  • The second floor games room has a handy half bath close by and a double tray ceiling.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

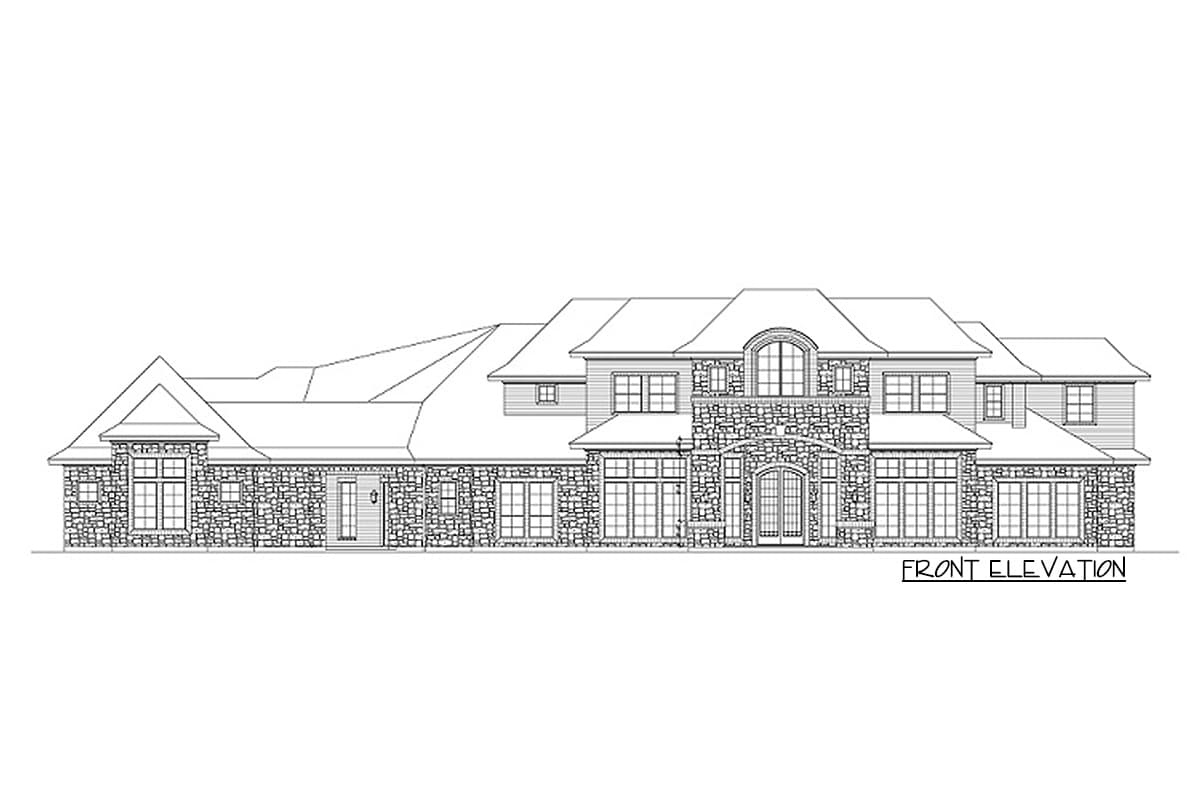

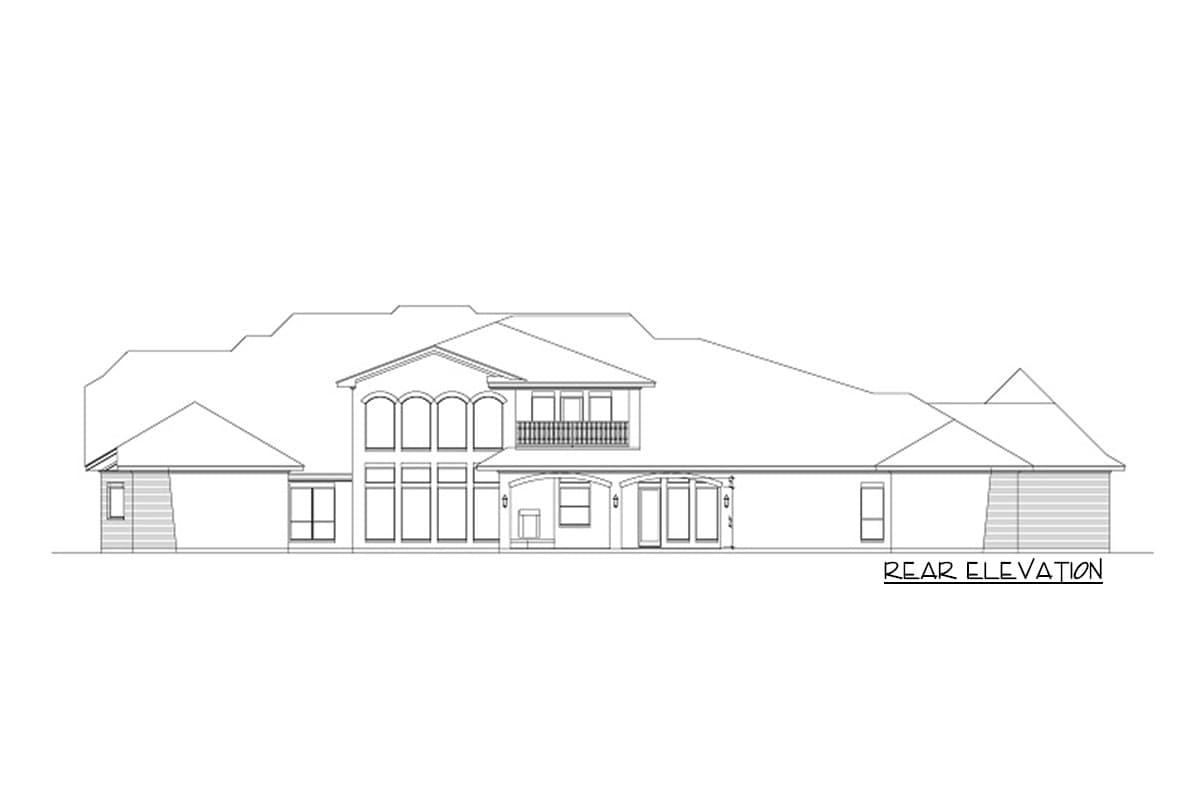

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

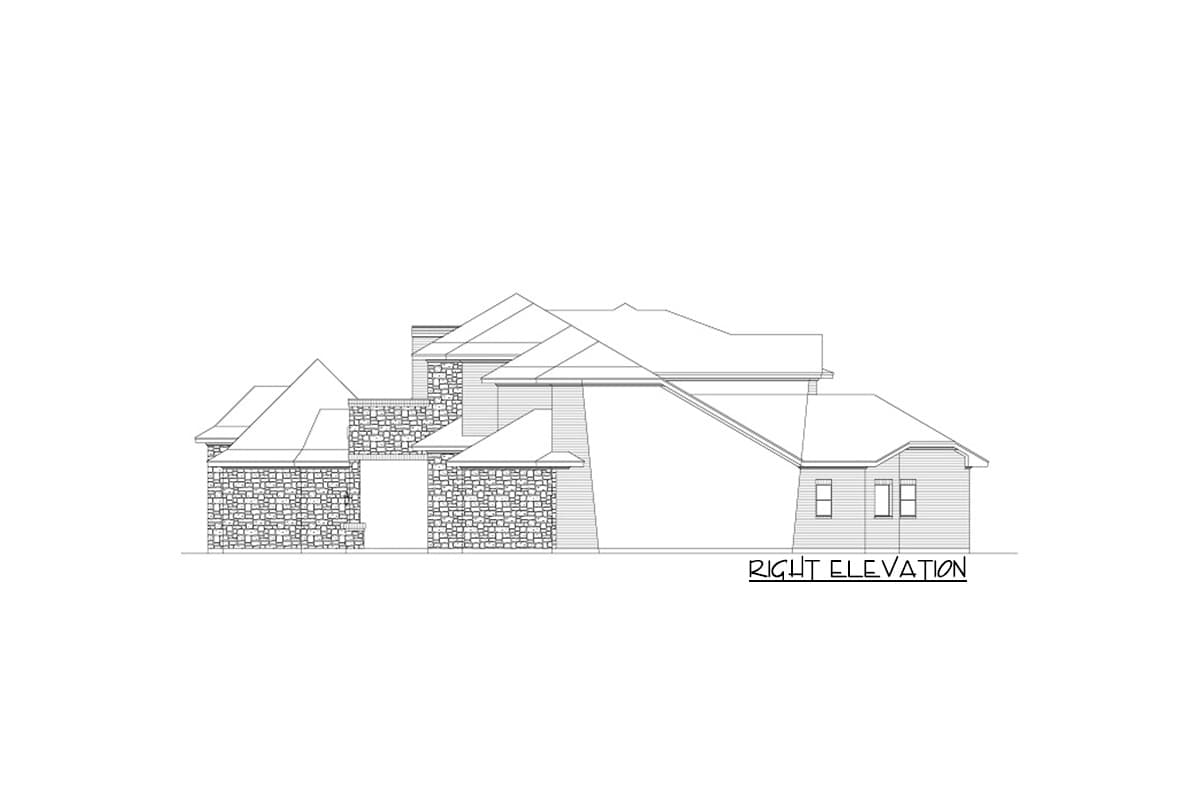

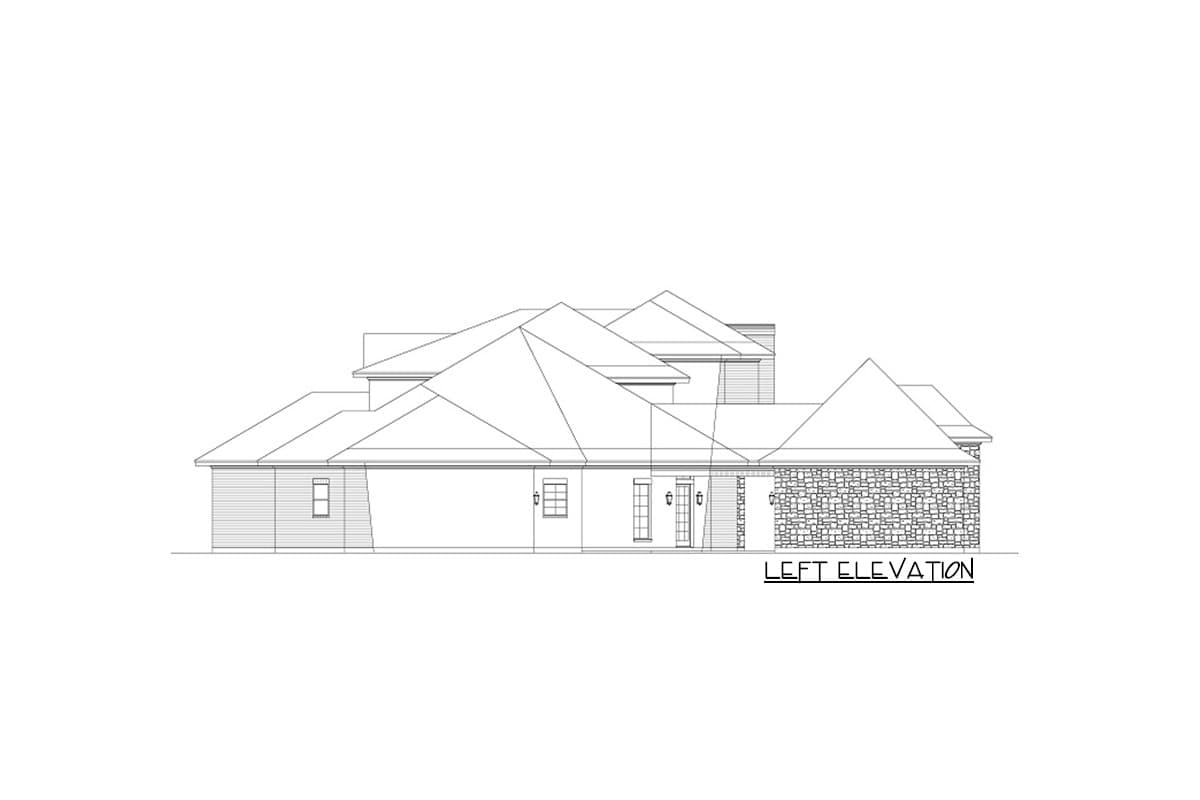

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

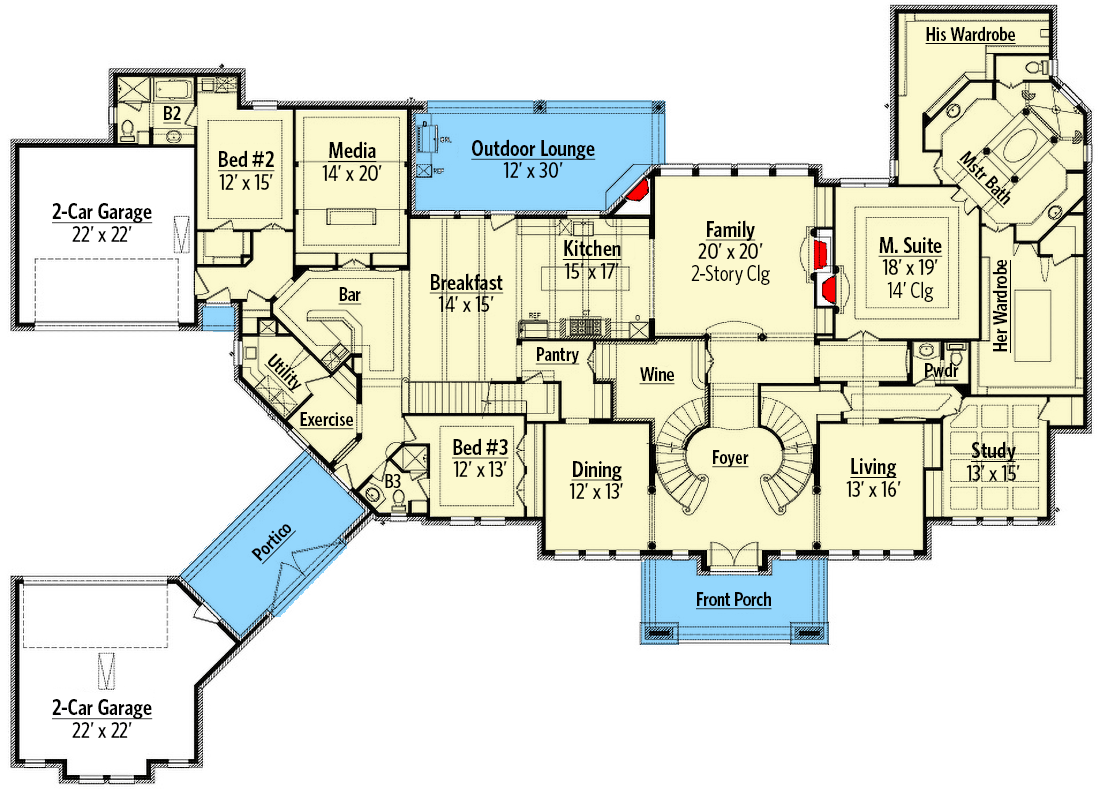

Grand Hill Country House Plan - 36548TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

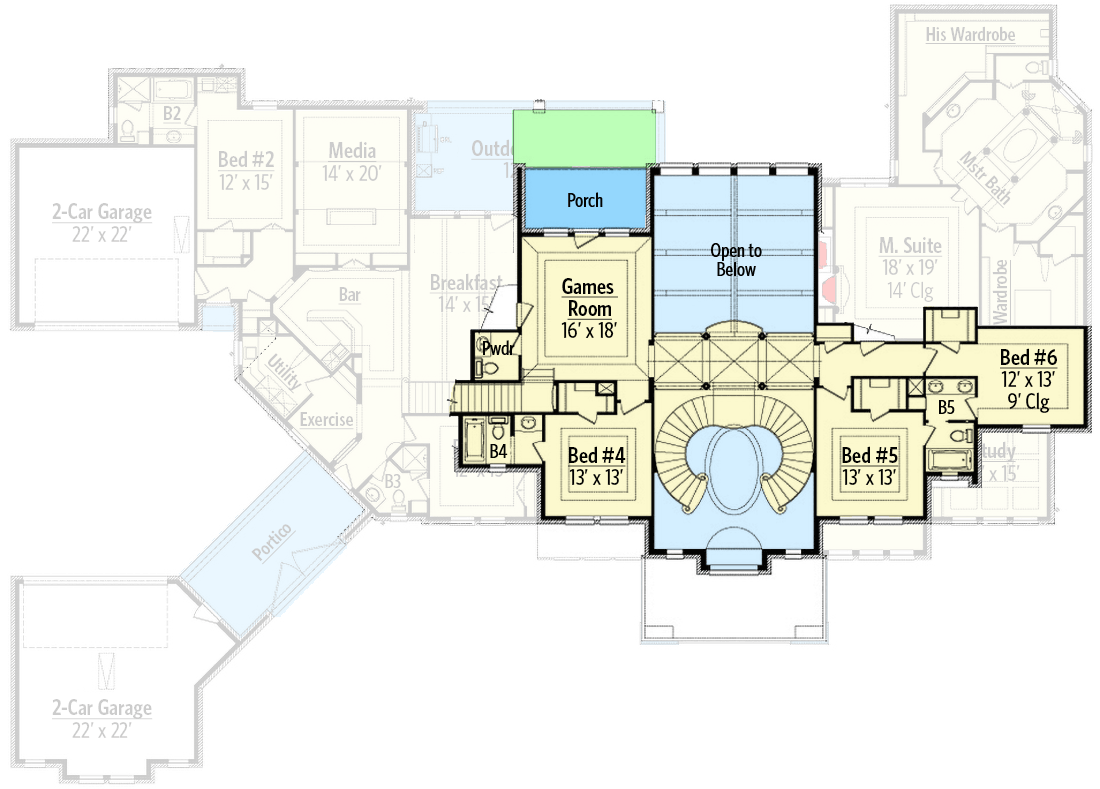

Grand Hill Country House Plan - 36548TX floor plan - 2nd Floor
