Grand Master Suite

Plan 59531ND

  • 2,014

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This traditional one story house plan highlights a grand master suite located separately from the secondary bedrooms.
  • Bask in the pure elegance of an arched entry, visitors can't help but feel at home in the marvelous great room with recessed fireplace and spacious entry to the formal dining room.
  • The walk-through kitchen is a hub of activity as it allows access to the secondary bedrooms, breakfast room, dining room and utility room.
  • Outdoor living is enhanced by the large screened porch and the optional courtyard garage.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

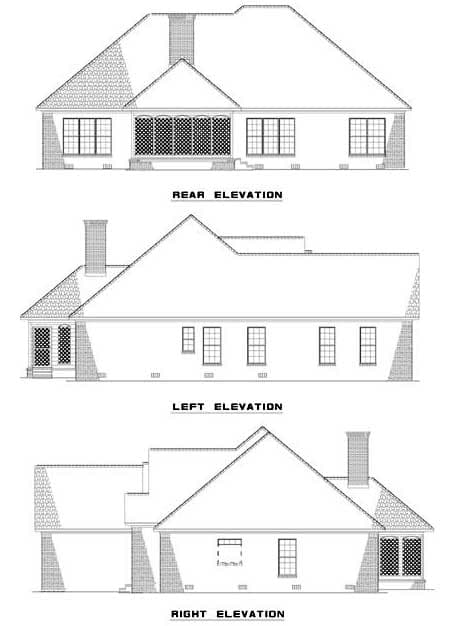

  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

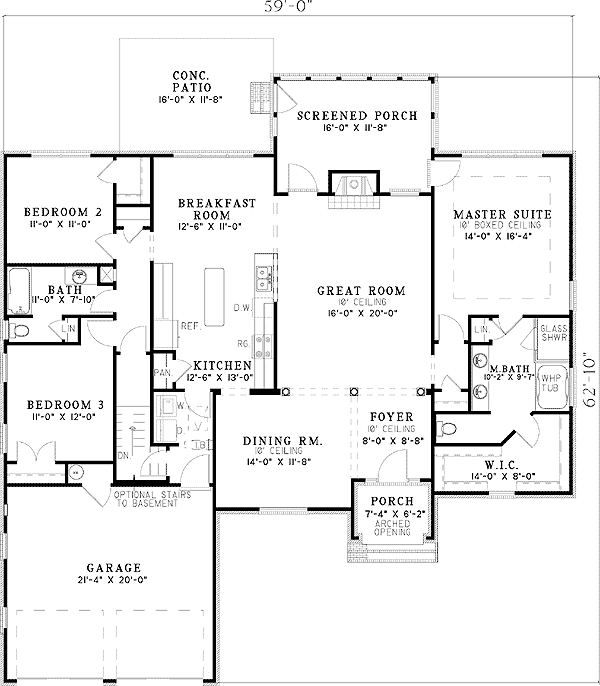

Grand Master Suite - 59531ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Grand Master Suite - 59531ND floor plan - Optional

Plan details

Architectural Style

Grand Master Suite

  • 2,014

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets $1,100
  • 5 Sets + PDF $1,350
  • CAD - Single-Build $2,000
  • View all purchase option online

About This Plan

  • This traditional one story house plan highlights a grand master suite located separately from the secondary bedrooms.
  • Bask in the pure elegance of an arched entry, visitors can't help but feel at home in the marvelous great room with recessed fireplace and spacious entry to the formal dining room.
  • The walk-through kitchen is a hub of activity as it allows access to the secondary bedrooms, breakfast room, dining room and utility room.
  • Outdoor living is enhanced by the large screened porch and the optional courtyard garage.

Floor Plans

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,014 sq. ft.
  • 1st Floor: 2,014 sq. ft.
  • Porch, Combined: 231 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 62' 10"
  • Max ridge height: 22' 10"

Garage

  • Type: Attached
  • Area: 428 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
