Plan 55143BR
Grand Receiving Porch
Heated S.F.
4,005
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • A big, beautiful front porch wraps around the dining room of this Country home with a rustic exterior.
  • The home comes with custom touches such as a built-in display niche and wet bar.
  • The fireplace anchors the huge living room where you'll have lots of space for family and friends.
  • Around the corner, a big eating bar adds counter space in the kitchen that has lovely views of the breakfast nook and screened porch.
  • The master suite has a cozy sitting area, twin walk-in closets and a large, private bathroom.
  • A guest suite lies in back of the house and makes a good in-law option.
  • The remaining two bedrooms are upstairs and they are huge, boasting two dormer windows each.
  • Each bedroom has its own sink area and they share the tub area.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Grand Receiving Porch

  • 4,005

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

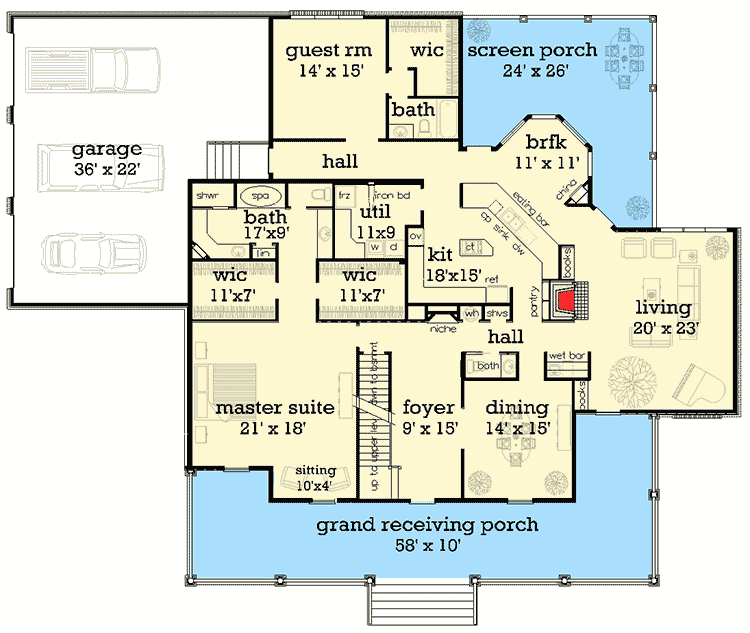

Floor Plan

  • Main Level

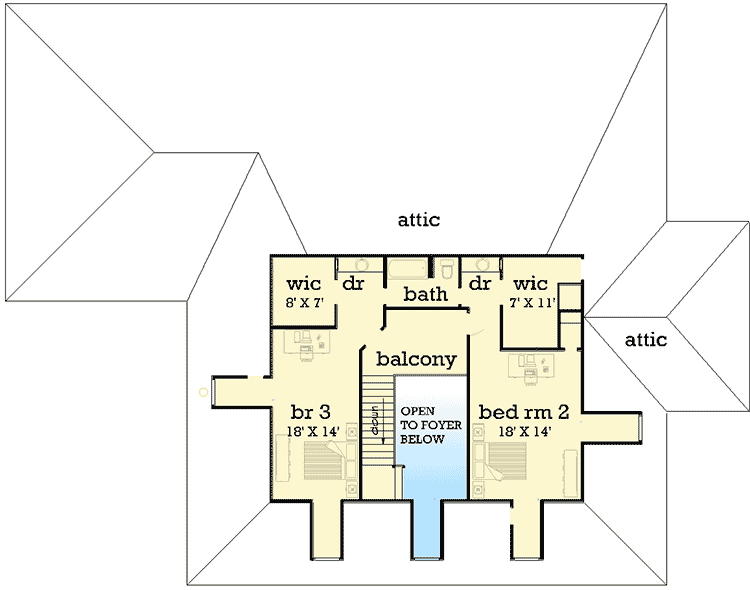

  • 2nd Floor
