Grand Southern Style

Plan 59458ND

  • 2,676

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This spacious, four bedroom, two and a half bath home design is the definition of grand southern style.

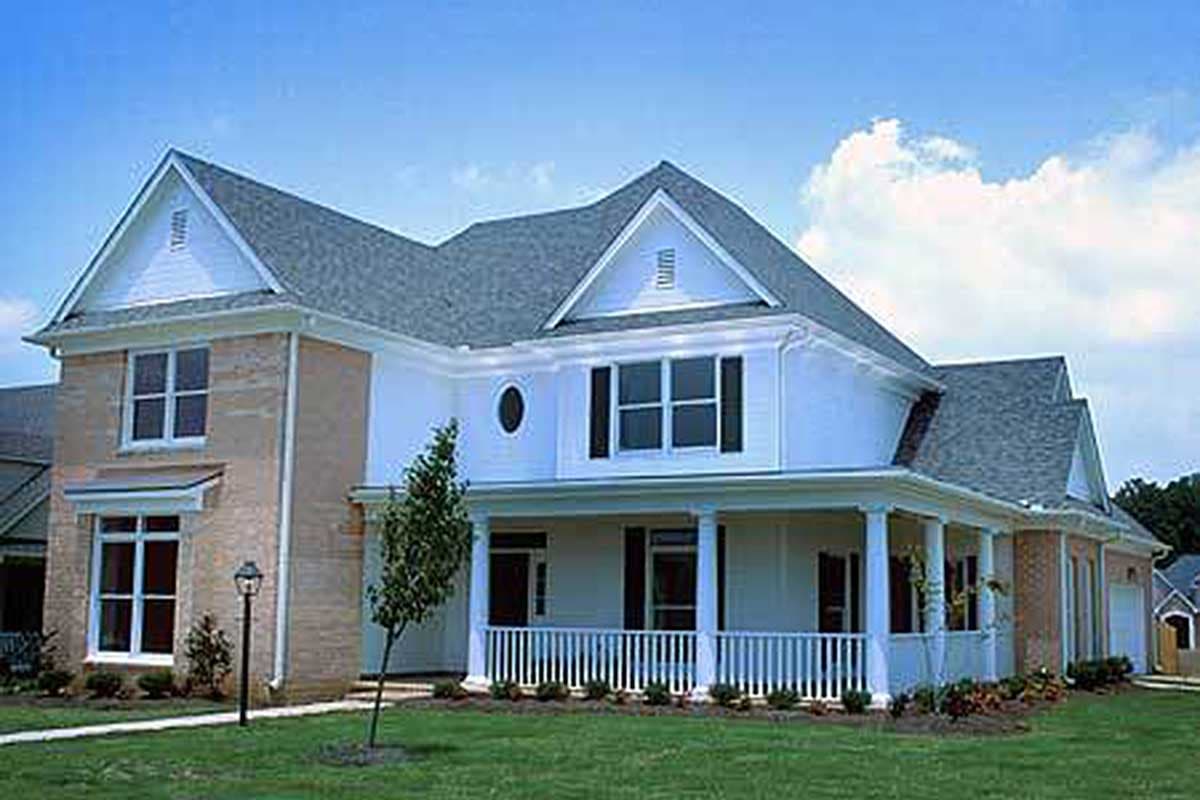

  • A traditional wrap-around covered porch welcomes you inside a gorgeous foyer with open ceiling to the upper floor.
  • Continuing, you'll enter the heart of the design - the great room. Here, enjoy countless hours of excitement and relaxation with family and friends.
  • Convenient atrium doors open from the great room to a rear covered porch with ten inch columns for romantic nights under the stars.
  • A secluded master suite and bath, enhanced by an elegant sitting room, provides all the privacy you need.
  • Traveling up an open stairway you'll find ample bedroom space for the kids, a perfect guest quarters or playroom complete with computer center and balcony walk opening over the foyer below.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

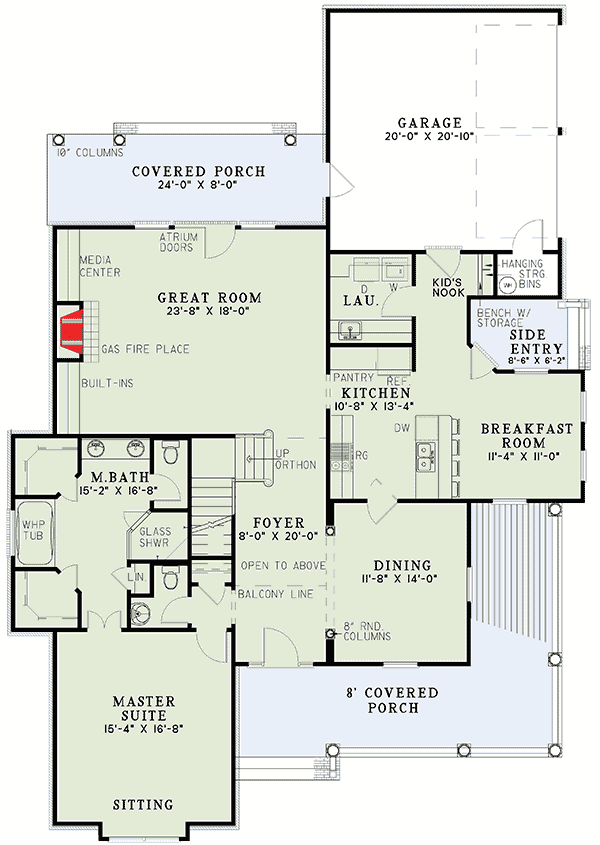

Grand Southern Style - 59458ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

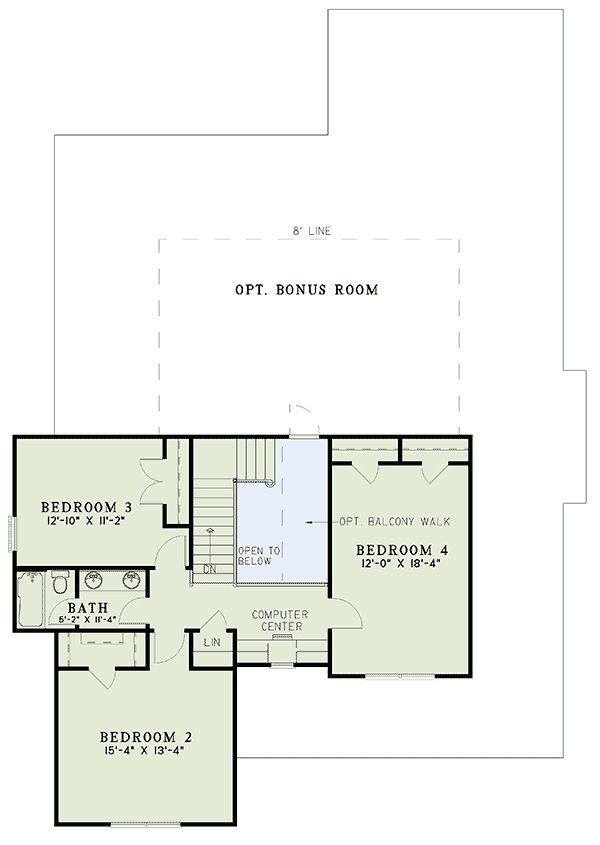

Grand Southern Style - 59458ND floor plan - 2nd Floor

Grand Southern Style

  • 2,676

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,676 sq. ft.
  • 1st Floor: 1,797 sq. ft.
  • 2nd Floor: 879 sq. ft.

Dimensions

  • Width: 50' 4"
  • Depth: 73' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 461 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
