Plan 710445BTZ

Grand Southern Transitional House Plan with Master Suite and Expansive Porches

Heated S.F.
3,383
Beds
3 - 4
Baths
3.5 - 4.5
Stories
1
Cars
3

Floor Plan

Plan 710445BTZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 710445BTZ

M-F 9am-5pm EST |

1-203-761-8500

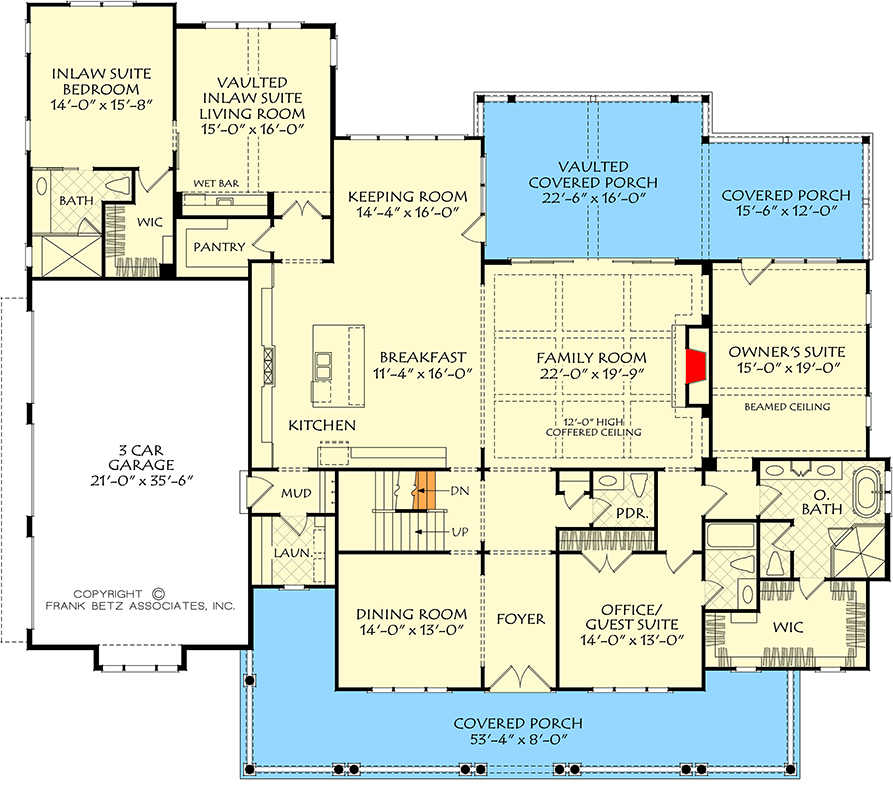

Main Level

Plan 710445BTZ: Grand Southern Transitional House Plan with Master Suite and Expansive Porches - Floor Plan - Main Level - Southern, Transitional

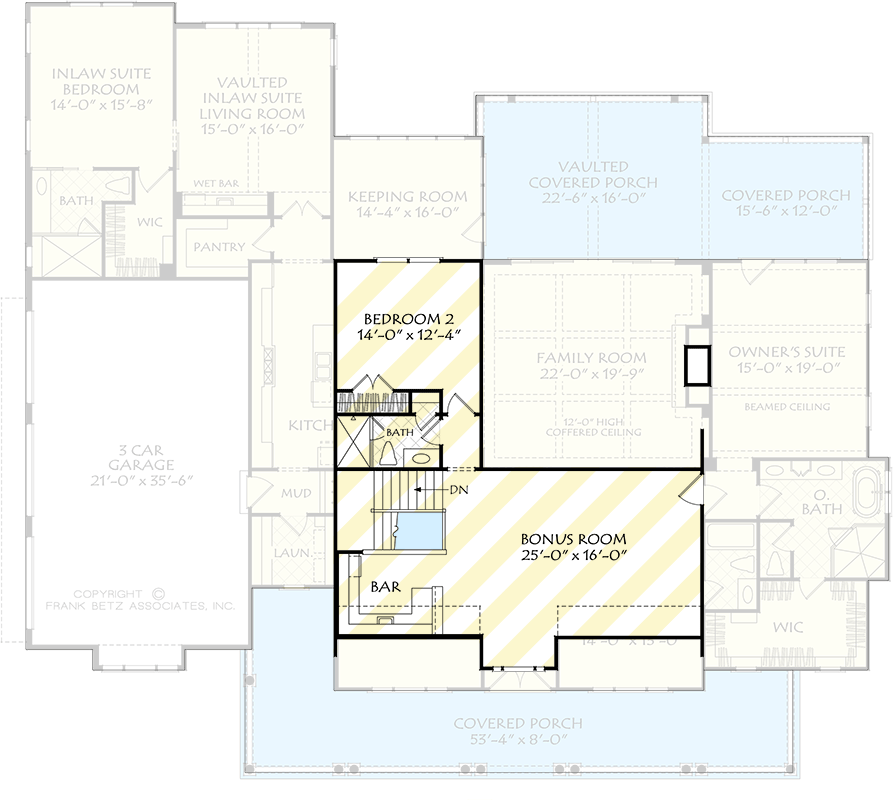

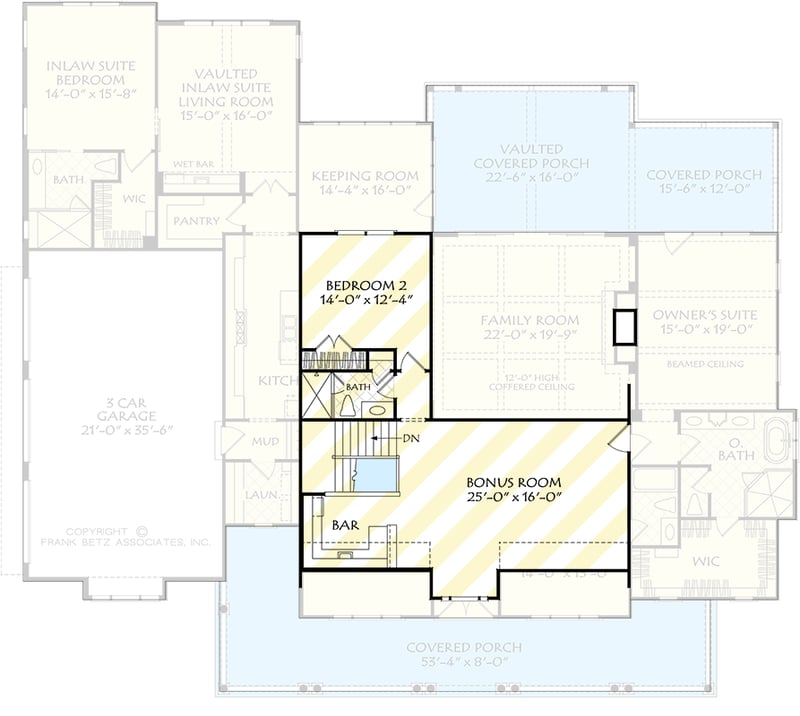

2nd Floor

Plan 710445BTZ: Grand Southern Transitional House Plan with Master Suite and Expansive Porches - Floor Plan - 2nd Floor - Southern, Transitional

Plan Details

  • This 3,383 sq. ft. Southern Transitional house plan offers 3-4 bedrooms, 3-4 full bathrooms, and one half bath, complemented by an attached 796 sq. ft. three-car, side-entry garage.
  • Step inside this elegant home where 10-foot ceilings on the main floor create an expansive atmosphere. The thoughtful layout includes a dedicated home office for productivity and a flexible room that can adapt to your family's evolving needs, all designed for seamless living.
  • The heart of the home flows effortlessly, featuring a gourmet kitchen complete with a walk-in butler's pantry and a wet bar, perfect for sophisticated entertaining or casual family gatherings. A formal dining room offers an elegant space for special occasions, while a cozy keeping room provides an intimate secondary living area.
  • The luxurious master suite is conveniently located on the first floor, providing a private retreat. Secondary bedrooms are thoughtfully clustered to maintain privacy while remaining accessible, with an optional in-law suite offering versatile accommodations for extended family or guests.
  • A practical mudroom and a main-level laundry room ensure everyday convenience, keeping the home organized and serene.
  • Embrace outdoor living with an expansive 527 sq. ft. front porch, ideal for morning coffee or greeting neighbors, and a generous 540 sq. ft. rear porch, perfect for alfresco dining or enjoying tranquil evenings.
  • The plan includes an 836 sq. ft. optionally finished bonus room upstairs, providing ample space for a media room, play area, or additional bedroom, allowing for future expansion and customization. An optional 128 sq. ft. lower level further enhances the home's potential.

What's Included

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,383 sq. ft.

1st Floor

3,383 sq. ft.

Basement Unfinished

3,255 sq. ft.

Porch, Front

527 sq. ft.

Porch, Rear

540 sq. ft.

Optional Lower Level

128 sq. ft.

Bonus

836 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

84' 0"

Depth

75' 2"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

796 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Transitional

Special Features

Bedrooms - Clustered

Flex Room

Formal Dining

Home Office

In-Law Suite

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Wet Bar
