Grand Wrap-Around Porch

Plan 86223HH

  • 2,366

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • The 10' deep front porch of this Country house plan rises up to 11' high giving you marvelous outdoor space for relaxing and entertaining.
  • Another porch in back is equally as deep and has the same high ceiling.
  • Inside, views flow from room to room and wrap around all the way to the bright and cheerful breakfast nook.
  • A cozy home office is tucked away so the family computer stays out of sight.
  • A second home office lies at the back of the house and gives you more room.
  • Three large bedrooms each have 12' high ceilings.

Cover Sheet

Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

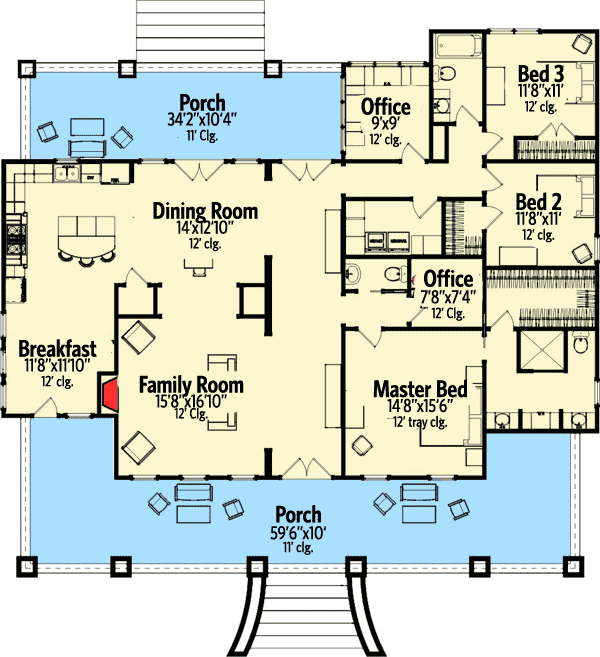

Grand Wrap-Around Porch - 86223HH floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,366 sq. ft.
  • 1st Floor: 2,366 sq. ft.
  • Porch, Combined: 1,063 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 63' 6"
  • Depth: 57' 10"
  • Max ridge height: 28' 7"

Garage

  • Type: Detached
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Grand Wrap-Around Porch

  • 2,366

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,804
  • Study Set – Digital $1,848
  • 8 Sets $1,892
  • PDF - Single-Build $2,024
  • CAD - Single-Build $2,332
  • PDF - Unlimited Build $2,824
  • CAD - Unlimited Build $3,132
  • View all purchase option online

About This Plan

  • The 10' deep front porch of this Country house plan rises up to 11' high giving you marvelous outdoor space for relaxing and entertaining.
  • Another porch in back is equally as deep and has the same high ceiling.
  • Inside, views flow from room to room and wrap around all the way to the bright and cheerful breakfast nook.
  • A cozy home office is tucked away so the family computer stays out of sight.
  • A second home office lies at the back of the house and gives you more room.
  • Three large bedrooms each have 12' high ceilings.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,366 sq. ft.
  • 1st Floor: 2,366 sq. ft.
  • Porch, Combined: 1,063 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 63' 6"
  • Depth: 57' 10"
  • Max ridge height: 28' 7"

Garage

  • Type: Detached
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
