Great Outdoor Living Room in Back

Plan 48262FM

  • 3,383

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • An attractive two-story foyer off the covered porch will impress your guests.
  • Flanking the entry is your formal dining room (with butler's pantry) and living room with fireplace. Both have 10' ceilings.
  • Entertain in style in the massive great room with a second fireplace and built-ins (including an entertainment center). French doors take you and your guests to the outdoor living room with fireplace and gas grill.
  • The kitchen is open to the great room and nook. A pantry and outdoor access are nice touches.
  • A study sits right near the master suite which has its own private covered patio, five-fixture bath and massive walk-in closet with built-ins.
  • The master closet is a generous 10' by 10' plus 5' by 6' by the shower.
  • A powder room, coat closet and utility room are located off the garage.
  • On the second floor, three bedrooms, two baths and a bonus room complete this home plan.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

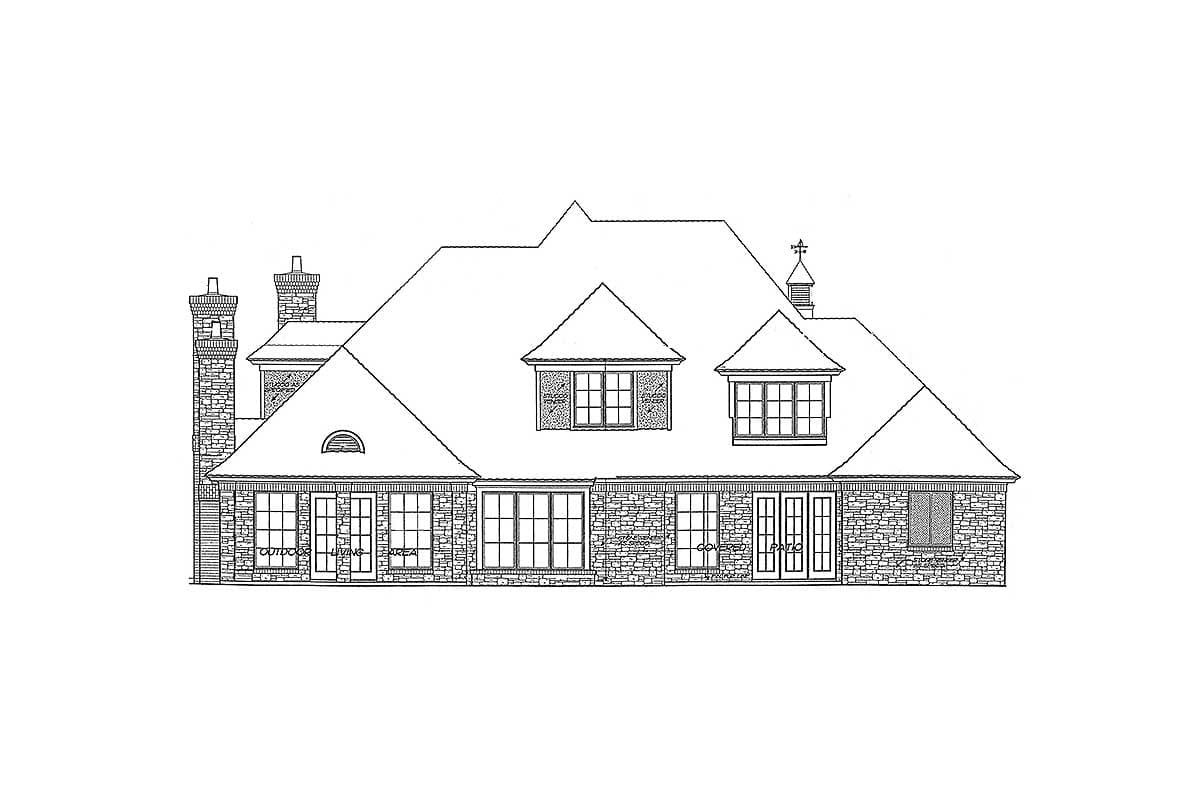

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

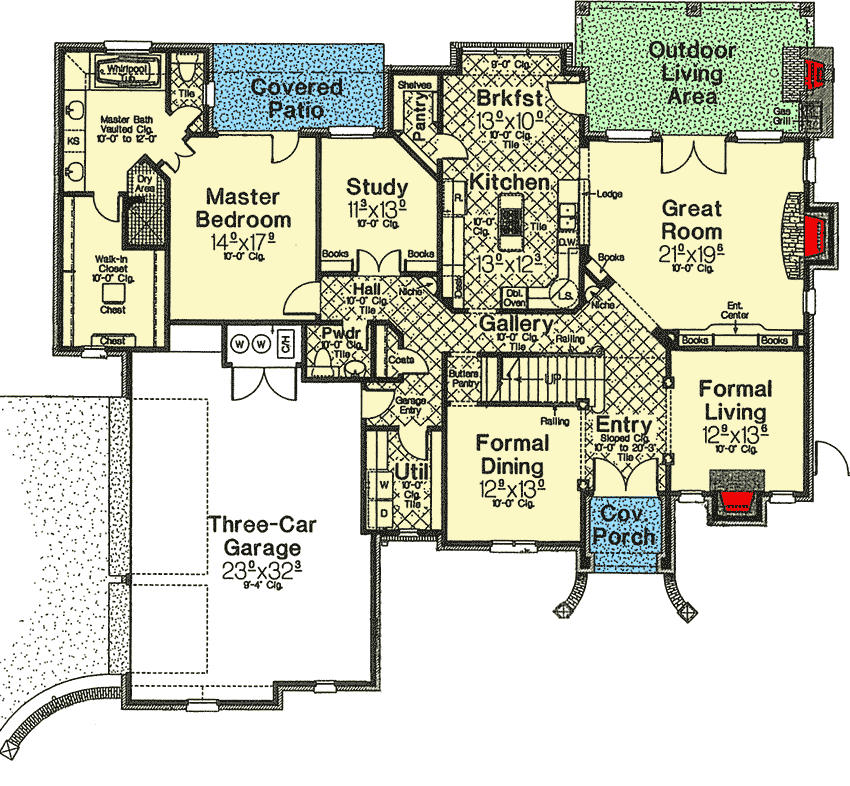

Great Outdoor Living Room in Back - 48262FM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

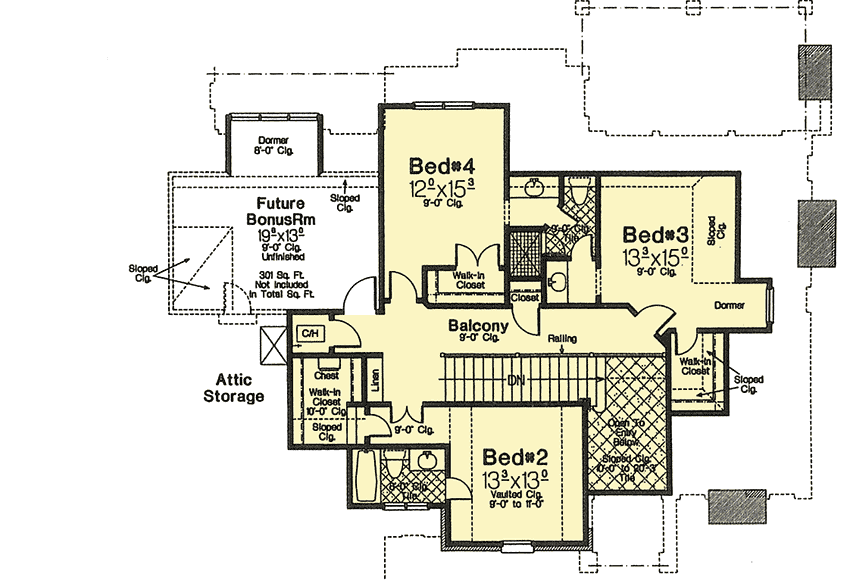

Great Outdoor Living Room in Back - 48262FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,383 sq. ft.
  • 1st Floor: 2,310 sq. ft.
  • 2nd Floor: 1,073 sq. ft.
  • Entry: 65 sq. ft.
  • Bonus: 301 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 61' 1"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 749 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Entry Slope 20' 3"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Great Outdoor Living Room in Back

  • 3,383

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,395
  • 8 Sets $1,535
  • PDF - Single-Build $1,685
  • CAD - Single-Build $2,610
  • View all purchase option online

About This Plan

  • An attractive two-story foyer off the covered porch will impress your guests.
  • Flanking the entry is your formal dining room (with butler's pantry) and living room with fireplace. Both have 10' ceilings.
  • Entertain in style in the massive great room with a second fireplace and built-ins (including an entertainment center). French doors take you and your guests to the outdoor living room with fireplace and gas grill.
  • The kitchen is open to the great room and nook. A pantry and outdoor access are nice touches.
  • A study sits right near the master suite which has its own private covered patio, five-fixture bath and massive walk-in closet with built-ins.
  • The master closet is a generous 10' by 10' plus 5' by 6' by the shower.
  • A powder room, coat closet and utility room are located off the garage.
  • On the second floor, three bedrooms, two baths and a bonus room complete this home plan.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,383 sq. ft.
  • 1st Floor: 2,310 sq. ft.
  • 2nd Floor: 1,073 sq. ft.
  • Entry: 65 sq. ft.
  • Bonus: 301 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 61' 1"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 749 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 48262FM
View this and more for this plan by visiting www.architechtecturaldesigns.com/48262FM
|
