Plan 5963ND
Great Room at Heart
Heated S.F.
1,480
Beds
2-3
Baths
2
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

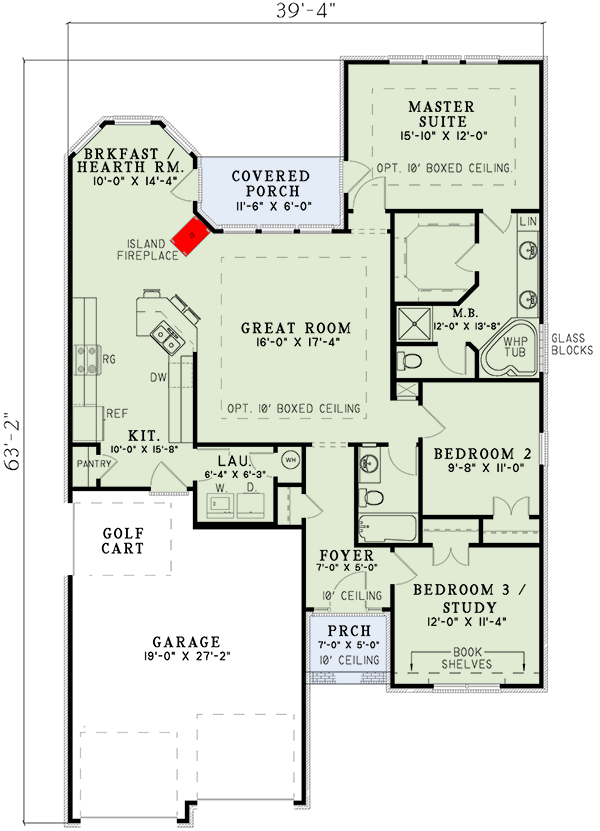

Great Room at Heart - 5963ND floor plan - Main Level

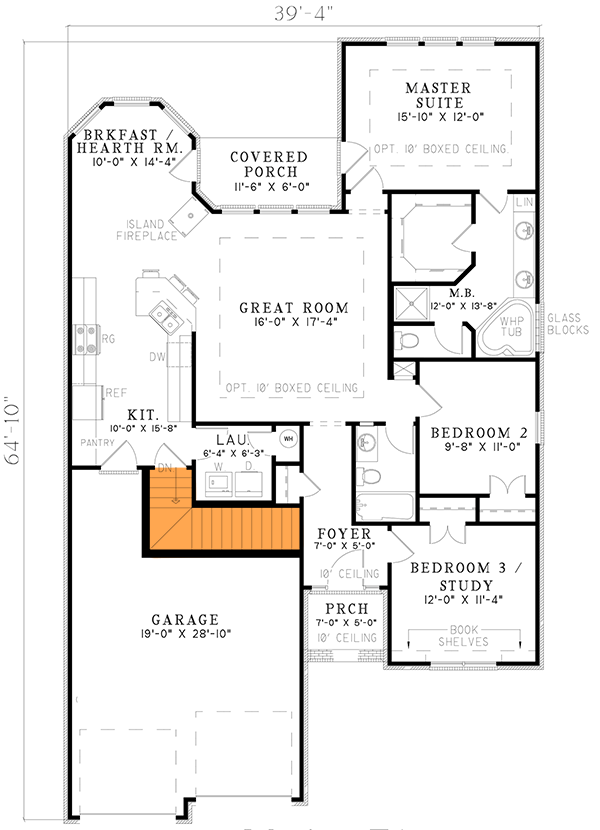

Basement Stairs Location
Reverse Floor Plan
Great Room at Heart - 5963ND floor plan - Basement Stairs Location
Plan Details
  • At the heart of this home is an impressive great room with ten foot ceilings and peninsula fireplace.
  • Off the great room, your family will enjoy meals together any time of day in the expansive kitchen. With an island, eat-at open bar, and breakfast nook complete with bay windows, you won't hear any excuses for not finding time to eat.
  • A secluded private entrance with French doors from the master suite to a rear covered porch allows you the opportunity to "get away" from it all.
  • Ceiling height: 9'
  • Foundation: slab or crawl space. Please specify when ordering.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Great Room at Heart

  • 1,480

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 1,480 sq. ft.
  • 1st Floor: 1,480 sq. ft.

Dimensions

  • Width: 39' 4"
  • Depth: 63' 2"
  • Max ridge height: 25' 10"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 516 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
