Plan 59823ND

Great Room with Cozy Fireplace

Heated S.F.
4,510
Beds
3 - 4
Baths
2.5 - 4.5
Stories
1
Cars
2

Floor Plan

Plan 59823ND

Basement
Basement
Main Level
Main Level

Plan 59823ND

M-F 9am-5pm EST |

1-203-761-8500

Basement

Plan 59823ND: Great Room with Cozy Fireplace - Floor Plan - Basement - Southern, Traditional

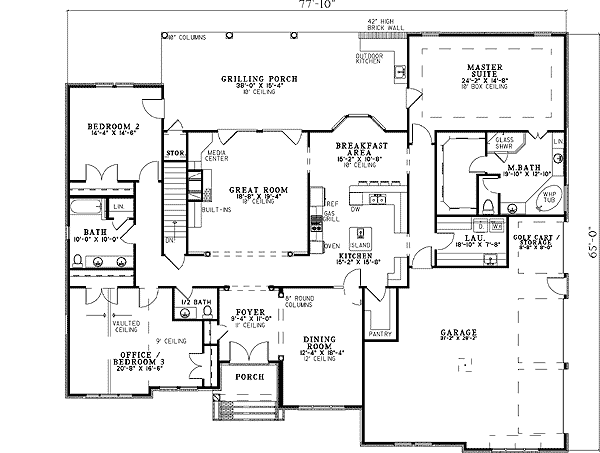

Main Level

Plan 59823ND: Great Room with Cozy Fireplace - Floor Plan - Main Level - Southern, Traditional

Plan Details

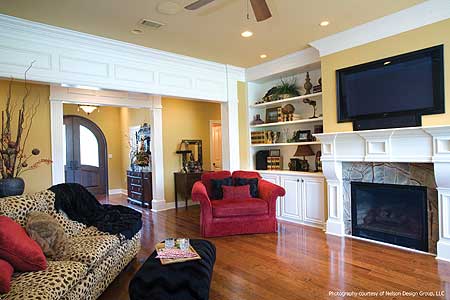

  • This house plan boasts amenities that are certain to be a favorite among the entire family. Upon entering the open foyer, guests can be lead to the great room where the cozy fireplace will be enjoyed by all.

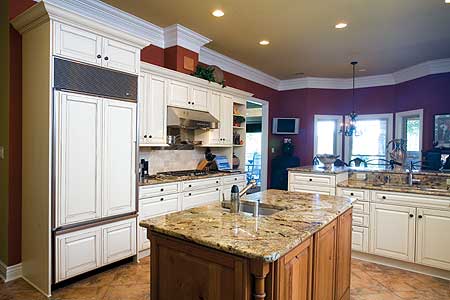

  • The gourmet kitchen provides abundant counter space and a generous walk-in pantry. The rear grilling porch with an outdoor kitchen will be appreciated during the summer barbeques.
  • The lower floor with home theater provides an ideal gathering place for the neighborhood kids.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,510 sq. ft.

Lower Level

1,501 sq. ft.

1st Floor

3,009 sq. ft.

Porch, Combined

630 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

77' 10"

Depth

65' 0"

Max Ridge Height

32' 4"

Garage

Type

Attached

Area

898 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Home Theater

Master Suite - 1st Floor

Outdoor Kitchen

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery

Premium Collection

Sloping Lot
