Guest Lodge With Kitchen

Plan 17693LV

  • 5,388

    Heated s.f.

  • 5-6

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • A guest lodge over the garage of this elegant European home plan would make a wonderful in-law suite. With its own entrance off the breezeway and a full kitchen it gives matches privacy and livability in a single space.
  • Three sets of double doors in the grand room open to the rear terrace, adding light and enhancing the views.
  • A coffered ceiling and fireplace will make your time in the study pleasant.
  • The over-sized formal dining room will hold family and guests in comfort.
  • Each of the bedrooms on the second floor has its own bath and walk-in closet.
  • The huge rec room on this floor has doors that open to a balcony when you need a breath of fresh air.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

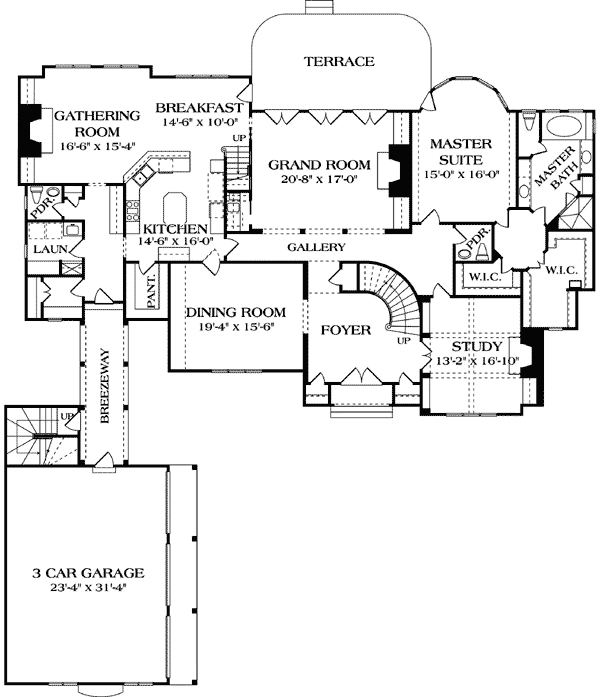

Guest Lodge With Kitchen - 17693LV floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

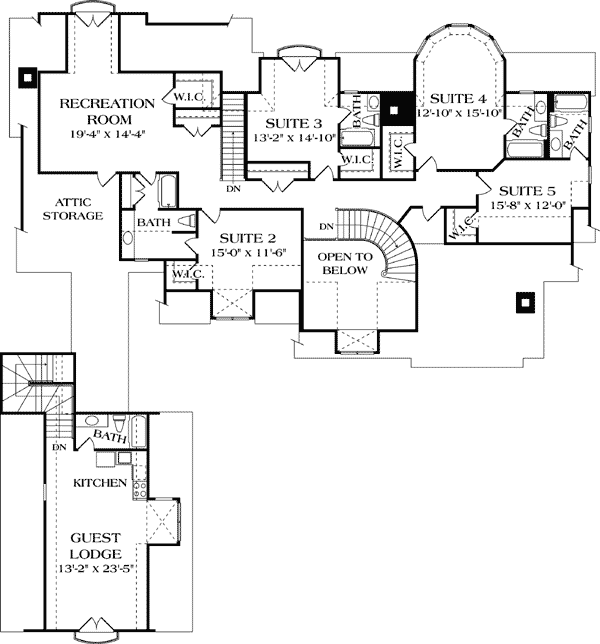

Guest Lodge With Kitchen - 17693LV floor plan - 2nd Floor

Guest Lodge With Kitchen

  • 5,388

    Heated s.f.

  • 5-6

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,388 sq. ft.
  • 1st Floor: 3,348 sq. ft.
  • 2nd Floor: 2,040 sq. ft.

Dimensions

  • Width: 86' 0"
  • Depth: 97' 8"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 863 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
