Plan 72506DA

Handsome Craftsman Home Plan

Heated S.F.
2,674
Beds
3 - 4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 72506DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72506DA

M-F 9am-5pm EST |

1-203-761-8500

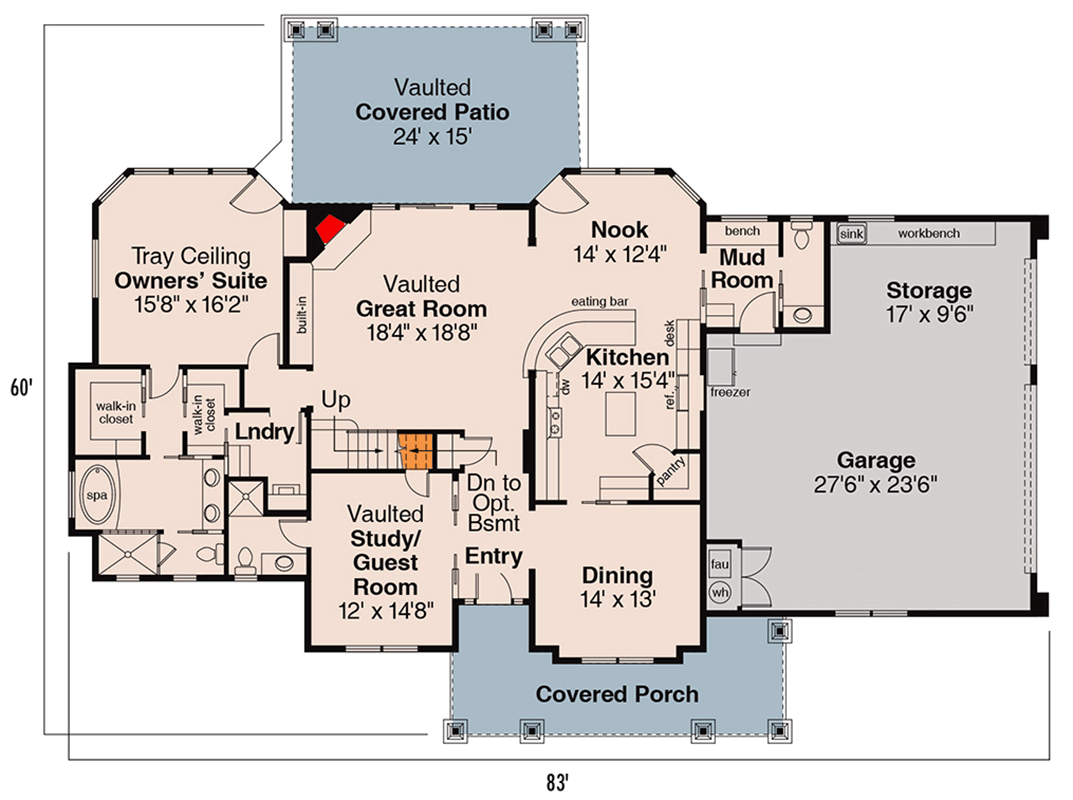

Main Level

Plan 72506DA: Handsome Craftsman Home Plan - Floor Plan - Main Level - Craftsman, Northwest

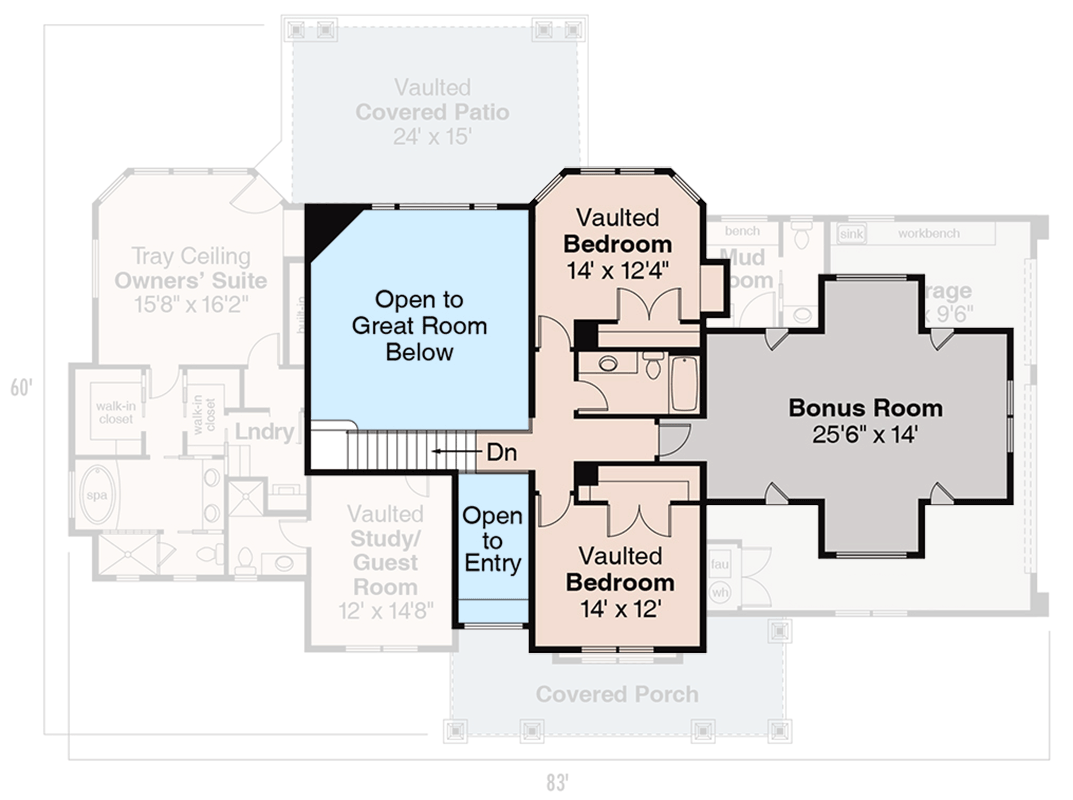

2nd Floor

Plan 72506DA: Handsome Craftsman Home Plan - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Stone veneer wainscoting and column supports create a rustic ambiance. Additional Craftsman details include the tapered porch columns, stickwork gable accents, and multipaned windows.
  • Families that enjoy entertaining will particularly appreciate the four linked gathering spaces off of the two-story entry. The first access is through the dining room on the right, which connects with the kitchen and nook. Or head straight down the entry to the vaulted great room, which also opens to the kitchen and nook.
  • In the great room, spacious cabinetry houses a home entertainment center that fills the wall next to a wood-burning fireplace. Glass fills most of a rear wall where sliding glass doors open onto a skylit, vaulted, covered patio.
  • Natural light beams down through solar tubes into the large 14'x15'4" kitchen. A raised and curved eating bar fronts the kitchen sink, and more natural light washes in through the wide window bay at the rear. A pocket door opens into the mudroom and half bath, which connects to the three-car garage.
  • An elegant tray ceiling sets the tone for the large, luxurious owners' suite. It boasts two walk-in closets, one larger than the other, and a lavishly appointed bathroom with twin lavs, spa tub, oversized shower and private toilet.
  • This bungalow house plan has two vaulted bedrooms, a bathroom, and a large, windowed bonus room are upstairs. Another vaulted room with a private bathroom, is downstairs and to the left of the entry. This space could be used as a guest room, home office, or study.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,674 sq. ft.

1st Floor

2,066 sq. ft.

2nd Floor

608 sq. ft.

Bonus

486 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 0"

Depth

60' 0"

Max Ridge Height

27' 9"

Garage

Type

Attached

Area

847 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Vaulted

22' 0''

Bonus

Flat

8' 0''

Bedroom 3

Vaulted

10' 11''

Bedroom 2

Vaulted

10' 11''

Study

Vaulted

13' 6''

Master Bedroom

Tray

10' 6''

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Home Office

Library/Study

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,674 sq. ft.

1st Floor

2,066 sq. ft.

2nd Floor

608 sq. ft.

Bonus

486 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 0"

Depth

60' 0"

Max Ridge Height

27' 9"

Garage

Type

Attached

Area

847 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Vaulted

22' 0''

Bonus

Flat

8' 0''

Bedroom 3

Vaulted

10' 11''

Bedroom 2

Vaulted

10' 11''

Study

Vaulted

13' 6''

Master Bedroom

Tray

10' 6''

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Home Office

Library/Study

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry
