High-End Craftsman Getaway

Plan 23570JD

  • 1,000

    HEATED S.F.

  • 2

    BEDS

  • 2

    BATHS

  • 1

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • Small in size, this Craftsman getaway Cottage is loaded with luxurious details.
  • Beamed ceilings crown the living room and kitchen/dining area for a high-end finish.
  • Both bedrooms have tray ceilings and walk-in closets.
  • Double doors in the dining area lead out to the outdoor covered living space.
  • A large two car garage and big storage room complete this getaway retreat.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

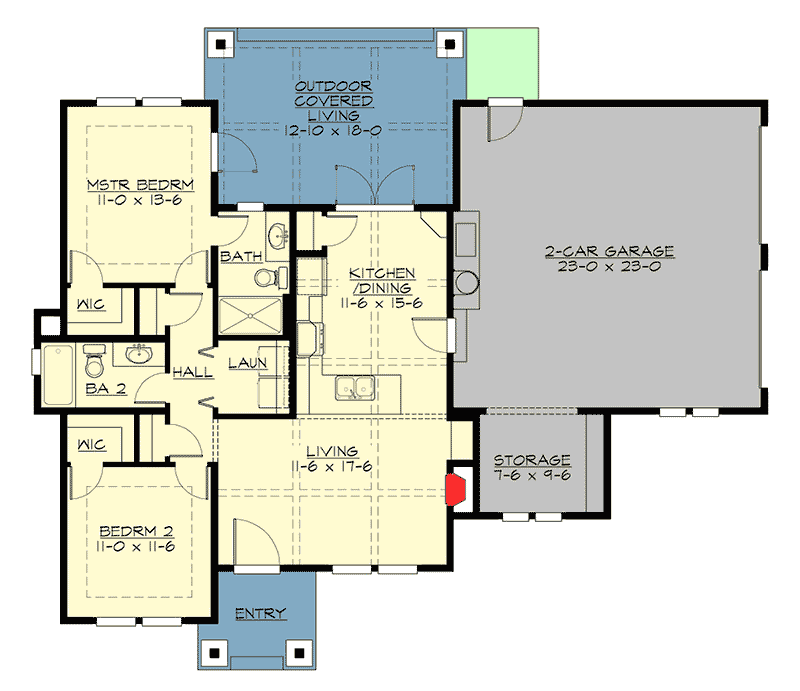

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,000 sq. ft.
  • 1st Floor: 1,000 sq. ft.
  • Porch, Rear: 216 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Dimensions

  • Width: 56' 0"
  • Depth: 48' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 660 sq. ft.
  • Details: 2 Cars
  • Location: Side

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
