Plan 42837MJ

High-End Southern House Plan

Heated S.F.

3,227

Beds

3

Baths

2

Stories

1

Cars

3

What's Included

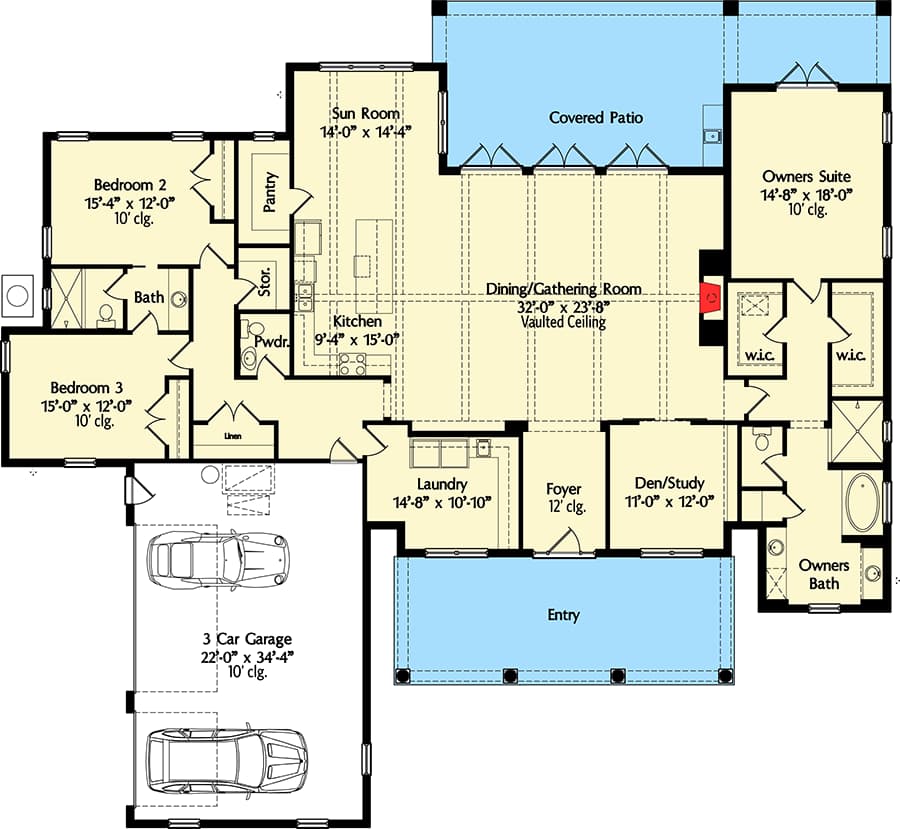

Floor Plan

Main Level

Reverse Floor Plan

High-End Southern House Plan - 42837MJ floor plan - Main Level

Plan Details

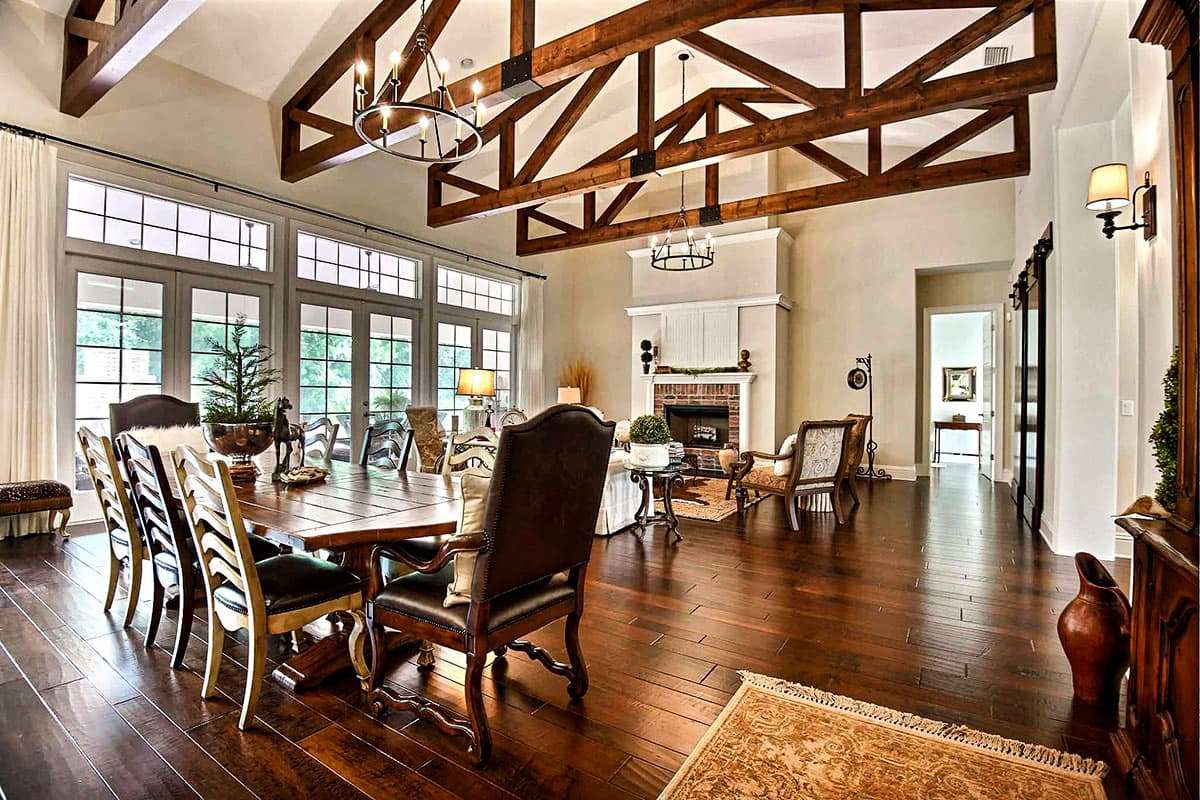

A huge vaulted and beamed ceiling tops the enormous great room of this high-end Southern house plan.
Sightlines sweep around from the gathering room to the kitchen and into the sun room.
Three sets of double doors open to the rear covered patio, expanding the sightlines even more.

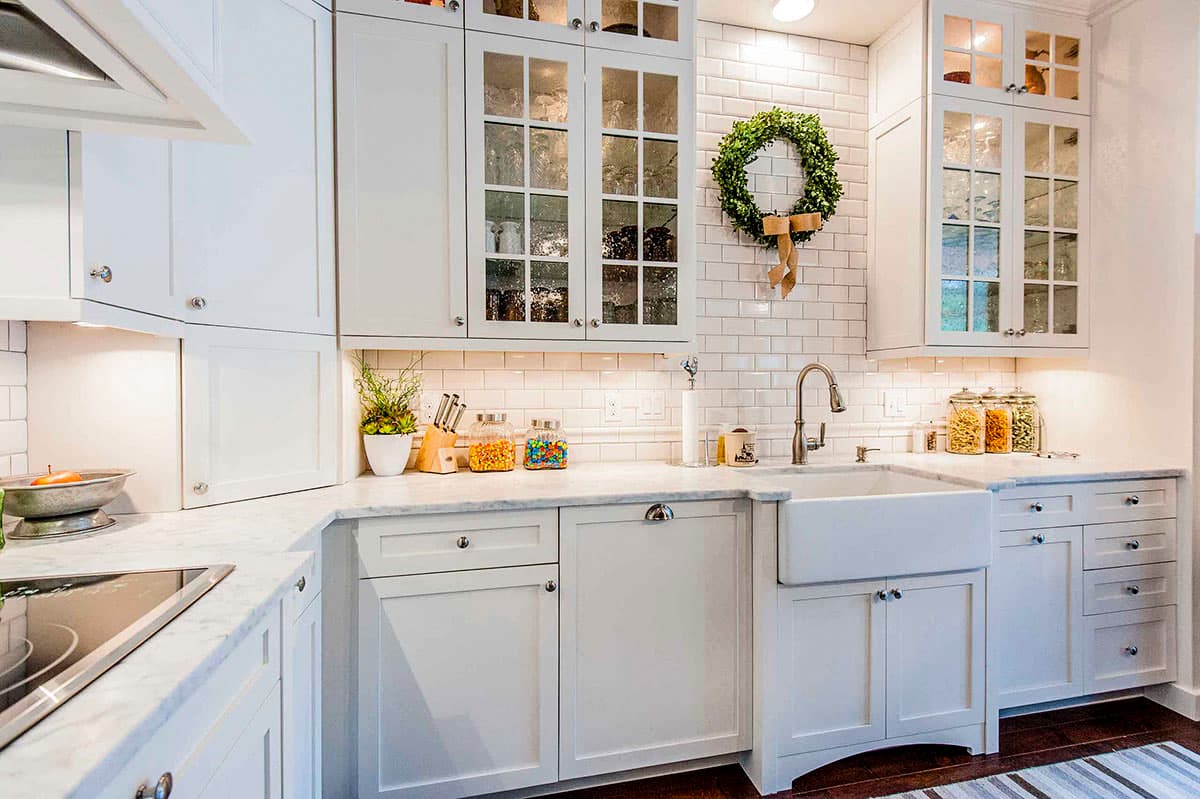

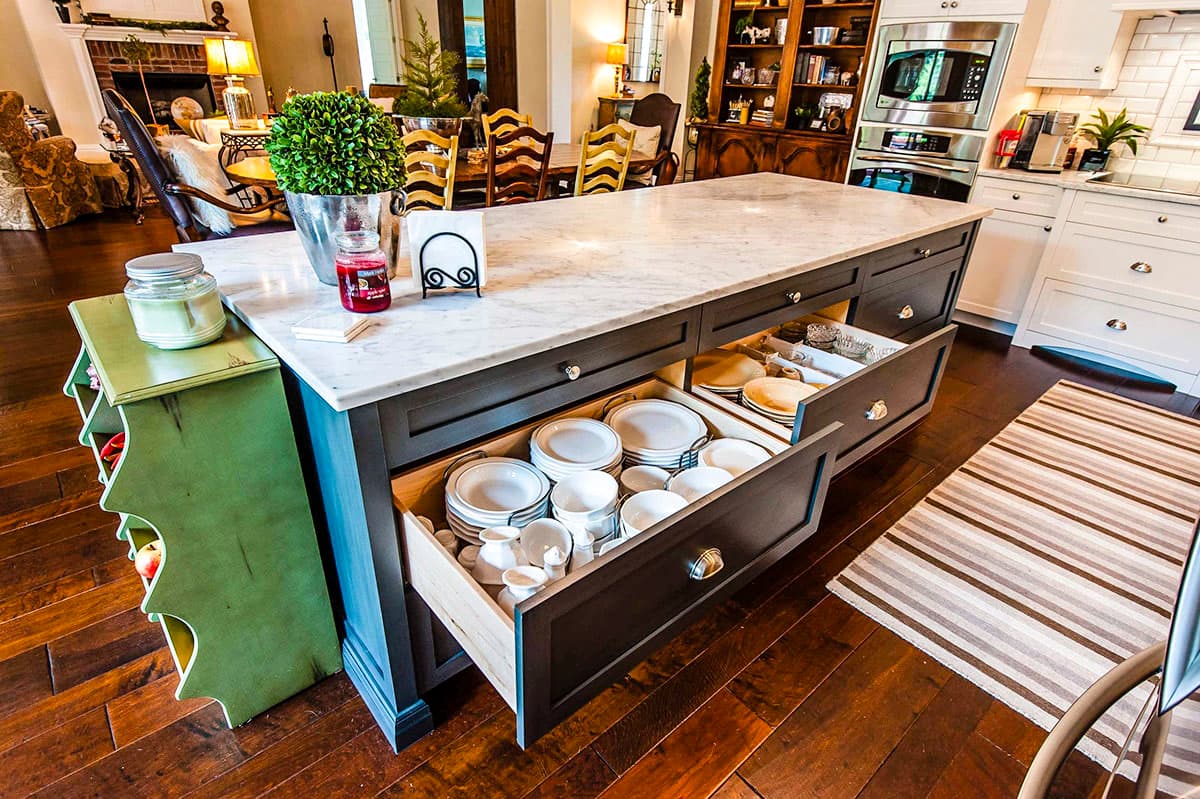

The kitchen island has an eating bar and a second sink while the nearby walk-in pantry is just steps away.
The split bedroom layout means a private master suite off by itself with its own set of double doors to the back porch.

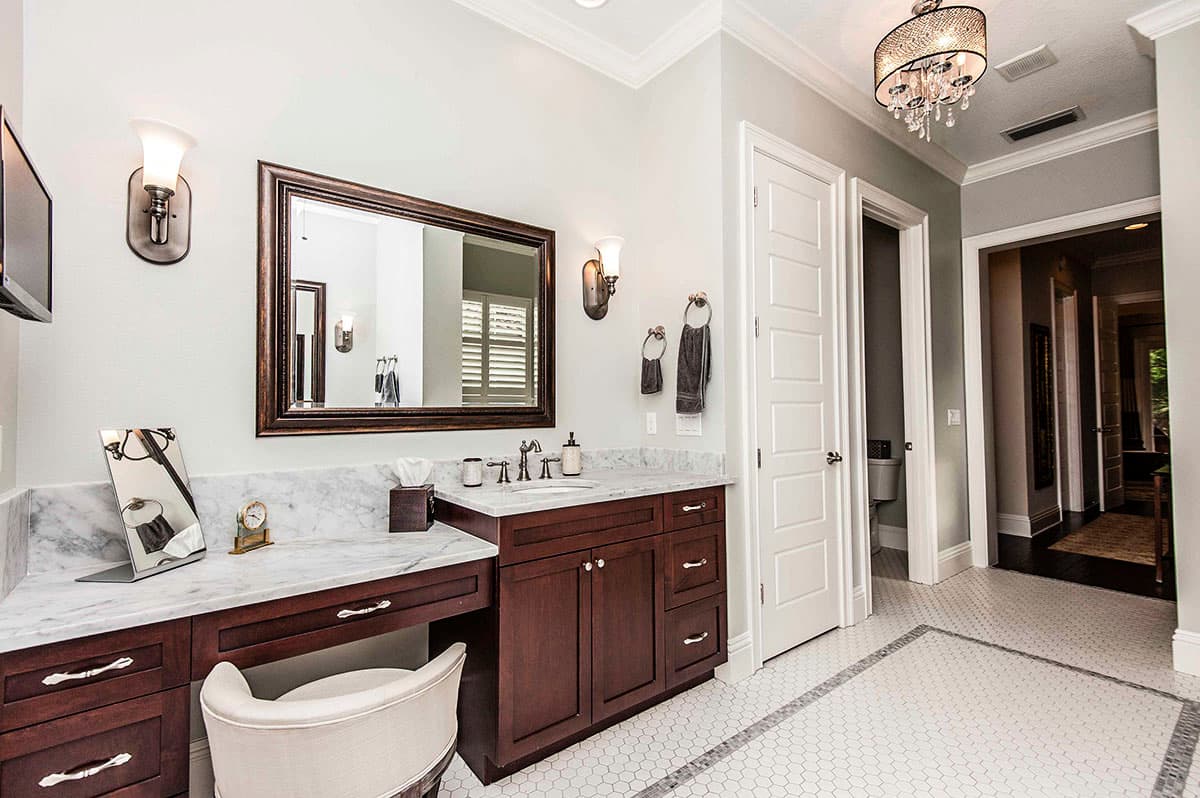

Two big walk-in closets and a large master bathroom further pamper homeowners.

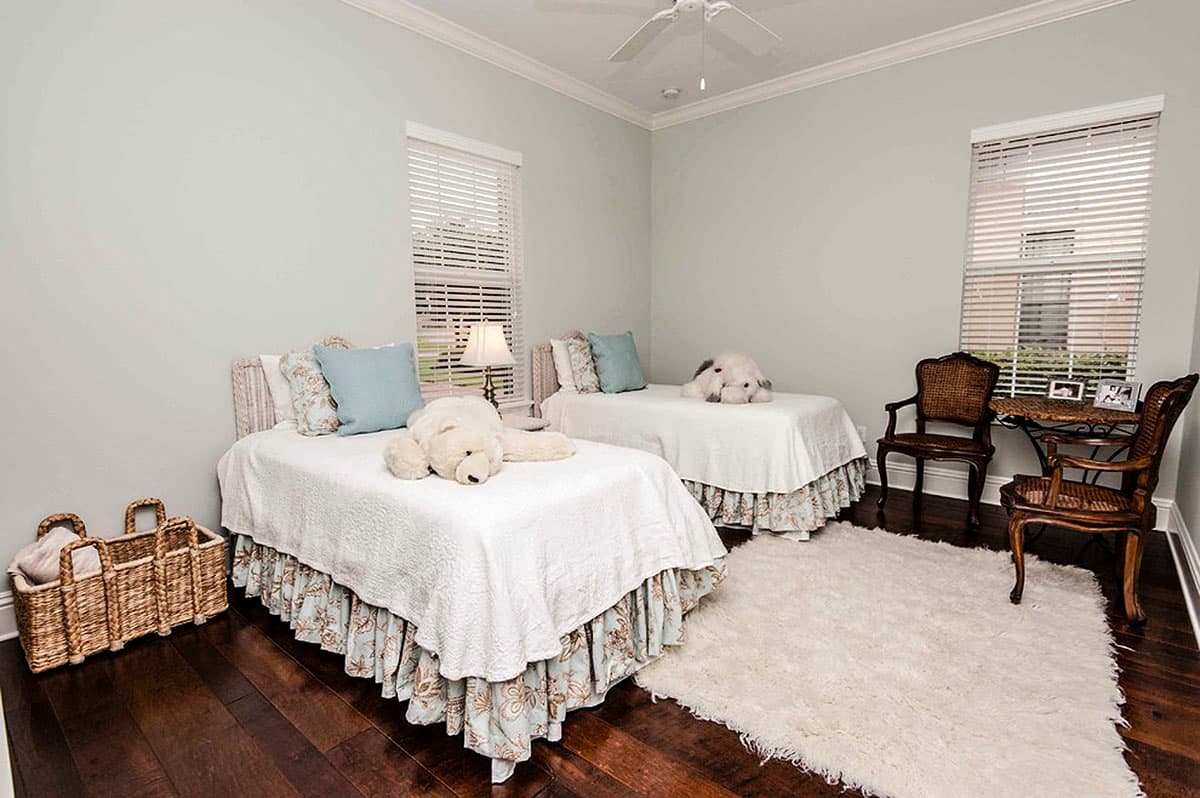

A shared jack and jill bathroom serves the two huge family bedrooms on the opposite end of the home.
FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

Cover Sheet
Floor Plans
Slab Foundation Plan (plumbing layout)

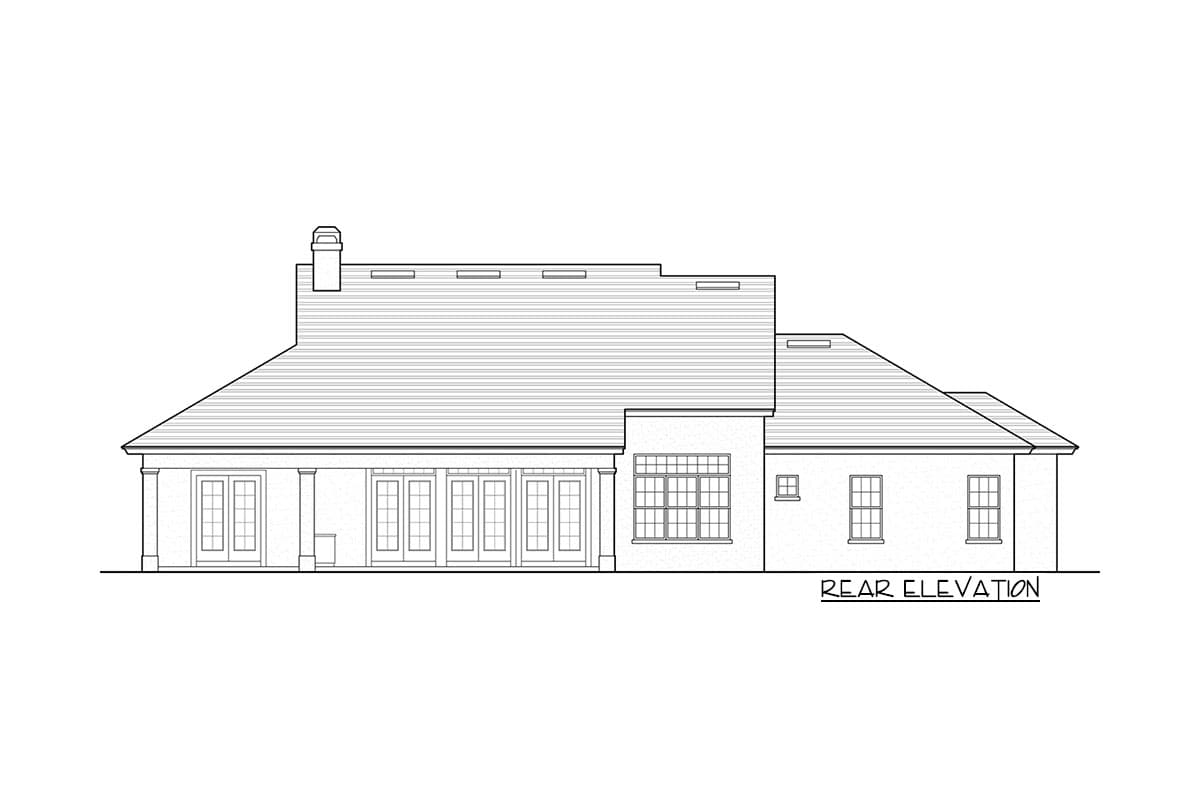

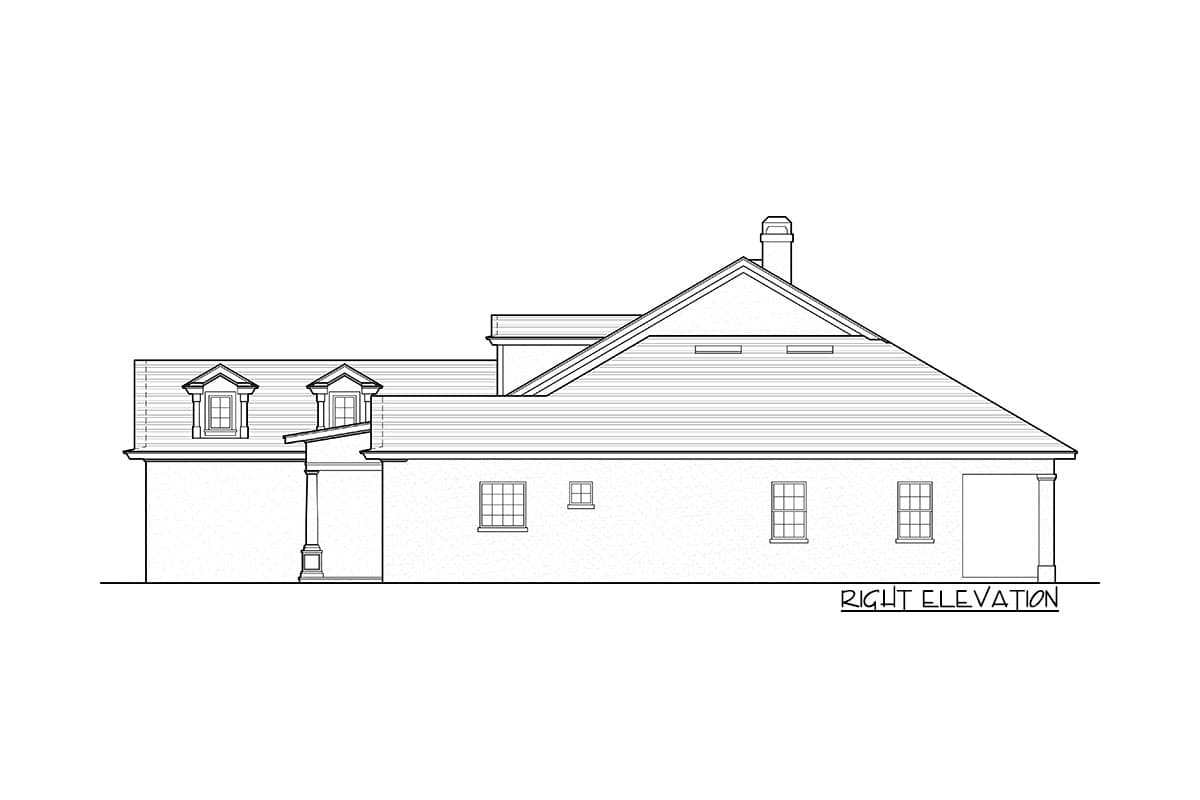

Elevations
Sections
Stair Sections if applicable
Electrical Layout
Basic Details Sheet

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Square Footage Breakdown

Total Heated Area:

3,227 sq. ft.

1st Floor:

3,227 sq. ft.

Porch, Combined:

563 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

Block / CMU (main floor)

Dimensions

Width:

85' 4"

Depth:

79' 4"

Max Ridge Height:

28' 6"

Garage

Type:

Attached

Area:

812 sq. ft.

Count:

3 Cars

Entry Location:

Side

Ceiling Heights

Floor / Height:

First Floor / 10' 0"

Room Details	Ceiling Type	Width	Depth	Height
Entry				12' 0"
Dining Room	Vaulted
Great Room	Vaulted			17' 4"

Roof Details

Primary Pitch:

7 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area:

3,227 sq. ft.

1st Floor:

3,227 sq. ft.

Porch, Combined:

563 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

Block / CMU (main floor)

Dimensions

Width:

85' 4"

Depth:

79' 4"

Max Ridge Height:

28' 6"

Garage

Type:

Attached

Area:

812 sq. ft.

Count:

3 Cars

Entry Location:

Side

Ceiling Heights

Floor / Height:

First Floor / 10' 0"

Room Details	Ceiling Type	Width	Depth	Height
Entry				12' 0"
Dining Room	Vaulted
Great Room	Vaulted			17' 4"

Roof Details

Primary Pitch:

7 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Premium Collection
