Plan 9542RW
High-Style Mountain Living
Heated S.F.
6,863
Beds
2-3
Baths
3.5+
Stories
1
Cars
4
What's Included
Plan Details

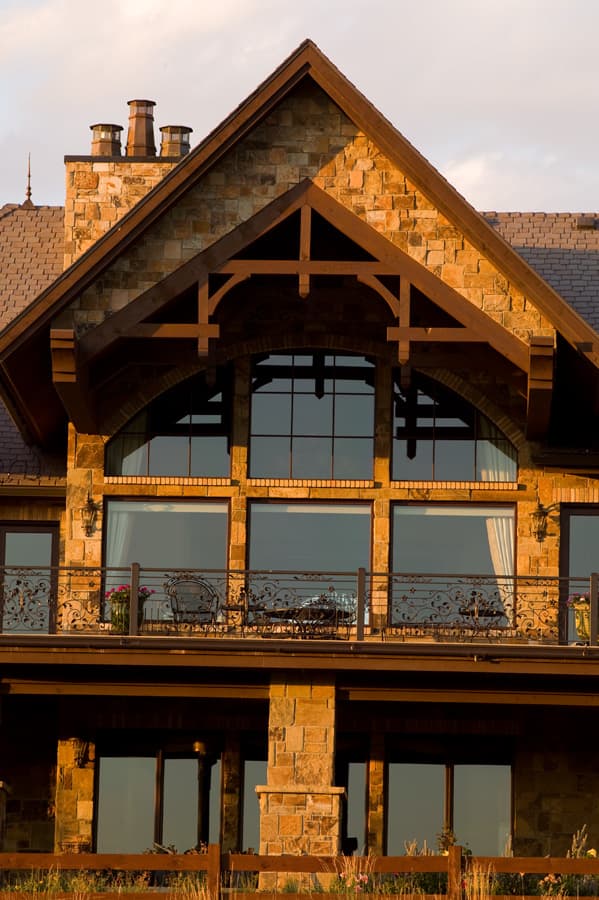

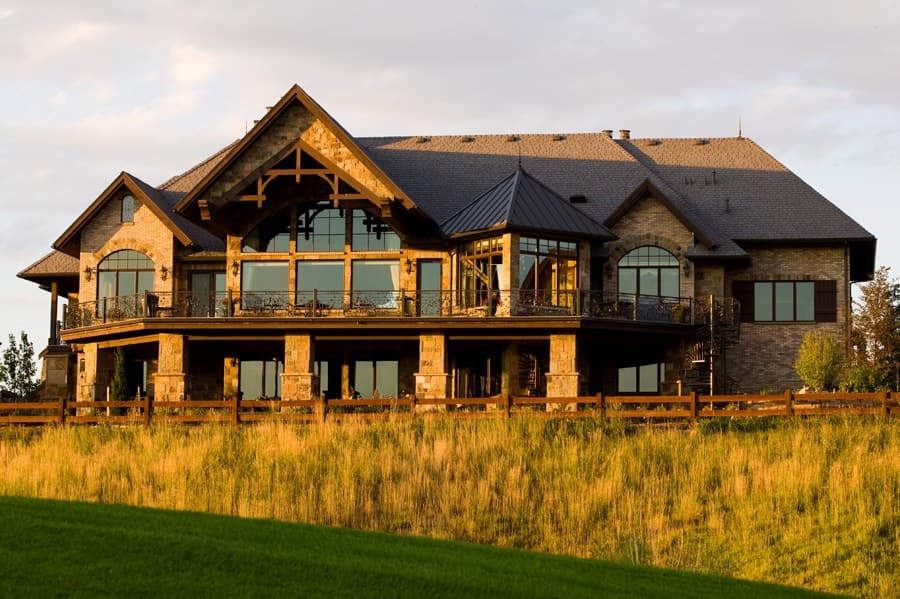

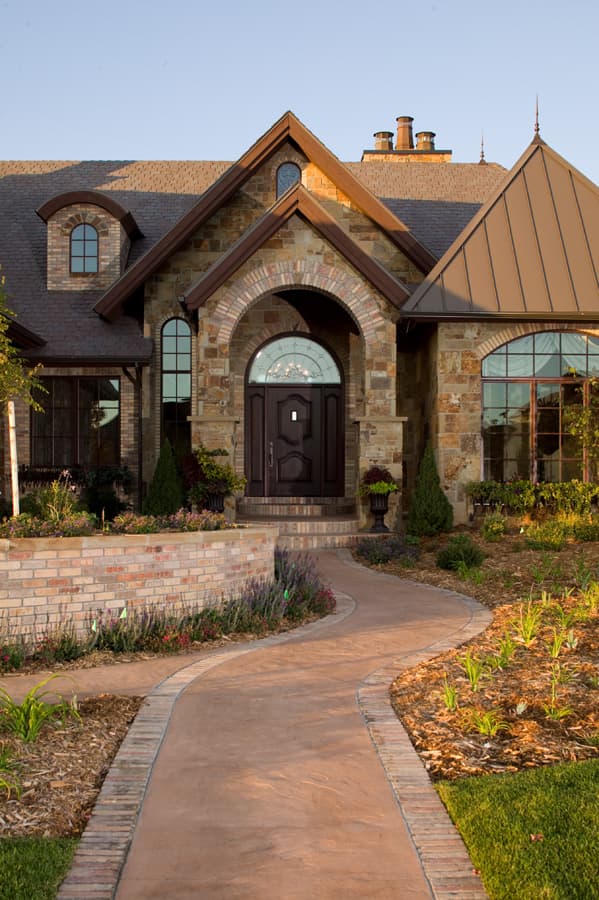

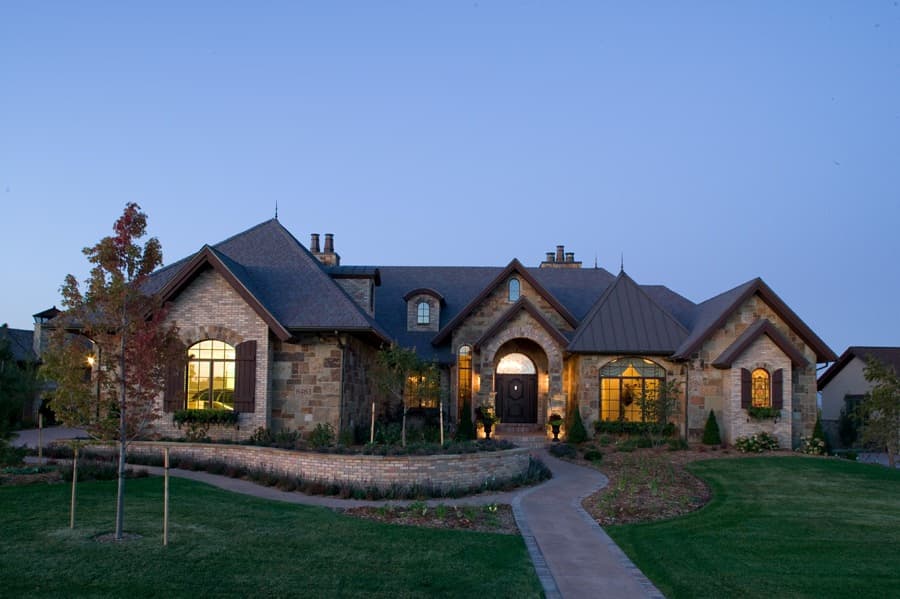

  • The full masonry exterior and the steep pitched turrets exemplify the idea of high elevation-mountain living.

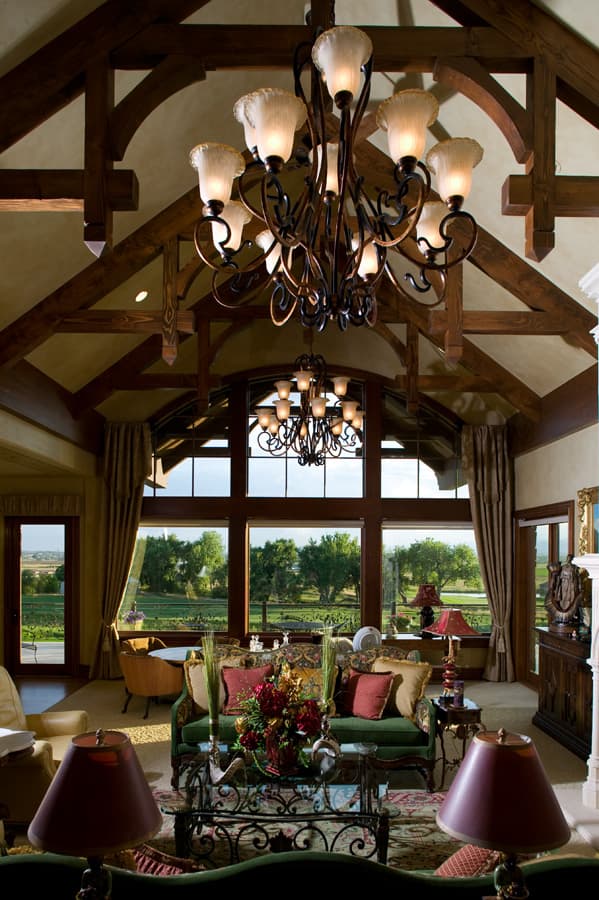

  • On the interior, the many ornate details are seen throughout including attractive moldings, ceiling details and of course the large exposed trusses.
  • You'll enjoy remarkable views from the entry straight through the back where your vaulted covered deck - flanked by two open decks - were designed with views in mind.
  • Talking about vaulted ceilings, look at the casual dining area complete with views as well.
  • The master suite enjoys double deck access - off the back and with a covered deck off of the "Hers" bath - and is the only bedroom on this level to ensure your privacy.
  • The lower level gets you additional bedrooms plus plenty of play space and more outdoor viewing areas.
What's Included

  • Cover Page
  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

High-Style Mountain Living

  • 6,863

    Heated s.f.

  • 2-3

    Beds

  • 3.5+

    Baths

  • 1

    Floors

  • 4

    Car garage

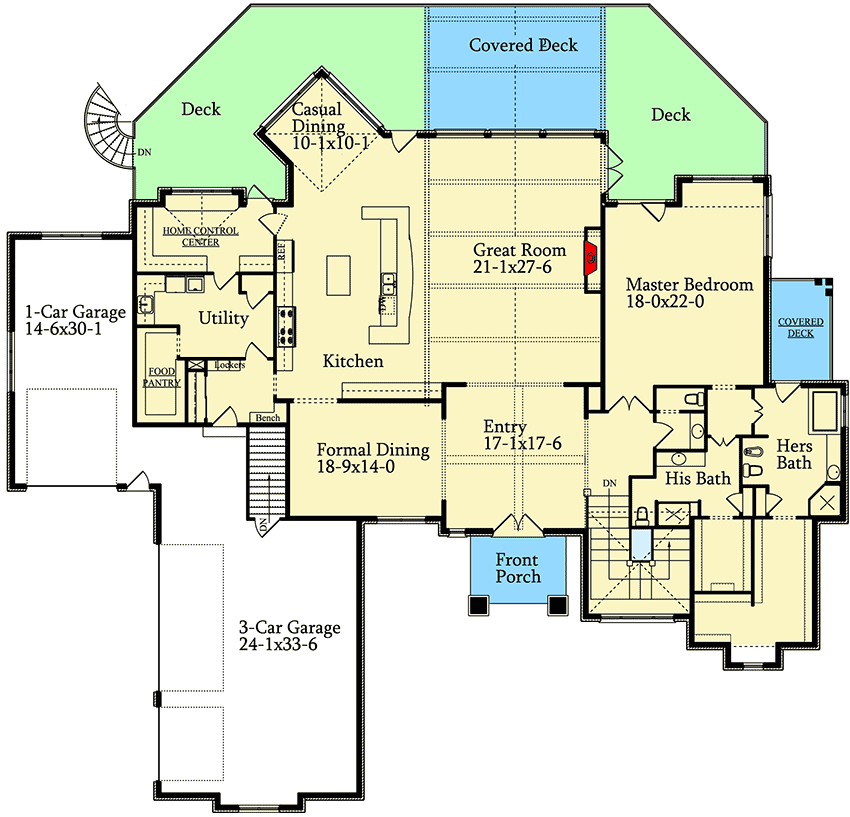

Floor Plan

  • 1st Floor

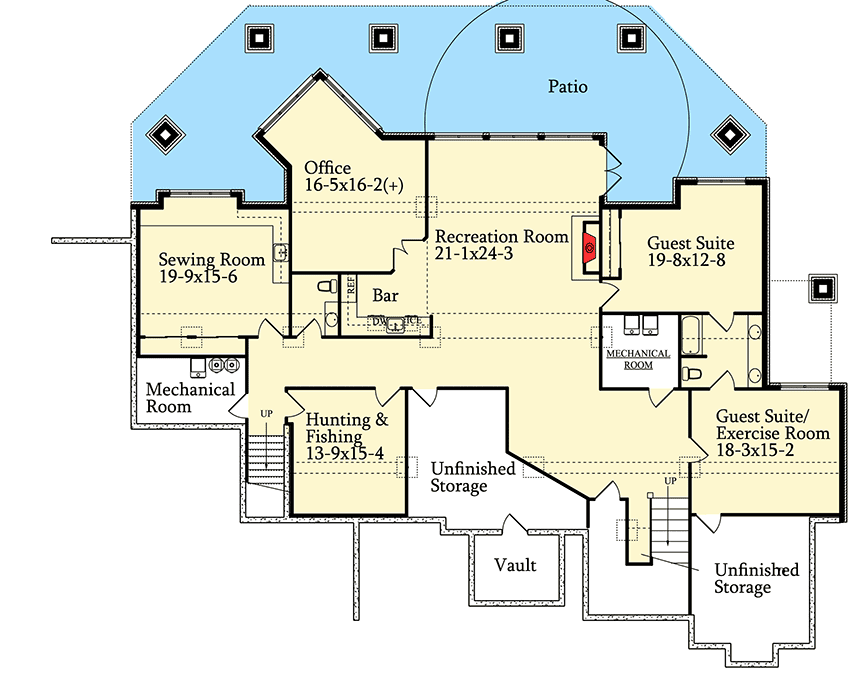

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 6,863 sq. ft.
  • Lower Level: 2,992 sq. ft.
  • 1st Floor: 3,871 sq. ft.

Dimensions

  • Width: 102' 6"
  • Depth: 99' 0"
  • Max ridge height: 27' 3"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1630 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
