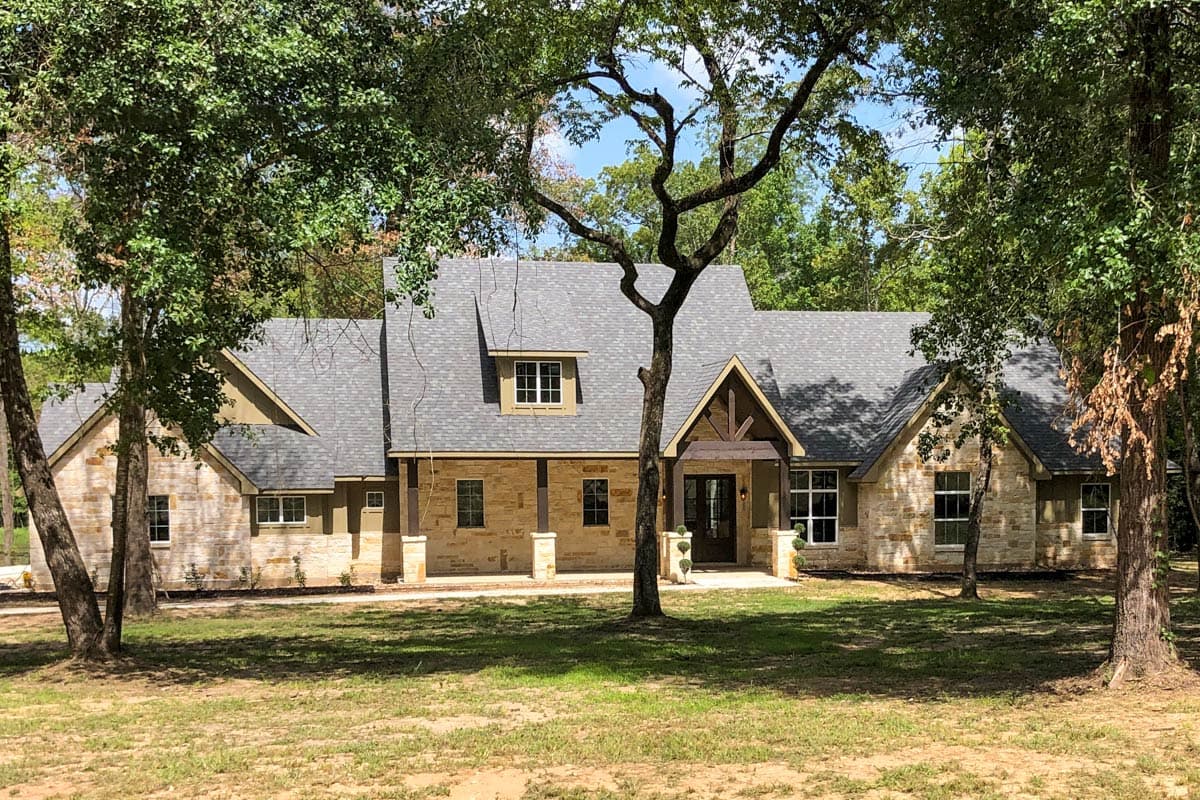

Hill Country House Plan with 3 Beds and a 4-Car Garage

Plan 48394FM

  • 2,542

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • This one level Hill Country Ranch house plan has a wide footprint giving you spacious rooms.
  • As you step in the entry, you are greeted by a view of the huge great room with vaulted ceilings and a fireplace as the focal point.
  • To the right of the foyer, you'll find the study behind a pair of French doors.
  • In the gourmet kitchen, a large island adds counter space and the extra-large walk-in pantry has its own window.
  • All the bedrooms are on the right wing of the home with the master suite boasting a spa bath and giant closet with an island.
  • A mudroom off the 4-car garage helps control clutter.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan

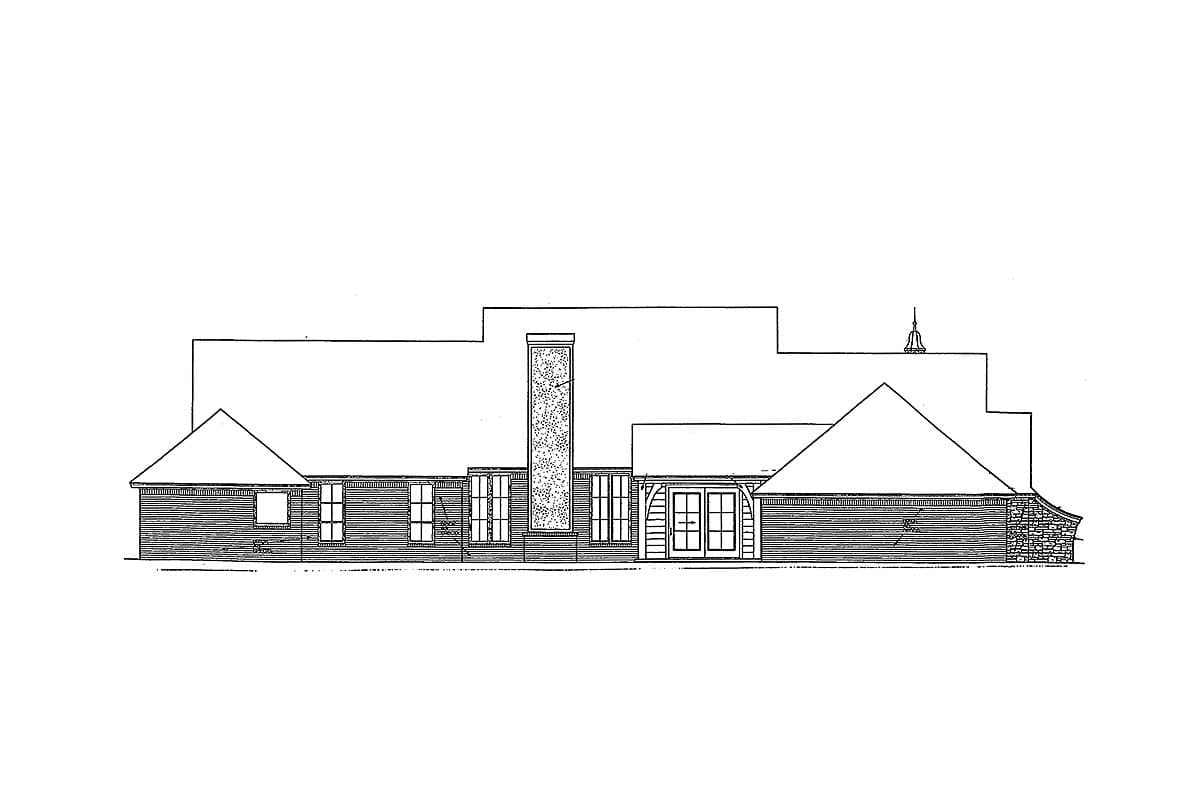

Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

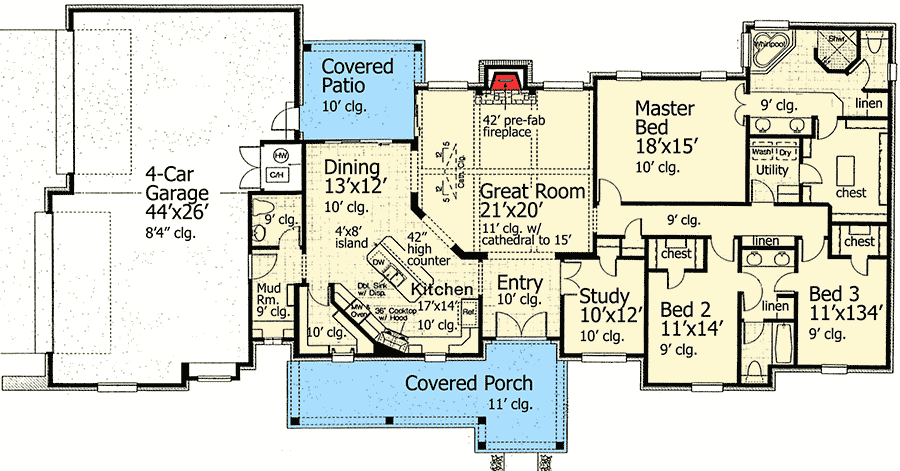

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Hill Country House Plan with 3 Beds and a 4-Car Garage - 48394FM floor plan - Main Level

Plan details



Hill Country House Plan with 3 Beds and a 4-Car Garage

  • 2,542

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $1,195
  • 8 Sets $1,335
  • PDF - Single-Build $1,485
  • CAD - Single-Build $2,270
  • View all purchase option online

About This Plan

  • This one level Hill Country Ranch house plan has a wide footprint giving you spacious rooms.
  • As you step in the entry, you are greeted by a view of the huge great room with vaulted ceilings and a fireplace as the focal point.
  • To the right of the foyer, you'll find the study behind a pair of French doors.
  • In the gourmet kitchen, a large island adds counter space and the extra-large walk-in pantry has its own window.
  • All the bedrooms are on the right wing of the home with the master suite boasting a spa bath and giant closet with an island.
  • A mudroom off the 4-car garage helps control clutter.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,542 sq. ft.
  • 1st Floor: 2,542 sq. ft.
  • Porch, Front: 306 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 100' 0"
  • Depth: 45' 10"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1144 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
