Hillside-walkout Craftsman Home Plan with Sunroom off Master Suite

Plan 444220GDN

  • 4,186

    Heated s.f.

  • 4-5

    Beds

  • 5

    Baths

  • 1-2

    Stories

  • 3

    Cars

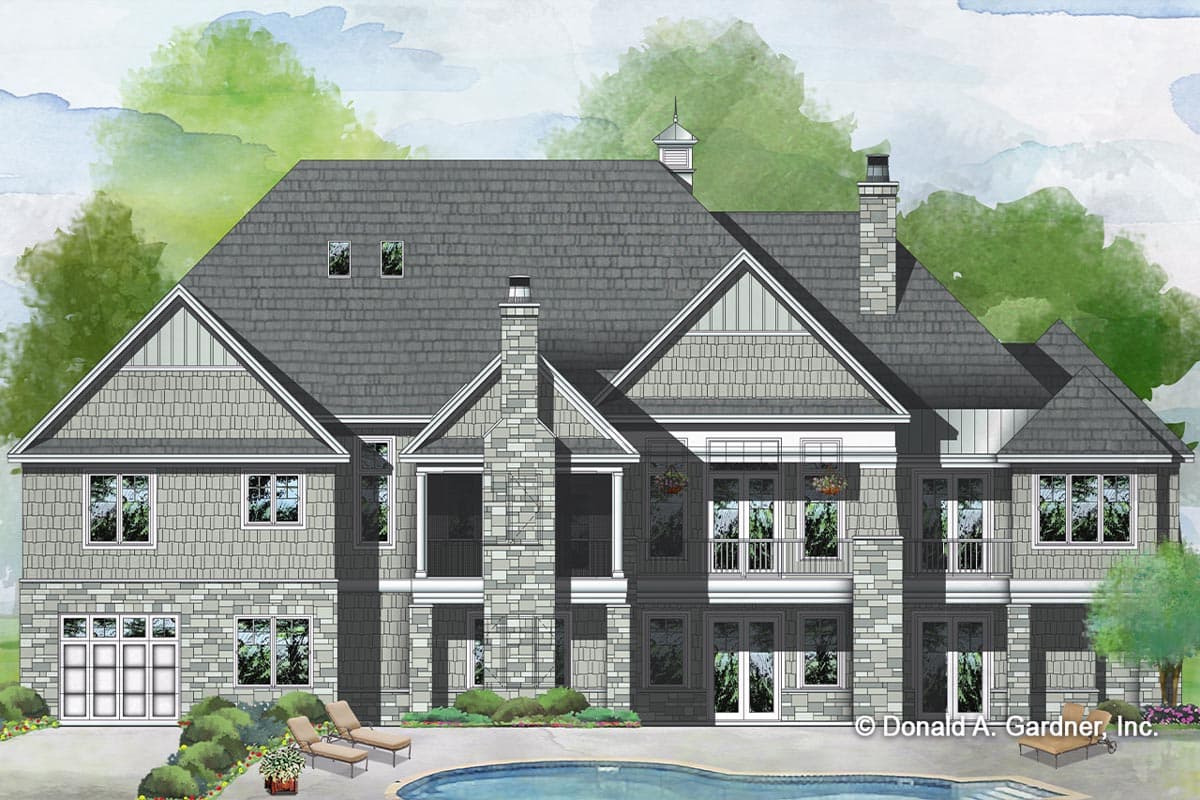

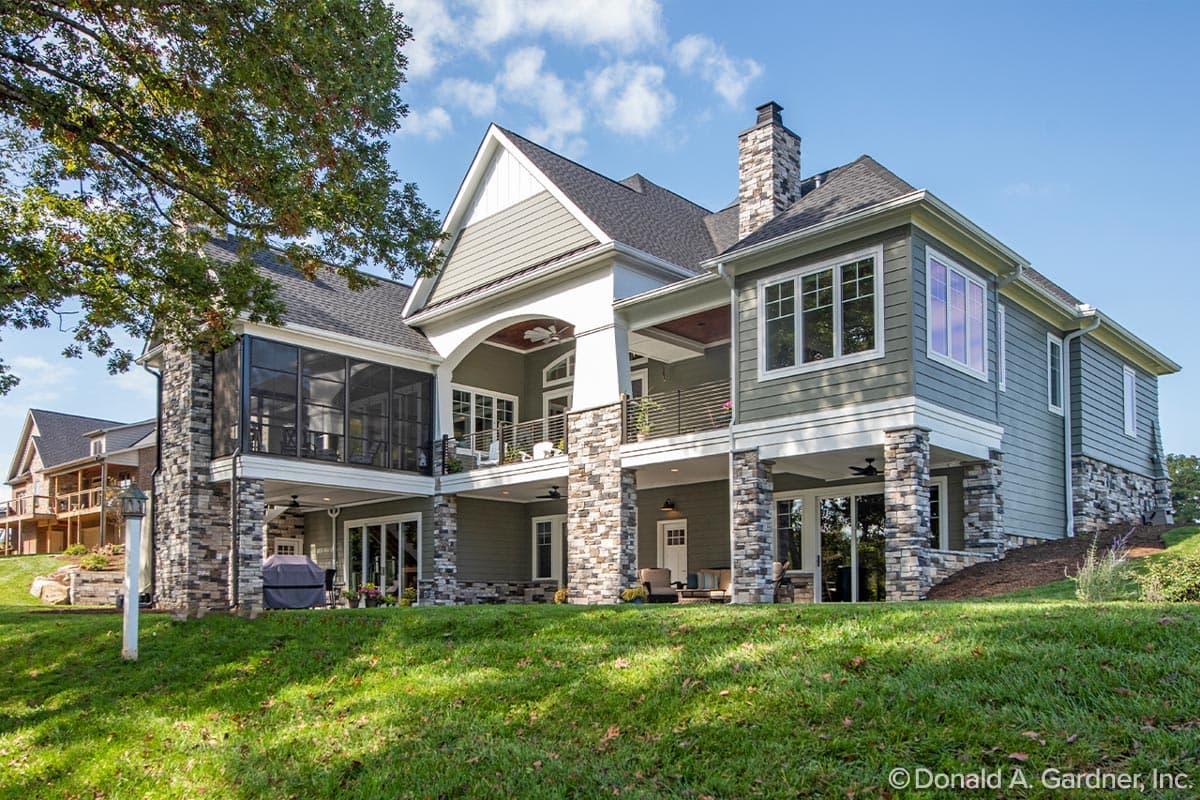

  • This sprawling, Hillside-walkout Craftsman home plan has a captivating presence with staggered gables, a cupola-accented roof, and a stone-and-shake exterior. The front porch is 28'6" wide and 7'6" deep and has a 12' ceiling giving you a great place to sit outside in the shade.

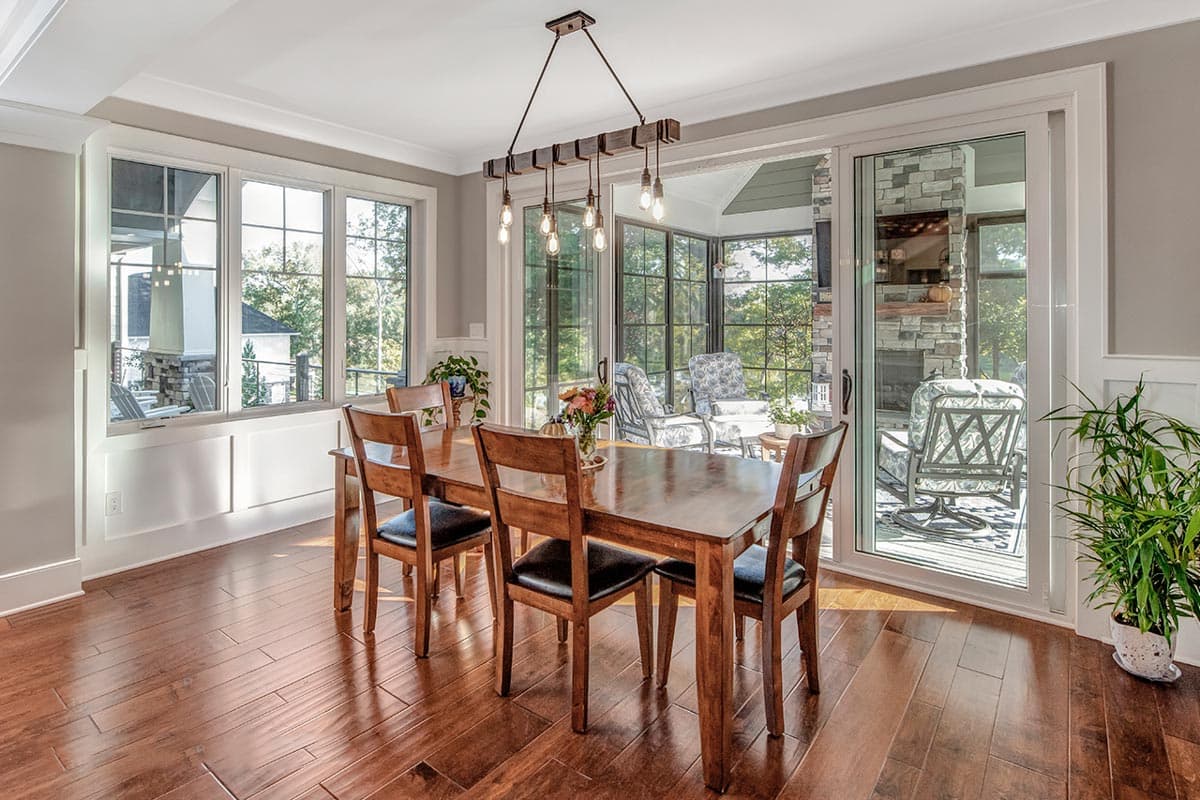

  • For those that love to entertain, a formal dining room serves every dinner party and a spacious breakfast nook provides a place for casual meals.

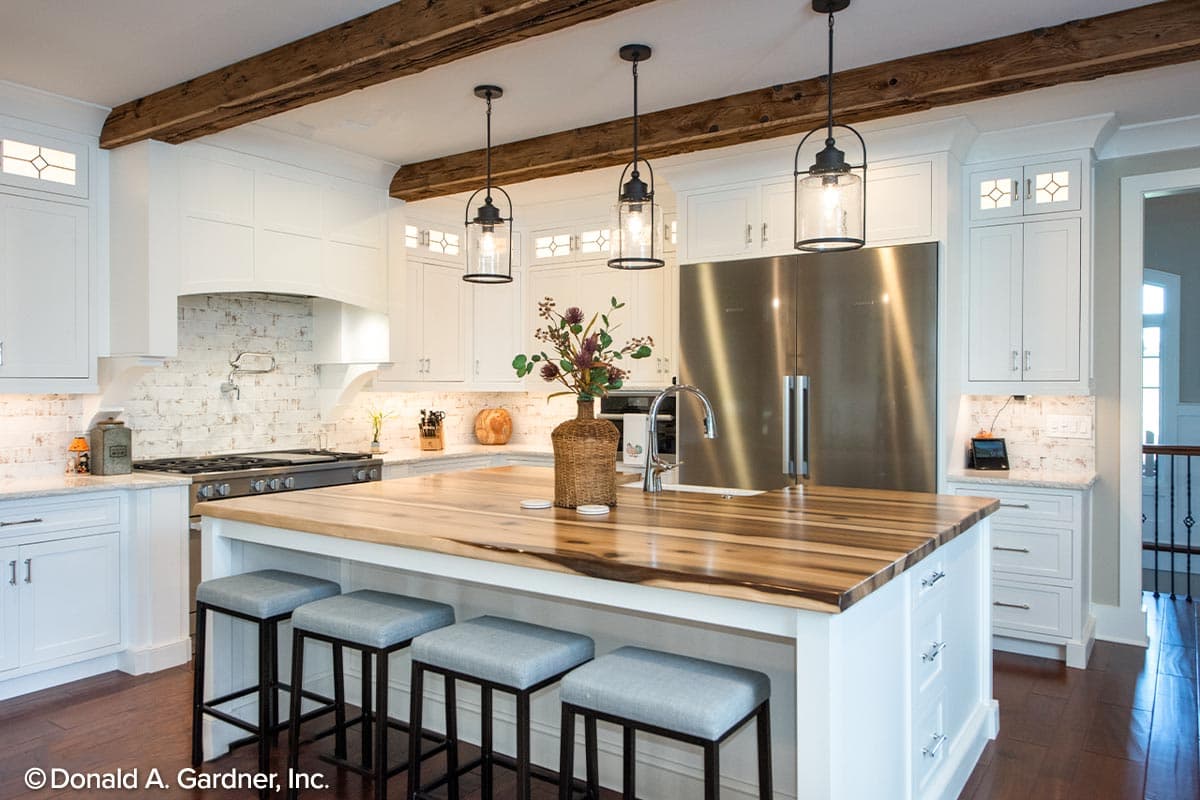

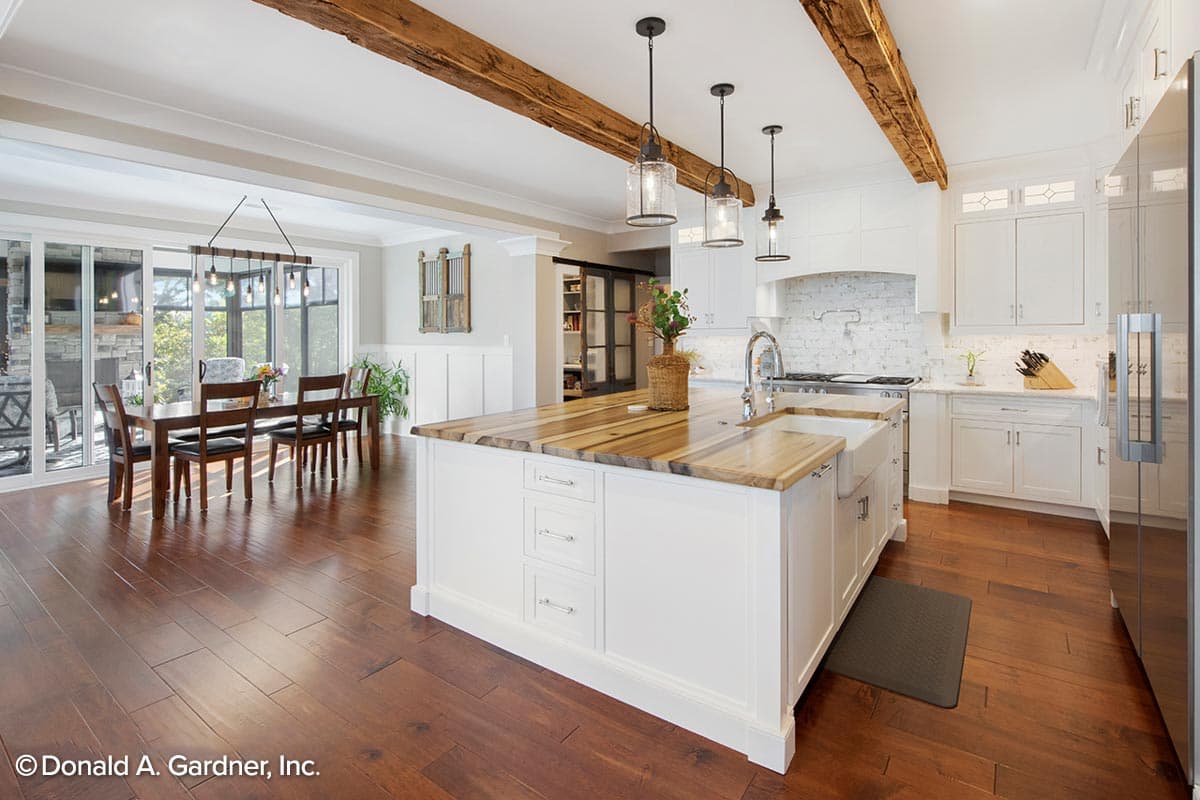

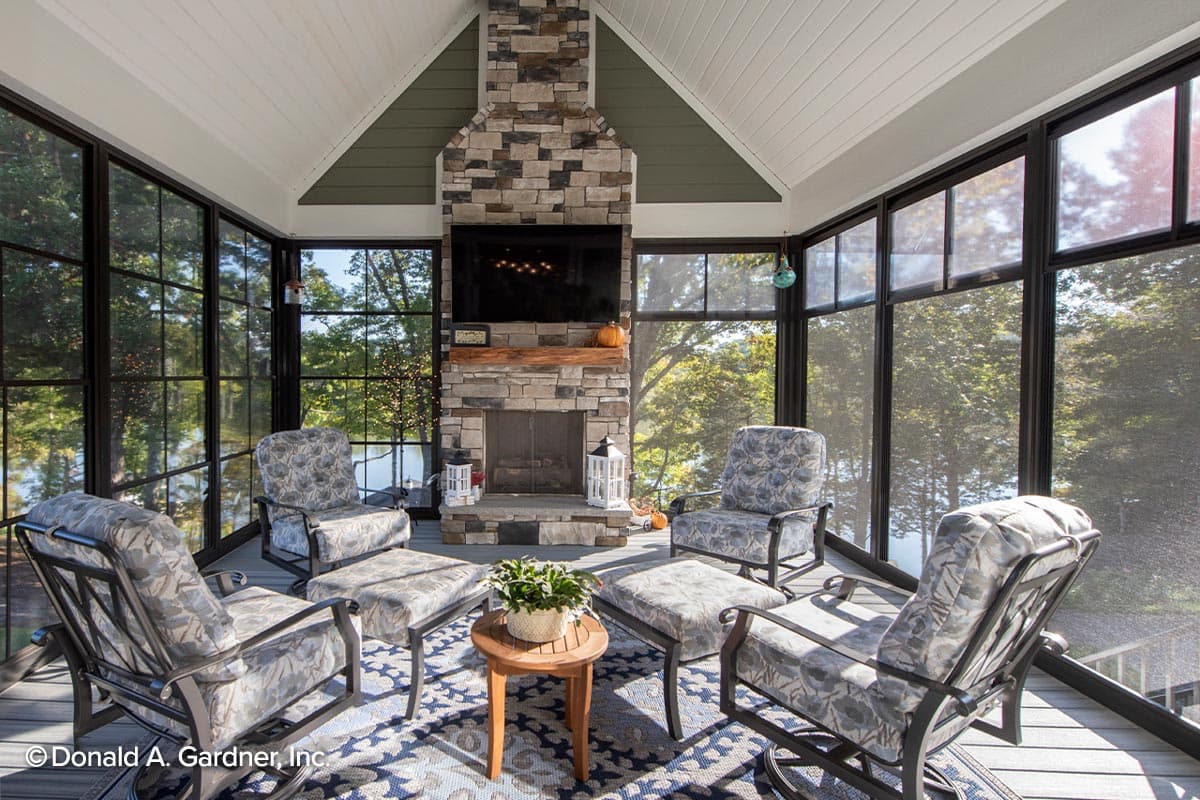

  • The gourmet kitchen offers an island with a prep sink, allowing ample workspace for multiple cooks. A rear screened porch brings endless hours of enjoyment with a fireplace and a skylight-enhanced 13'10" cathedral ceiling.

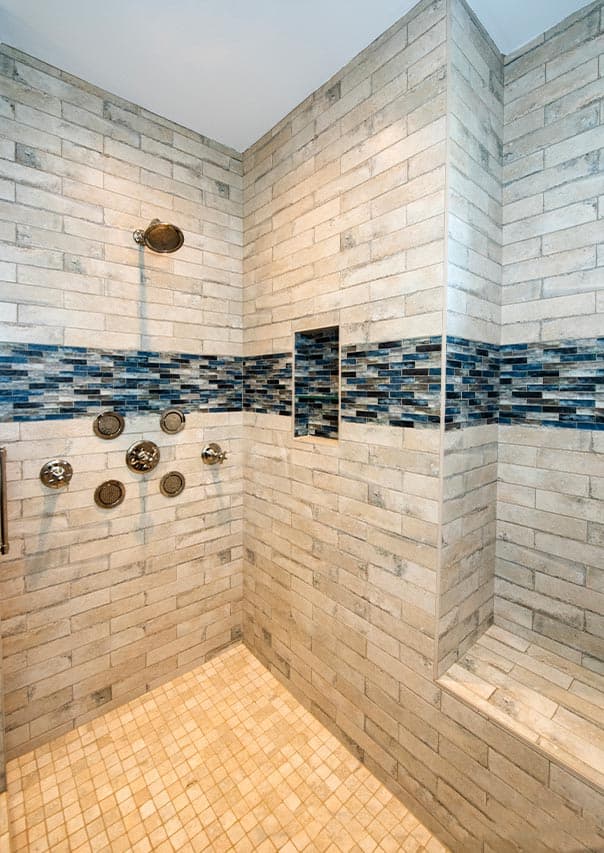

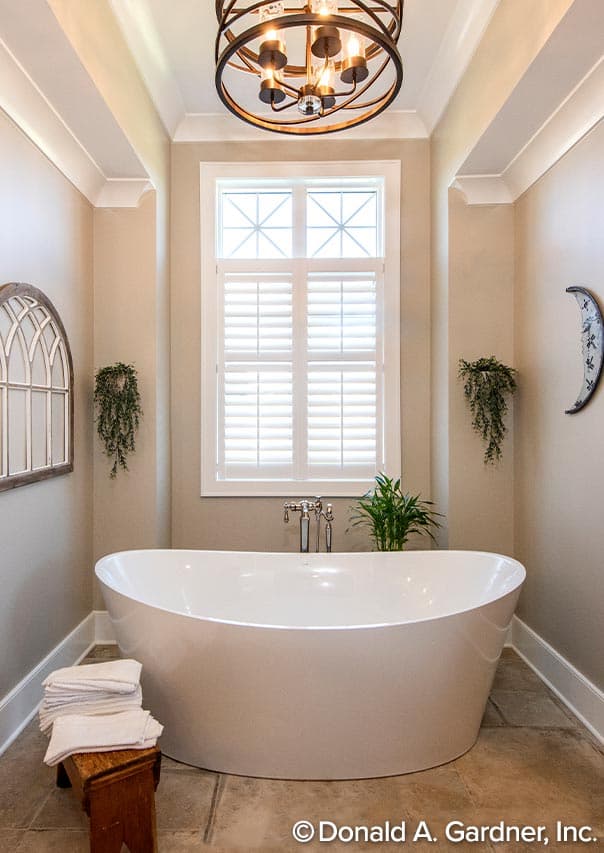

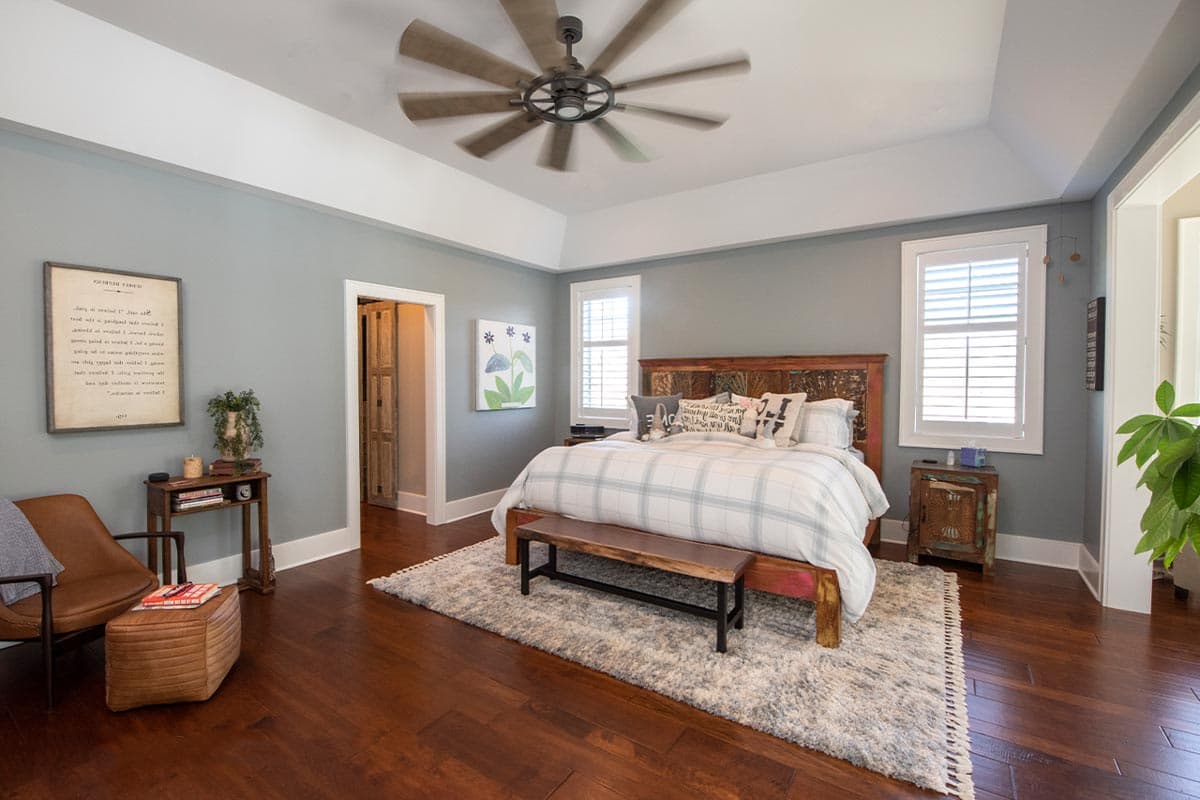

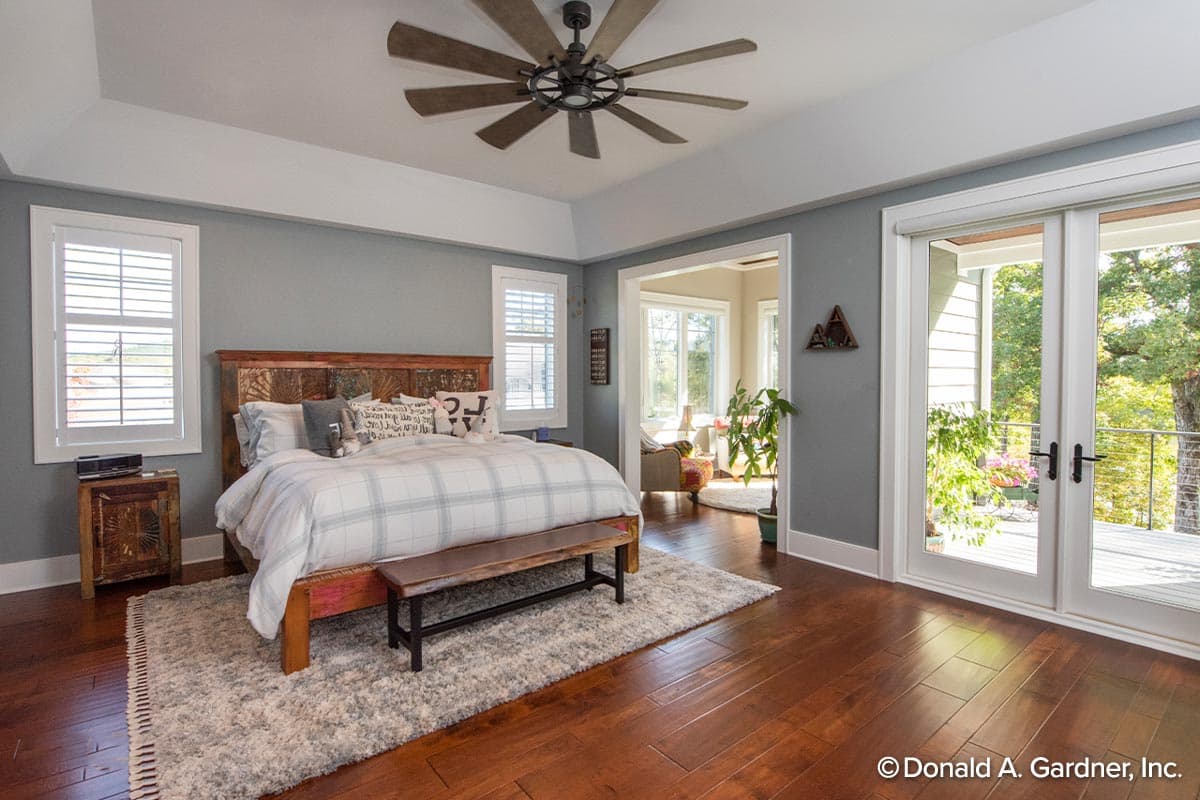

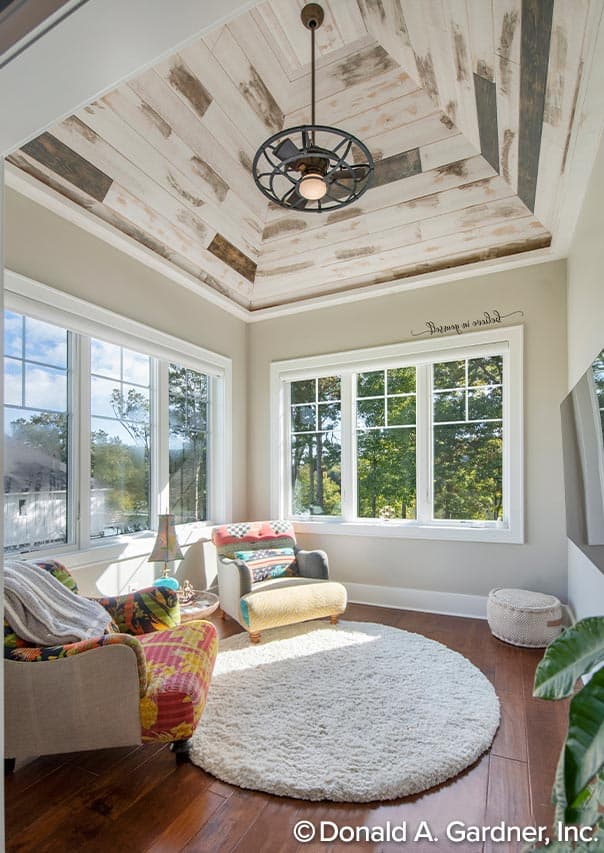

  • The master suite boasts an attached sunroom with a 12'6" vaulted ceiling for private relaxation, as well as a luxury bathroom and walk-in closets for two.

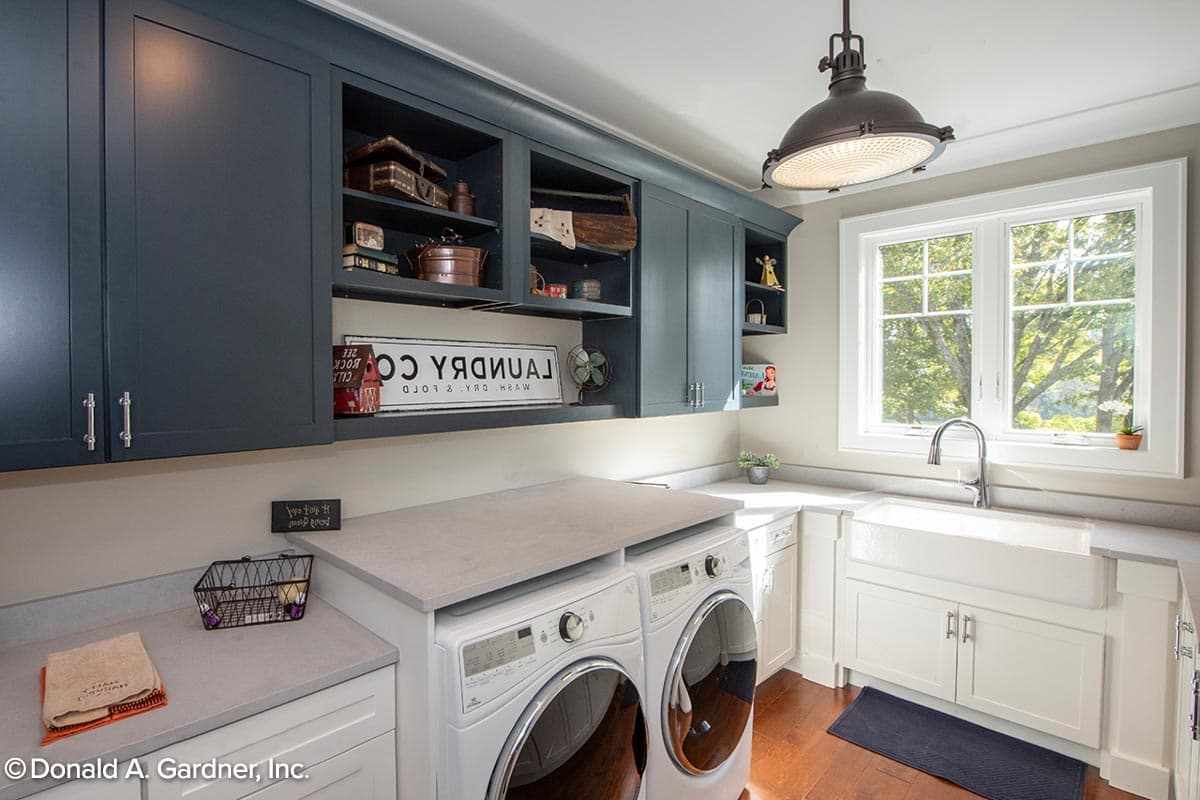

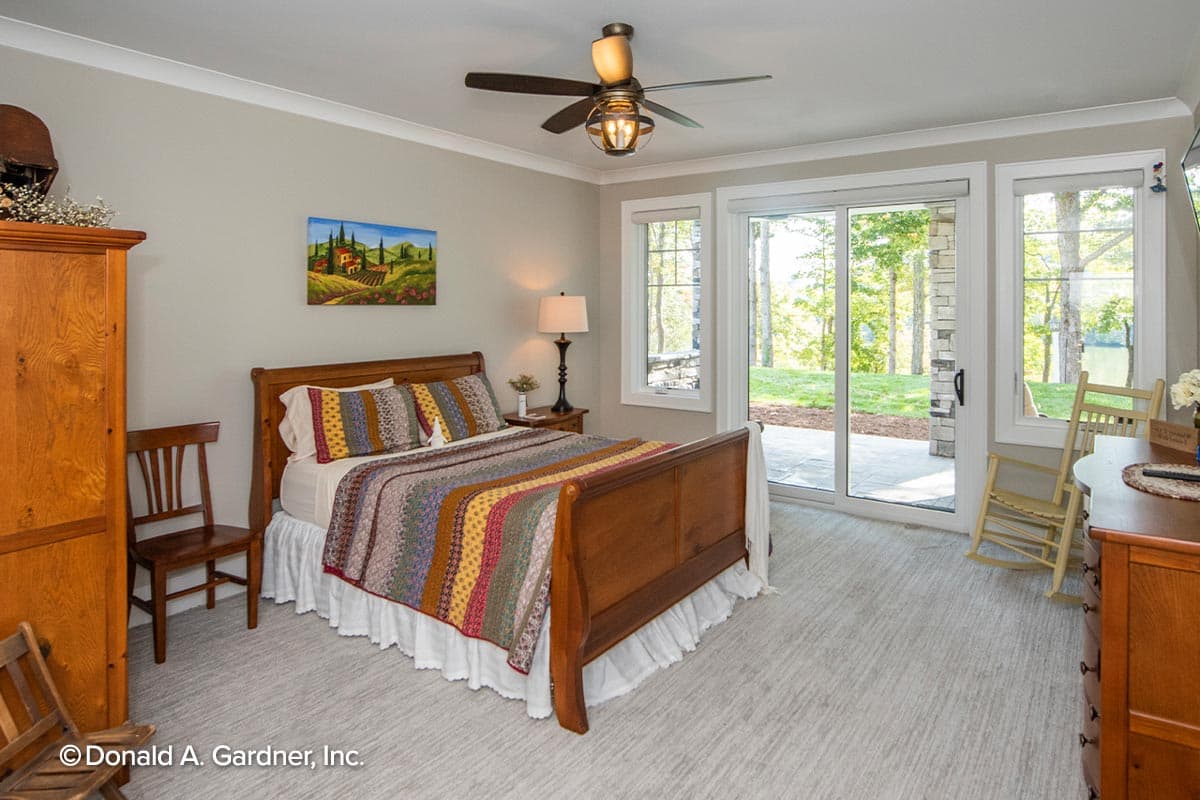

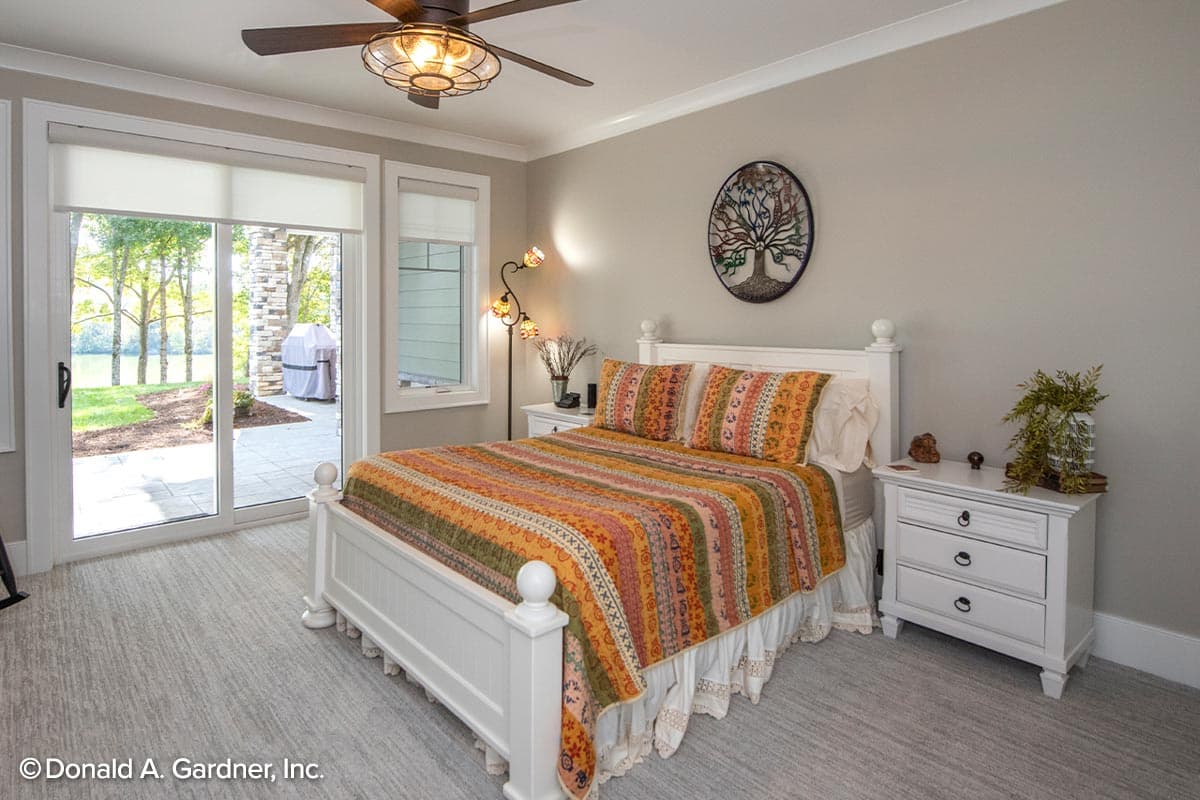

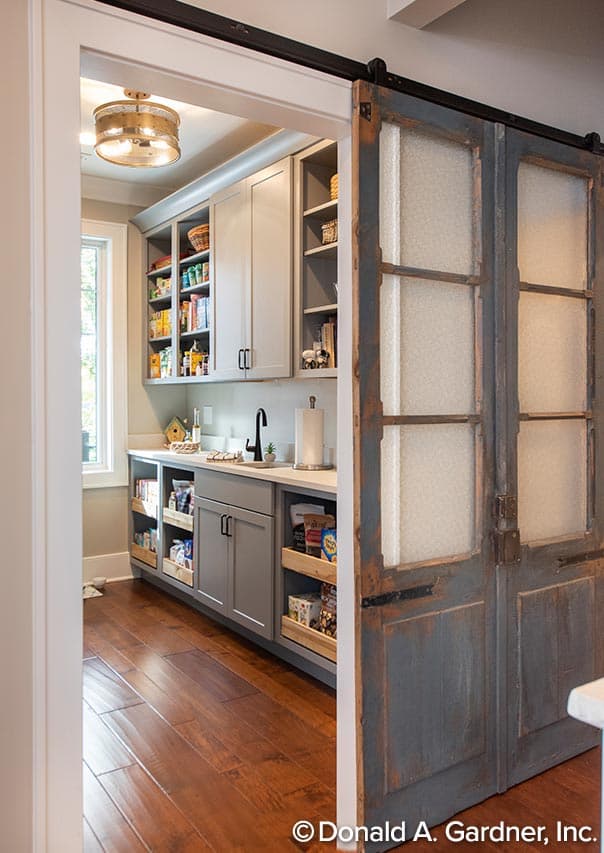

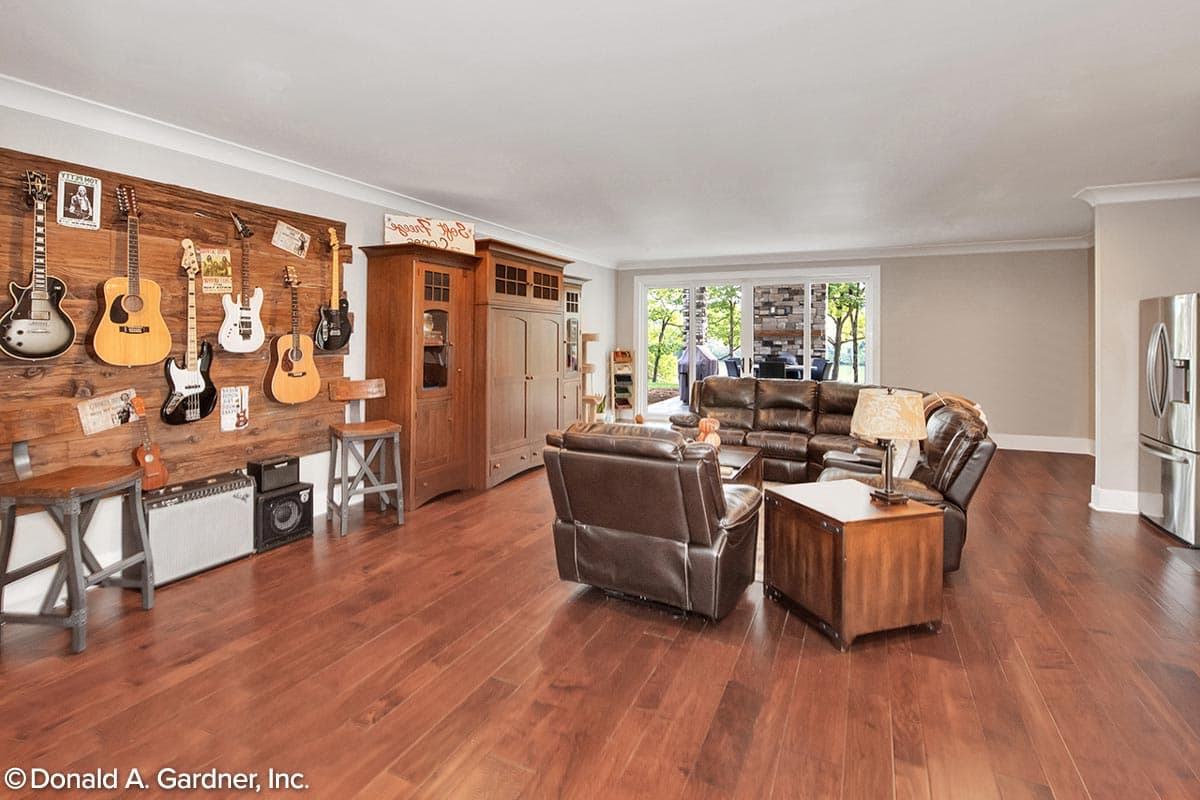

  • A guest suite is on the first floor (it has a 16'1" cathedral ceiling), along with a study and two additional bedrooms and a rec room reside on the basement level. Additional amenities include a pantry, oversized utility room, e-space, and bonus room.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

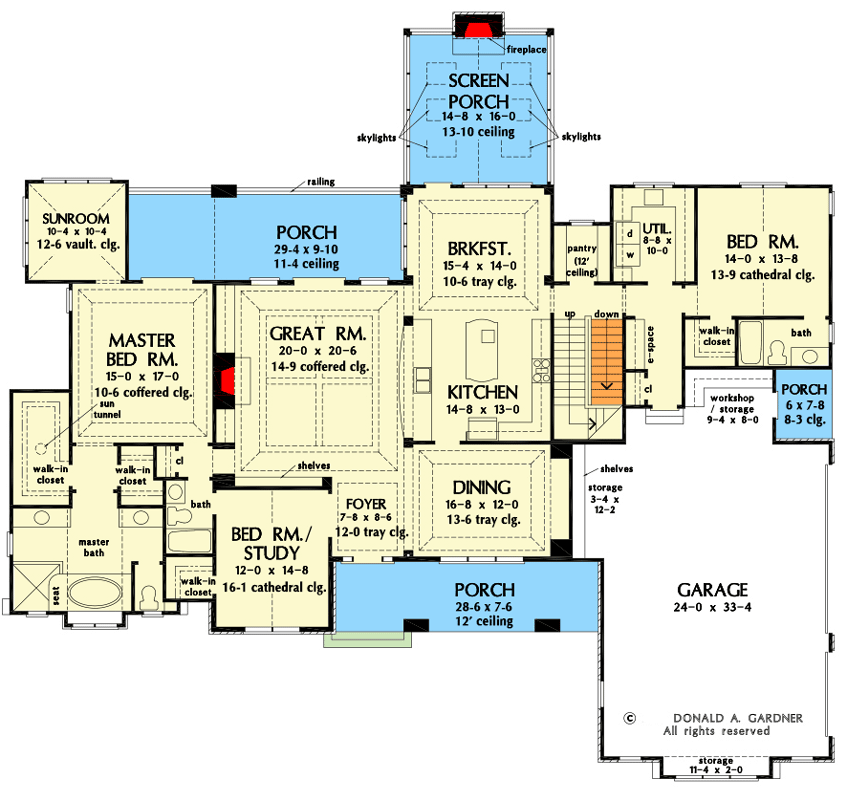

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Hillside-walkout Craftsman Home Plan with Sunroom off Master Suite - 444220GDN floor plan - Main Level

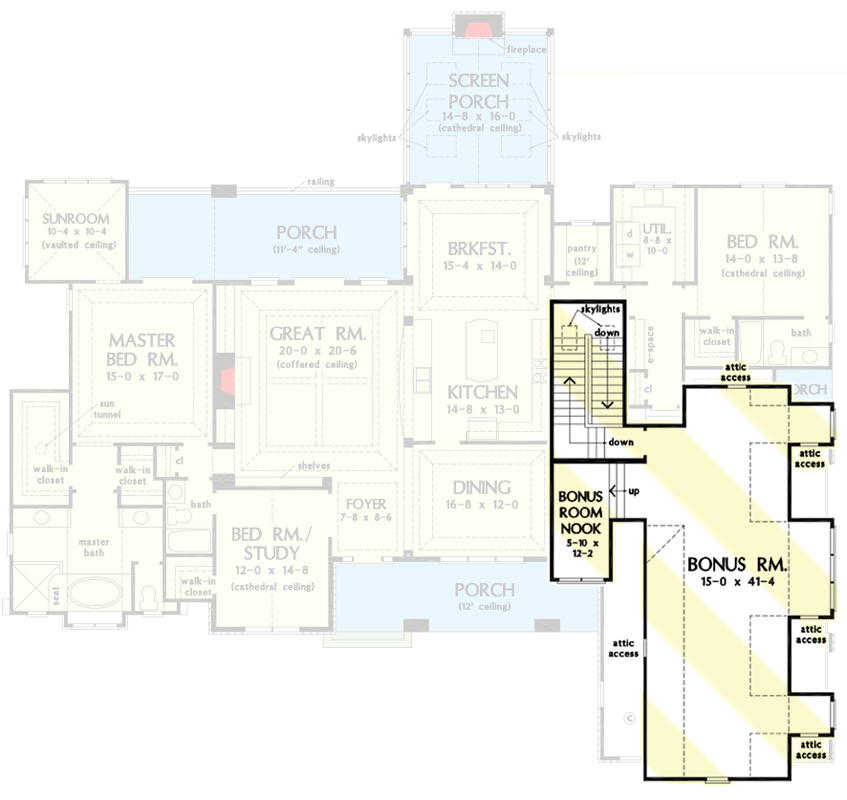

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Hillside-walkout Craftsman Home Plan with Sunroom off Master Suite - 444220GDN floor plan - Bonus Room

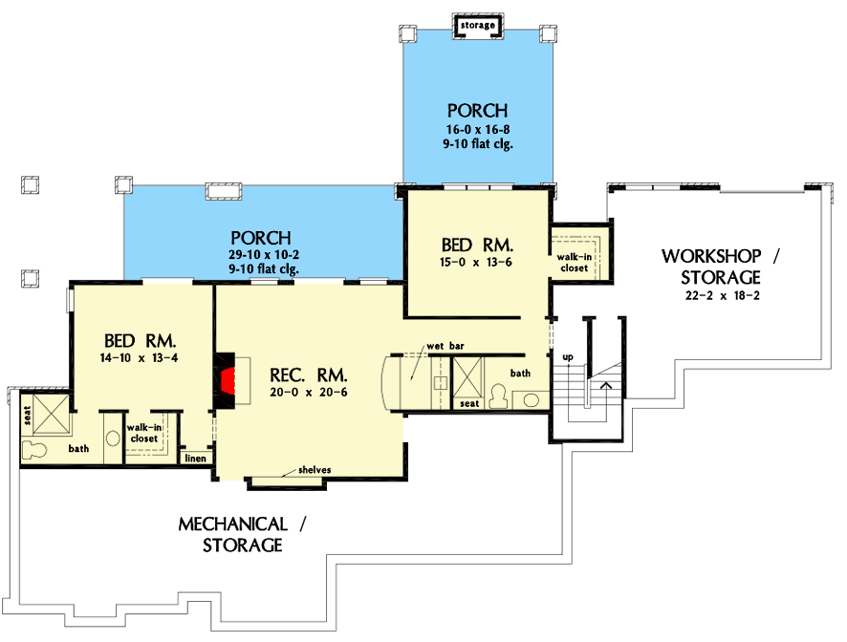

Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Hillside-walkout Craftsman Home Plan with Sunroom off Master Suite - 444220GDN floor plan - Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,186 sq. ft.
  • Lower Level: 1,367 sq. ft.
  • 1st Floor: 2,819 sq. ft.
  • Workshop: 497 sq. ft.
  • Storage: 885 sq. ft.
  • Screened Porch: 274 sq. ft.
  • Porch, Combined: 624 sq. ft.
  • Porch, Rear: 289 sq. ft.
  • Porch, Front: 214 sq. ft.
  • Bonus: 831 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 5

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 88' 6"
  • Depth: 81' 6"
  • Max ridge height: 42' 6"

Garage

  • Type: Attached
  • Area: 996 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 5" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Hillside-walkout Craftsman Home Plan with Sunroom off Master Suite

  • 4,186

    Heated s.f.

  • 4-5

    Beds

  • 5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $2,550
  • PDF - Single-Build $2,750
  • CAD Unlimited + PDF $4,800
  • View all purchase option online

About This Plan

  • This sprawling, Hillside-walkout Craftsman home plan has a captivating presence with staggered gables, a cupola-accented roof, and a stone-and-shake exterior. The front porch is 28'6" wide and 7'6" deep and has a 12' ceiling giving you a great place to sit outside in the shade.
  • For those that love to entertain, a formal dining room serves every dinner party and a spacious breakfast nook provides a place for casual meals.
  • The gourmet kitchen offers an island with a prep sink, allowing ample workspace for multiple cooks. A rear screened porch brings endless hours of enjoyment with a fireplace and a skylight-enhanced 13'10" cathedral ceiling.
  • The master suite boasts an attached sunroom with a 12'6" vaulted ceiling for private relaxation, as well as a luxury bathroom and walk-in closets for two.
  • A guest suite is on the first floor (it has a 16'1" cathedral ceiling), along with a study and two additional bedrooms and a rec room reside on the basement level. Additional amenities include a pantry, oversized utility room, e-space, and bonus room.

Floor Plans

  • Main Level

  • Bonus Room

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,186 sq. ft.
  • Lower Level: 1,367 sq. ft.
  • 1st Floor: 2,819 sq. ft.
  • Workshop: 497 sq. ft.
  • Storage: 885 sq. ft.
  • Screened Porch: 274 sq. ft.
  • Porch, Combined: 624 sq. ft.
  • Porch, Rear: 289 sq. ft.
  • Porch, Front: 214 sq. ft.
  • Bonus: 831 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 88' 6"
  • Depth: 81' 6"
  • Max ridge height: 42' 6"

Garage

  • Type: Attached
  • Area: 996 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 5" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
