Hip Roof 3-Car Drive-Thru Garage
Heated S.F.
0
Beds
0
Stories
1
Cars
3
What's Included
Plan Details
  • A hip roof tops this detached 3 car garage plan, featuring two 9'x8' and a 16'x8' overhead door and a 9' ceiling.
  • With a garage door located at the read of this design, pulling thru your garage will be a new added convenience.
  • This drive-thru garage design is ideal for adding additional parking to an existing home.
  • Related Plan: For a two-car version, see garage plan 22054SL and 22056SL (brick and siding).
What's Included
Each plan set includes the following:
  • Foundation plan
  • Fully dimensioned floor plans

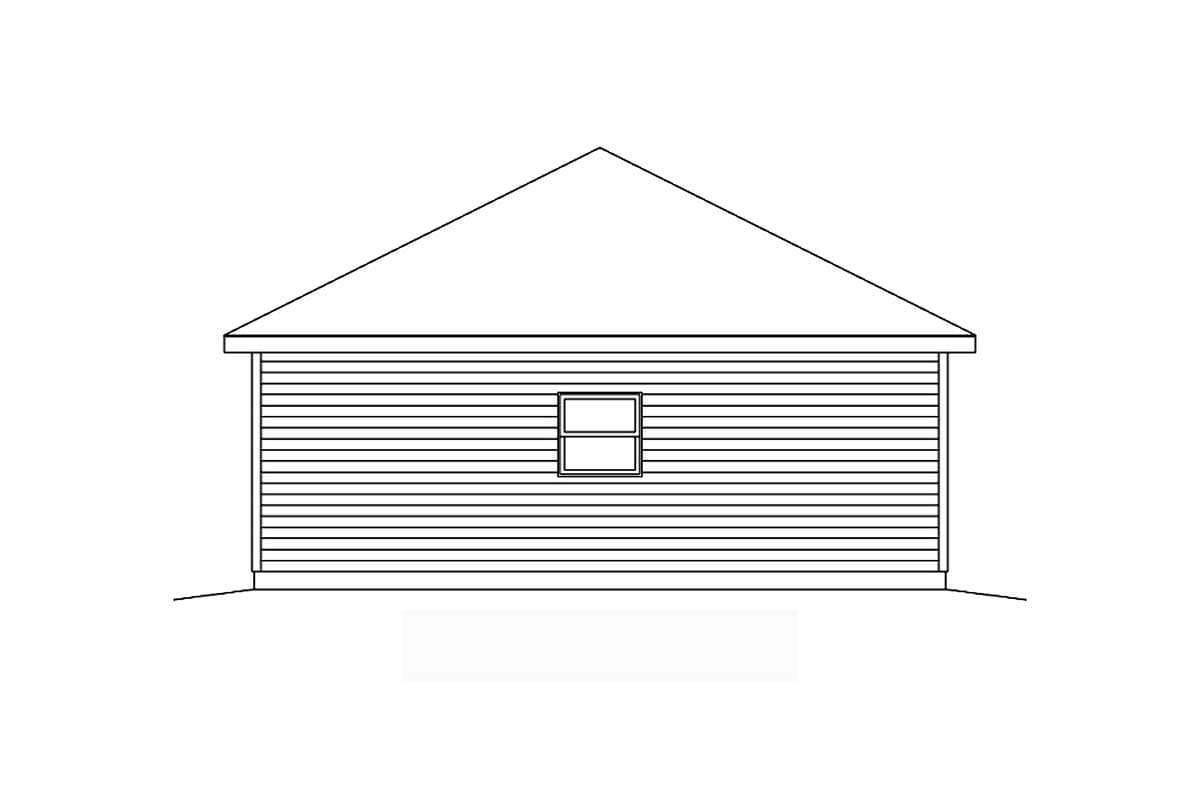

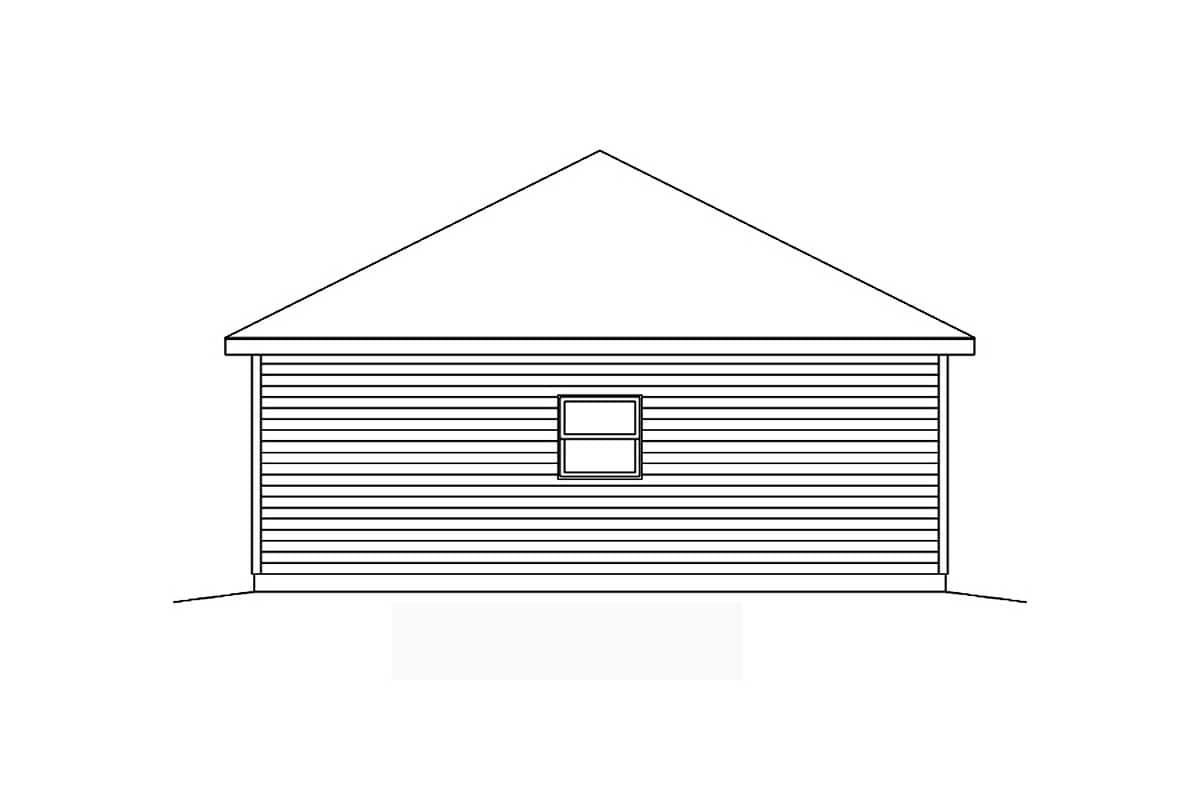

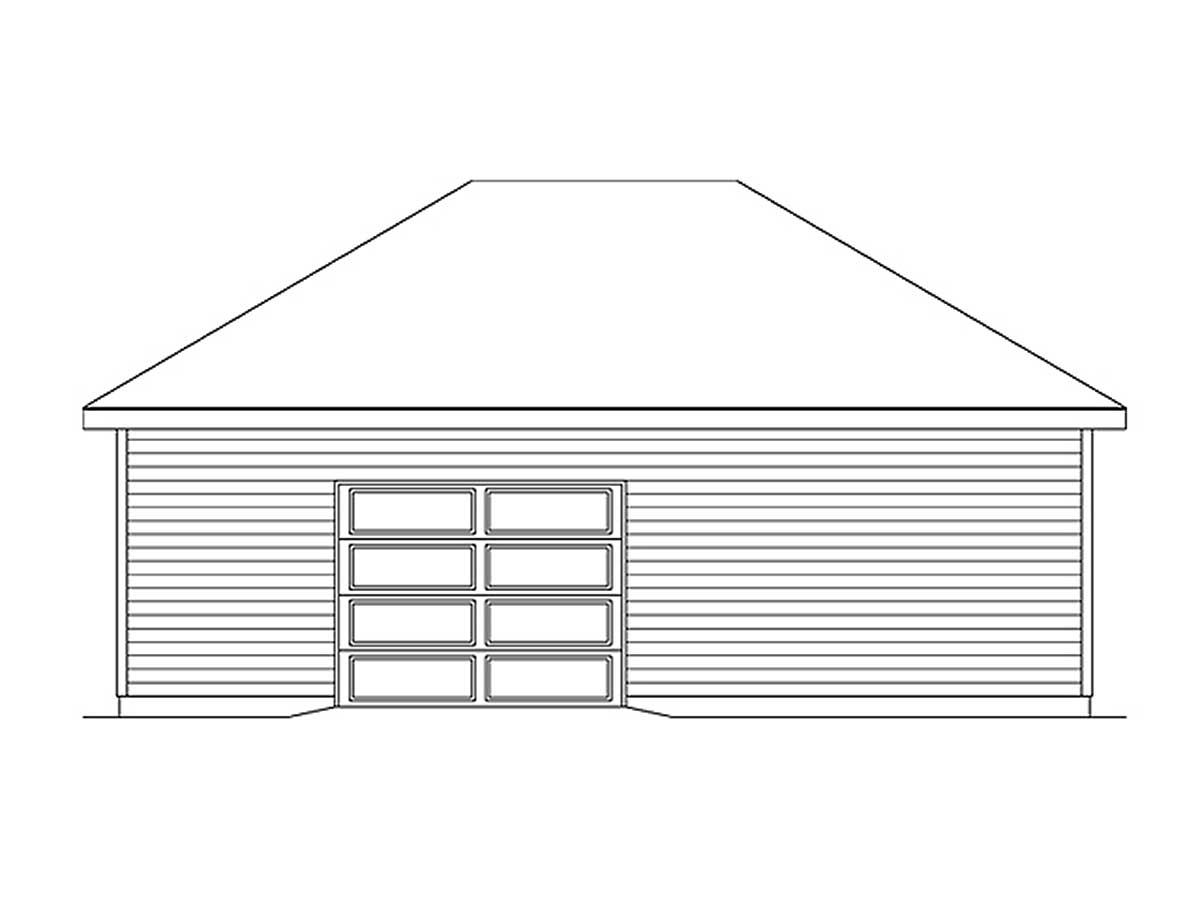

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Hip Roof 3-Car Drive-Thru Garage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 28' 0"
  • Max ridge height: 17' 0"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached
  • Area: 1008 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
