Plan 57135HA

  • 1,948

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Plans include designs for a shop or screened porch adjacent to the garage to best match your needs.
  • Handsome Floridian architecture with harmonious symmetry.
  • The sun-drenched breakfast room surrounded with windows is open to a spectacular vaulted great room with fireplace and a well-planned kitchen.
  • A glamorous master bath and two spacious walk-in closets are featured in the master bedroom suite.

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

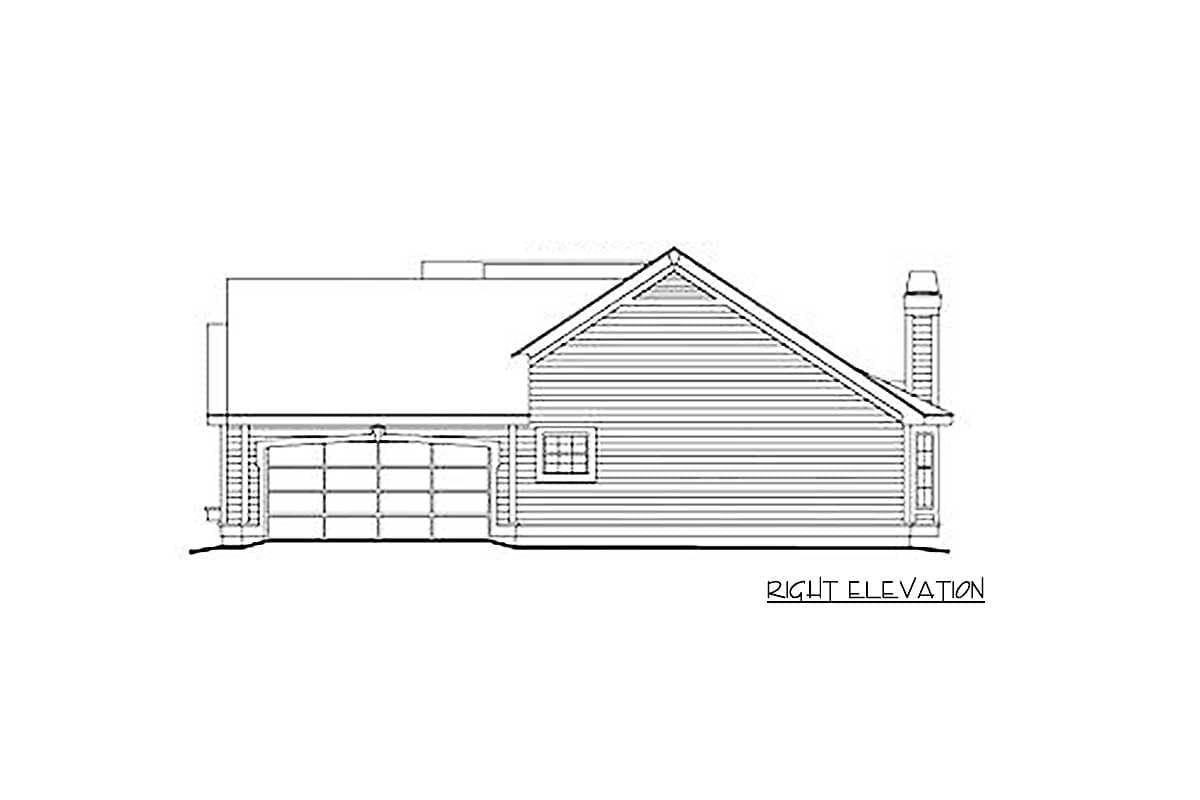

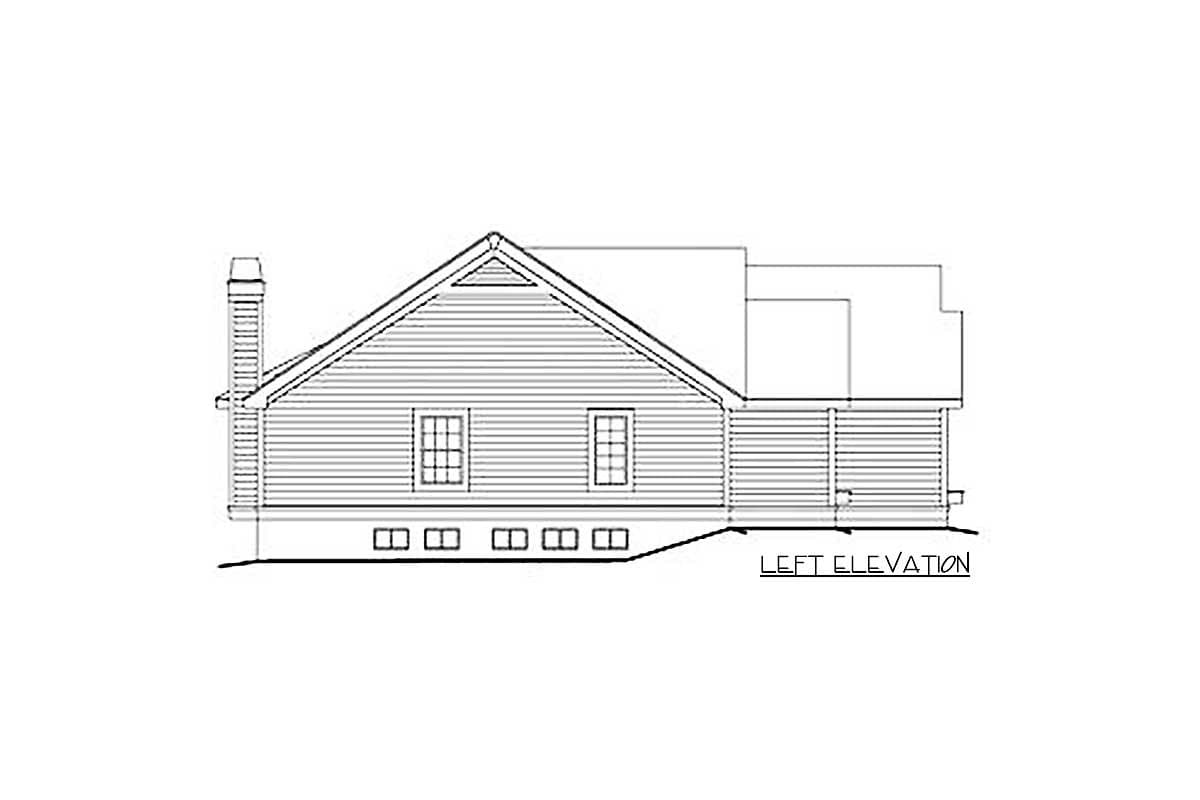

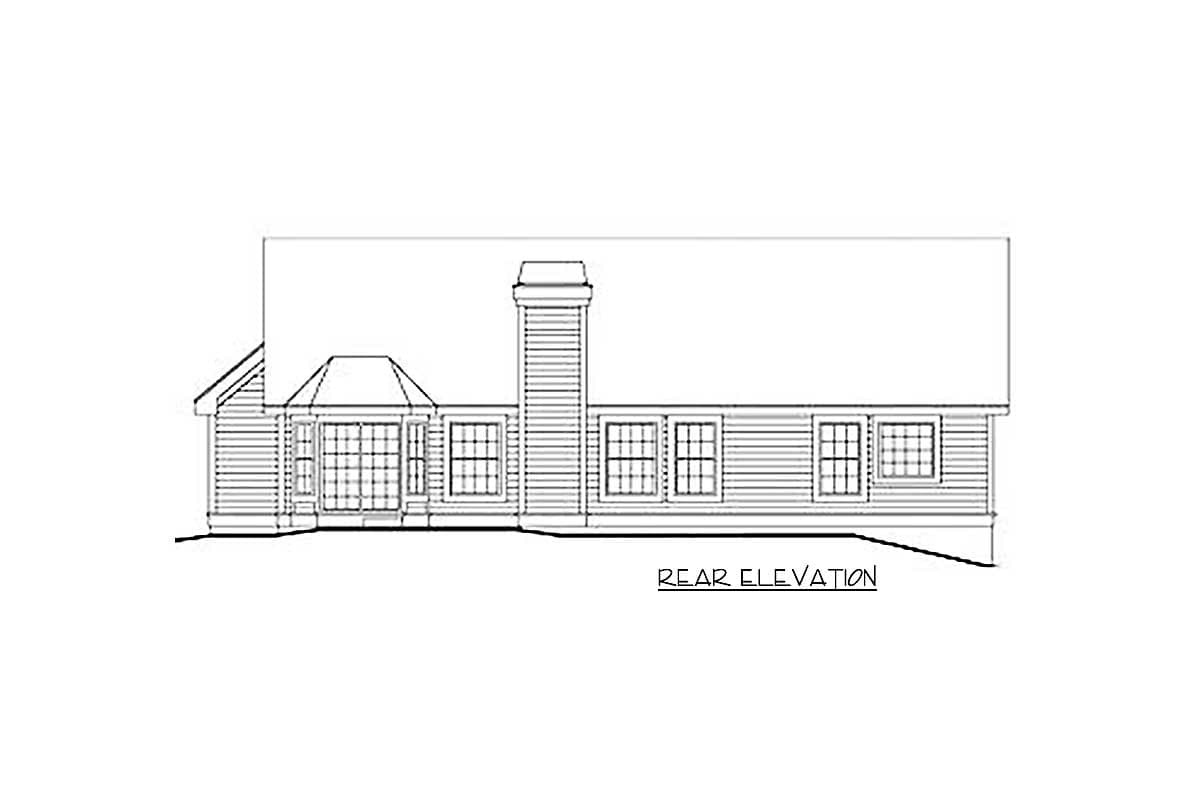

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Home Design Dedicated To Excellence - 57135HA floor plan - Main Level

Home Design Dedicated To Excellence

  • 1,948

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

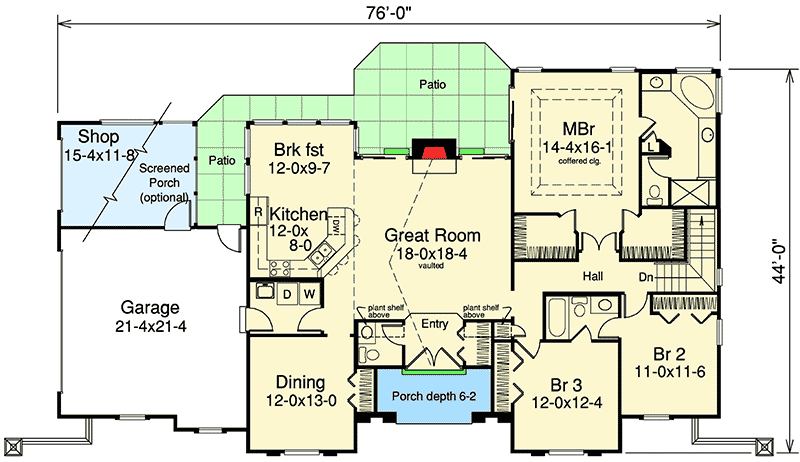

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,948 sq. ft.
  • 1st Floor: 1,948 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 44' 0"
  • Max ridge height: 21' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
