Horse Barn with Massive RV Bay - 2185 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
4- 5

Floor Plan

Plan 95142RW

Main Level
Main Level

Plan 95142RW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

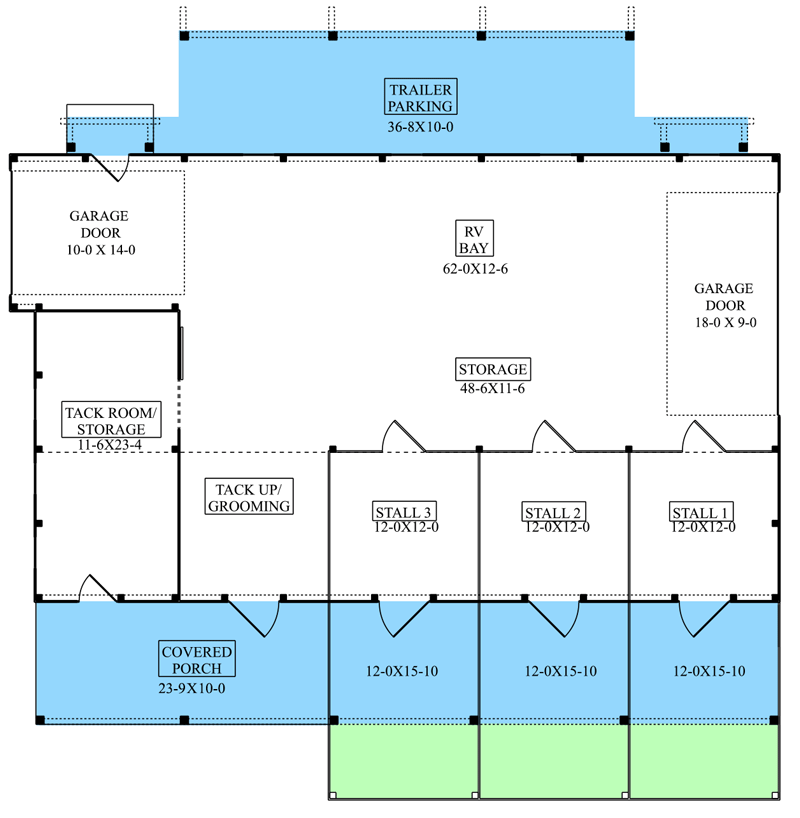

Plan 95142RW: Horse Barn with Massive RV Bay - 2185 Sq Ft - Floor Plan - Main Level - Country, Rustic

Plan Details

  • This barn gives you 3 stalls for your hooved friends as well as tack and grooming stalls. If you don't have horses, then you can store all kind of things inside.
  • A double-wide door (18' by 9') on the right side gives you access to the massive RV and storage area. On the left, a 14' wide and 10' tall door gives your RV all the room it needs to get in and out.
  • In back, there's a shed roof giving you covered storage for your trailers.

What's Included

  • Cover Page

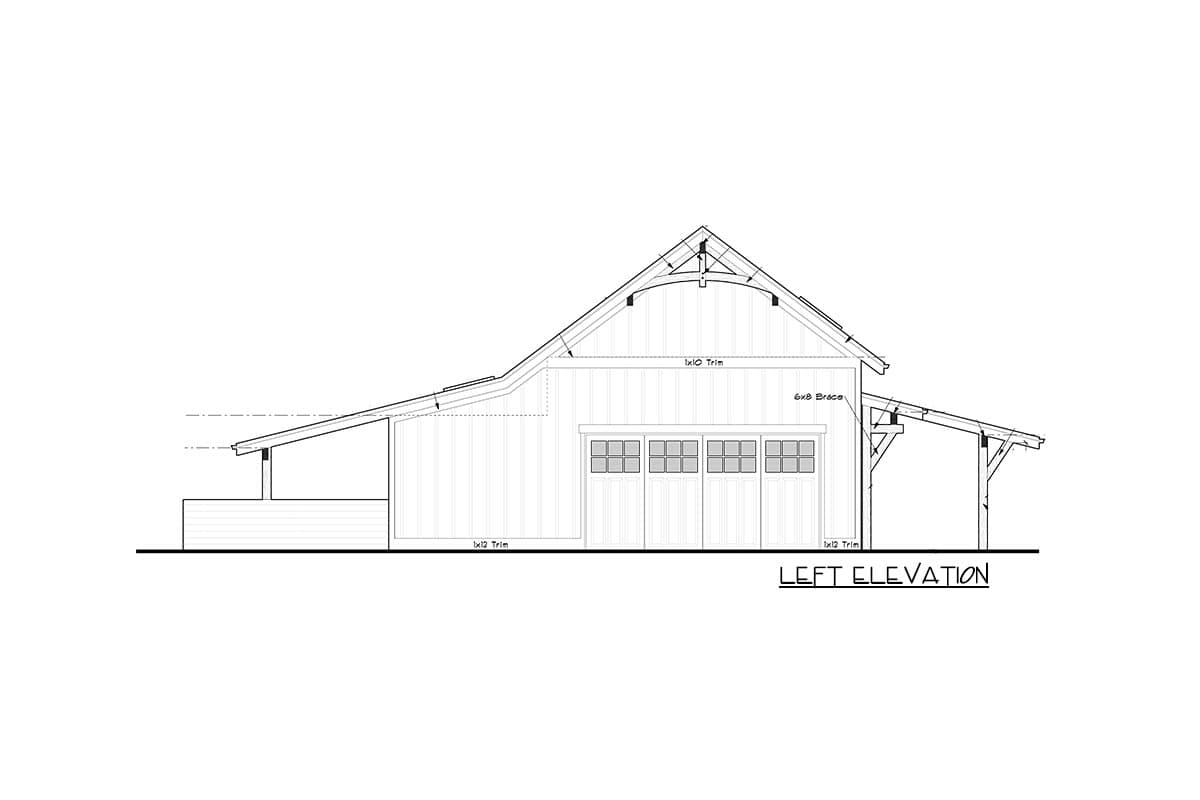

  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Pole

Dimensions

Width

62' 3"

Depth

61' 2"

Max Ridge Height

25' 0"

Garage

Type

RV Garage

Area

2185 sq. ft.

Count

4 or 5 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10' 6"

RV Bay

15' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Country

Rustic

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Pole

Dimensions

Width

62' 3"

Depth

61' 2"

Max Ridge Height

25' 0"

Garage

Type

RV Garage

Area

2185 sq. ft.

Count

4 or 5 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10' 6"

RV Bay

15' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Country

Rustic
