House Plan with 3 Beds Plus Possible 4th

Plan 33217ZRX

This plan plants 3 trees

1,977
Heated s.f.
4-5
Beds
4
Baths
2
Stories
2
Cars

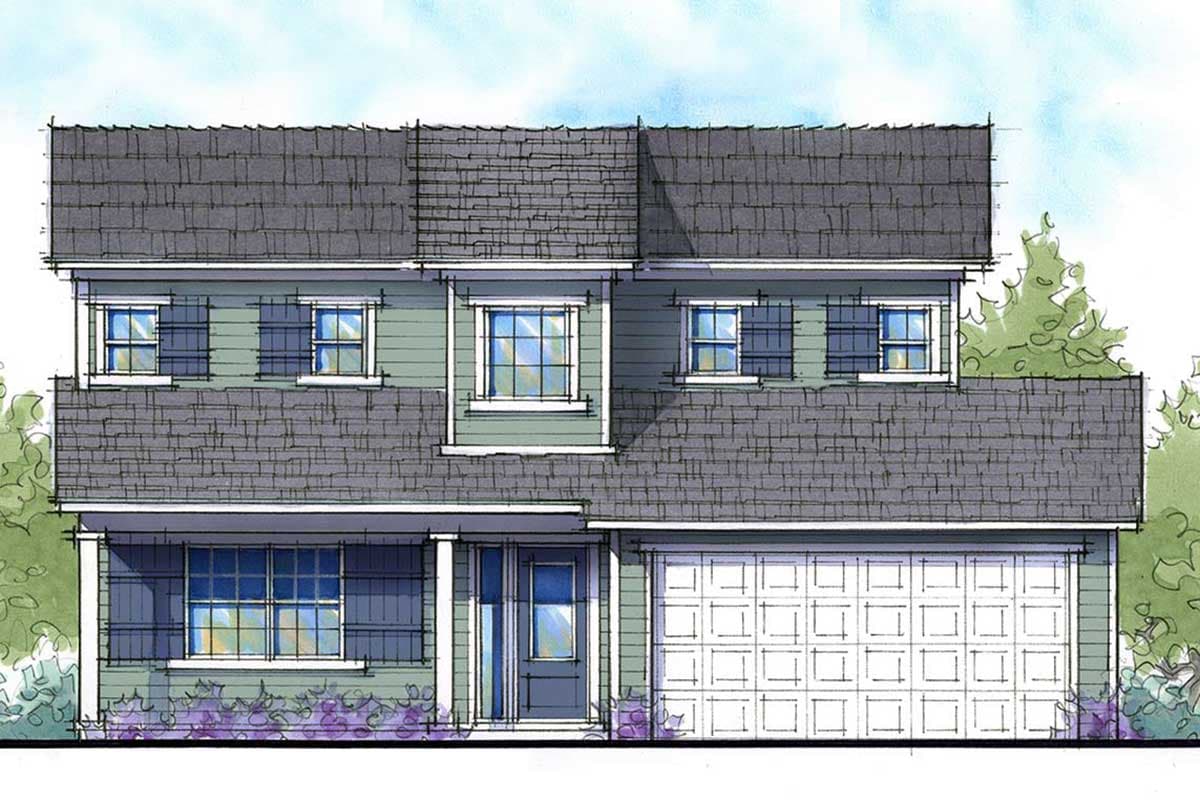

This lovely house plan gives you a welcoming front porch topped with a central shed dormer that lets natural light into the foyer. Mixed horizontal and bead board siding is topped by side-gabled roofs and shuttered windows are symmetrically balanced.
The long foyer leads past pocket doors that lend privacy to the guest bedroom/study. Sandwiched between the coat closet and garage door is the stairs. This makes for easy access whether you are coming or going. Next down the foyer is the laundry room complete with ample counter space and sink.
The spacious great room flows easily into the kitchen and dining area that take in the views from the rear of the home. Glass sliding doors provide easy access to the covered rear lanai that is framed by classic columns.
The galley kitchen also offers a door to the lanai and a pantry helps define the space. Centered in the kitchen island is a double sink that offers easy serving.
Secluded to the rear of the home for privacy is the master suite. Elegant double doors open to the rear lanai. The master bath has dual vanities and a walk-in shower.
The second floor offers two guest bedrooms each with their own bath.
Related Plans: Get alternate exteriors with house plans 33215ZR and 33216ZR.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.

WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.

CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)

ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

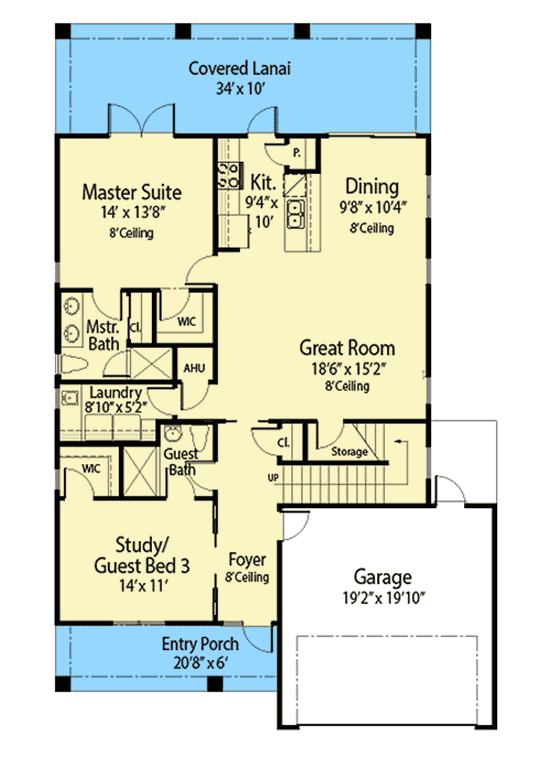

House Plan with 3 Beds Plus Possible 4th - 33217ZRX floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

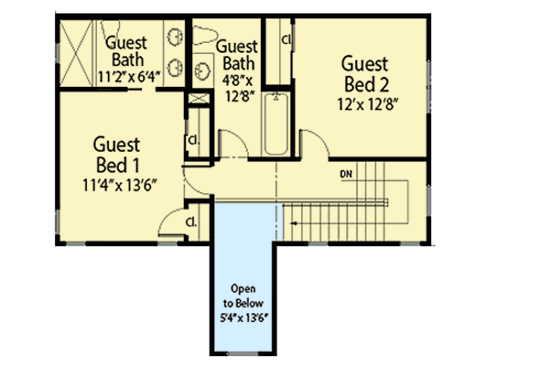

House Plan with 3 Beds Plus Possible 4th - 33217ZRX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,977 sq. ft.
1st Floor: 1,369 sq. ft.
2nd Floor: 608 sq. ft.

Lanai: 340 sq. ft.
Porch, Front: 121 sq. ft.

Beds/Baths

Bedrooms: 4 or 5

Full bathrooms: 4

Foundation Type

Standard Foundations: Slab

Optional Foundations: Stem Wall

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 40' 0"
Depth: 64' 0"
Max ridge height: 26' 0"

Garage

Type: Attached
Area: 398 sq. ft.
Count: 2 Cars
Entry Location: Front

Roof Details

Framing Type: Truss

Architectural Style

Special features
