Plan 86302HH
House Plan with Angled Garage with Game Room Above
Heated S.F.
3,267
Beds
3
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details

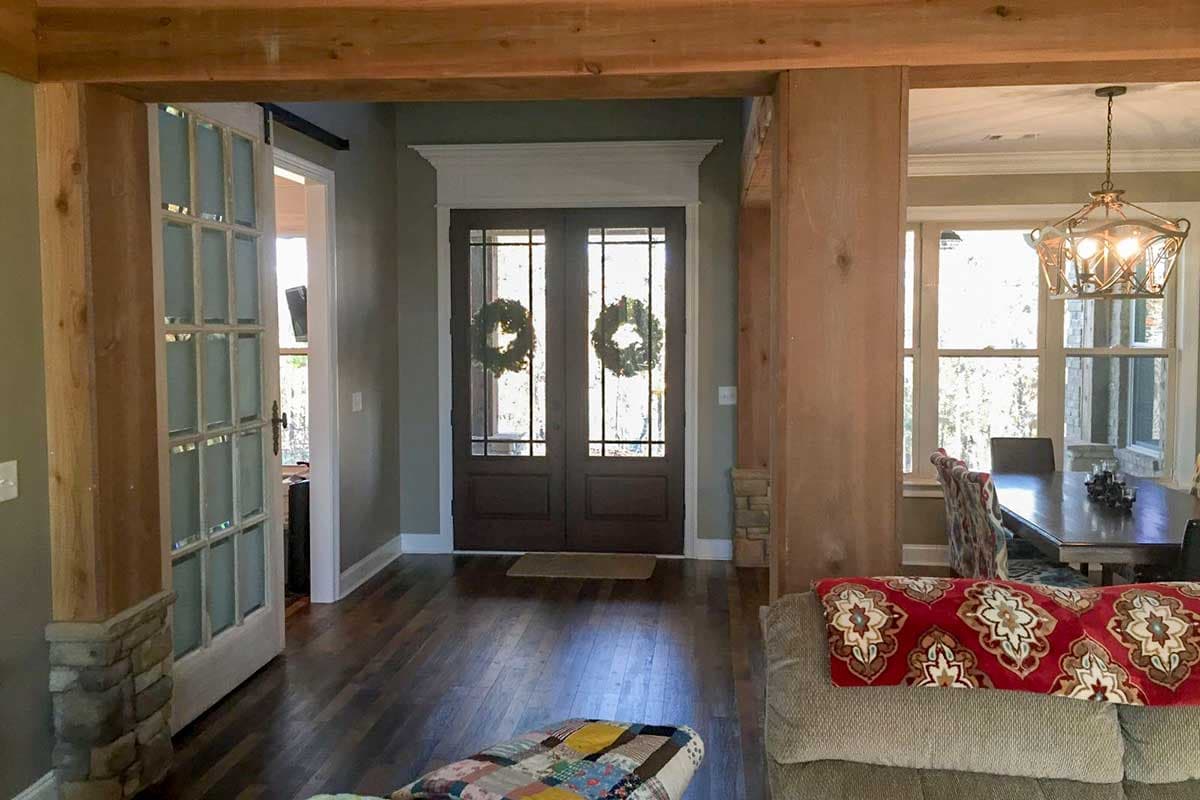

  • A 9'4"-deep front porch graces the front of this 3-bed house plan with angled garage. French doors open to the foyer and reveal and open floor plan.

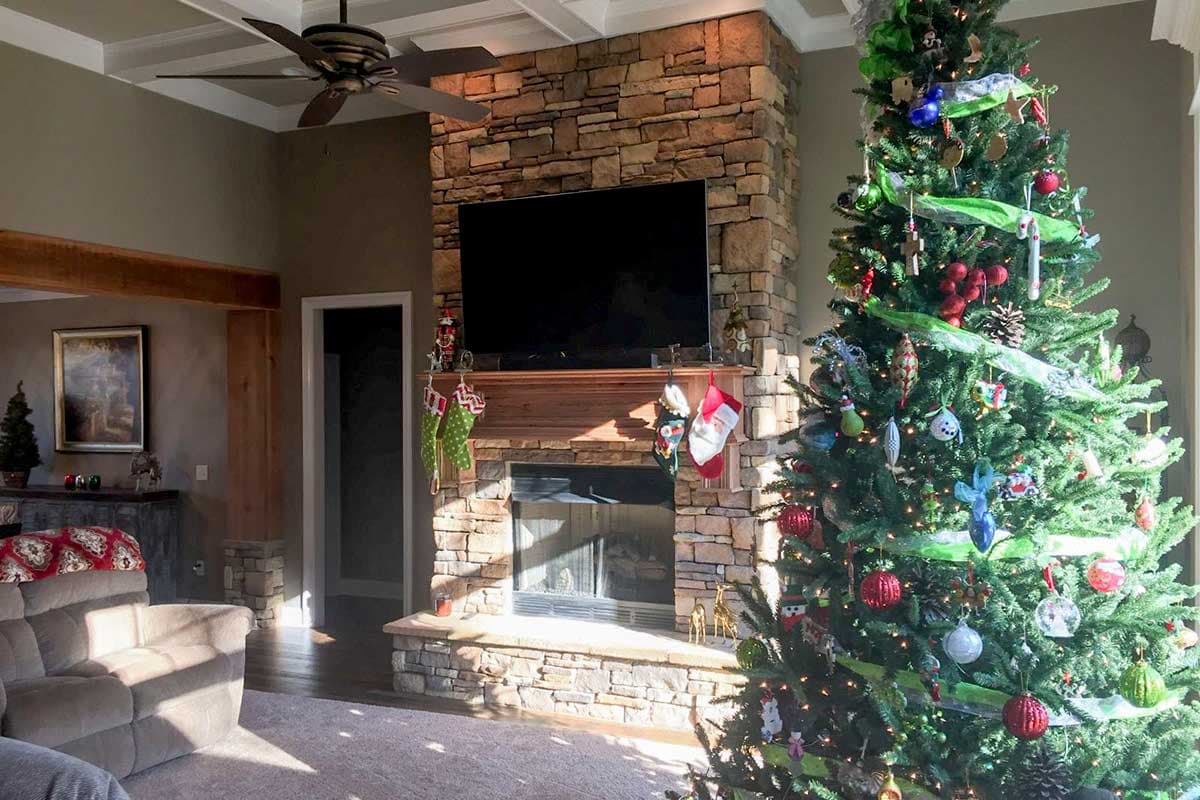

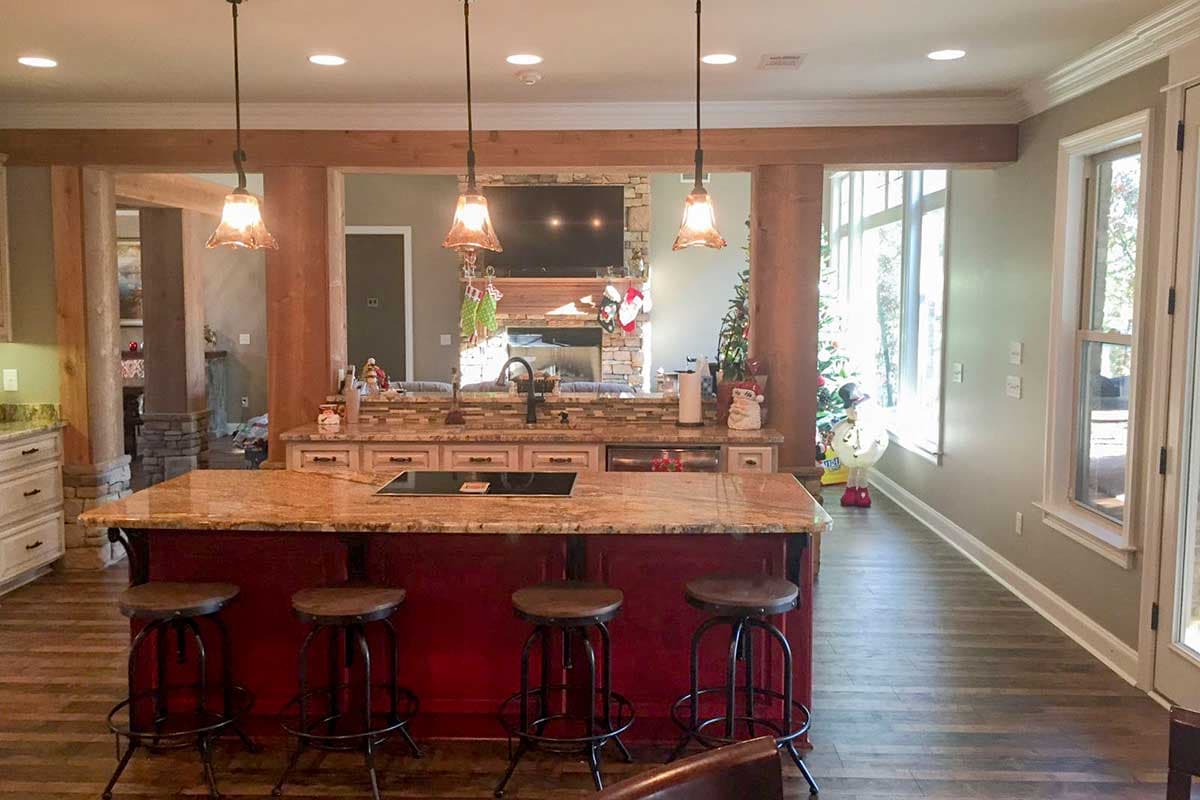

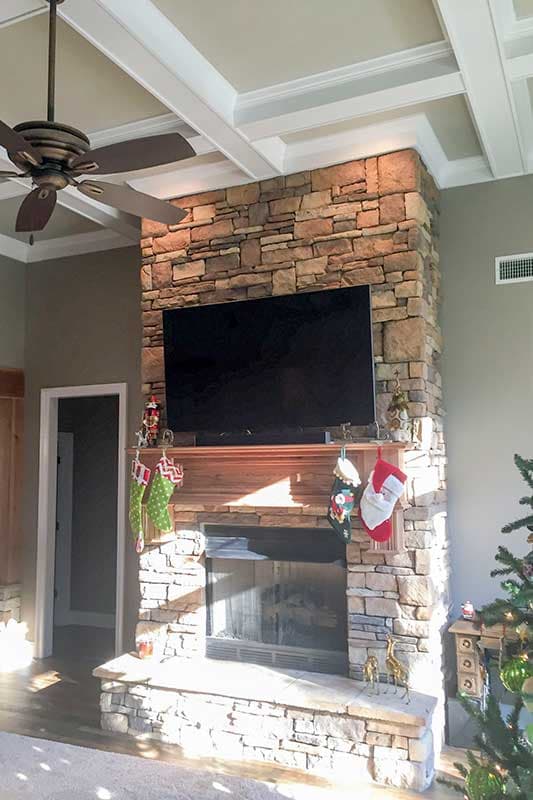

  • The family room with fireplace has great views across the home to the kitchen where a large island has seating for up to four people.

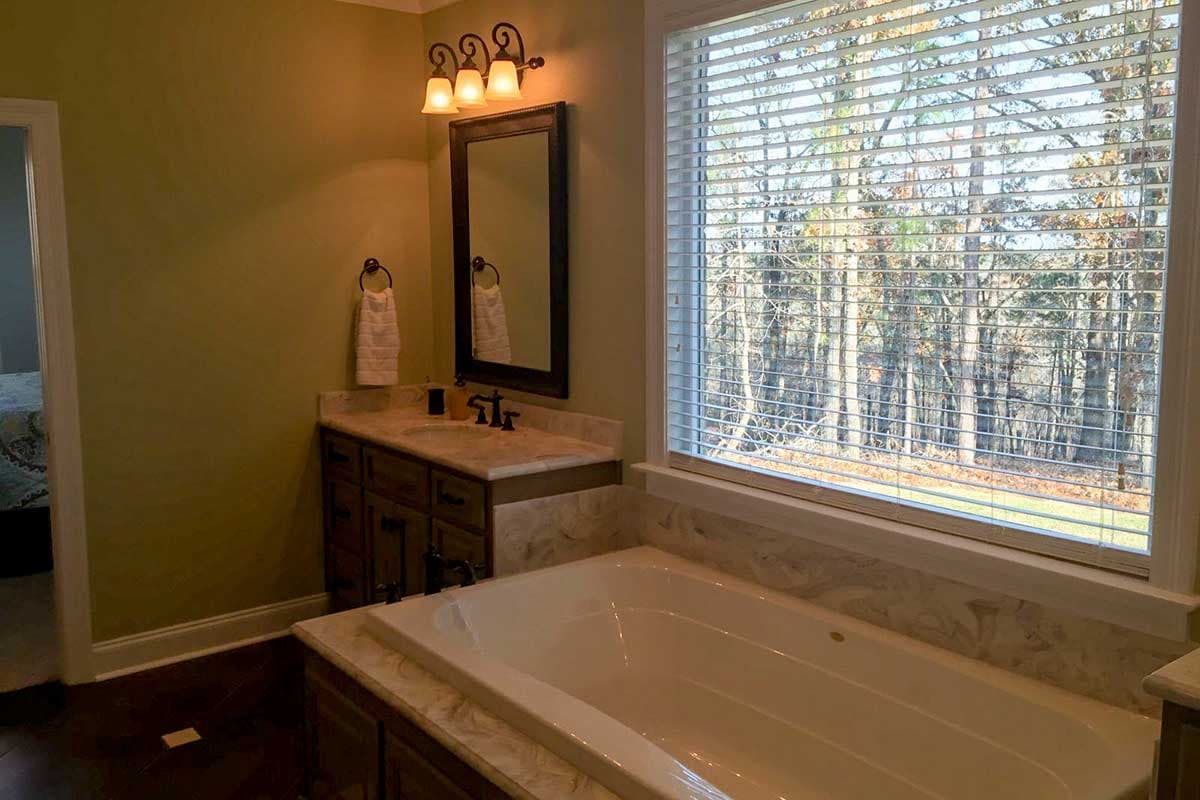

  • The master suite is located on the left of the home giving you great privacy. The walk-in closet is partitioned and can fit two people at the same time. Two additional bedrooms are located across the home and share a Jack and Jill bath.

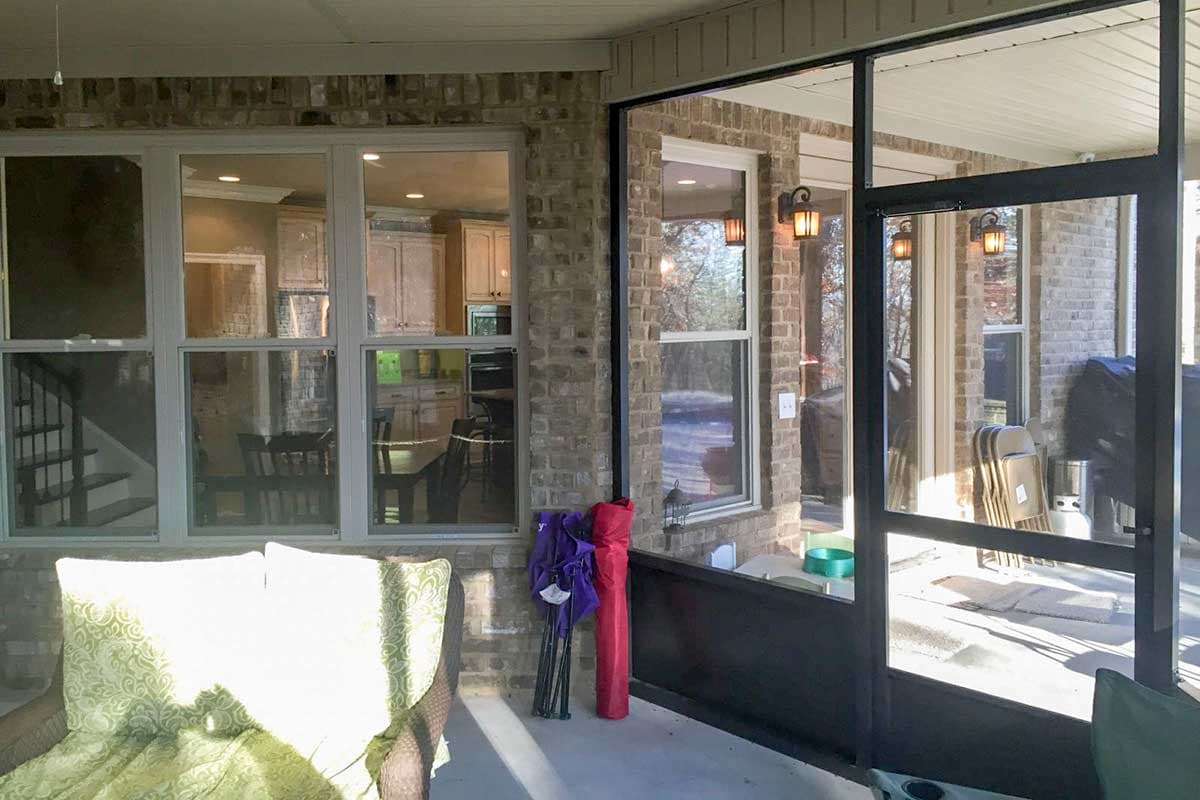

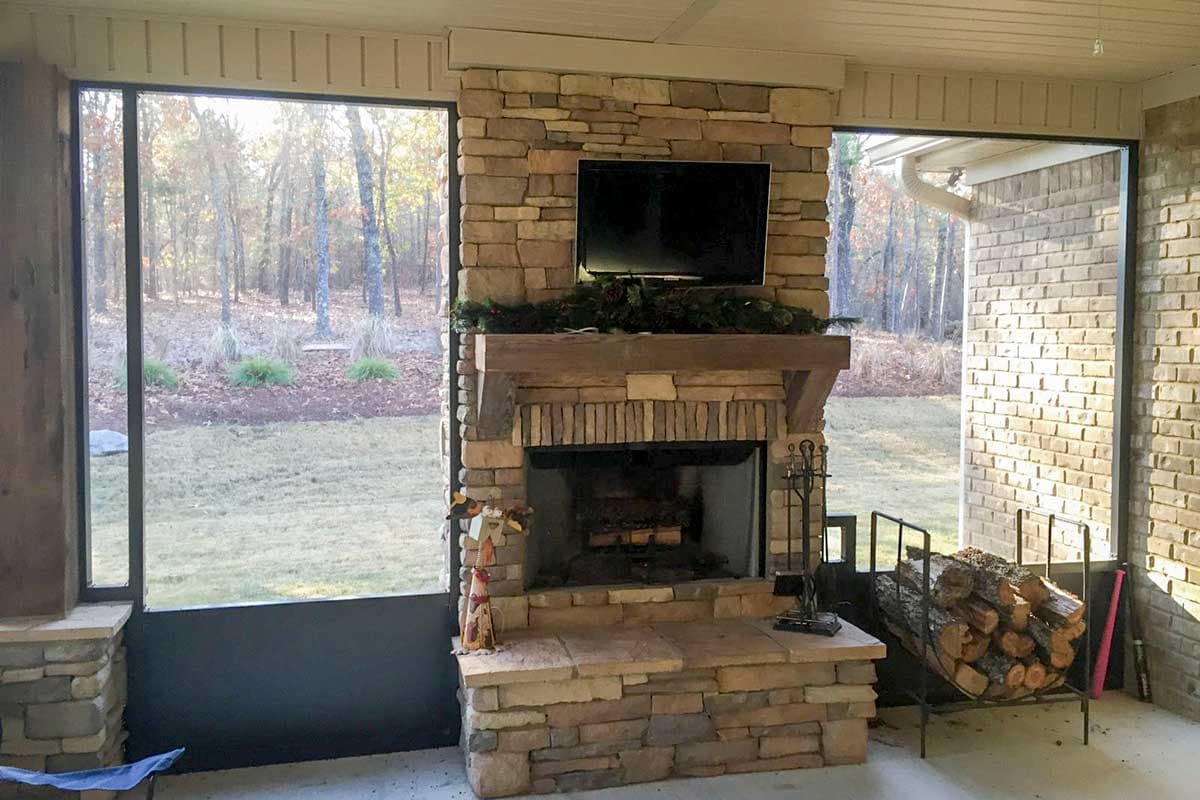

  • Outdoor spaces in back include both a screened porch with fireplace and an open porch accessed off the kitchen and eating area with French doors.

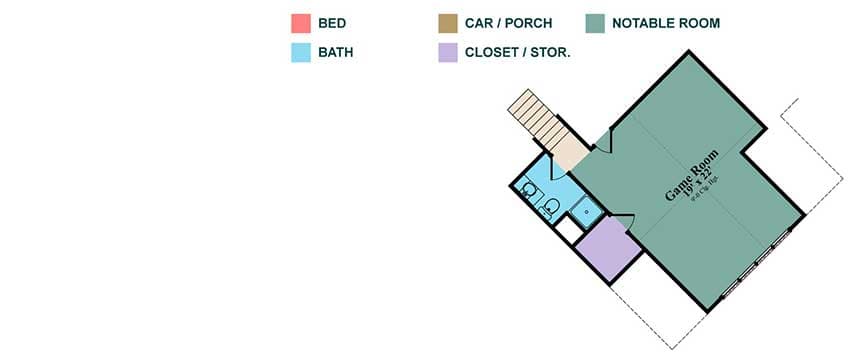

  • A large game room is located over the garage and has a full bath.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

House Plan with Angled Garage with Game Room Above

  • 3,267

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

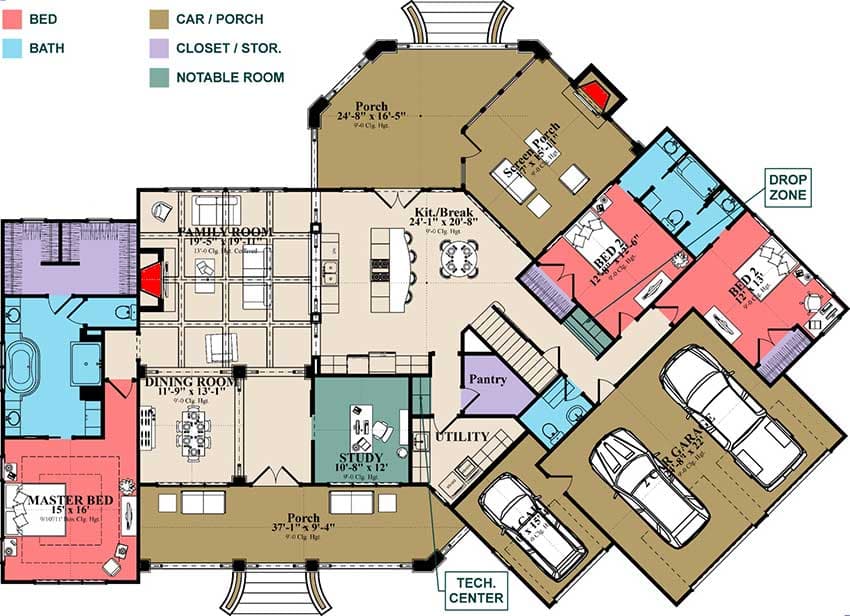

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,267 sq. ft.
  • 1st Floor: 2,756 sq. ft.
  • 2nd Floor: 511 sq. ft.

Dimensions

  • Width: 96' 5"
  • Depth: 64' 0"
  • Max ridge height: 26' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 750 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
