Plan 710333BTZ

House Plan with Distinctive Fieldstone and Cedar Shake

House Plan with Distinctive Fieldstone and Cedar Shake

Plan 710333BTZ

  • 2,696

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

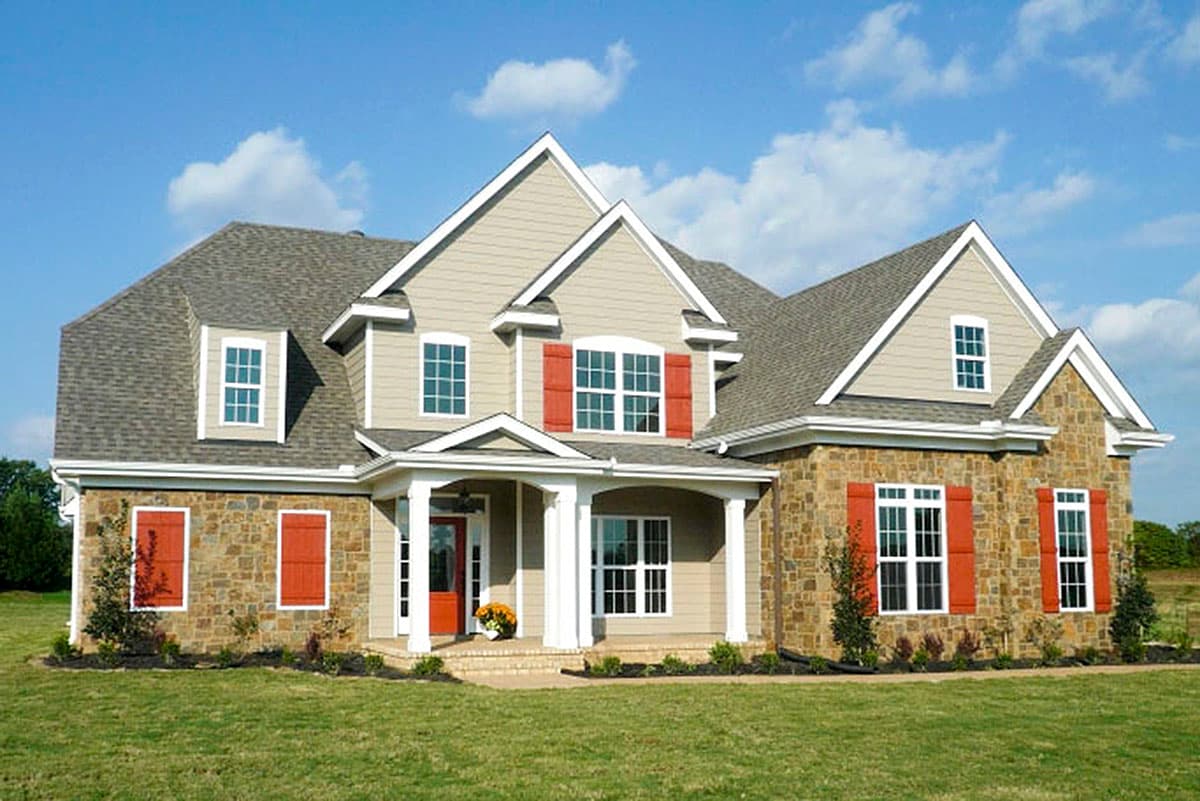

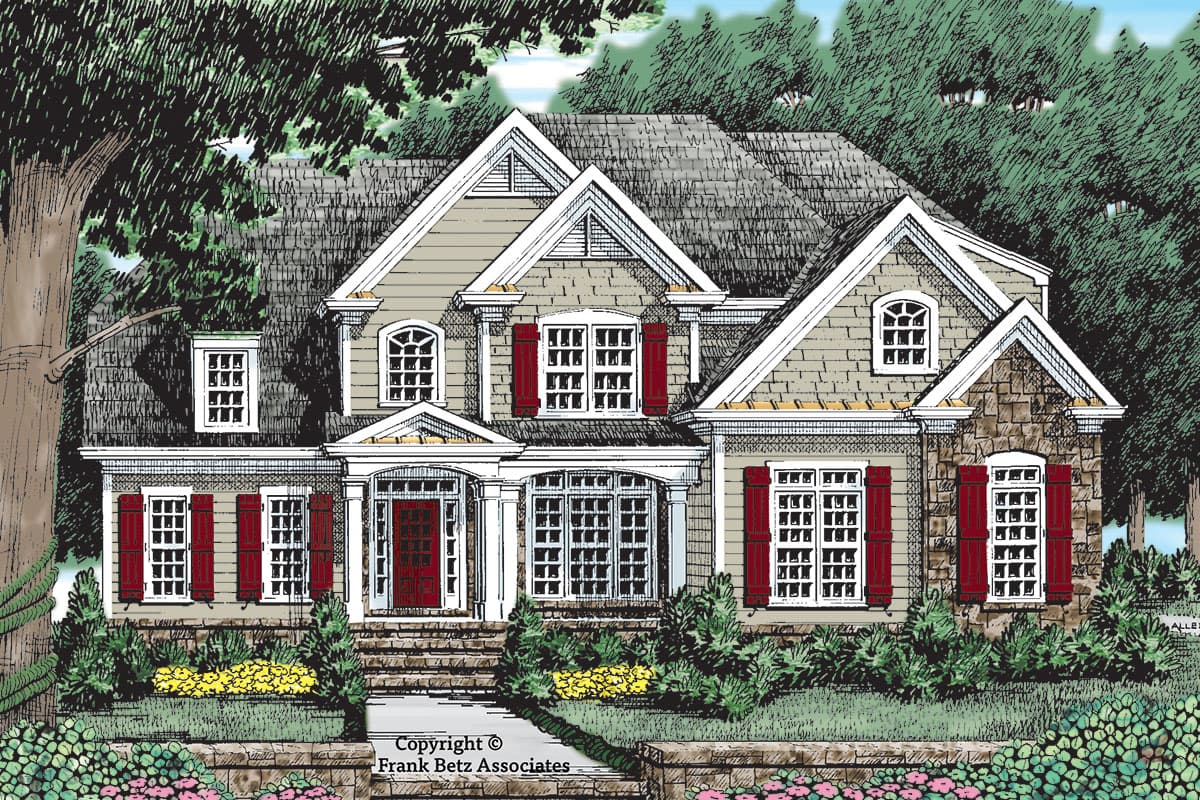

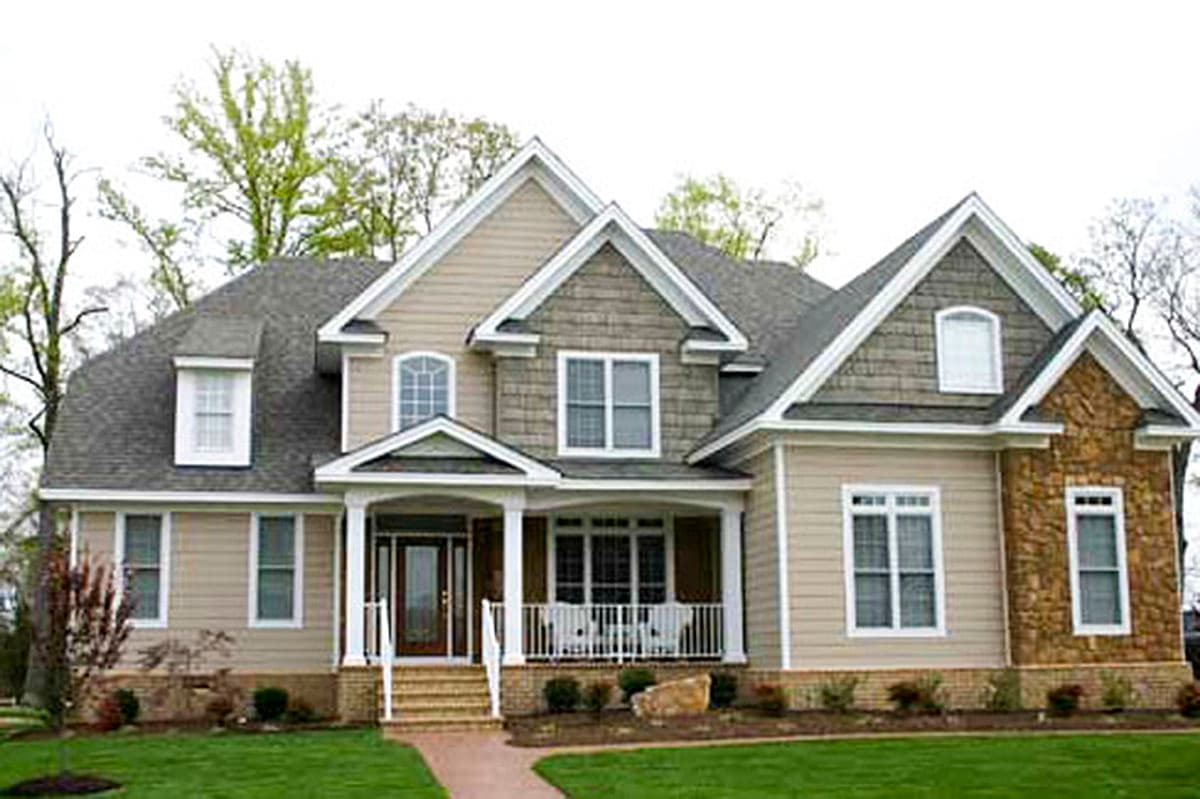

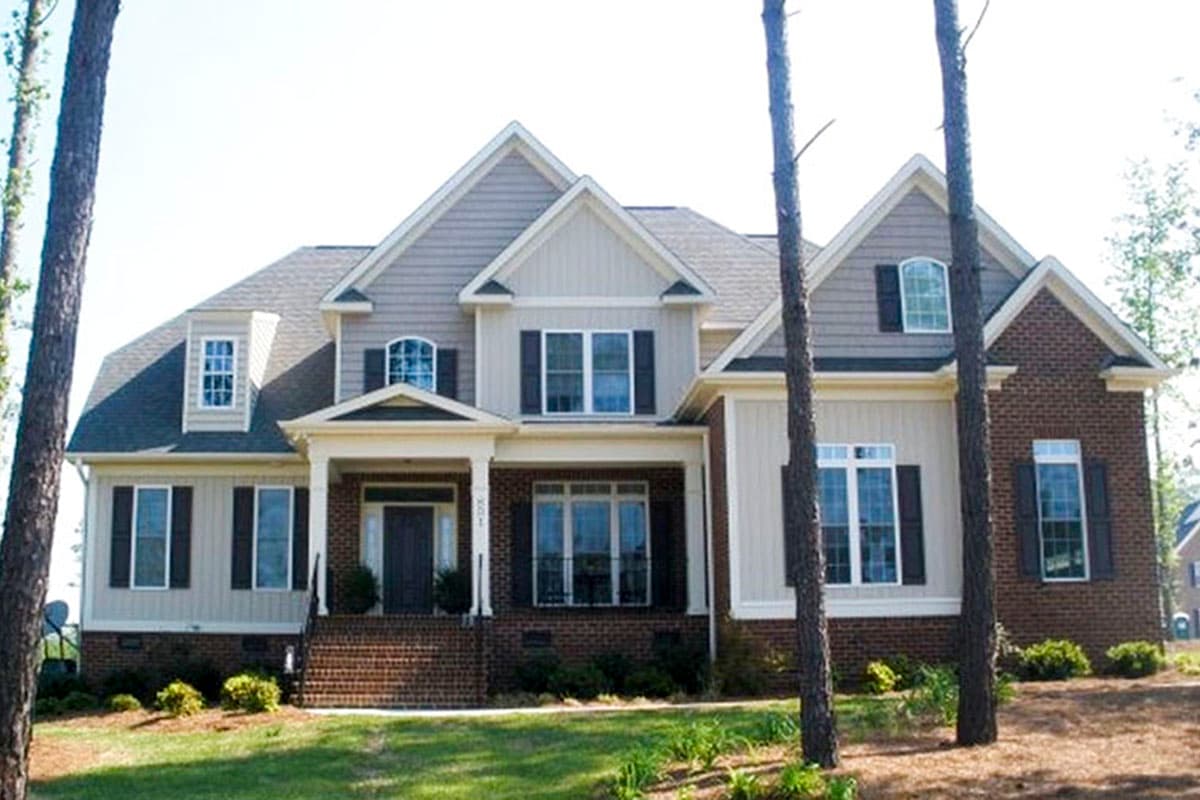

  • Distinctive fieldstone and cedar shake give the façade of this attractive house plan with two upstairs bedrooms plus a bonus room.

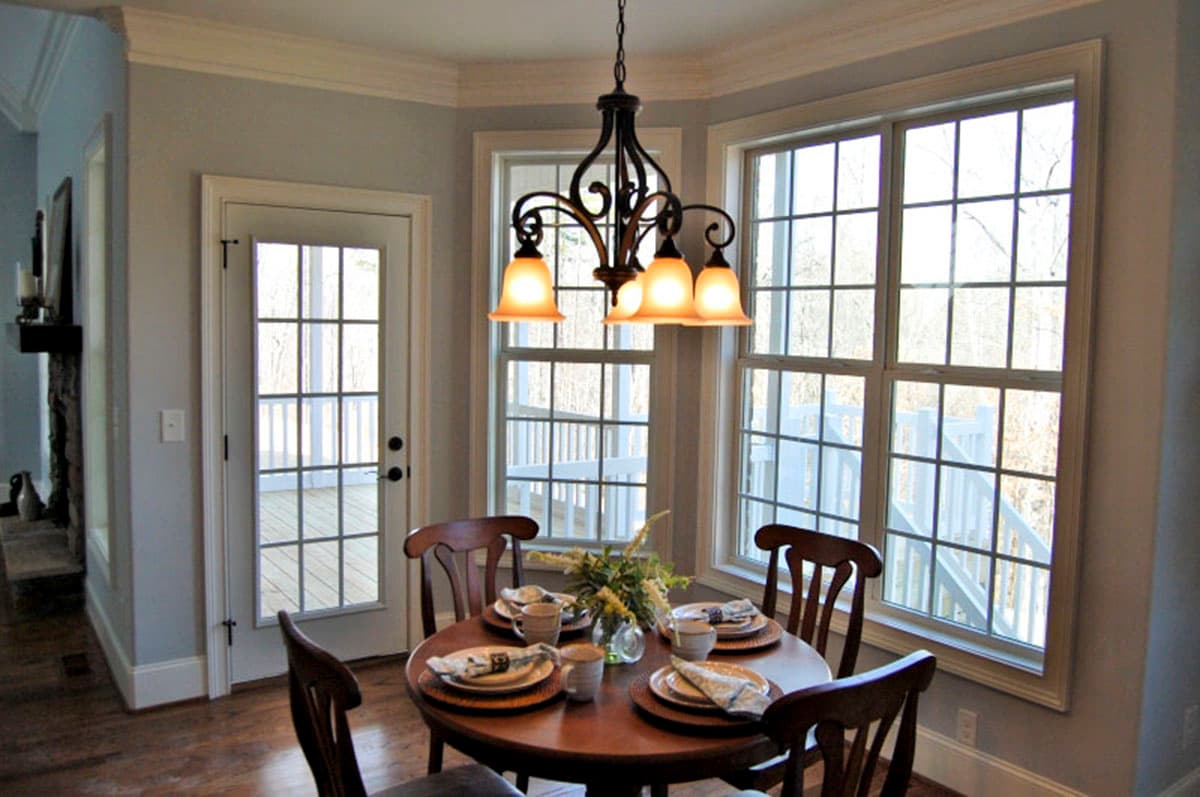

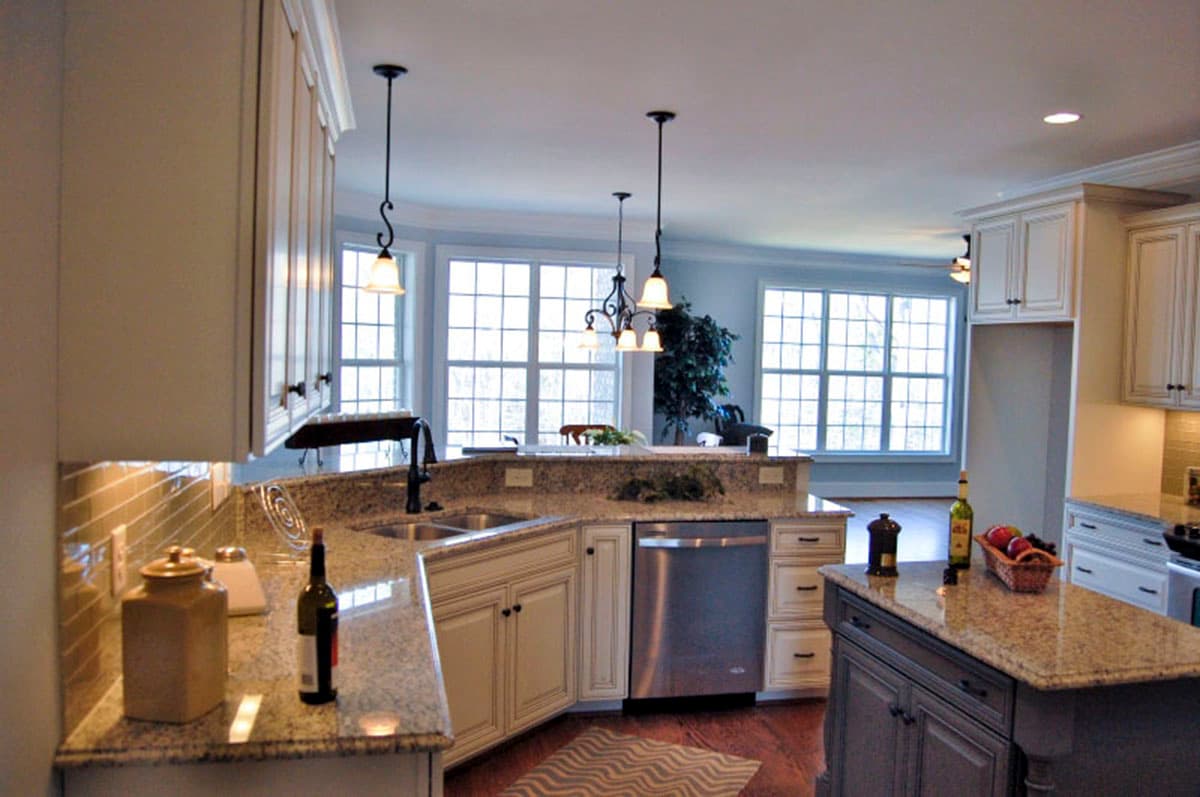

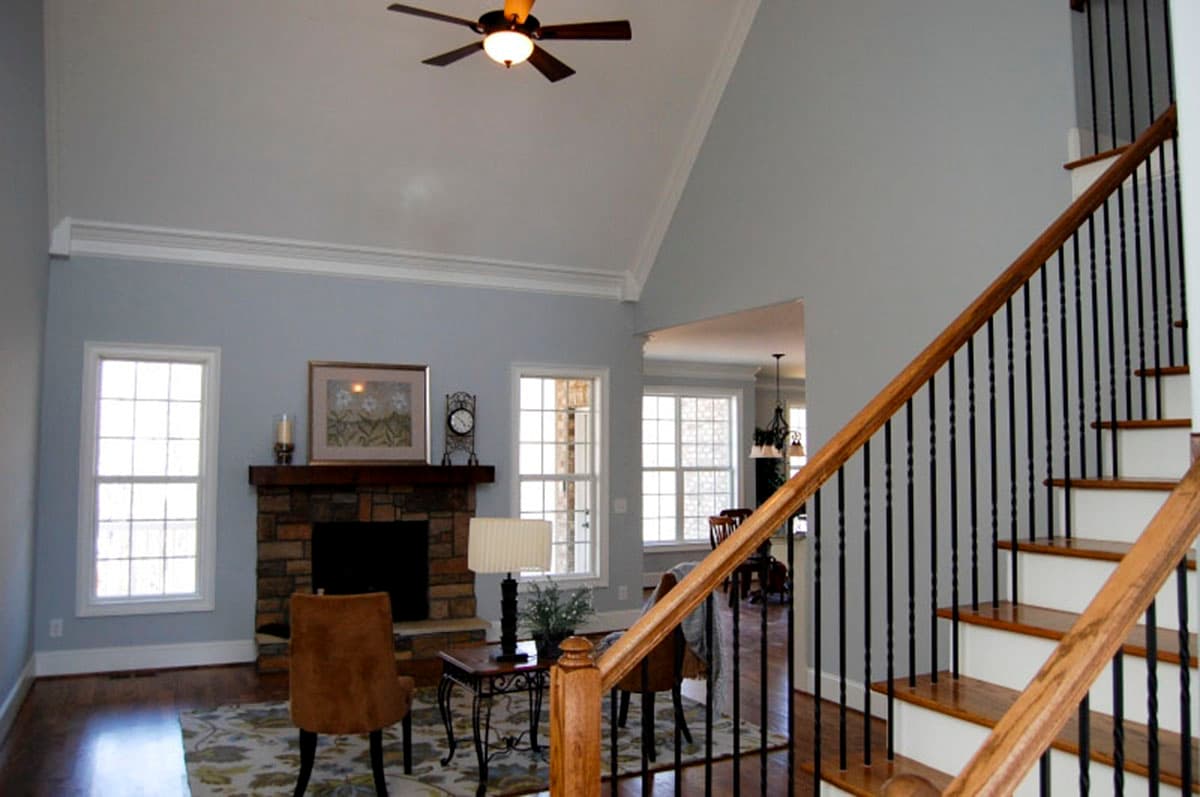

  • Inside, walk through the 2-story foyer and see the fireplace on the back wall of the vaulted family room. A second fireplace is located in the keeping room just off the kitchen.

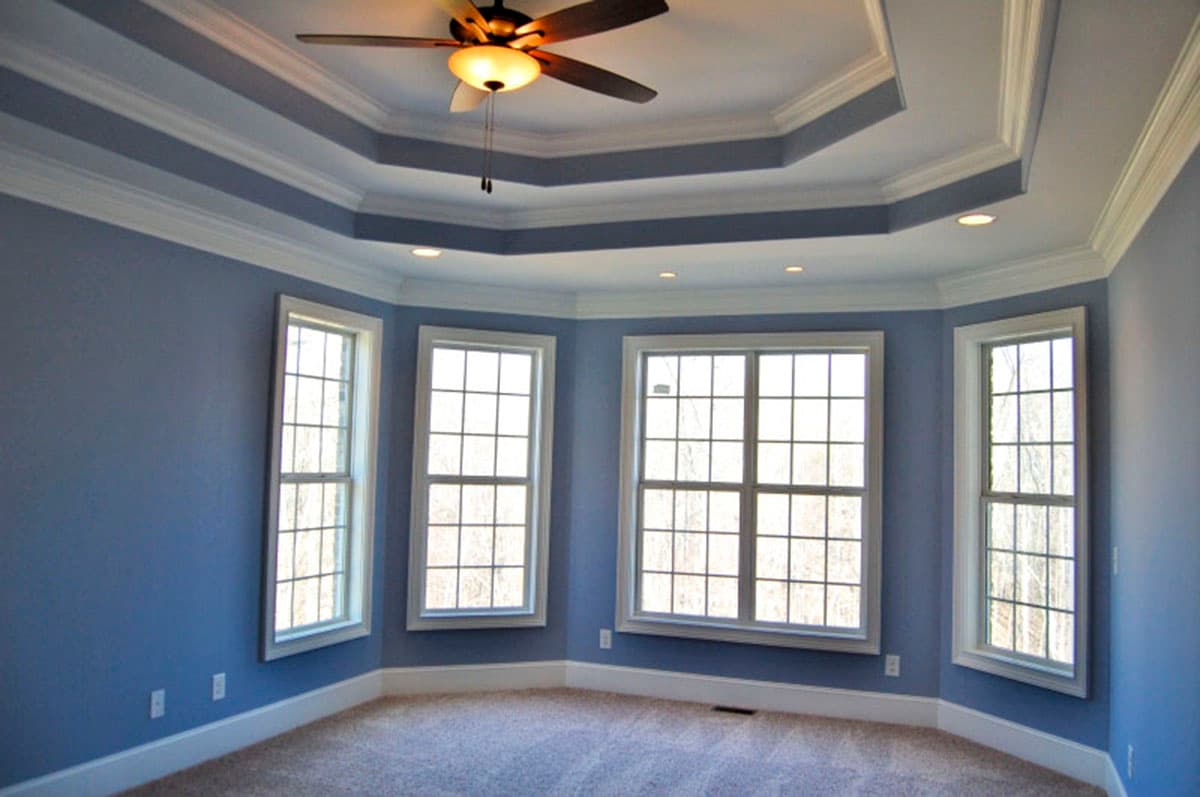

  • The master Suite is private and secluded on the main level of the home. A private sitting area personalizes this space. The main floor bedroom across the floor can serve as the home office.

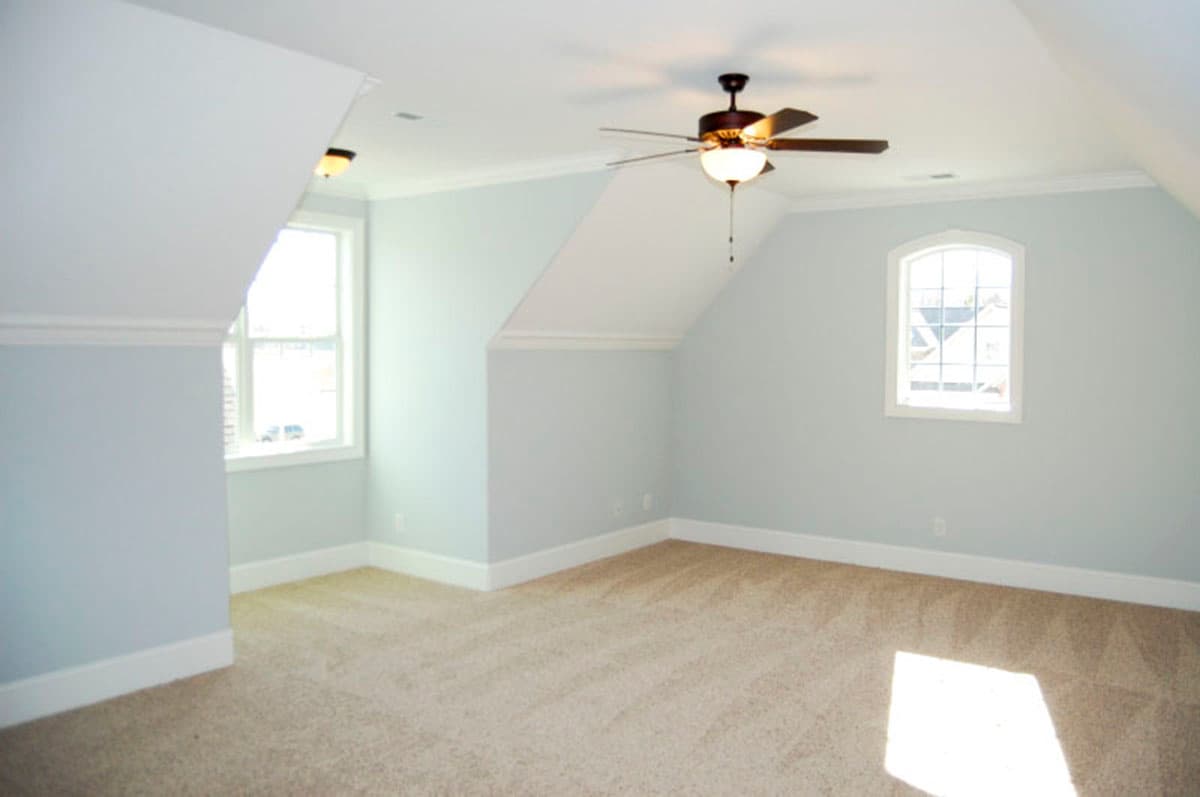

  • An optional bonus room is designed for the upper floor with endless possibilities – a fifth bedroom, recreation room, or fitness area would all be easily accommodated by this space.

The plans include the following:

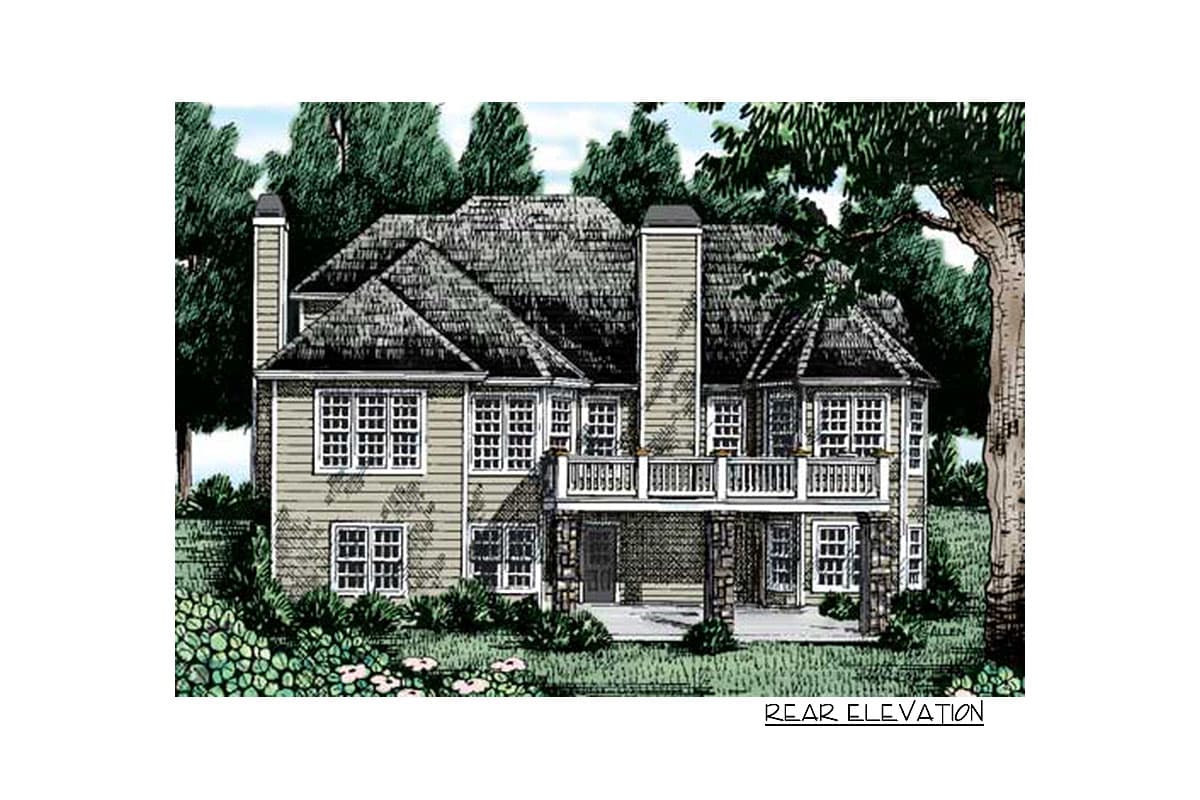

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Plan details



House Plan with Distinctive Fieldstone and Cedar Shake

  • 2,696

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

  • Distinctive fieldstone and cedar shake give the façade of this attractive house plan with two upstairs bedrooms plus a bonus room.
  • Inside, walk through the 2-story foyer and see the fireplace on the back wall of the vaulted family room. A second fireplace is located in the keeping room just off the kitchen.
  • The master Suite is private and secluded on the main level of the home. A private sitting area personalizes this space. The main floor bedroom across the floor can serve as the home office.
  • An optional bonus room is designed for the upper floor with endless possibilities – a fifth bedroom, recreation room, or fitness area would all be easily accommodated by this space.

Floor Plans

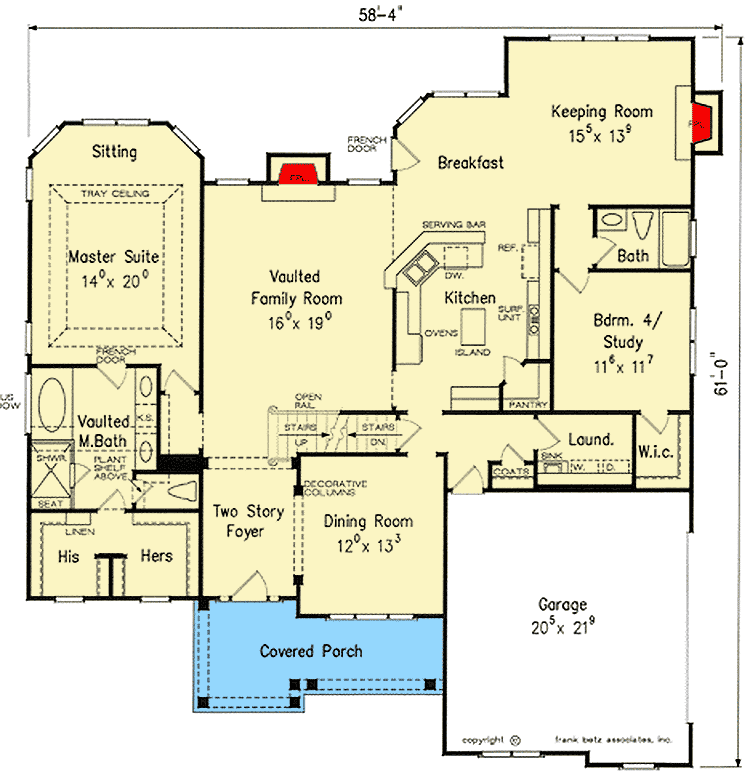

  • Main Level

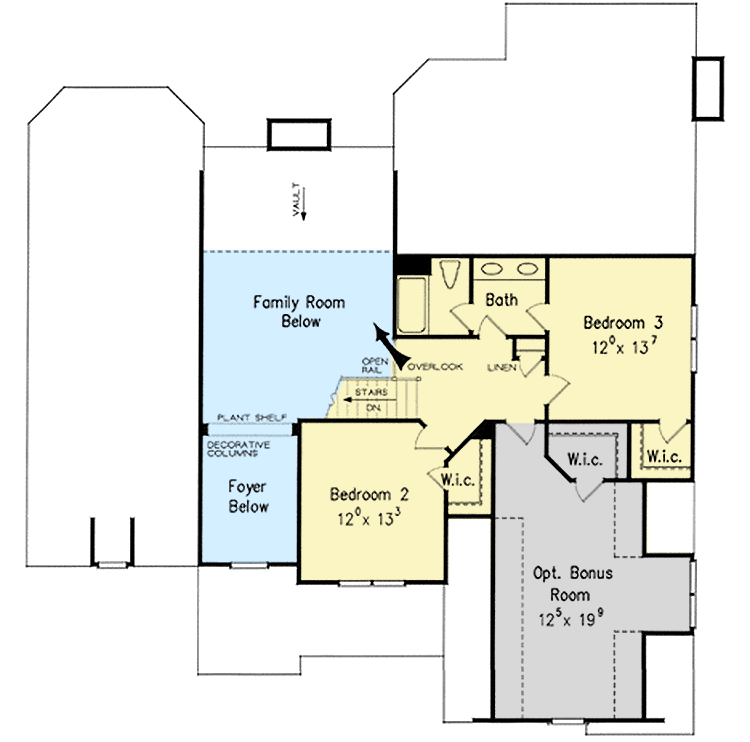

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,696 sq. ft.
  • 1st Floor: 2,113 sq. ft.
  • 2nd Floor: 583 sq. ft.
  • Bonus: 341 sq. ft.
  • Basement Unfinished: 2,113 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 58' 4"
  • Depth: 61' 0"
  • Max ridge height: 30' 4"

Garage

  • Type: Attached
  • Area: 468 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Framing Type: Stick
