House Plan with Hexagonal Core and Drive-Under Garage

Heated S.F.
2,585
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 72913DA

Main Level
Main Level
Lower Level
Lower Level

Plan 72913DA

M-F 9am-5pm EST |

1-203-761-8500

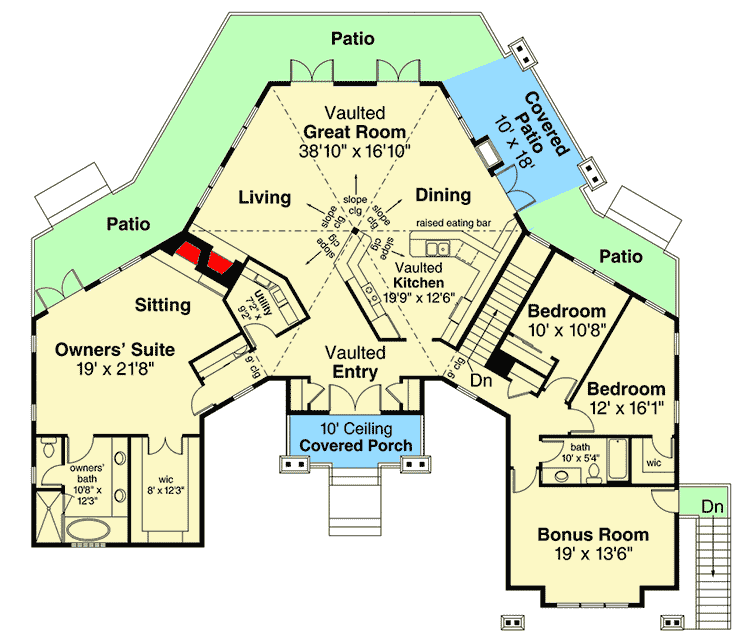

Main Level

Plan 72913DA: House Plan with Hexagonal Core and Drive-Under Garage - Floor Plan - Main Level - Craftsman, Northwest

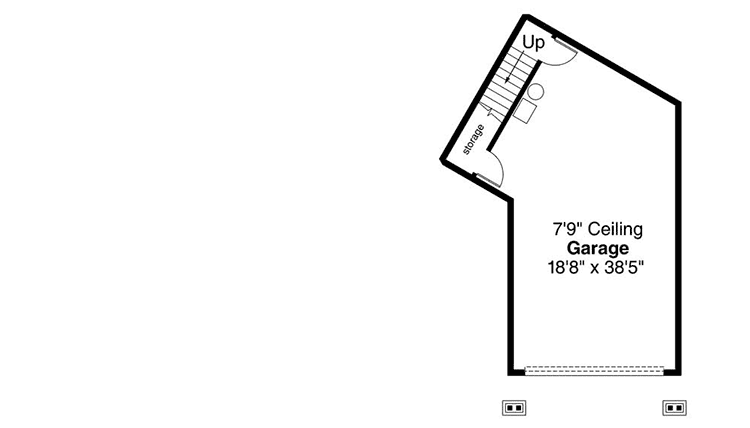

Lower Level

Plan 72913DA: House Plan with Hexagonal Core and Drive-Under Garage - Floor Plan - Lower Level - Craftsman, Northwest

Plan Details

  • This 3-bed house plan has a 6-sided core with two living wings and a drive-under garage making this great for a sloping lot.
  • Through the double-door entry is an impressive hexagonal, vaulted great room filled with windows showcasing a wraparound patio and gorgeous views.
  • There are two fireplaces in the great room, one to be enjoyed in the living area and the other in the dining area shared with the covered patio.
  • The left side of the house has a spacious utility room and a luxurious owners' suite.
  • The owners' suite has its own sitting area with private fireplace, a large walk-in closet and a luxurious bathroom. The right side of the house has the separated bedrooms and a large bonus room with a separate entrance.
  • The lower level garage is roomy enough for extra storage or a great work space.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

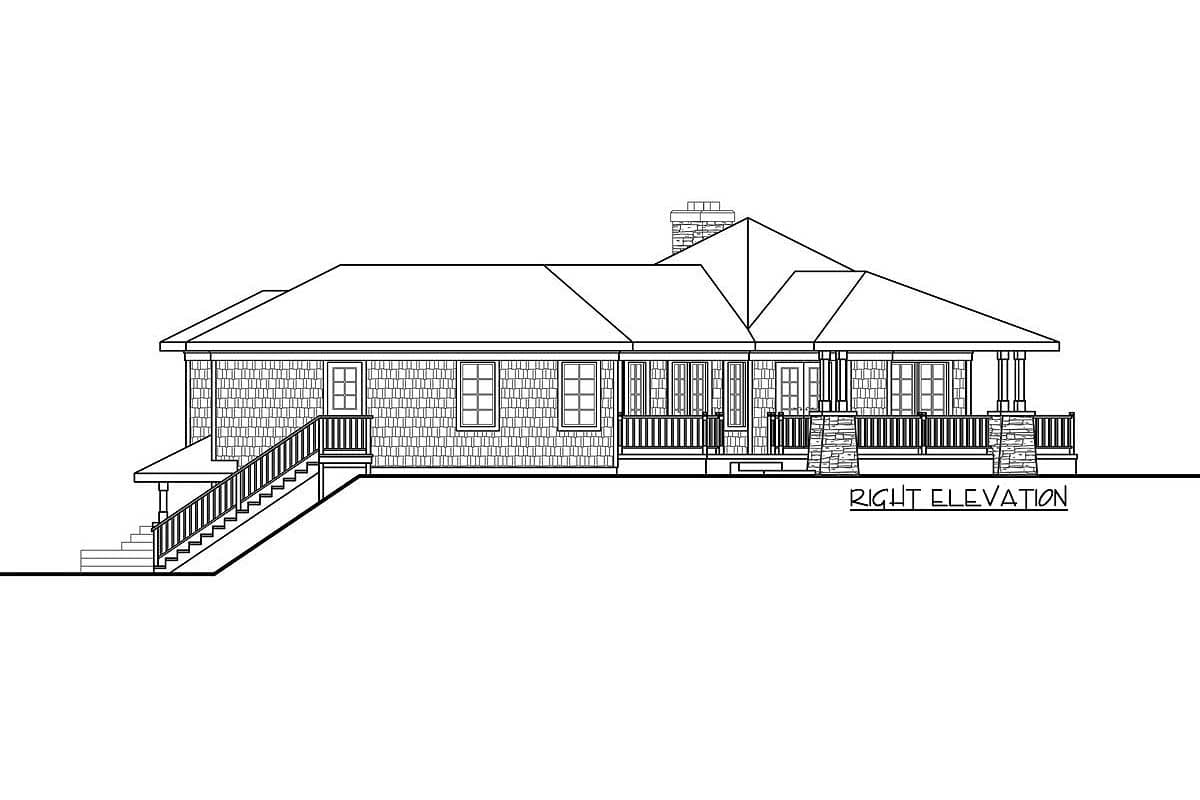

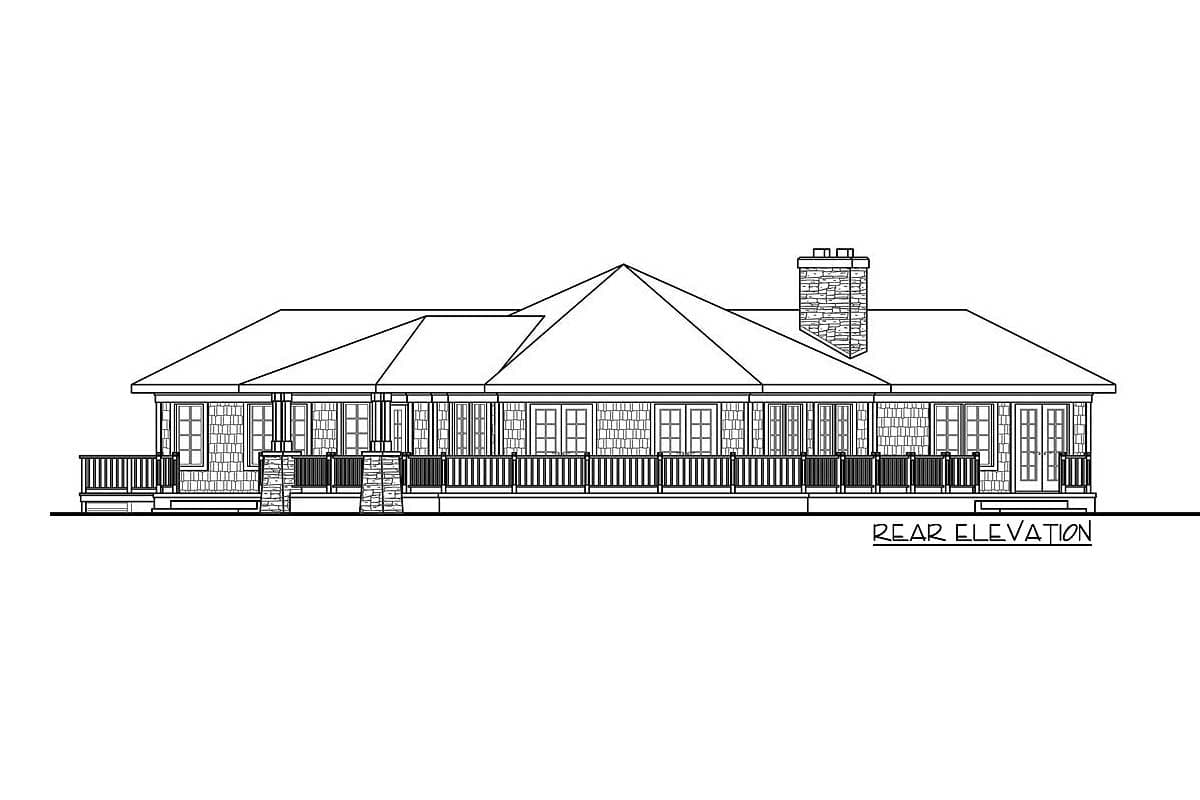

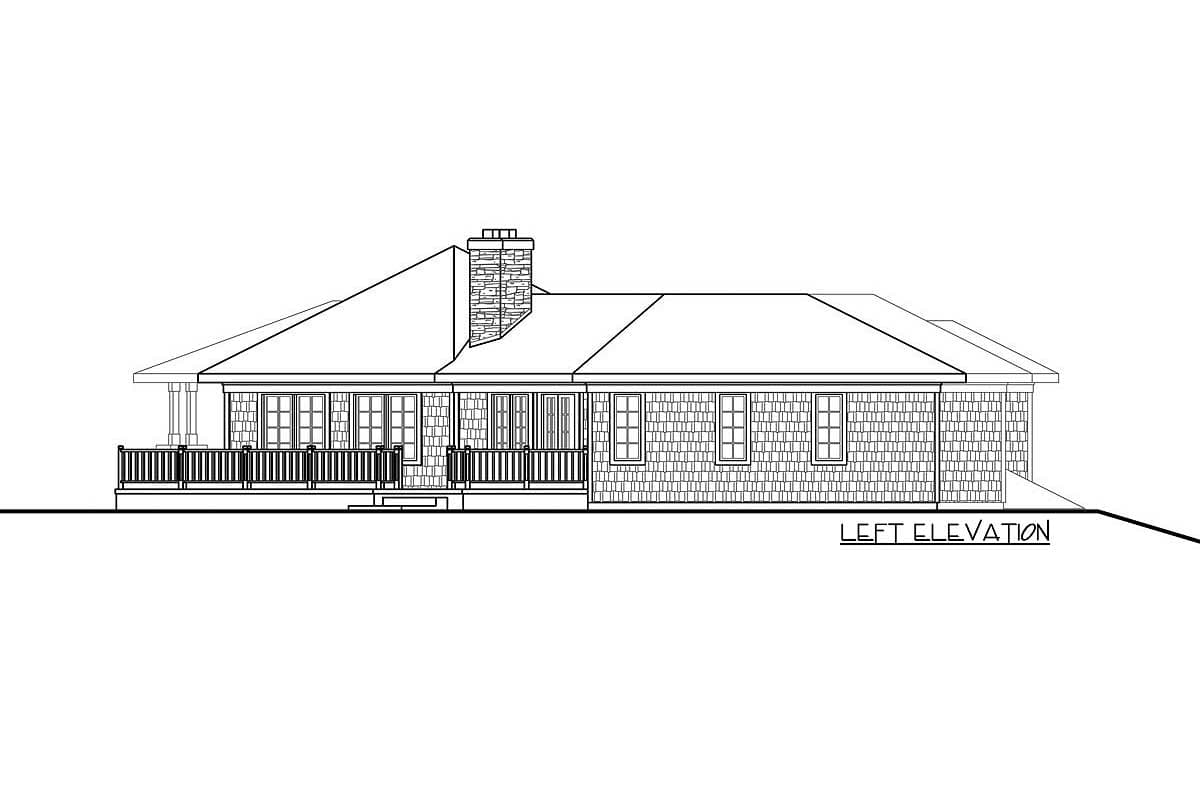

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,585 sq. ft.

1st Floor

2,585 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

63' 0"

Max Ridge Height

20' 2"

Garage

Type

Drive Under

Area

804 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,585 sq. ft.

1st Floor

2,585 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

63' 0"

Max Ridge Height

20' 2"

Garage

Type

Drive Under

Area

804 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Plan Collections

Sloping Lot
