Ideal 3-Bed New American House Plan with Bonus Level

Plan 280030JWD

  • 2,034

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • This 3-bedroom house plan includes a modern, standing seam metal roof, along with a must-have open layout, covered patio, and a bonus room above the 2-car garage. Natural wood shutters and a shed dormer window add character to the exterior.
  • Clean sight lines between the great room, dining room, and kitchen provide a wonderful space for everyday living.
  • Ample storage space is provided by the walk-in pantry and kitchen island, and a covered patio extends the living space outside.
  • The master bedroom is nestled towards the back of the home with rearward views, and features a 5-fixture bathroom with a walk-in closet. Down the hall, two additional bedrooms share a full bathroom.
  • The laundry / mud room serves as a great transition space between the garage and home, and a bonus level above the garage offers the homeowner flexibility.
  • IMPORTANT NOTE:  The heated square footage includes the bonus room.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

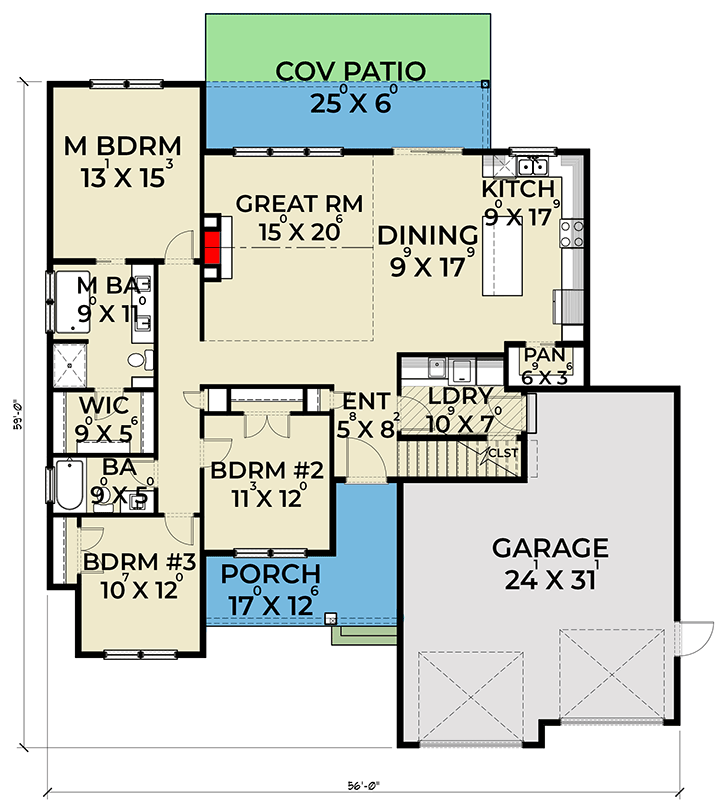

Ideal 3-Bed New American House Plan with Bonus Level - 280030JWD floor plan - Main Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

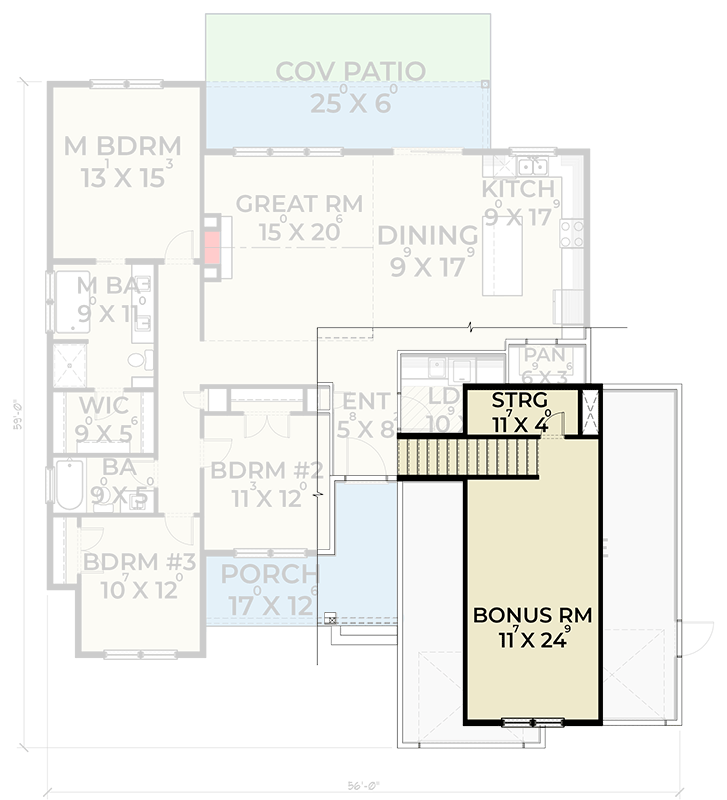

Ideal 3-Bed New American House Plan with Bonus Level - 280030JWD floor plan - Bonus Level

Ideal 3-Bed New American House Plan with Bonus Level

  • 2,034

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

Floor Plan

  • Main Floor

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 2,034 sq. ft.
  • 1st Floor: 1,690 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 59' 0"
  • Max ridge height: 24' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 676 sq. ft.
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Bonus 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
