Impressive European House Plan

Plan 290055IY

  • 4,023

    Heated s.f.

  • 5-9

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 4-5

    Cars

  • Get up to nine bedrooms in this impressive European house plan.
  • The large formal dining room is the first thing you see as you enter the home.
  • Further back, the gorgeous coffered ceiling in the huge family room adds a custom feel to the home.
  • In the kitchen, you have both an island and a large walk-in pantry for extra storage.
  • A luxurious master suite awaits homeownrs with two vaulted areas  and a private balcony.
  • The master sitting room comes with a fireplace flanked by built-ins.
  • A vaulted guest bedroom is also on this floor.
  • Upstairs, three large bedrooms are joined by an enormous bonus room that can serve as bedroom 6.
  • By finishing the optional lower level, you gain an extra 2,328 square feet with three more bedrooms, a full kitchen plus an exercise room and lower garage.

This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

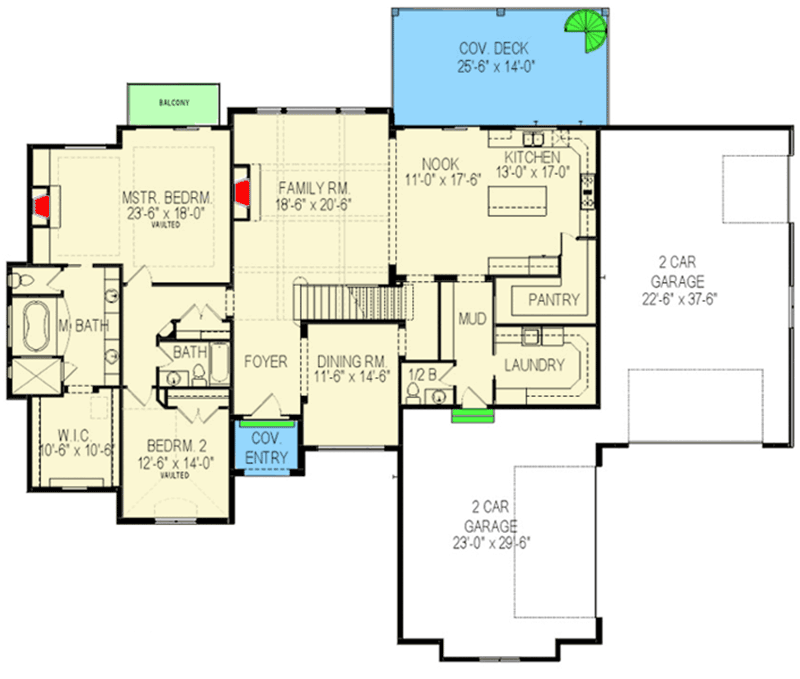

Impressive European House Plan - 290055IY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

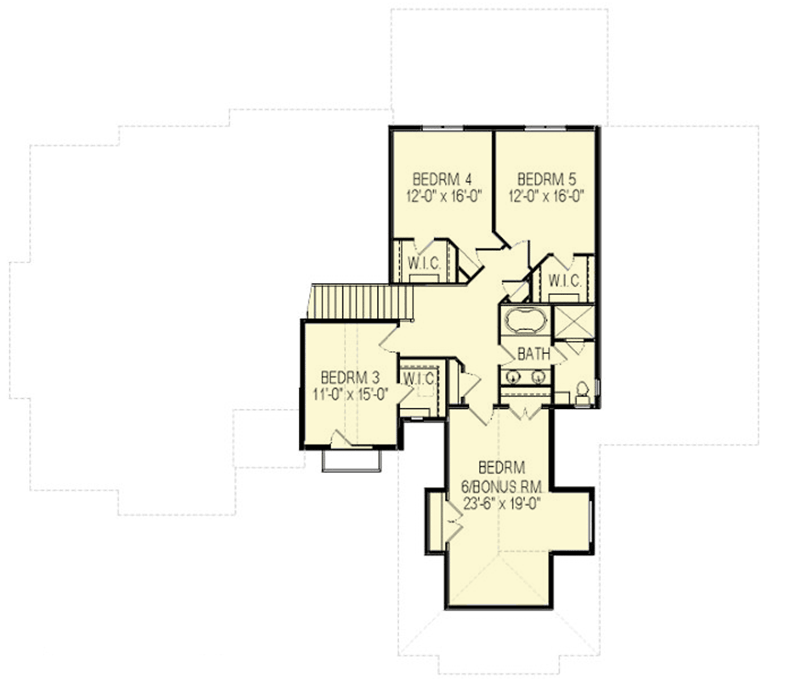

Impressive European House Plan - 290055IY floor plan - 2nd Floor

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Impressive European House Plan - 290055IY floor plan - Optional Lower Level

Impressive European House Plan

  • 4,023

    Heated s.f.

  • 5-9

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 4 - 5

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,023 sq. ft.
  • 1st Floor: 2,642 sq. ft.
  • 2nd Floor: 1,381 sq. ft.

Dimensions

  • Width: 93' 3"
  • Depth: 77' 8"
  • Max ridge height: 34' 8"

Beds/Baths

  • Bedrooms: 5, 6, 7, 8, or 9
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Drive Under, Attached
  • Area: 2175 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Front, Side, Rear

Foundation Type

    • Standard Foundations: Daylight, Walkout
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
