Plan 510025WDY Impressive Traditional House Plan

3,594 4 3.5 - 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Impressive Traditional House Plan

Plan 510025WDY

  • 3,594

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • With its elegant brick exterior and intricate roof lines, this Traditional house plan creates an impressive home for your family.
  • The arched entry porch highlights the gorgeous arched double doors as you step into the home.
  • Flanked by the study on one side and the formal dining room on the other, the foyer leads back to the huge two-story living room.
  • The upscale kitchen is enormous with plenty of counters and a big island to spread out all your cooking equipment.
  • An extra sink means more than one person can help out with the cooking.
  • Bedroom 2 is the ideal guest suite set off by itself with a private bathroom and a walk-in closet.
  • The master suite is simply gorgeous with a tray ceiling and a luxurious spa-like bathroom.
  • A long open rail balcony hallway lets you look down into the living room below.
  • Finish the optional bonus room to gain an extra 313 square feet of living space.

This plan has 10 pages as follows:

  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

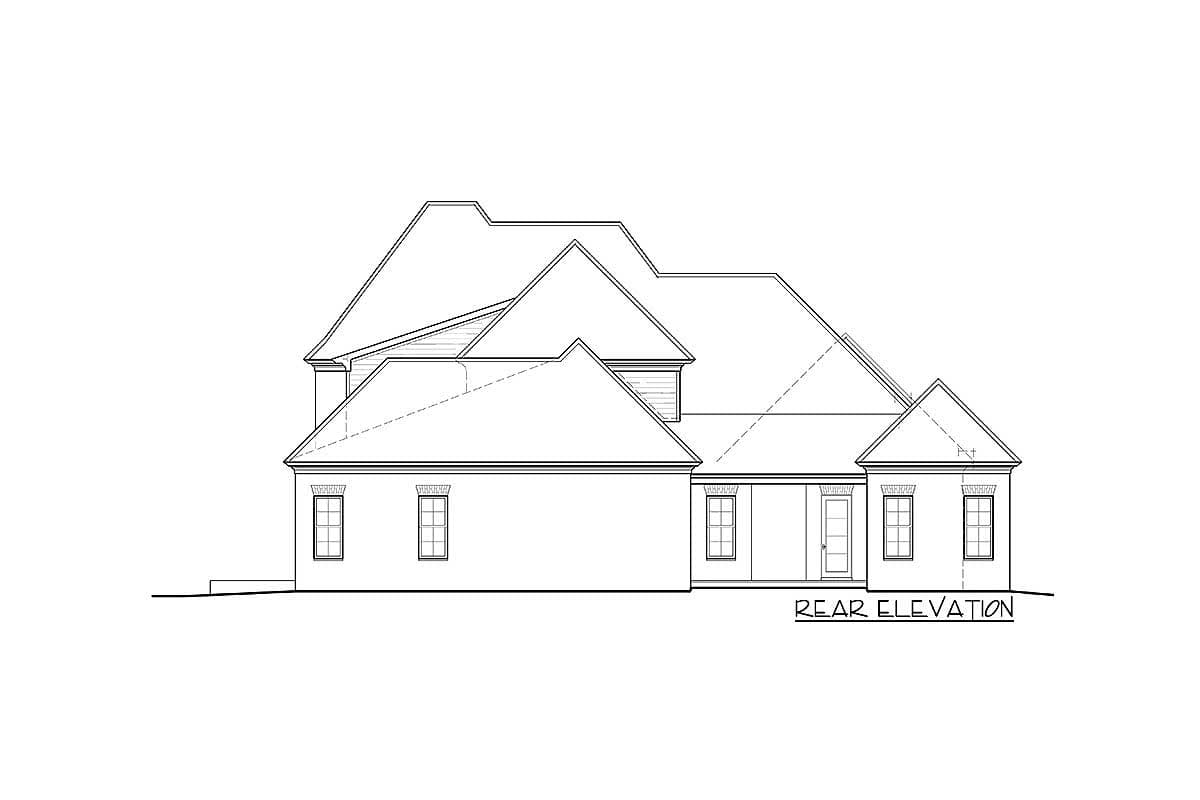

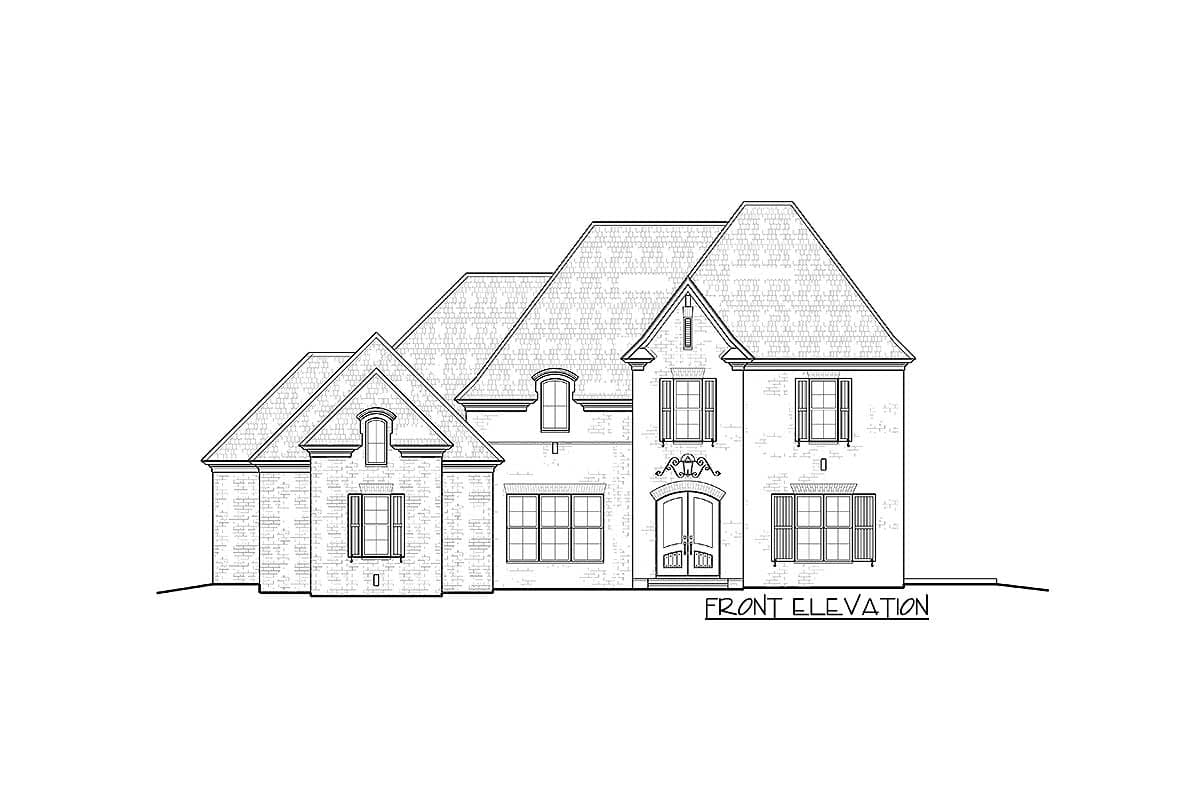

  4. All Four Exterior Elevation, Roof Plan, Flashing Detail
  5. Building Sections Cornice Details, Screened Porch Detail
  6. Flashing Detail, Column Detail, Ridge Detail, Rafter Span Schedule, Handrail Elevation, Porch Detail, Ceiling Detail
  7. First Floor Electrical Plan and Schedules
  8. Second Floor Electrical Plan and Schedules
  9. Foundation
  10. Footing Details

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

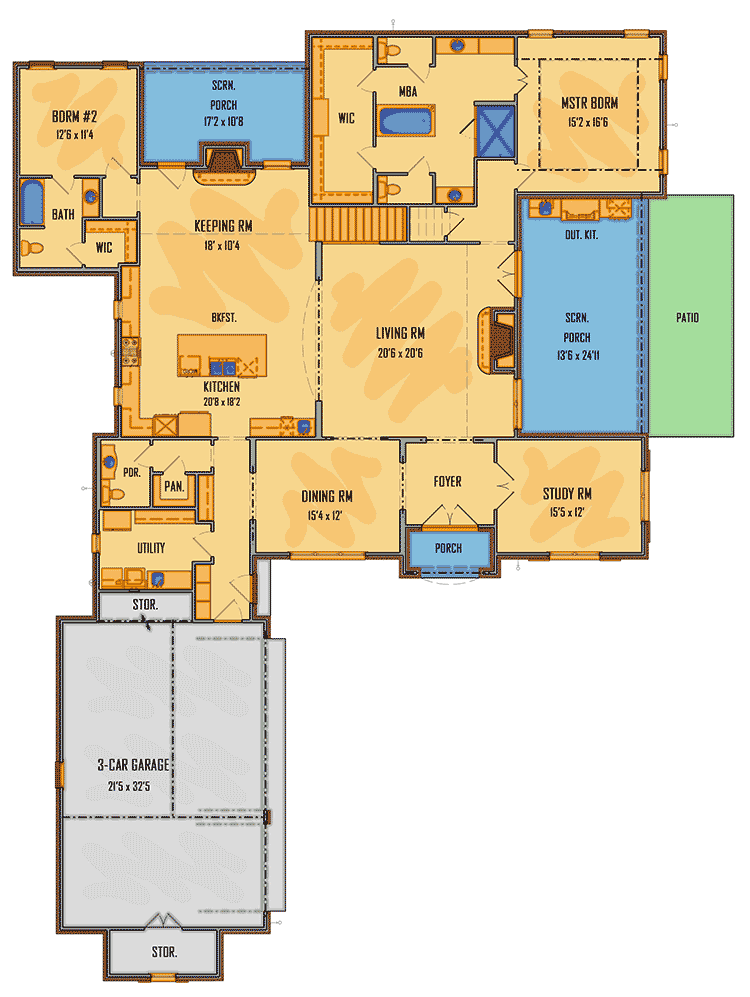

Impressive Traditional House Plan - 510025WDY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

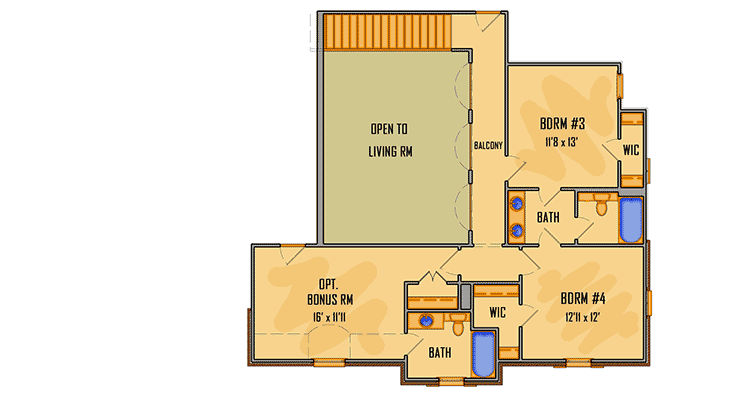

Impressive Traditional House Plan - 510025WDY floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,594 sq. ft.
  • 1st Floor: 2,977 sq. ft.
  • 2nd Floor: 617 sq. ft.
  • Screened Porch: 338 sq. ft.
  • Porch, Rear: 183 sq. ft.
  • Porch, Front: 40 sq. ft.
  • Bonus: 313 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 7"
  • Depth: 101' 1"
  • Max ridge height: 36' 8"

Garage

  • Type: Attached
  • Area: 816 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Impressive Traditional House Plan

  • 3,594

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,200
  • 8 Sets $1,300
  • PDF - Single-Build $1,500
  • 5 Sets + PDF $1,750
  • CAD + PDF - Unlimited Build $2,500
  • View all purchase option online

About This Plan

  • With its elegant brick exterior and intricate roof lines, this Traditional house plan creates an impressive home for your family.
  • The arched entry porch highlights the gorgeous arched double doors as you step into the home.
  • Flanked by the study on one side and the formal dining room on the other, the foyer leads back to the huge two-story living room.
  • The upscale kitchen is enormous with plenty of counters and a big island to spread out all your cooking equipment.
  • An extra sink means more than one person can help out with the cooking.
  • Bedroom 2 is the ideal guest suite set off by itself with a private bathroom and a walk-in closet.
  • The master suite is simply gorgeous with a tray ceiling and a luxurious spa-like bathroom.
  • A long open rail balcony hallway lets you look down into the living room below.
  • Finish the optional bonus room to gain an extra 313 square feet of living space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,594 sq. ft.
  • 1st Floor: 2,977 sq. ft.
  • 2nd Floor: 617 sq. ft.
  • Screened Porch: 338 sq. ft.
  • Porch, Rear: 183 sq. ft.
  • Porch, Front: 40 sq. ft.
  • Bonus: 313 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 7"
  • Depth: 101' 1"
  • Max ridge height: 36' 8"

Garage

  • Type: Attached
  • Area: 816 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 510025WDY
View this and more for this plan by visiting www.architechtecturaldesigns.com/510025WDY
|
Need Help? 800-854-7852
|
