Inviting Mountain Cottage

Plan 29840RL

  • 1,822

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

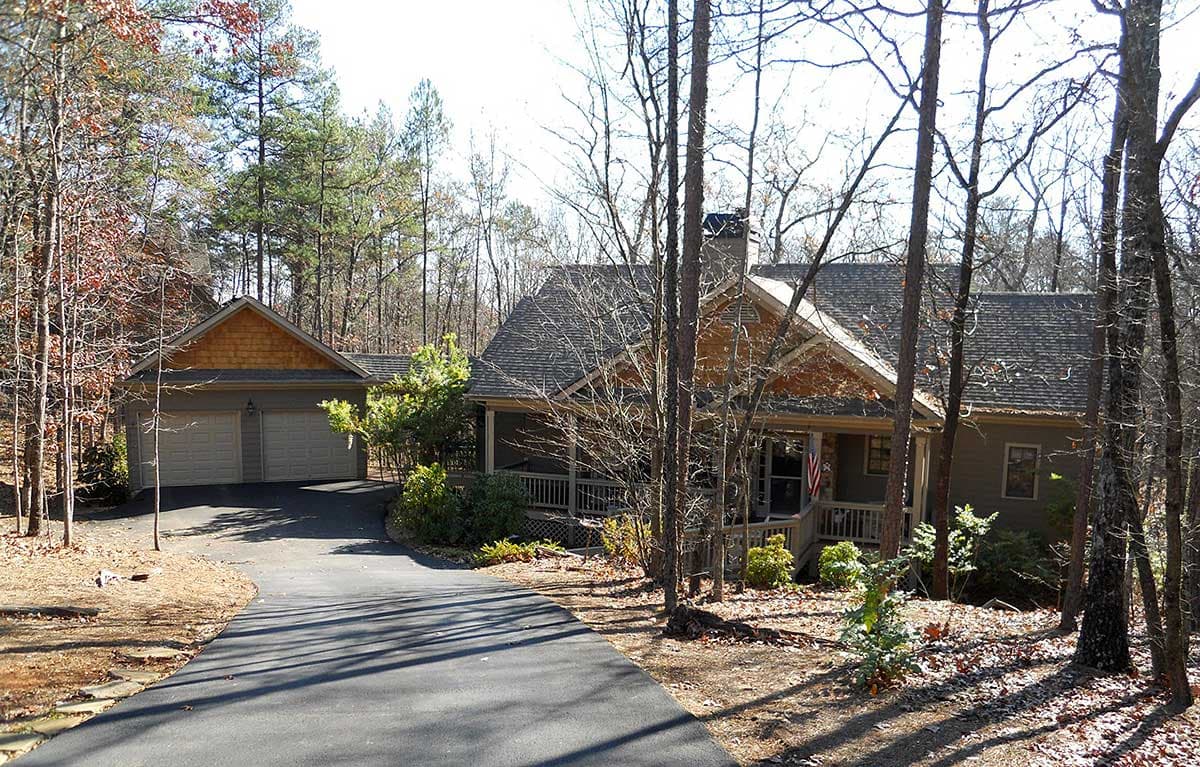

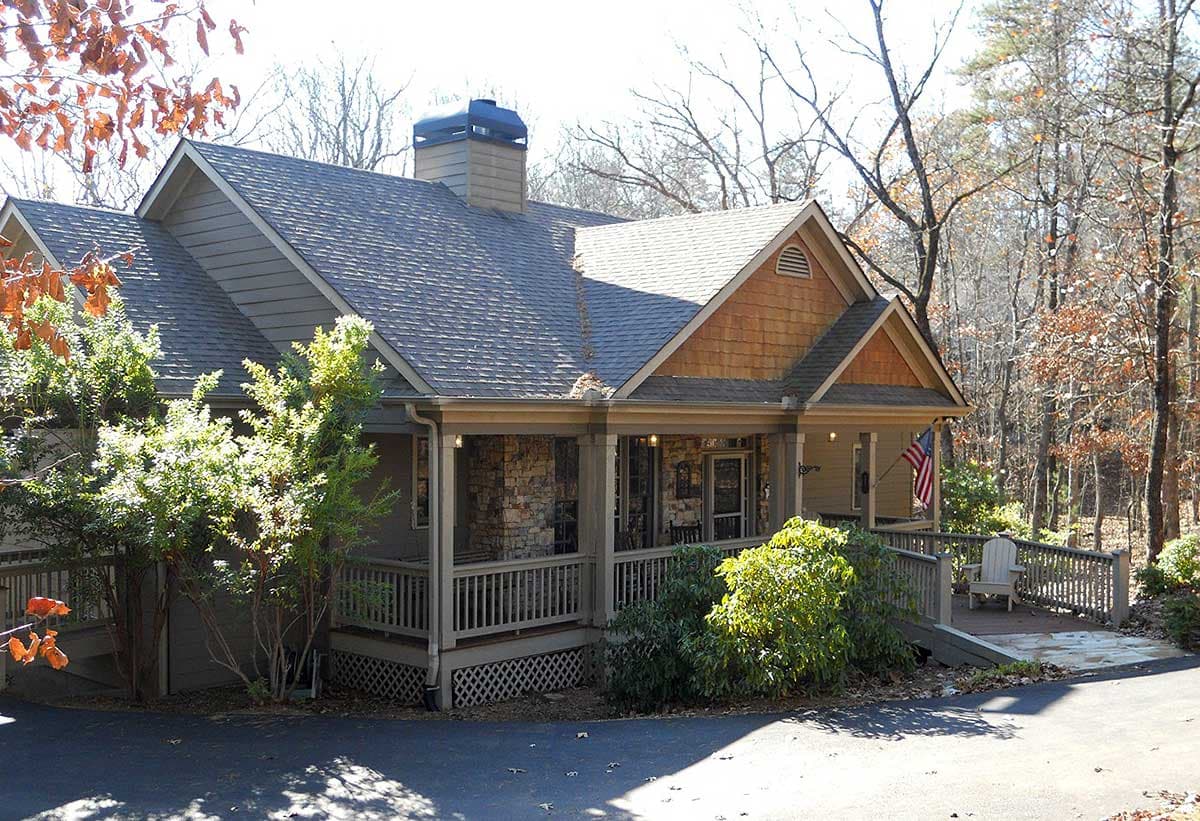

  • This inviting mountain cottage is great for a weekend getaway or a vacation home. The rustic exterior blends nicely with a mountainous or hilly terrain.

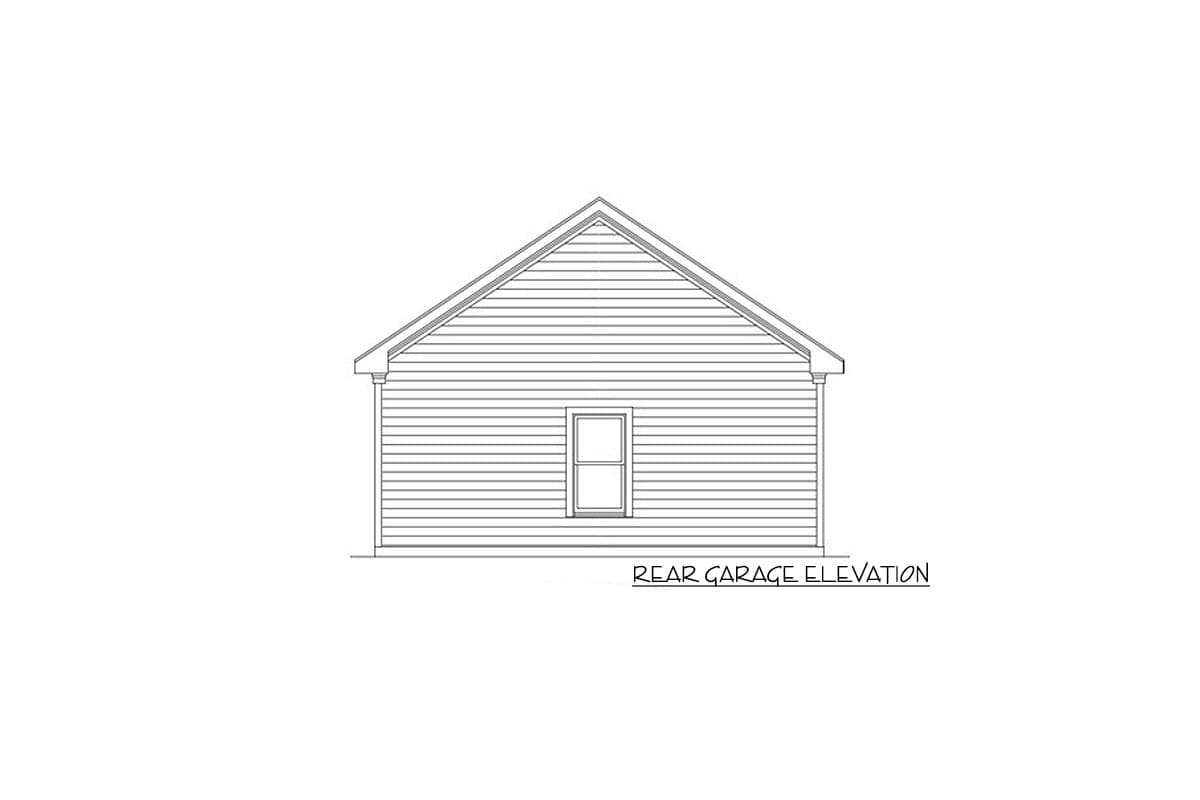

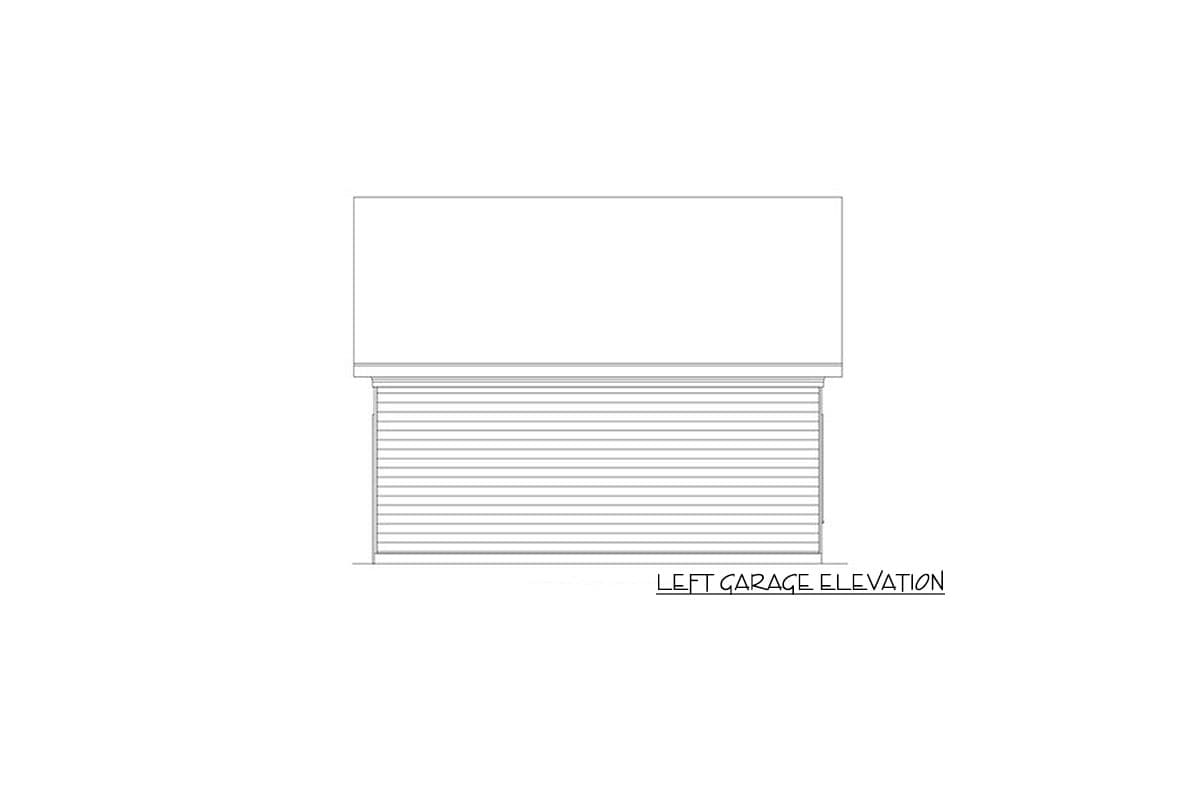

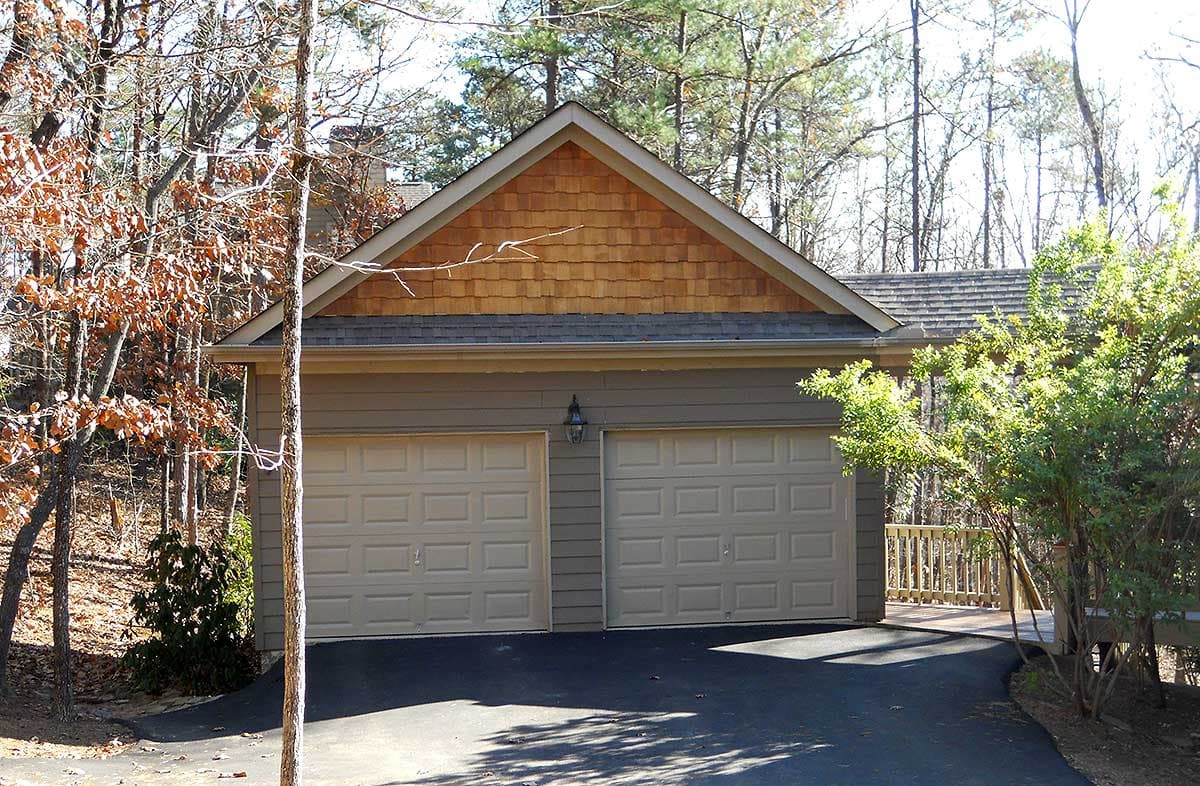

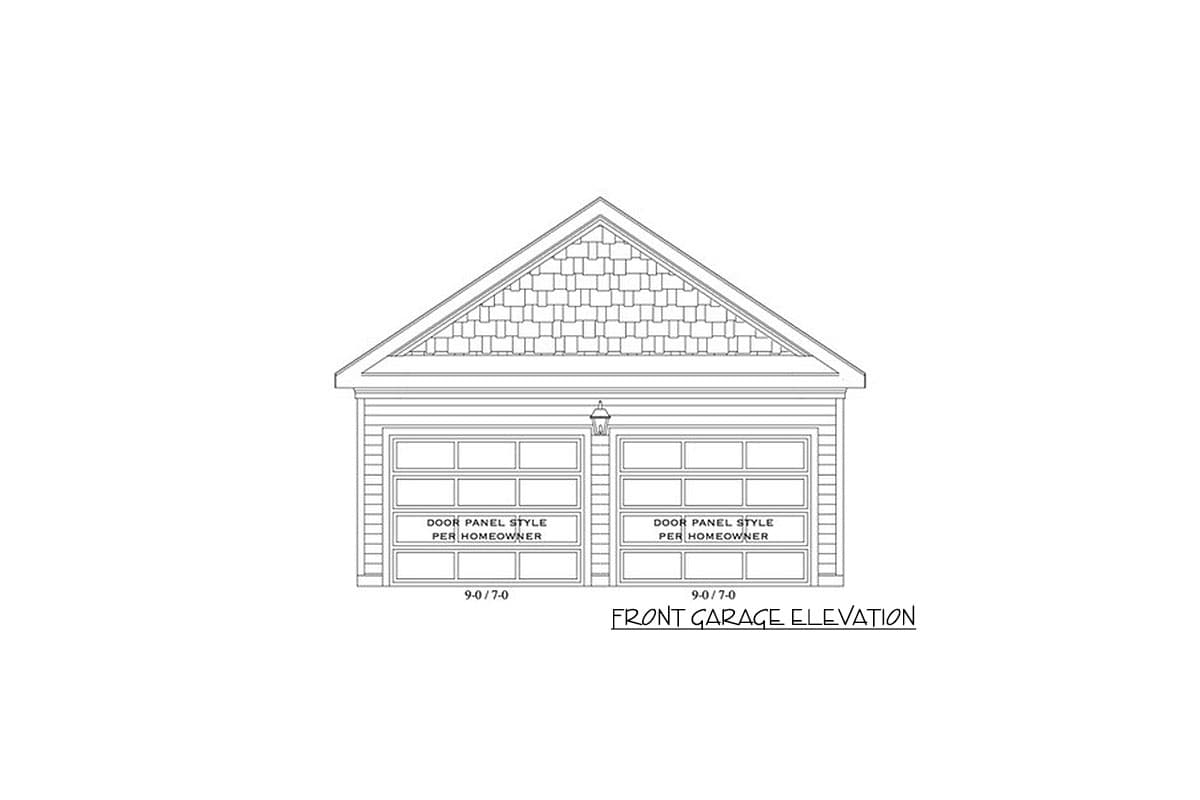

  • There is a detached 2 car garage (included) with a covered walkway off the laundry or mud room.  The garage dimensions are 21'10" x 21'4".

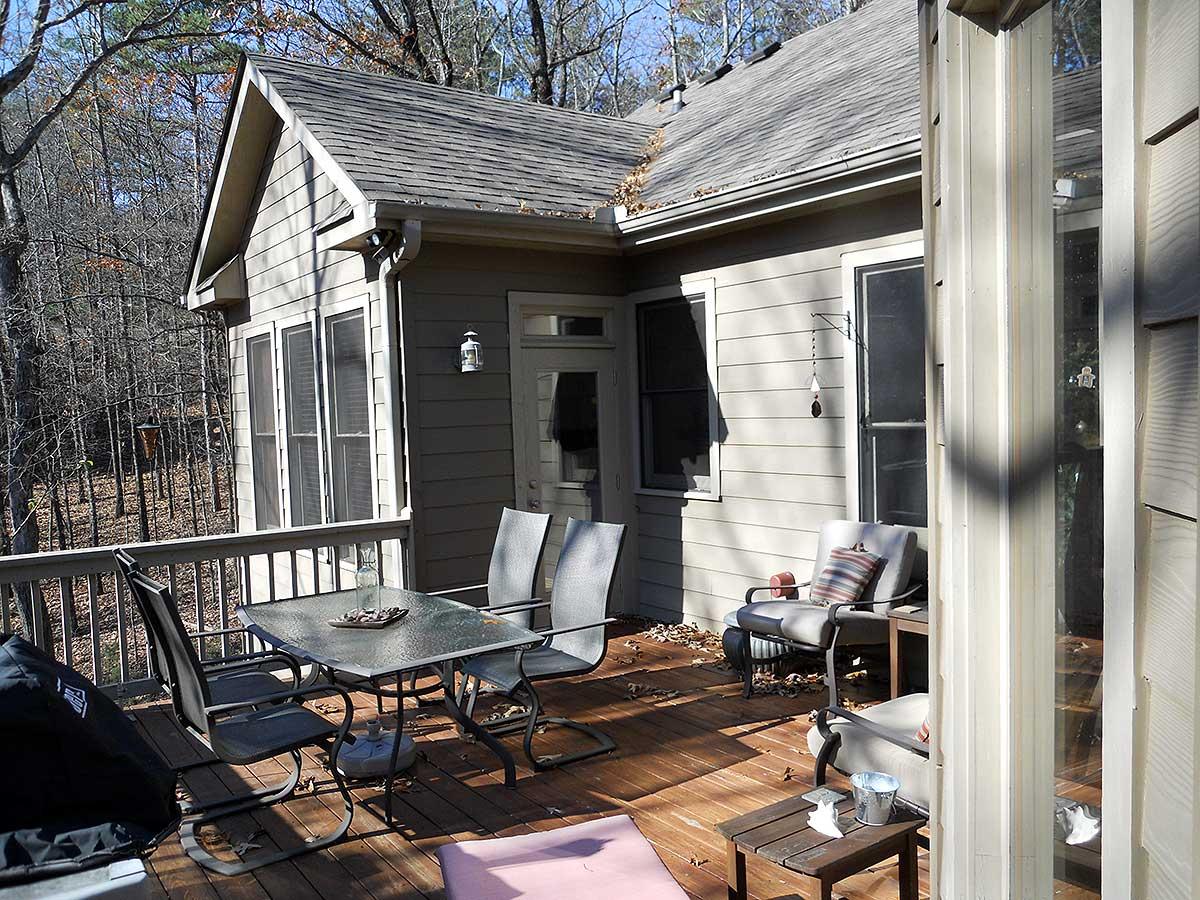

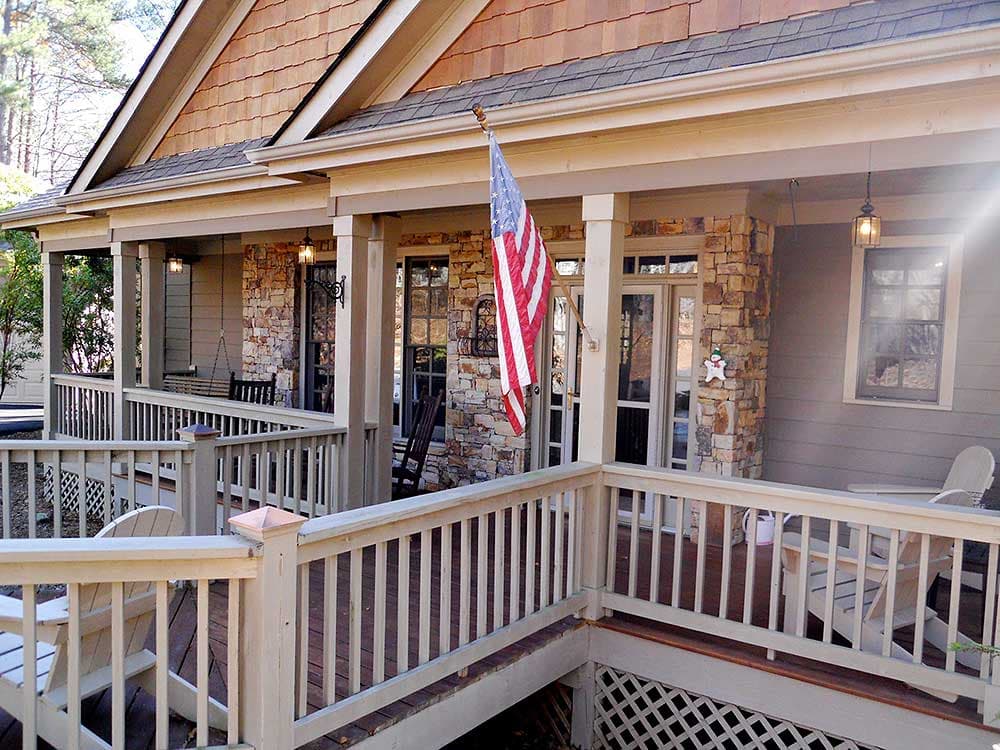

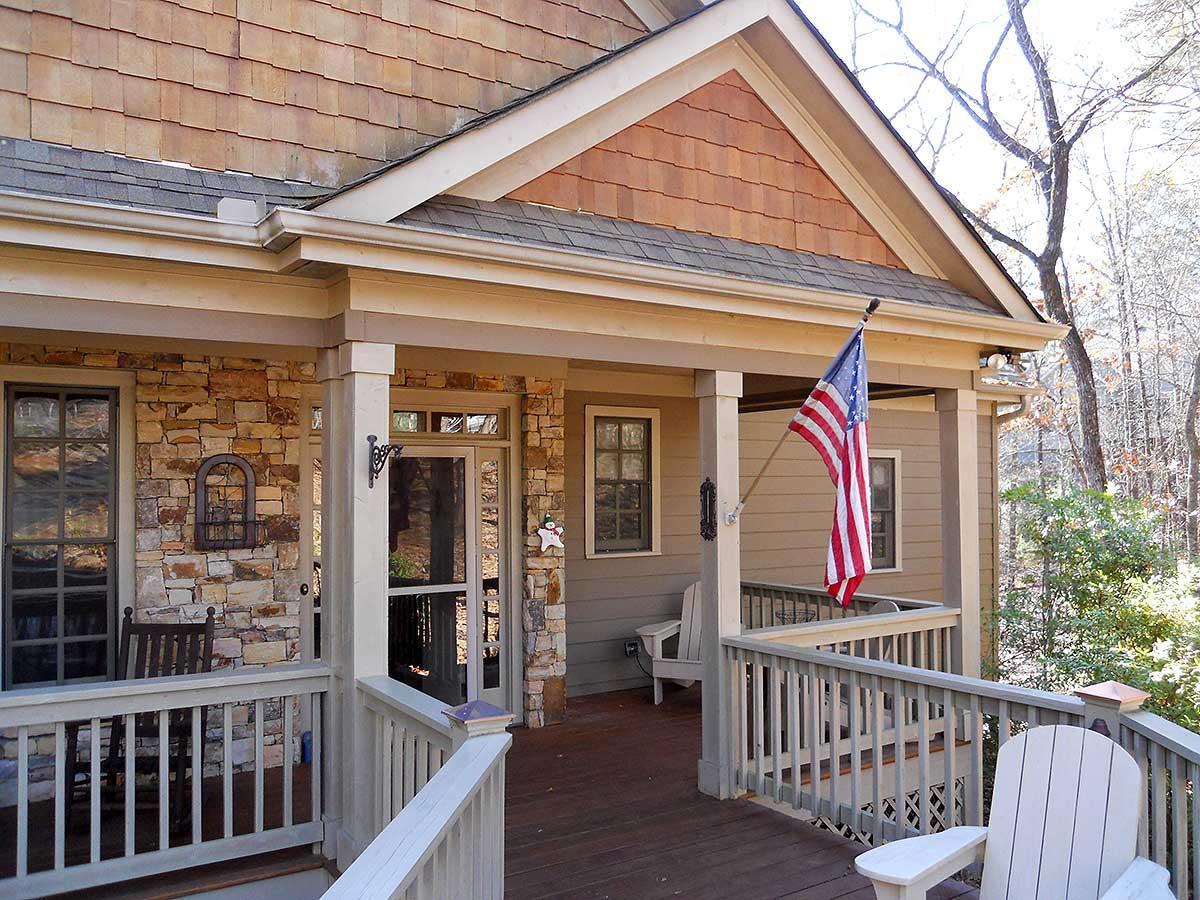

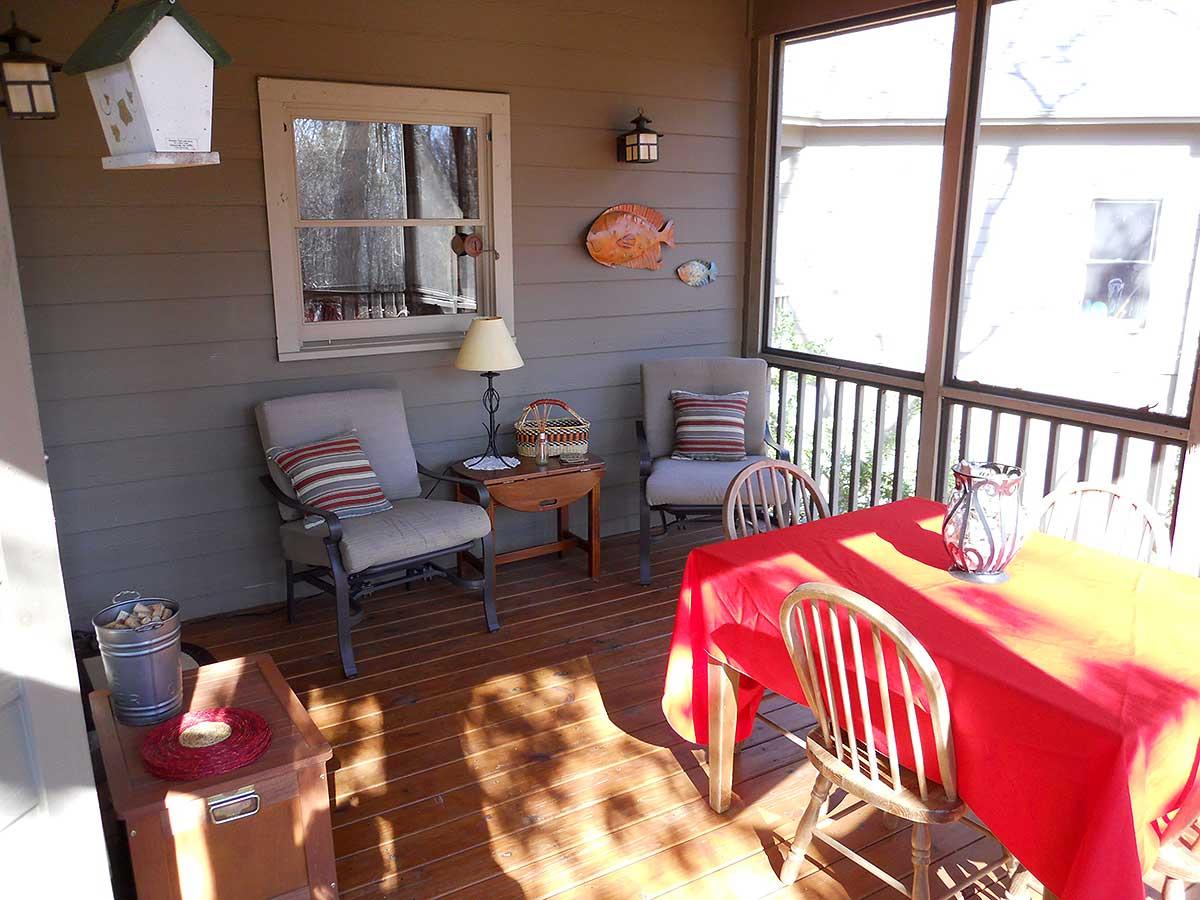

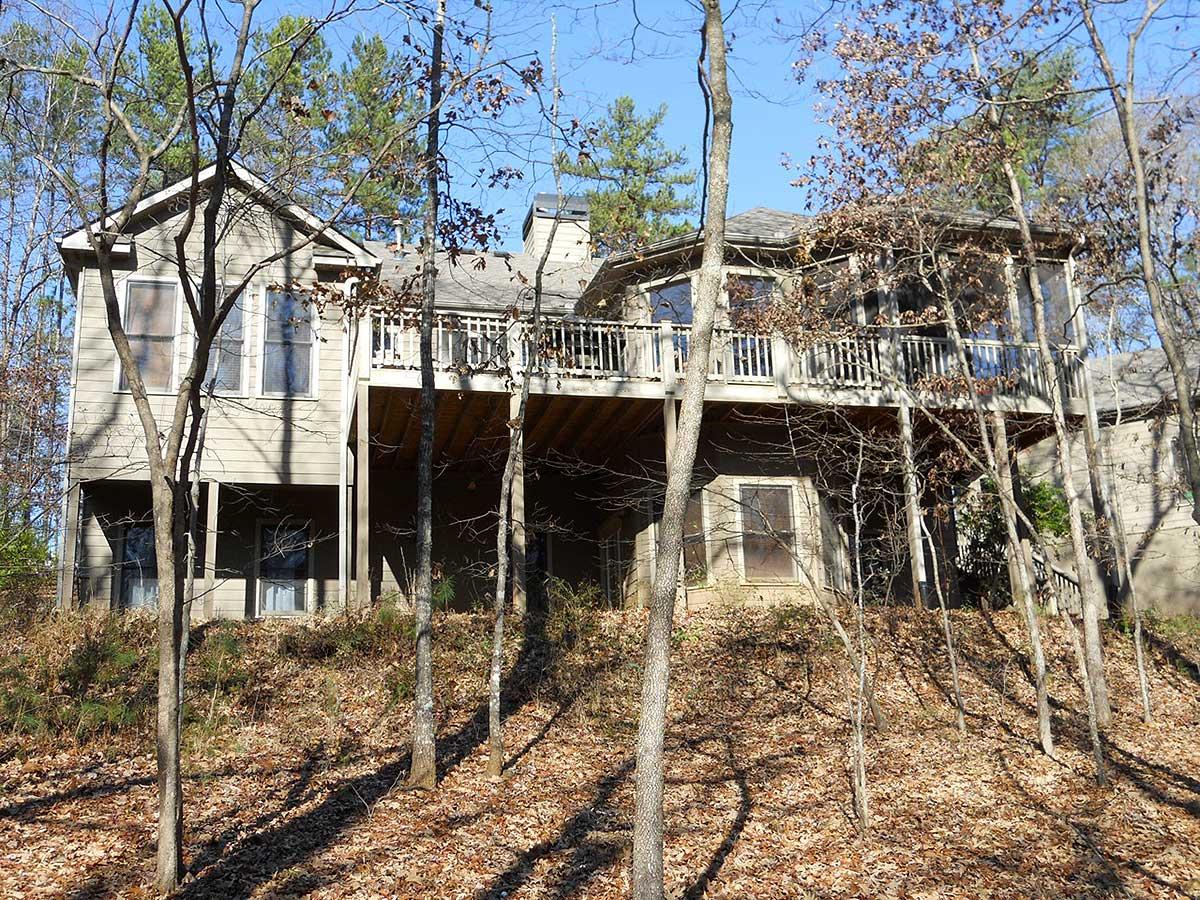

  • There is a covered front porch, a screened porch off the rear and a large deck located off of the rear.
  • The warm interior welcomes you with a foyer and a large vaulted great room. The generous kitchen is open to the great room and opposite the master suite.
  • The study could be converted to an additional bedroom.
  • Downstairs there is a finished guest suite with a walk-in closet and full bath. Additionally there is plenty of room for storage or to finish a rec room, home office or shop.

Each plan set includes the following:

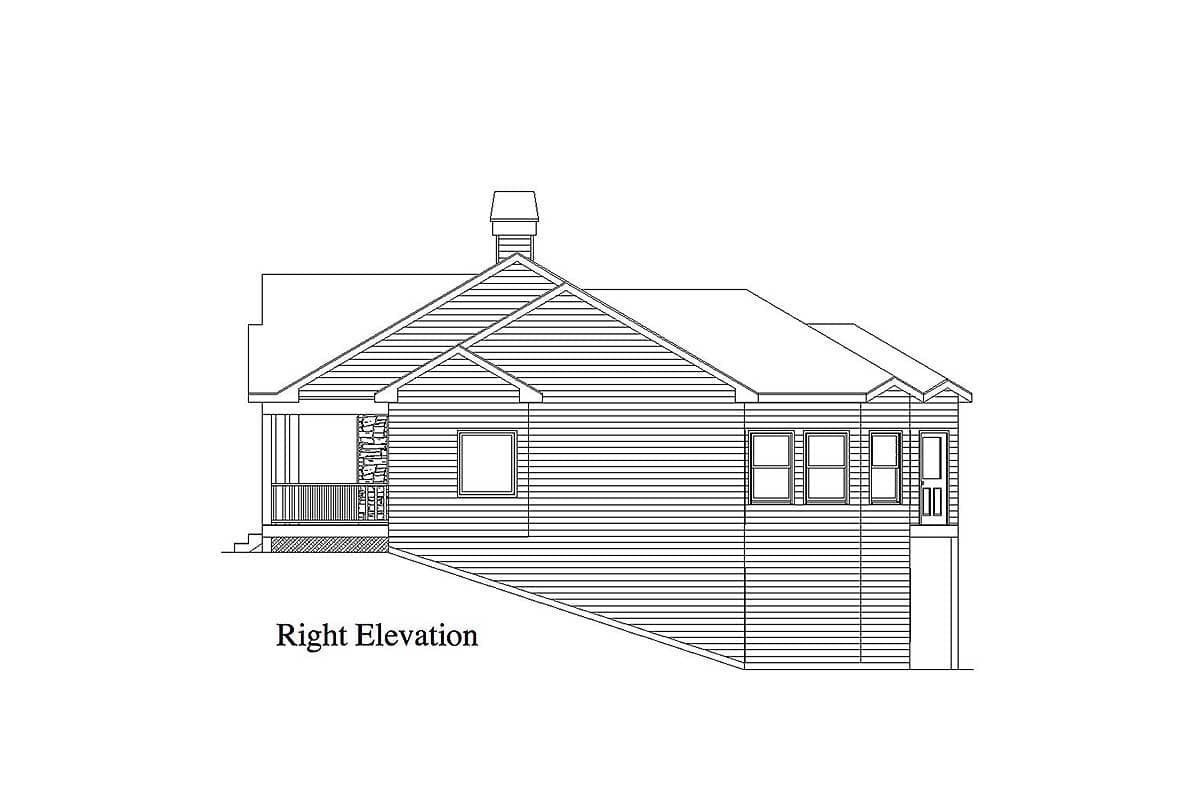

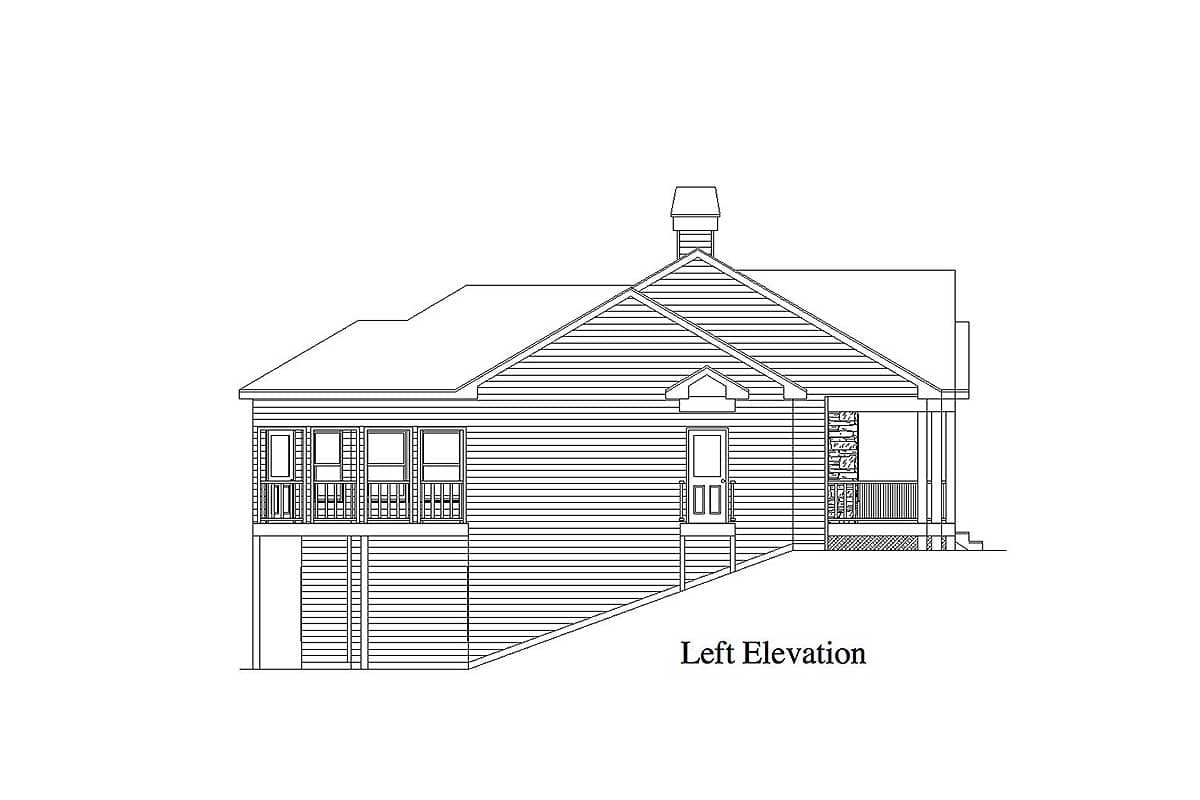

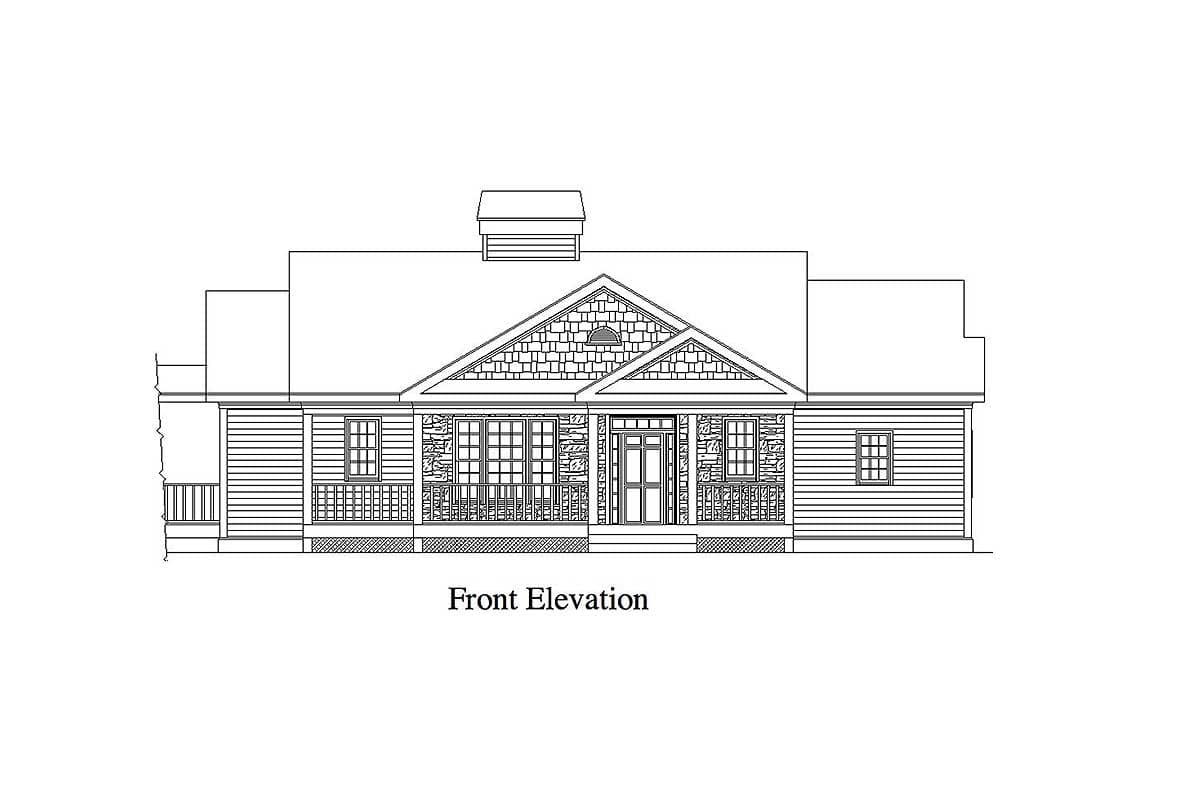

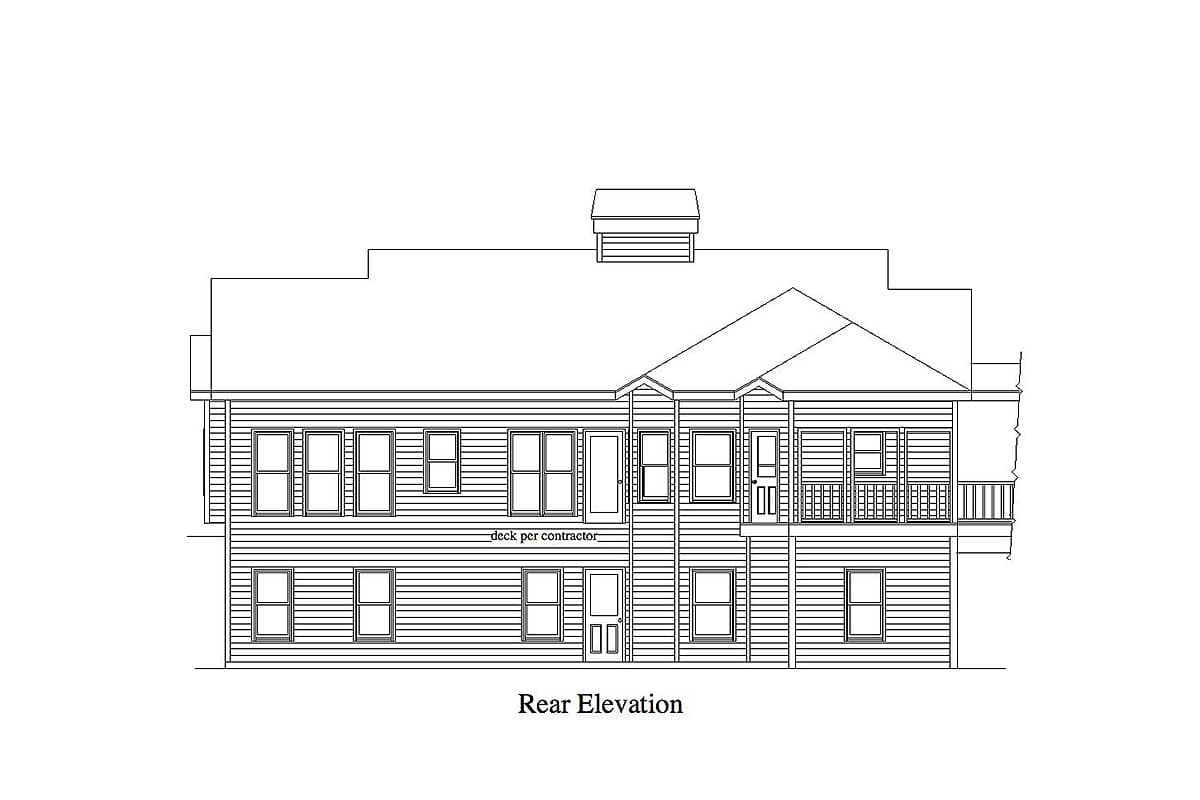

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

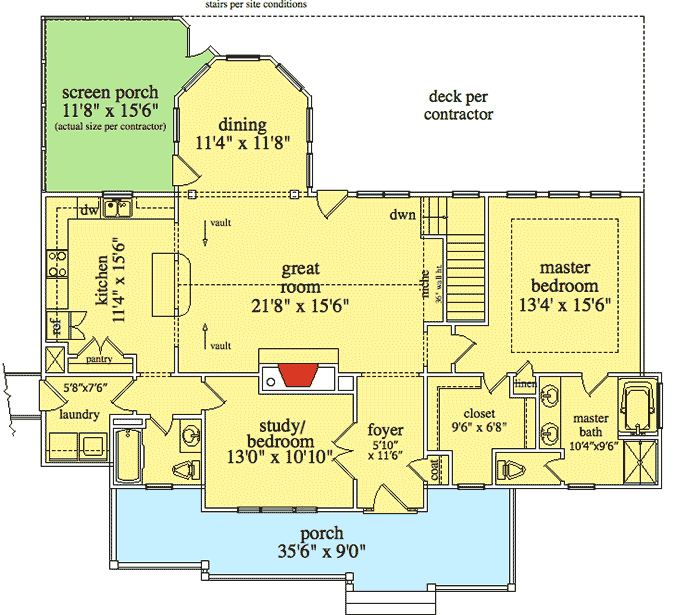

Inviting Mountain Cottage - 29840RL floor plan - First Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

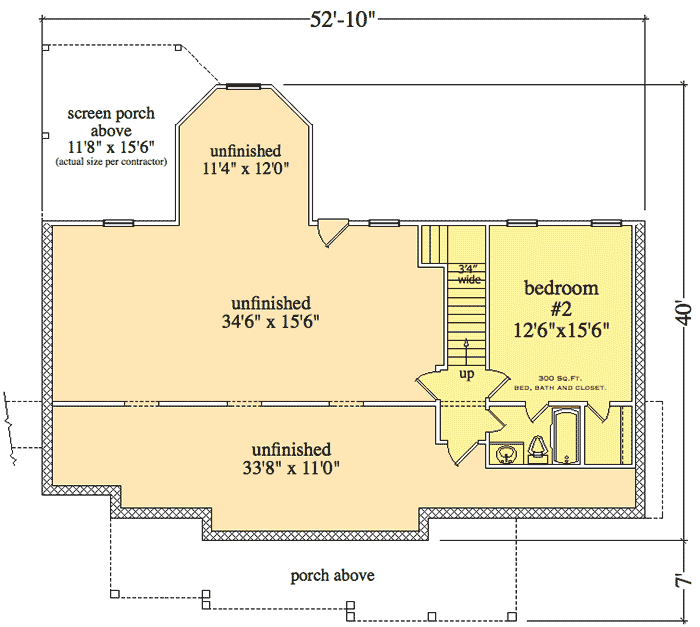

Inviting Mountain Cottage - 29840RL floor plan - Basement

Inviting Mountain Cottage

  • 1,822

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • First Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 1,822 sq. ft.
  • Lower Level: 300 sq. ft.
  • 1st Floor: 1,522 sq. ft.

Dimensions

  • Width: 52' 10"
  • Depth: 40' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3

Garage

  • Type: Detached
  • Area: 470 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 13' 6"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
