Plan 59455ND

Inviting Split Bedroom Design

Heated S.F.
5,724
Beds
5
Baths
4.5
Stories
1
Cars
4

Floor Plan

Plan 59455ND

Main Level
Main Level
Bonus
Bonus
Lower Level
Lower Level

Plan 59455ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

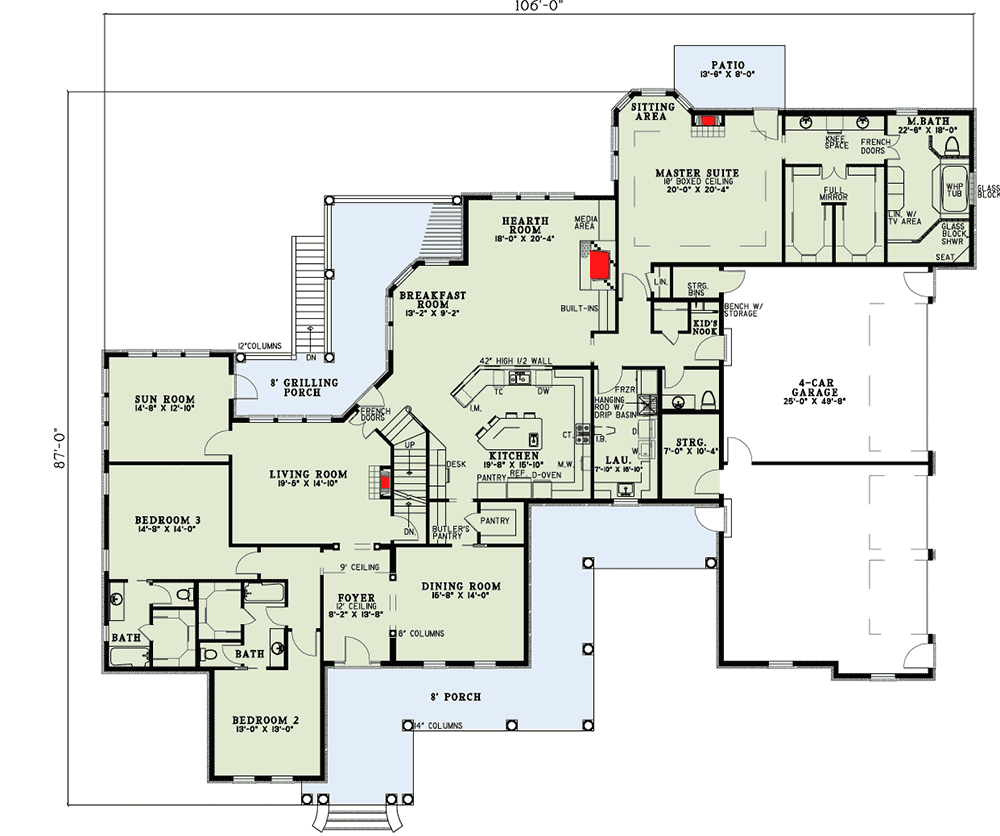

Plan 59455ND: Inviting Split Bedroom Design - Floor Plan - Main Level - Traditional

Bonus

Plan 59455ND: Inviting Split Bedroom Design - Floor Plan - Bonus - Traditional

Lower Level

Plan 59455ND: Inviting Split Bedroom Design - Floor Plan - Lower Level - Traditional

Plan Details

  • This split bedroom home plan has an inviting wrap around front porch for receiving family and friends.
  • You can spend quiet time in your master suite enjoying the romantic fireplace or step outside to your private patio. Soak in your fabulous whirlpool bath while catching the evening news or revive in the magnificent glass block shower as the day begins.
  • An inviting living room for hosting dinner parties or intimate hearth room create the environment necessary for your guests.
  • Downstairs is the ideal place for the older children with their own kitchen and living areas.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,724 sq. ft.

Lower Level

1,914 sq. ft.

1st Floor

3,810 sq. ft.

Bonus

913 sq. ft.

Porch, Combined

1,013 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

106' 0"

Depth

87' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1382 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

5,724 sq. ft.

Lower Level

1,914 sq. ft.

1st Floor

3,810 sq. ft.

Bonus

913 sq. ft.

Porch, Combined

1,013 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

106' 0"

Depth

87' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1382 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Luxury
