Plan 18233BE

Exclusive

Lake House Getaway with Wraparound Views - 1132 Sq Ft

Heated S.F.
1,132
Beds
1
Baths
1
Stories
1
Cars
2

Floor Plan

Plan 18233BE

Main Floor
Main Floor
Ground Level
Ground Level

Plan 18233BE

M-F 9am-5pm EST |

1-203-761-8500

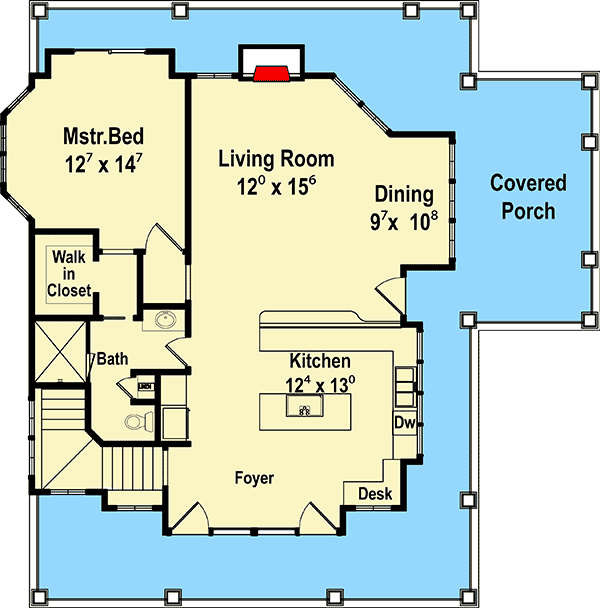

Main Floor

Plan 18233BE: Lake House Getaway with Wraparound Views - 1132 Sq Ft - Floor Plan - Main Floor - Coastal, Cottage, Craftsman, New American, Vacation

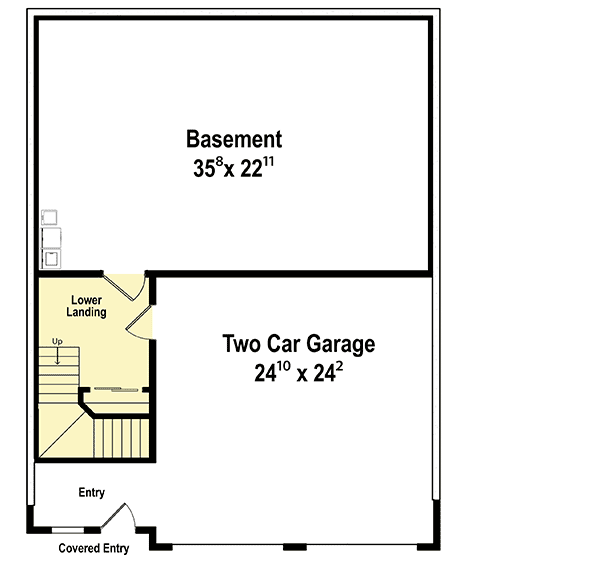

Ground Level

Plan 18233BE: Lake House Getaway with Wraparound Views - 1132 Sq Ft - Floor Plan - Ground Level - Coastal, Cottage, Craftsman, New American, Vacation

Plan Details

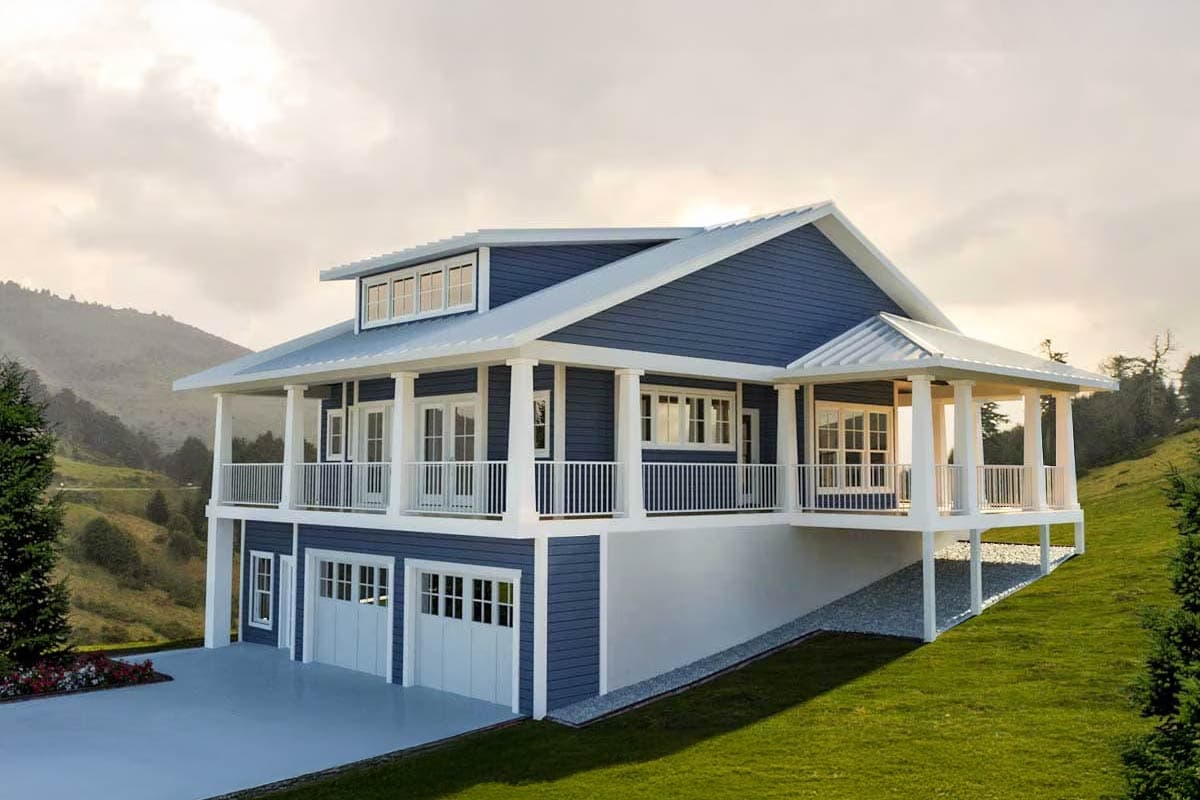

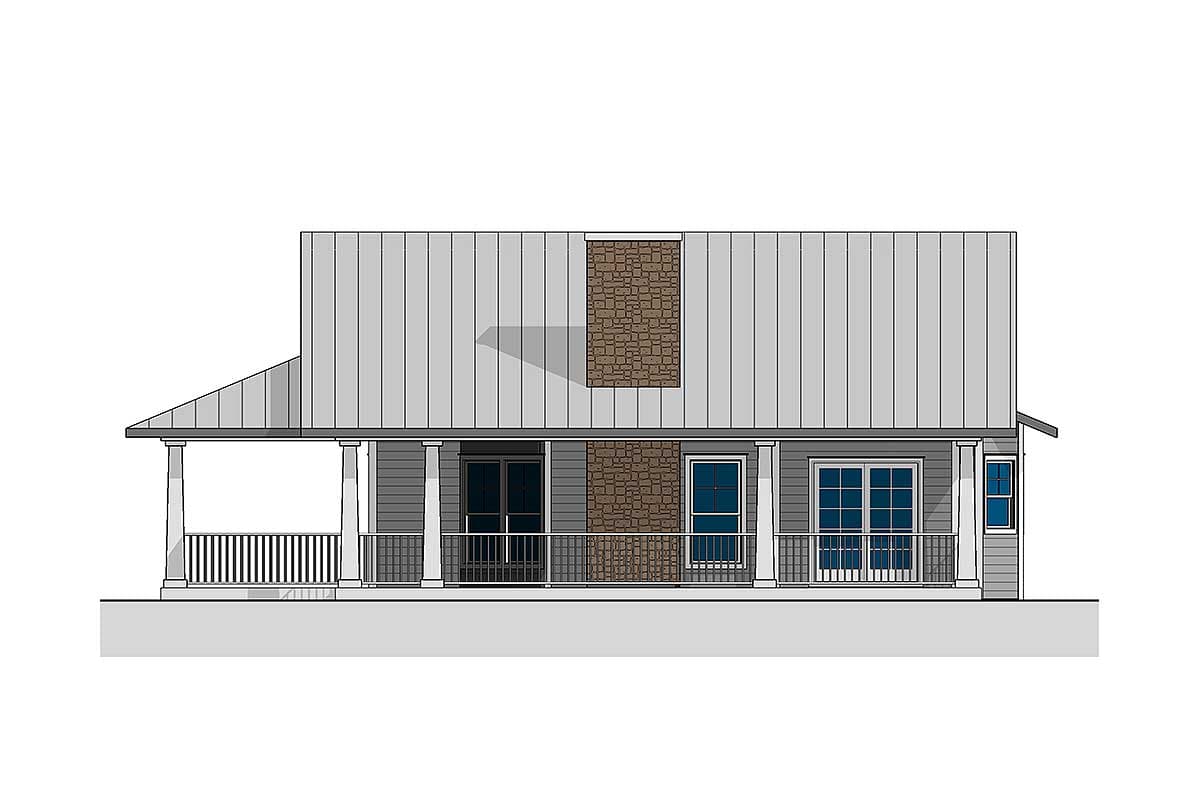

  • Enjoy views on three sides with the wraparound covered porch on this getaway house plan. Square columns add to the allure of this design as does a shed dormer that brings light into the home.
  • The light-filled kitchen is separated by the living and dining rooms by an eat-at counter. A fireplace in the living room is a nice touch.
  • The master bedroom features a walk-in closet and has sliding door access to the rear porch.
  • On the main level you'll find a 2-car garage and an unfinished basement. If you need this space finished, see house plan 18234BE.
  • BUILD RESTRICTION: These plans cannot be sold or built in NY state.

What's Included

  • General Notes and Design Criteria
  • Perspective Views
  • Foundation Plan
  • Floor Plans
  • Elevations
  • Cross Sections
  • Door and Window Schedules
  • Roof Plan and Room Finish Schedule
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,132 sq. ft.

1st Floor

1,132 sq. ft.

Optional Lower Level

911 sq. ft.

Porch, Combined

849 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 9"

Depth

50' 0"

Max Ridge Height

31' 3"

Garage

Type

Attached

Area

668 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Coastal

Cottage

Craftsman

New American

Vacation

Special Features

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Wraparound Porch

Plan Collections

Exclusive

Sloping Lot
