Plan 623355DJ

Lake House Plan with Wrap-Around Deck and Lower Level Expansion - 2148 Sq Ft

Heated S.F.
2,148
Beds
2 - 3
Baths
2.5 - 3.5
Stories
1
Cars
2

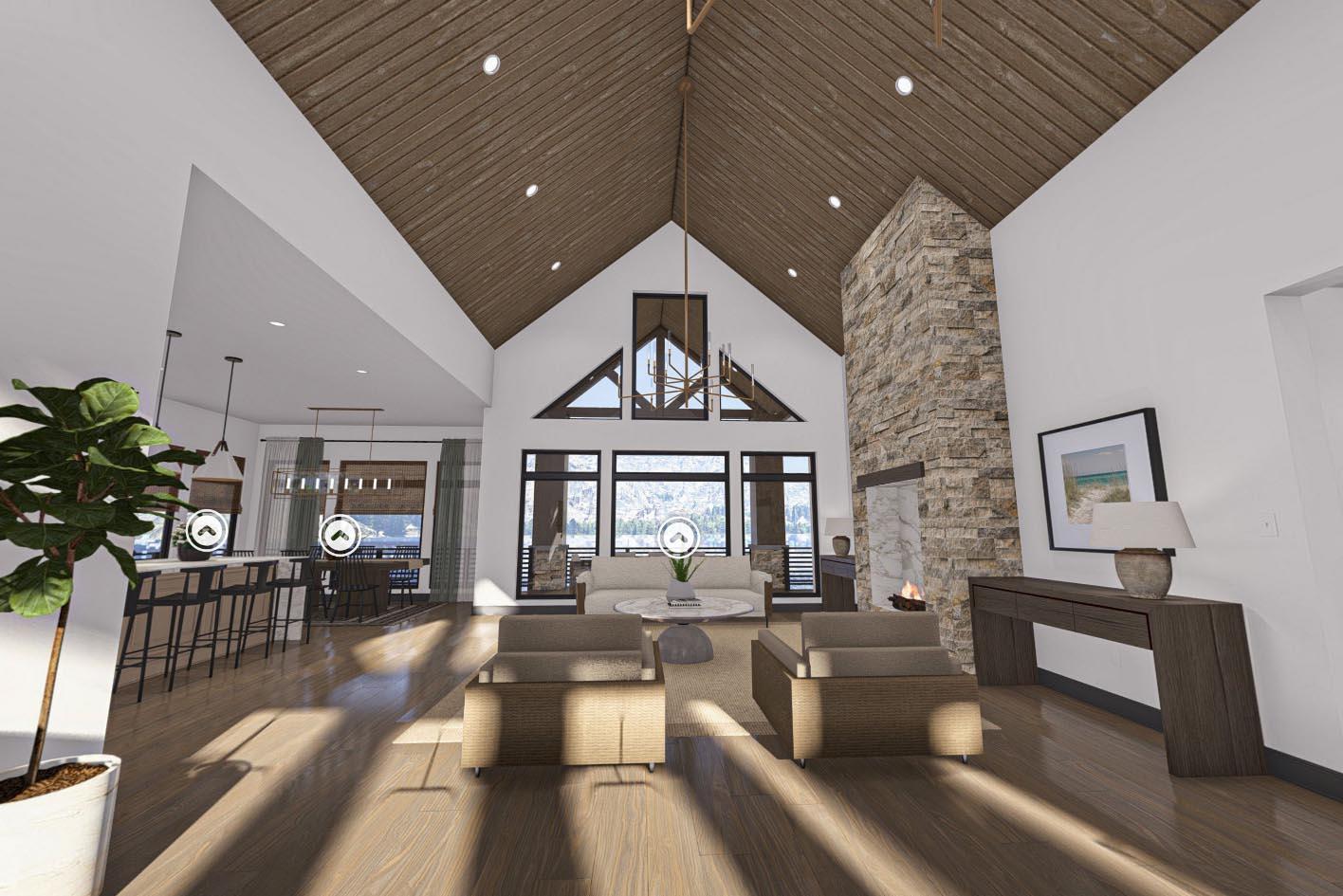

Tour

Floor Plan

Plan 623355DJ

Main Level
Main Level
Optional Lower Level Layout ($ Paid Option)
Optional Lower Level Layout ($ Paid Option)

Plan 623355DJ

M-F 9am-5pm EST |

1-203-761-8500

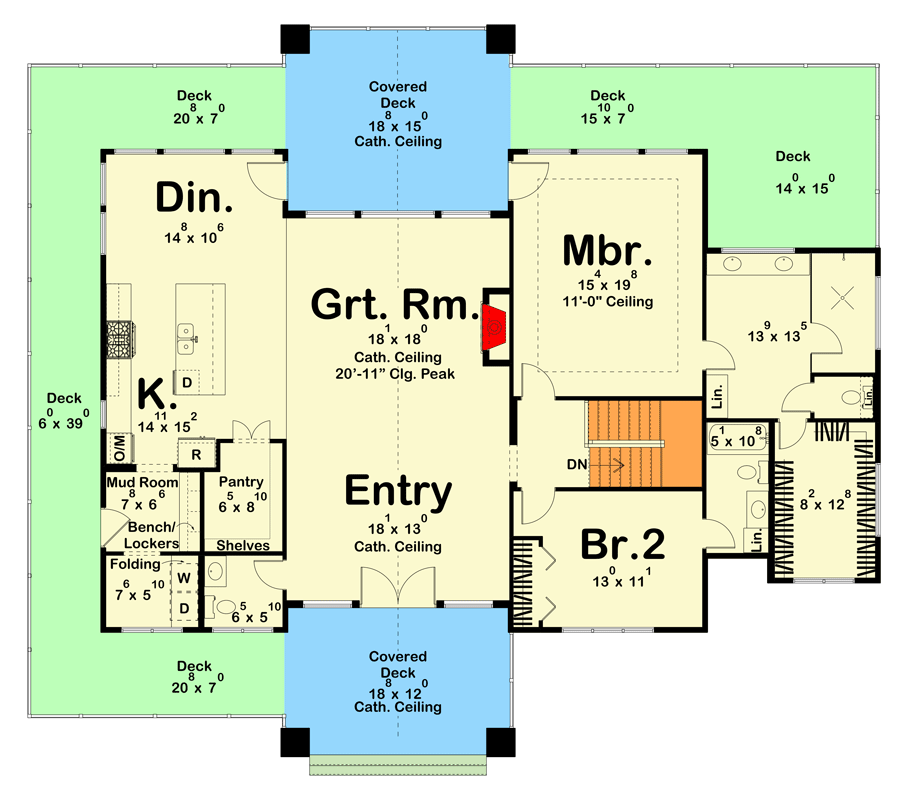

Main Level

Plan 623355DJ: Lake House Plan with Wrap-Around Deck and Lower Level Expansion - 2148 Sq Ft - Floor Plan - Main Level - Beach, Craftsman, Mountain

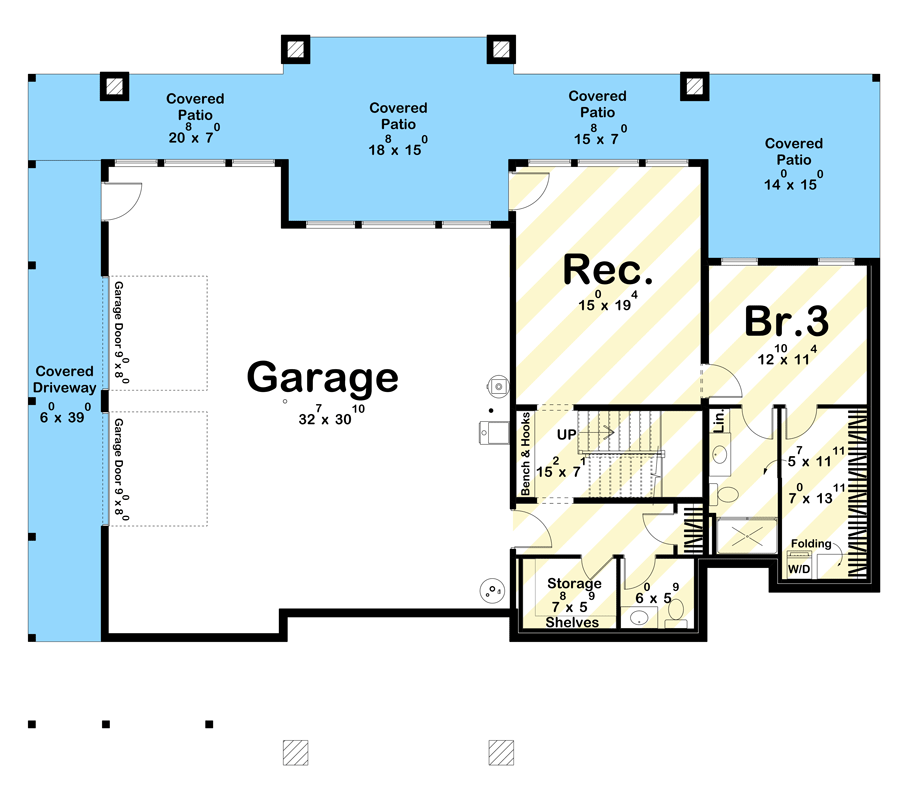

Optional Lower Level Layout ($ Paid Option)

Plan 623355DJ: Lake House Plan with Wrap-Around Deck and Lower Level Expansion - 2148 Sq Ft - Floor Plan - Optional Lower Level Layout ($ Paid Option) - Beach, Craftsman, Mountain

Plan Details

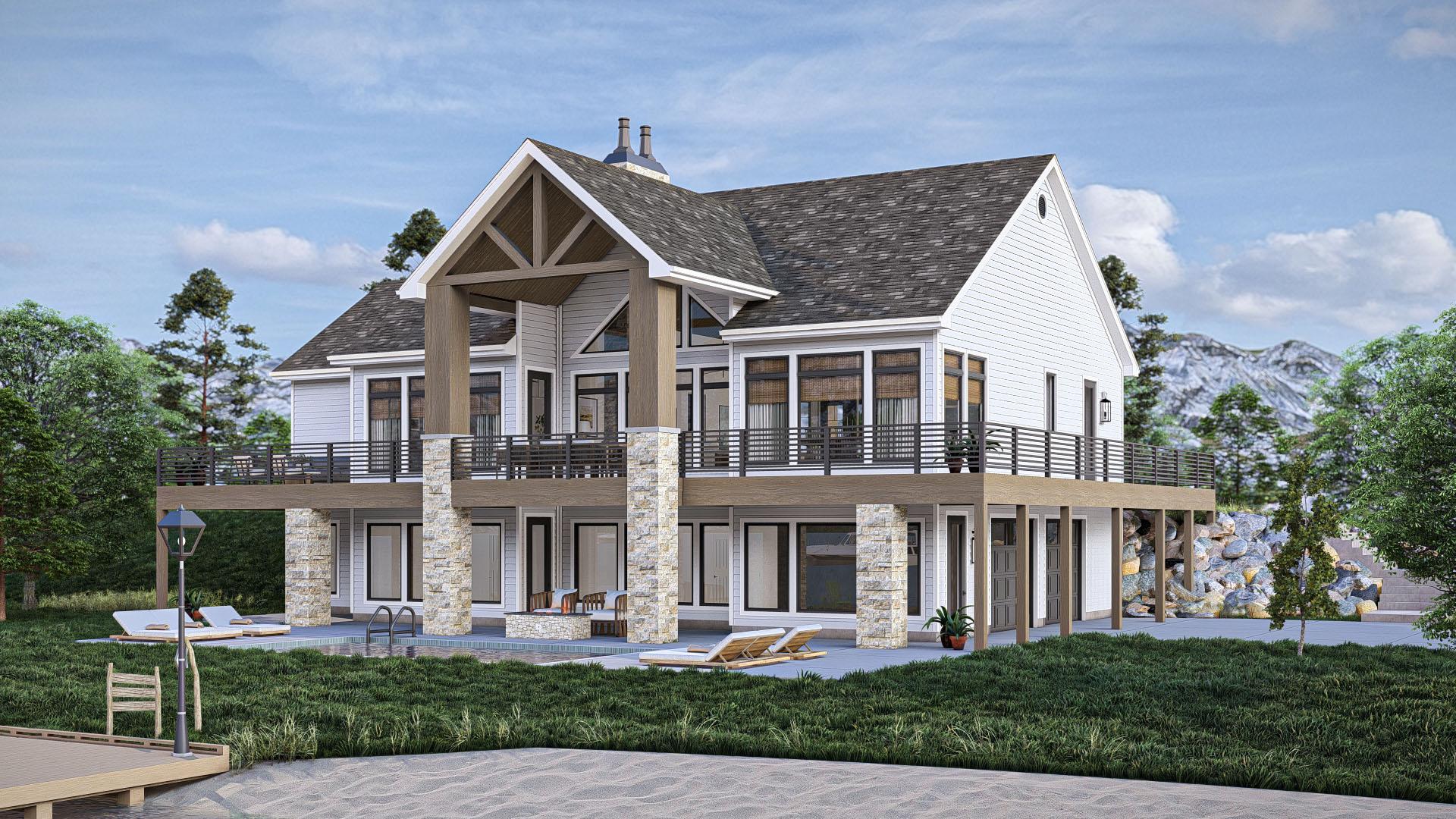

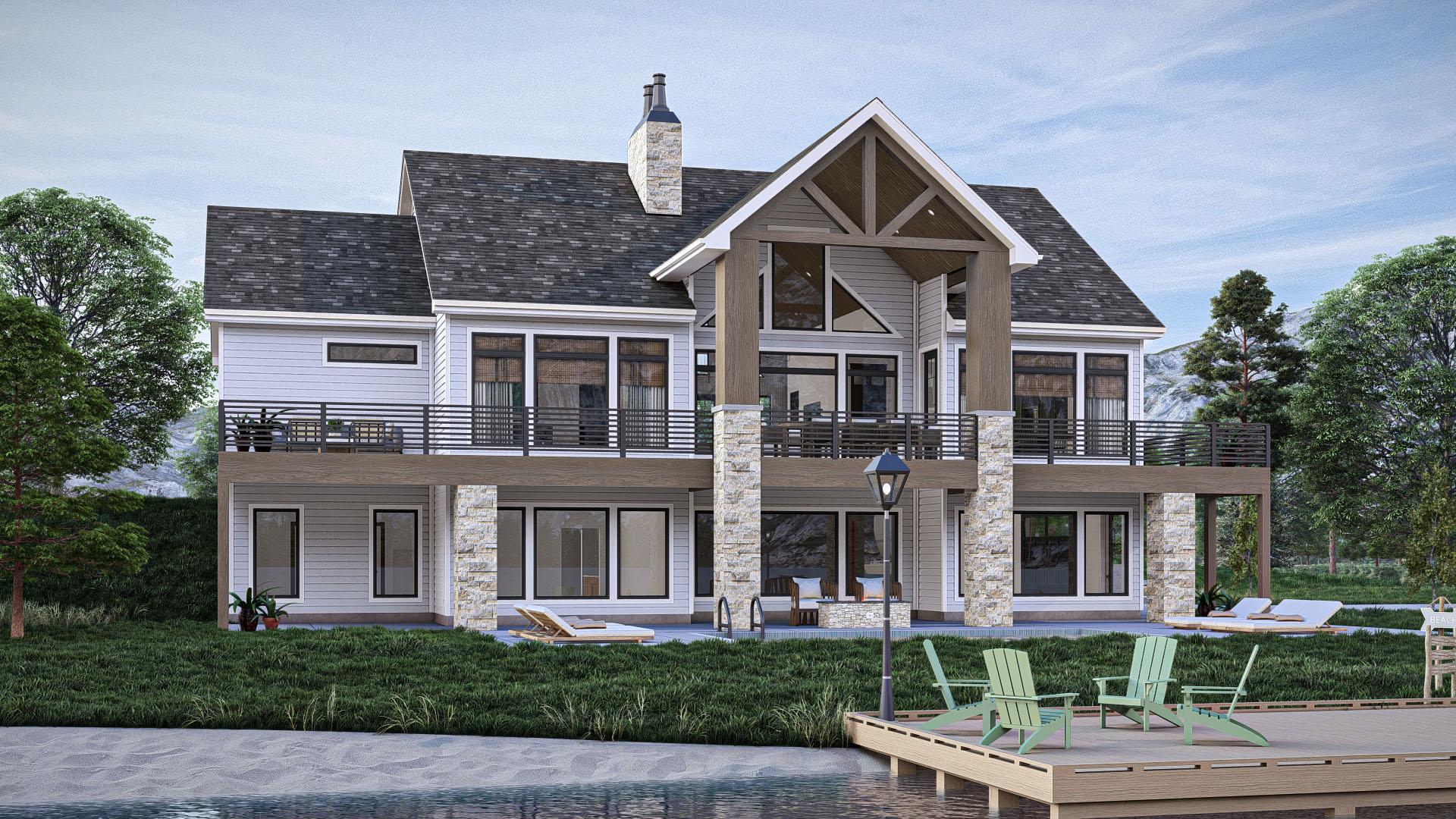

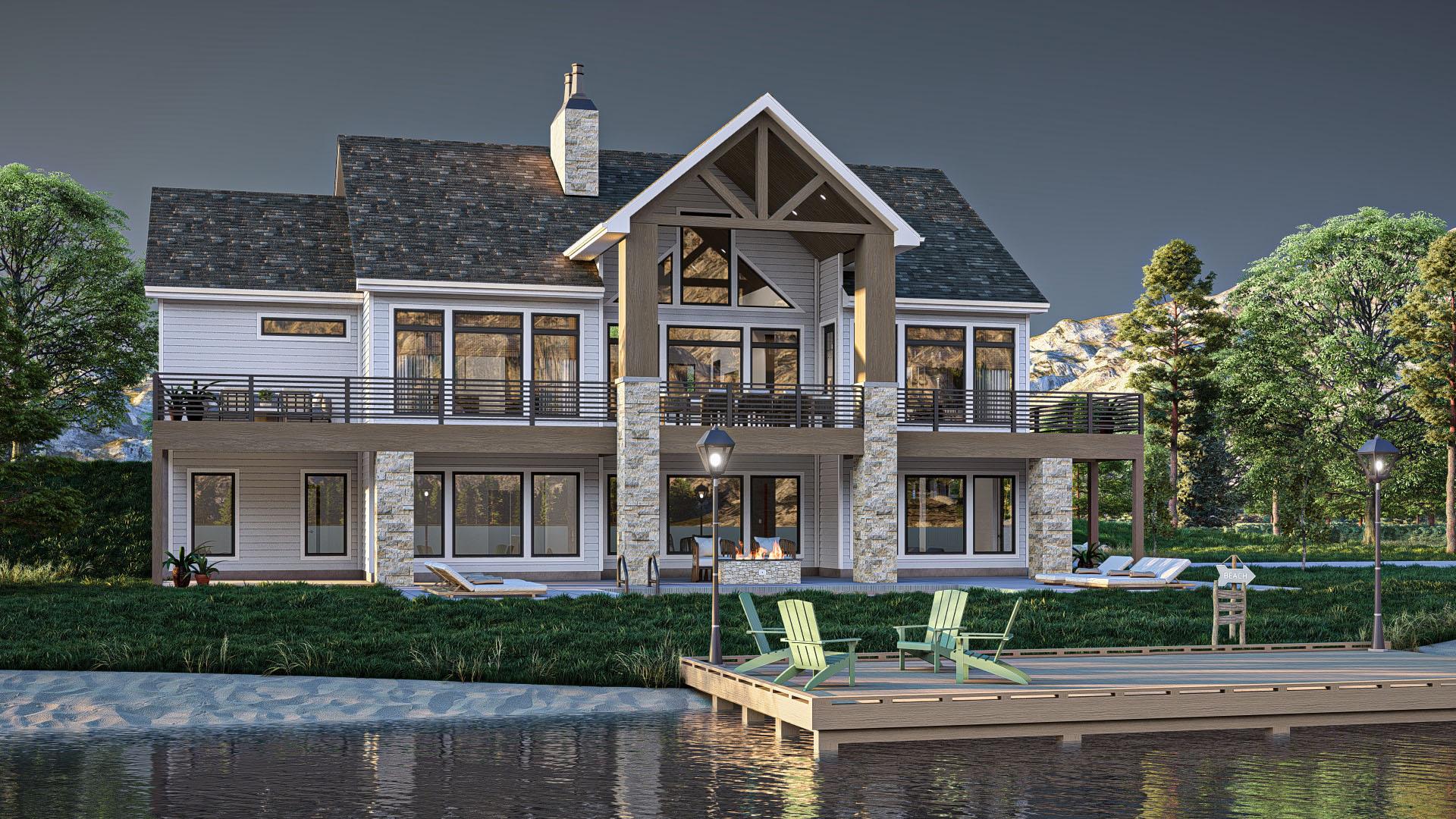

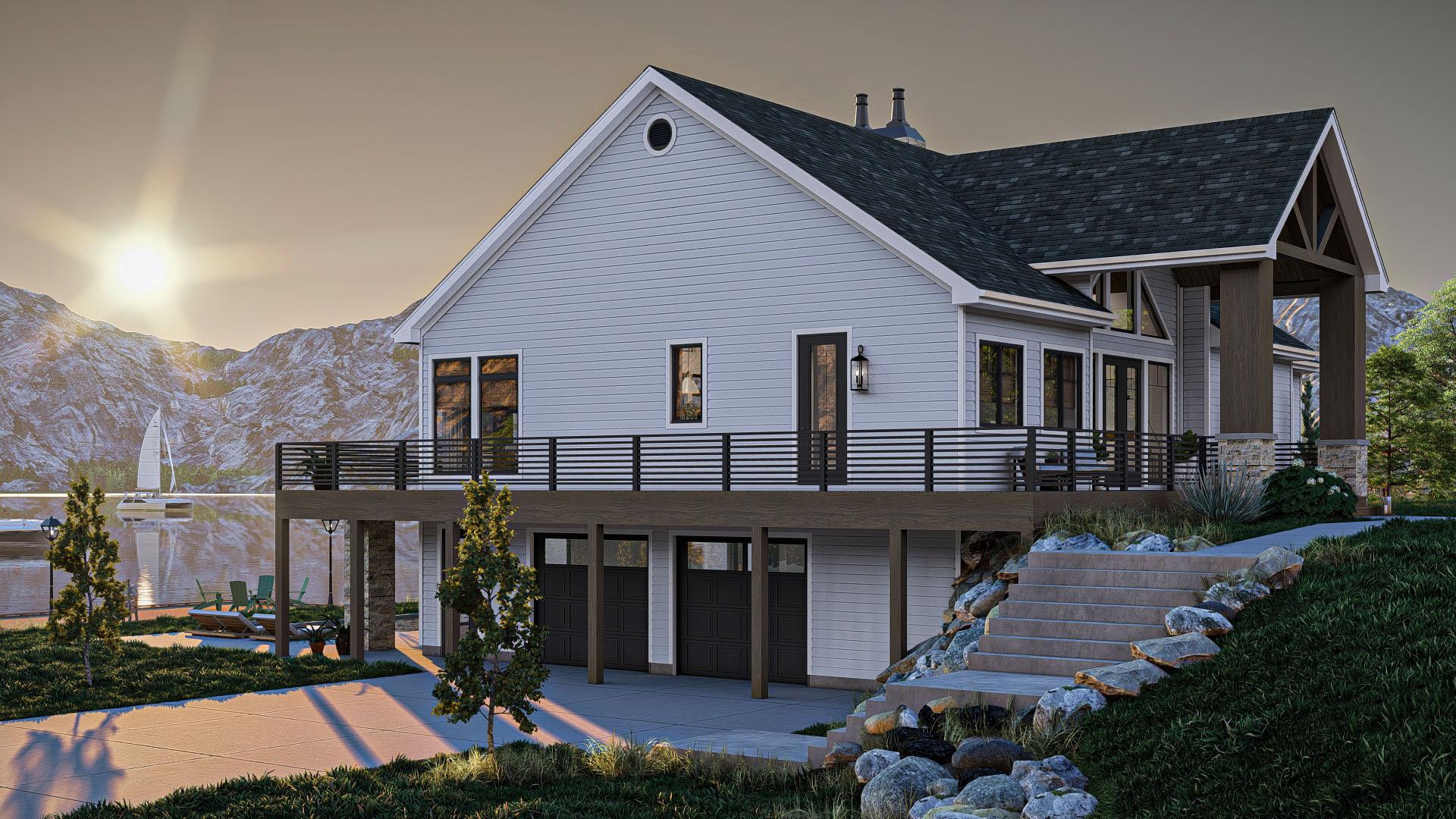

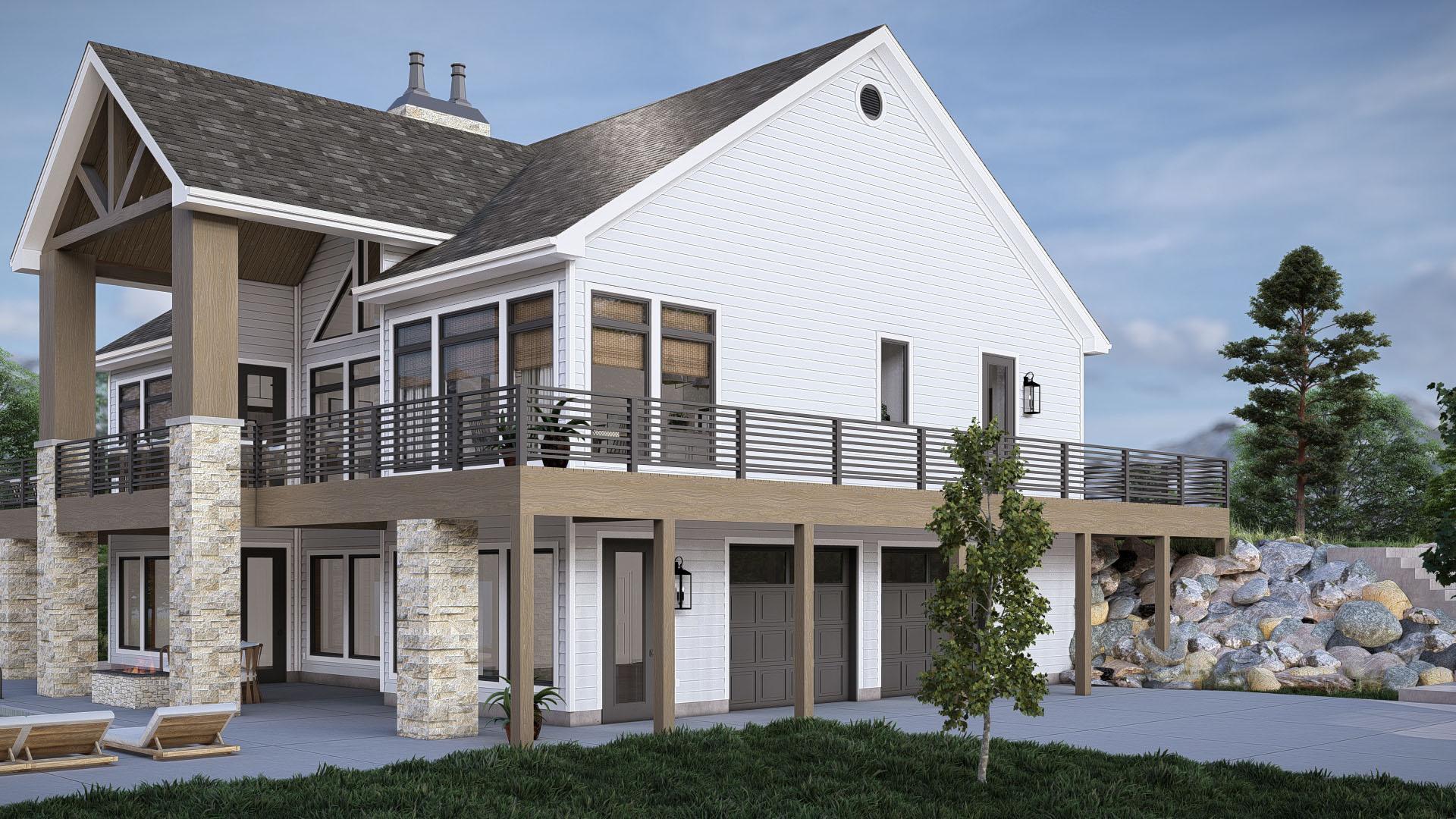

  • A large deck wraps around the left side of this lake house plan with 2,148 square feet of heated living with 878 square feet of expansion space in the finished lower level layout available as an upgrade.

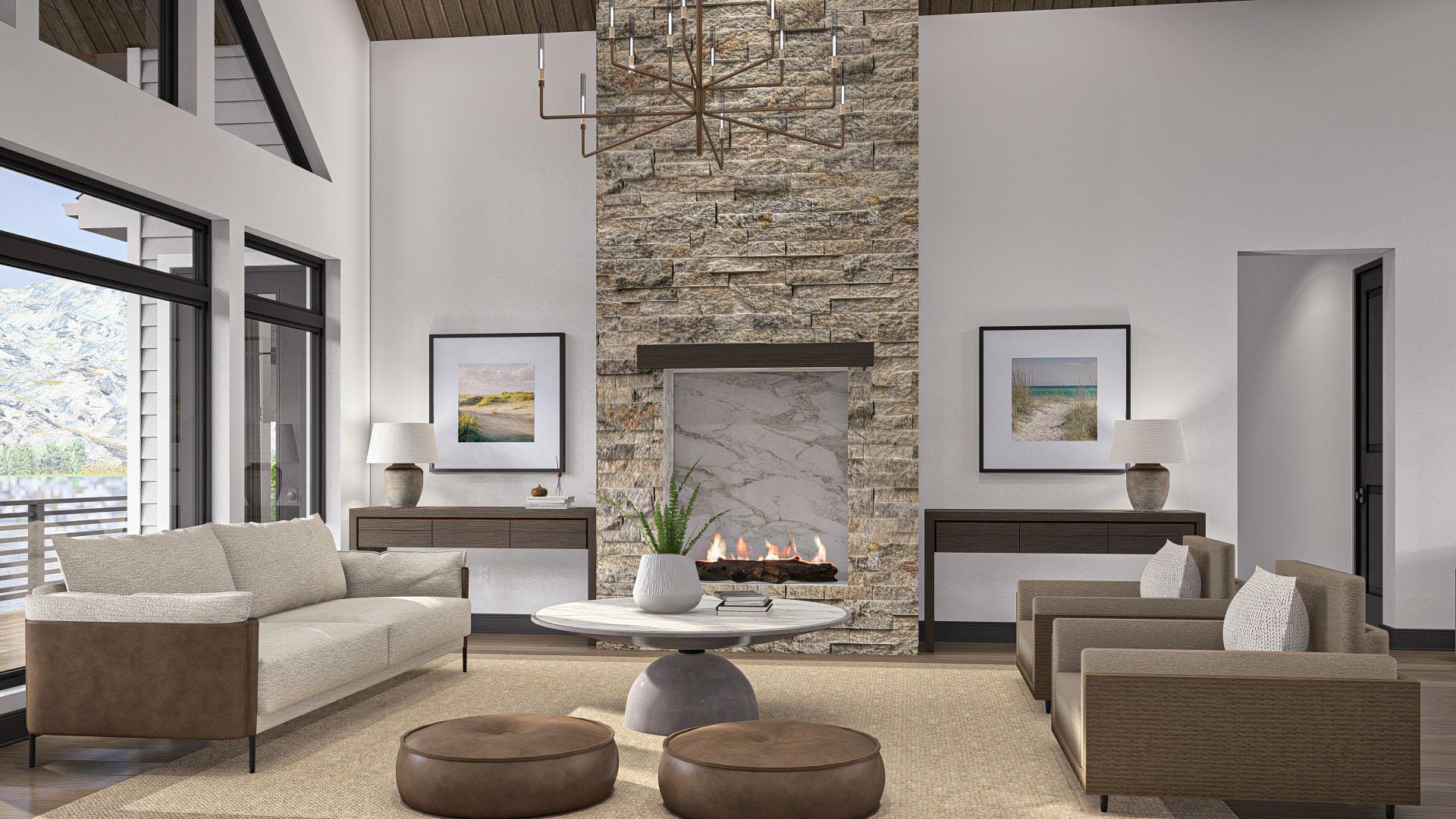

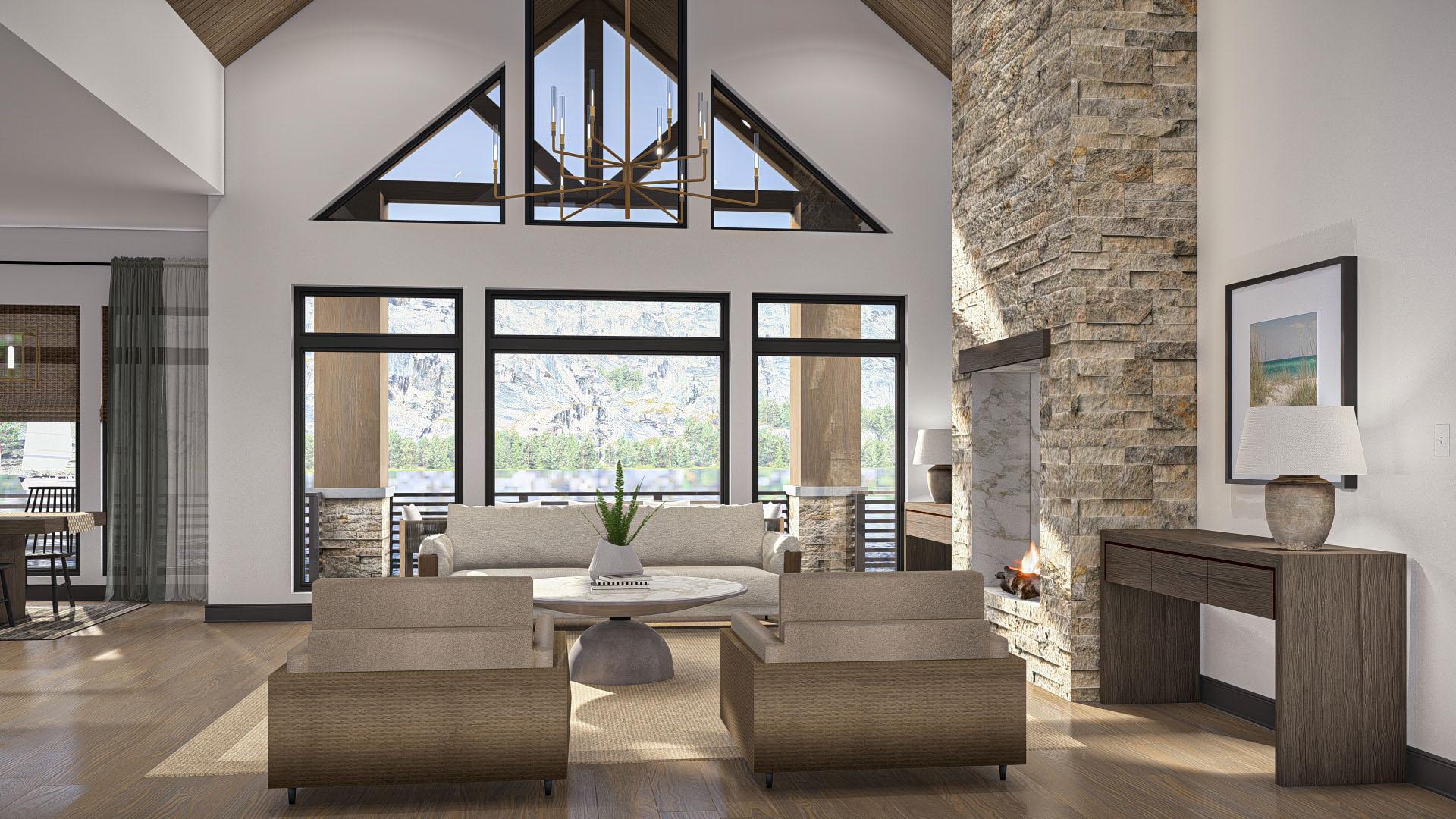

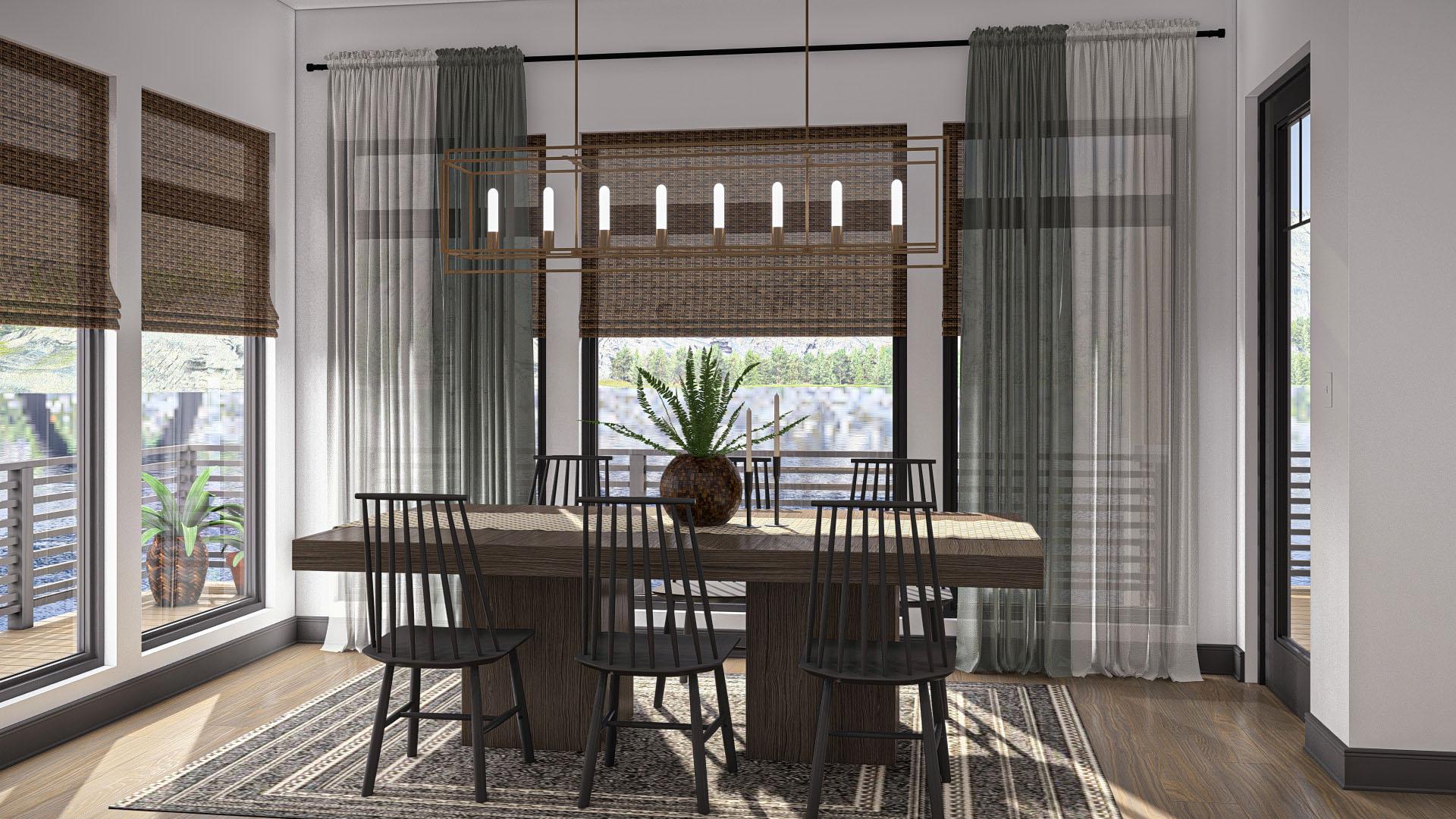

  • Stepping inside, an open front-to-back space sits under a cathedral ceiling (20'11" max height) with a fireplace that serves as the heart of the home. The open-concept design flows effortlessly into the island kitchen. Doors open to the vaulted covered deck from the dining room and the master bedroom.

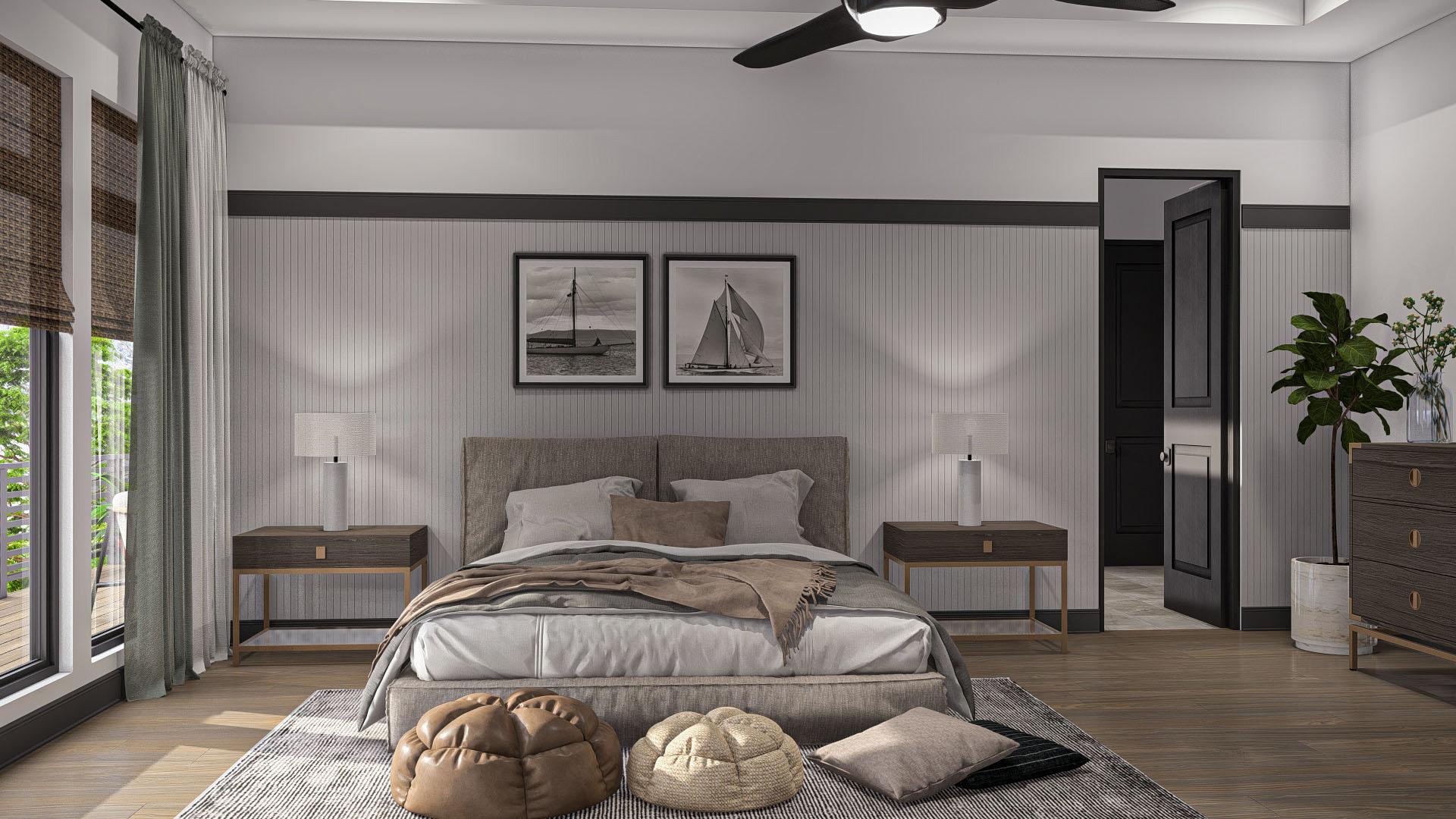

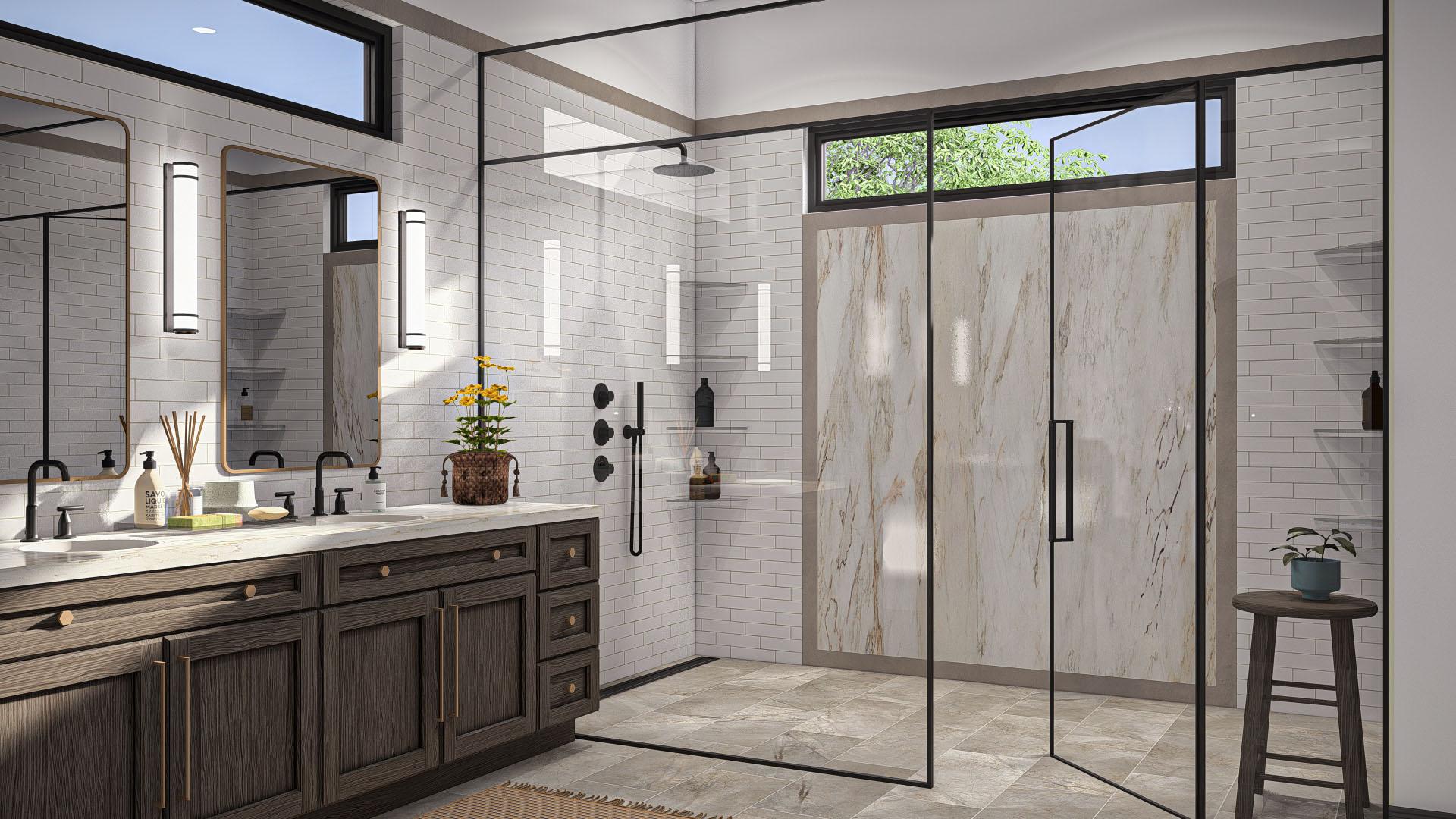

  • The master suite offers a serene sanctuary, complete with a luxurious en-suite bathroom and private access to the deck. A second bedroom and two additional bathrooms ensure ample space for guests, while a flexible floor plan offers the option for a walkout basement, ideal for a home office, recreation room, or additional living quarters.

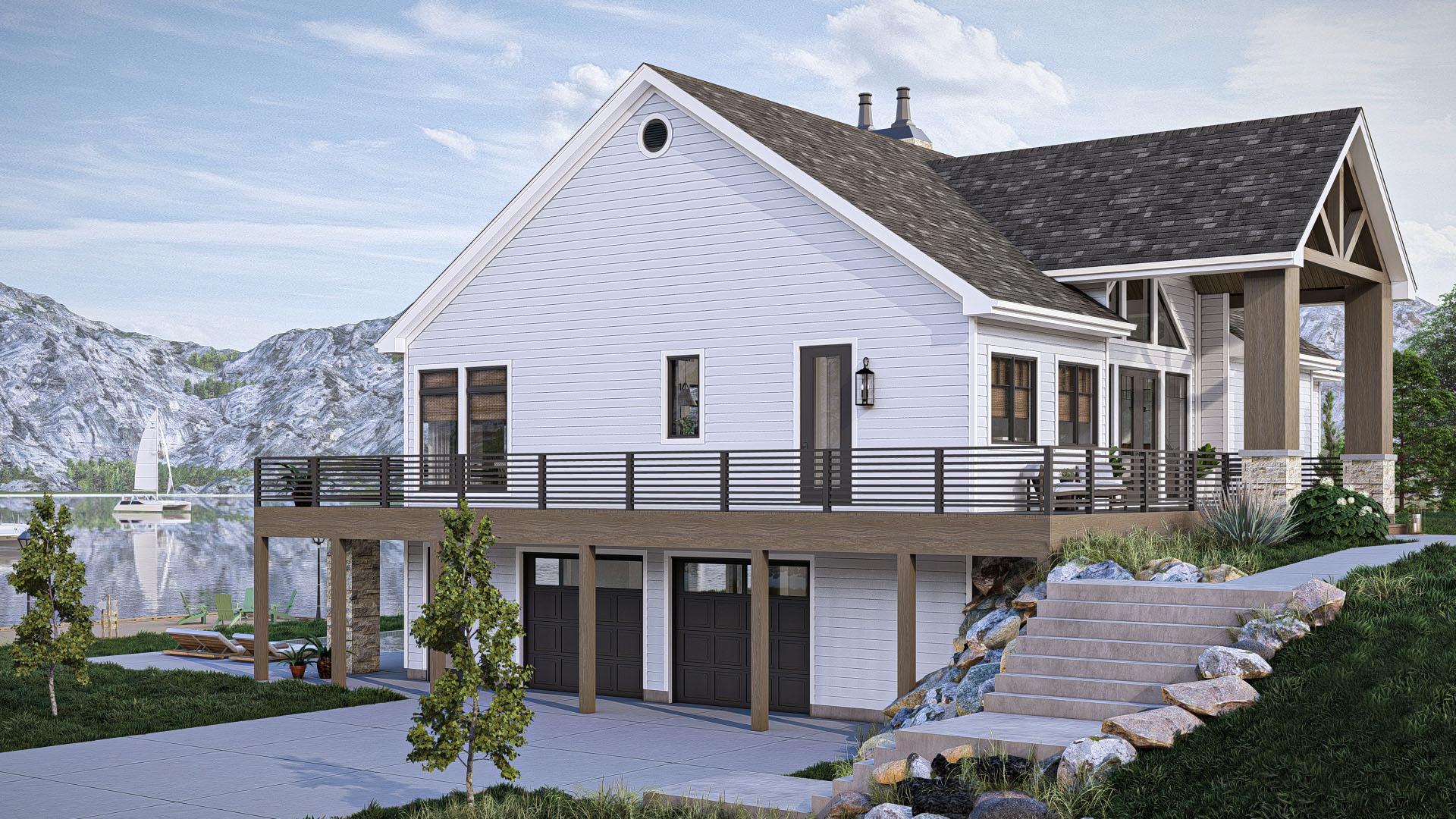

  • The garage has two 9' by 8' overhead doors and a man door with shop space access.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,148 sq. ft.

1st Floor

2,148 sq. ft.

Optional Lower Level

878 sq. ft.

Deck & Porch

499 sq. ft.

Covered Patio

741 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2 or 3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 0"

Depth

59' 0"

Max Ridge Height

23' 0"

Garage

Type

Drive Under

Area

1139 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Room

Ceiling Type

Height

Great Room

Vaulted

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 On 12; 6 on 12

Architectural Style

Beach

Craftsman

Mountain

Special Features

Laundry - Main Level

Mudroom

Two Story Great Room

Walk-in Pantry

Wraparound Porch

Plan Collections

Lake House Plans
