Lake House Retreat with Upstairs Rec Room and 2-Story Living Room

Plan 25431TF

  • 3,776

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • This New American cottage house plan makes a great lake house retreat with its rear deck and screened porch in back perfectly suited for looking out at your property. A 49' by 7' front porch gives you another great fresh air space to enjoy.
  • The foyer is open to above and flanked by a guest suite and a home office which could be used as an extra bedroom if needed. Straight ahead, the 2-story living room with fireplace has outdoor access and is open to the kitchen and dining area.
  • Put the kids upstairs in the two bedrooms with shared bath and watch as they play all day in the large rec room across the floor.

Plans include the following:
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

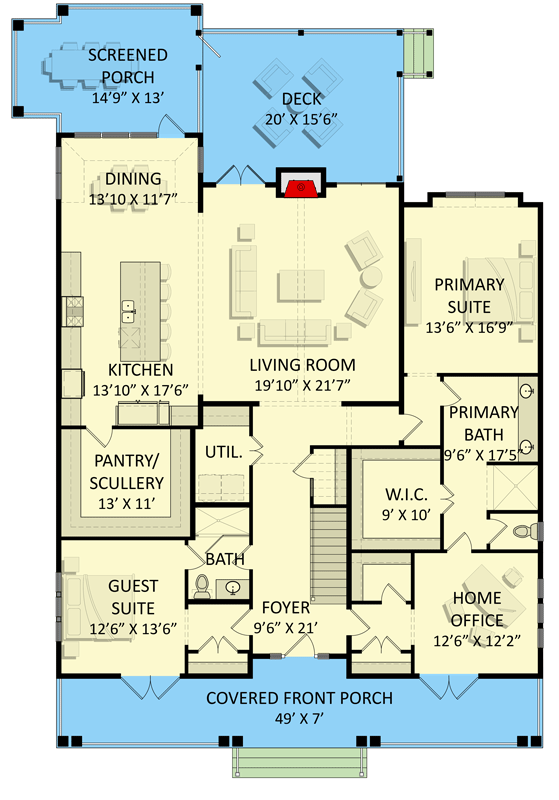

Lake House Retreat with Upstairs Rec Room and 2-Story Living Room - 25431TF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

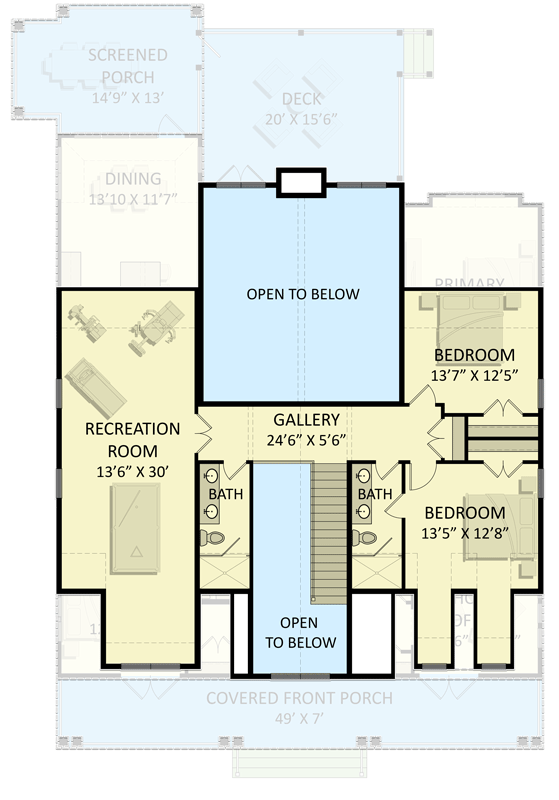

Lake House Retreat with Upstairs Rec Room and 2-Story Living Room - 25431TF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,776 sq. ft.
  • 1st Floor: 2,482 sq. ft.
  • 2nd Floor: 1,294 sq. ft.
  • Deck & Porch: 306 sq. ft.
  • Screened Porch: 237 sq. ft.
  • Porch, Front: 362 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 53' 6"
  • Depth: 73' 5"
  • Max ridge height: 32' 9"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Living Room Vaulted
Bedroom 2 Slope
Bedroom 3 Slope

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

Lake House Retreat with Upstairs Rec Room and 2-Story Living Room

  • 3,776

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,389
  • 5 Sets $1,484
  • CAD - Single-Build $1,989
  • View all purchase option online

About This Plan

  • This New American cottage house plan makes a great lake house retreat with its rear deck and screened porch in back perfectly suited for looking out at your property. A 49' by 7' front porch gives you another great fresh air space to enjoy.
  • The foyer is open to above and flanked by a guest suite and a home office which could be used as an extra bedroom if needed. Straight ahead, the 2-story living room with fireplace has outdoor access and is open to the kitchen and dining area.
  • Put the kids upstairs in the two bedrooms with shared bath and watch as they play all day in the large rec room across the floor.
