Plan 36368TX
Lap of Luxury
Heated S.F.
7,199
Beds
4
Baths
5.5+
Stories
2
Cars
3
What's Included
Plan Details
  • No corners are cut in this luxury house plan with an impressive facade and a sprawling layout. The front of the home is angled making this a great home for a corner lot.
  • The foyer soars 22' and is flanked by the living room and dining room. The living room ceilings also soars to 24' creating a great place for guests. The family room has 21' ceilings and shares a 2-sided fireplace with the dining room.
  • Every home this size needs a trophy room to show off the toys, and this home delivers. A card playing nook adds to the space and a fireplace is a nice feature.
  • The master suite is on the main and has a circular sitting room and access to the patio. Walk-ins give you tons of storage.
  • The kitchen has a large walk-in pantry and a butlery gives you more room to store things. Casual counter seating and the morning room with fireplace provide more eating options.
  • Three bedrooms, a study with gym and a game room are on the upper floor, as well as views to below and a great outdoor lounge of bedrooms 2 and 3.
What's Included
  • Cover sheet
  • Foundation Plan

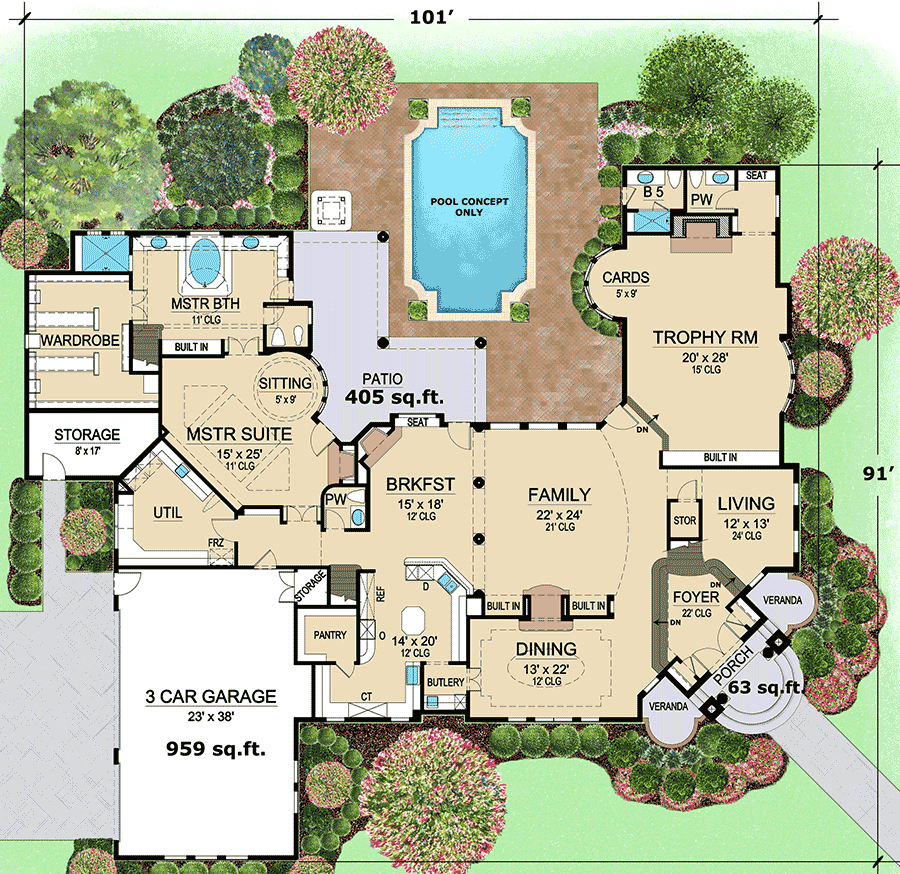

  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

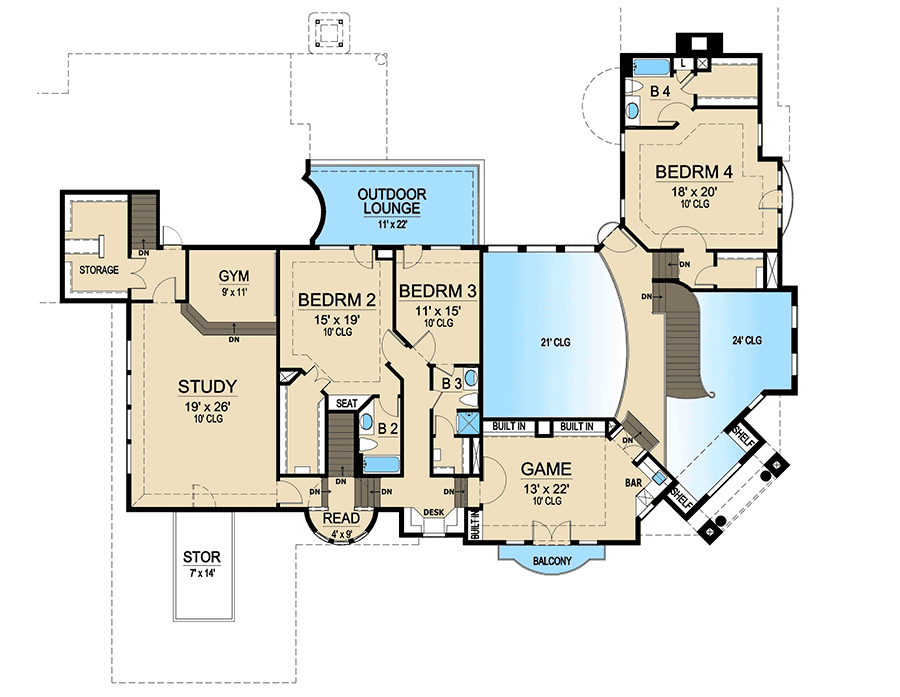

  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

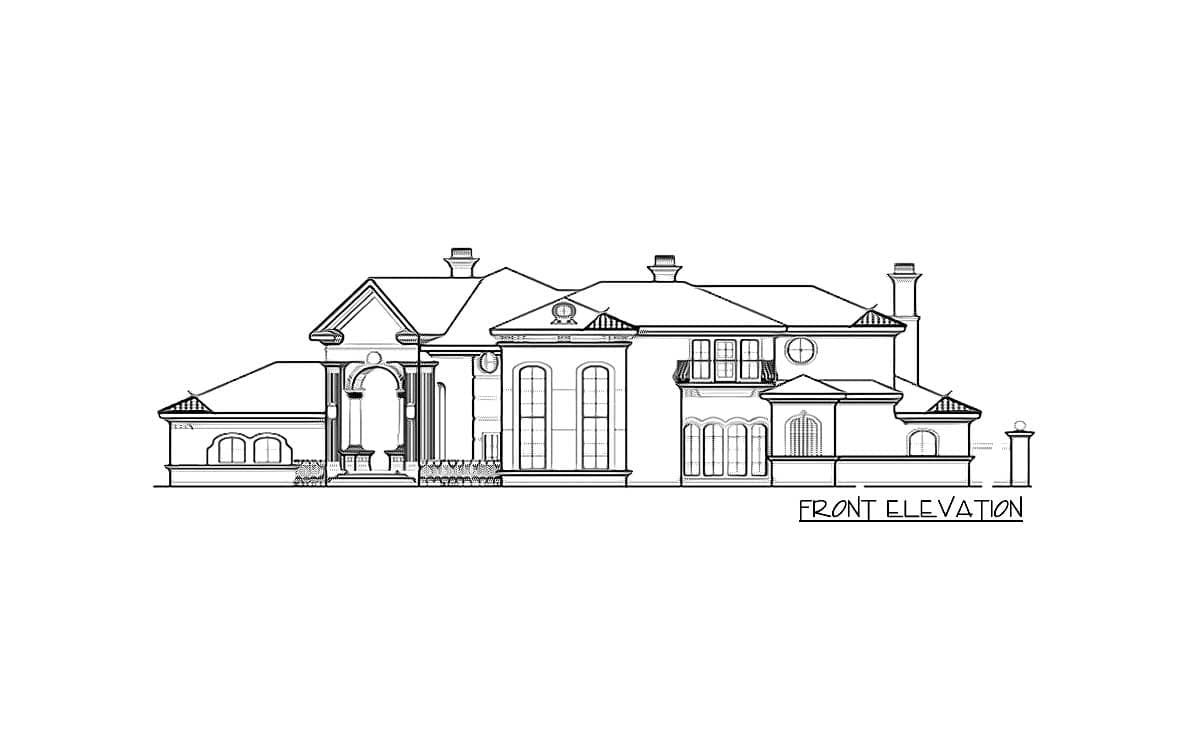

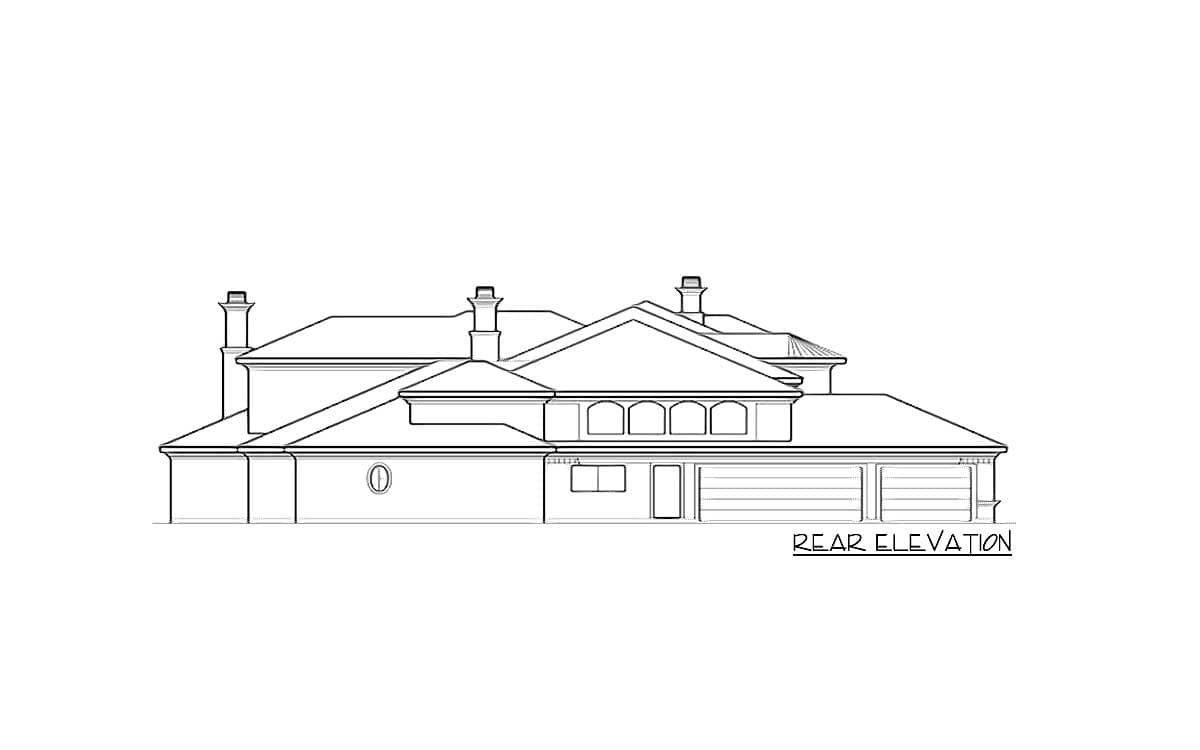

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

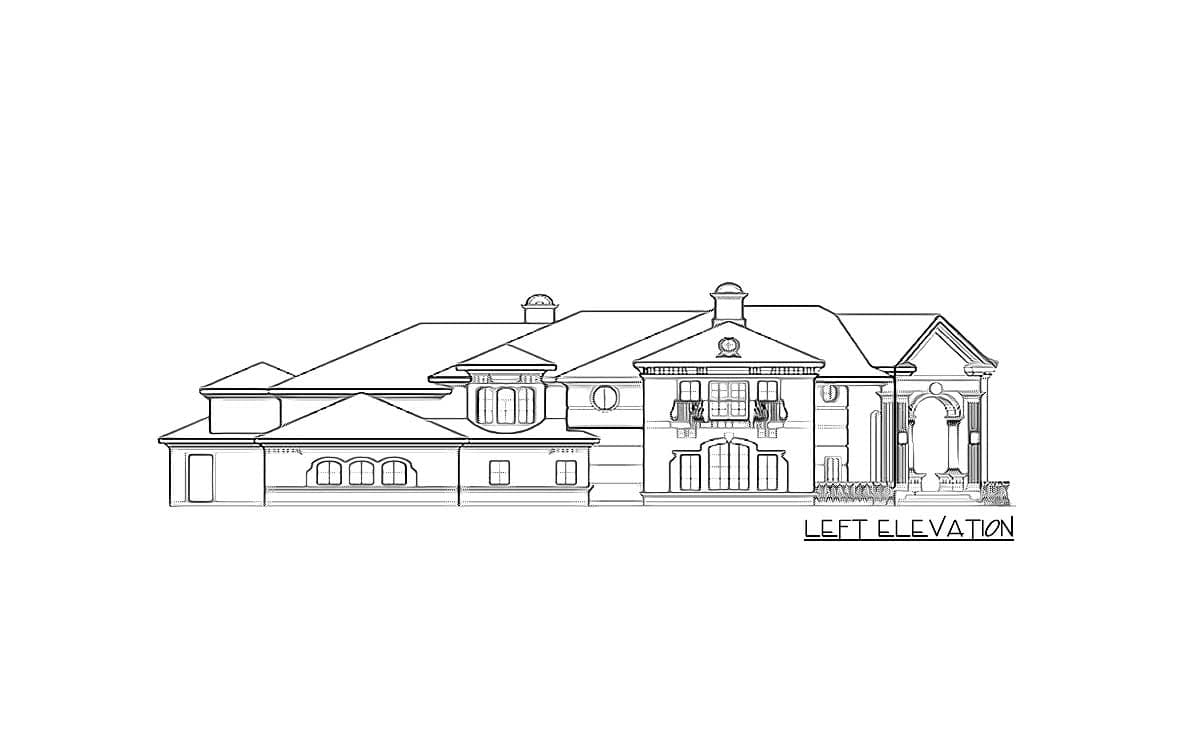

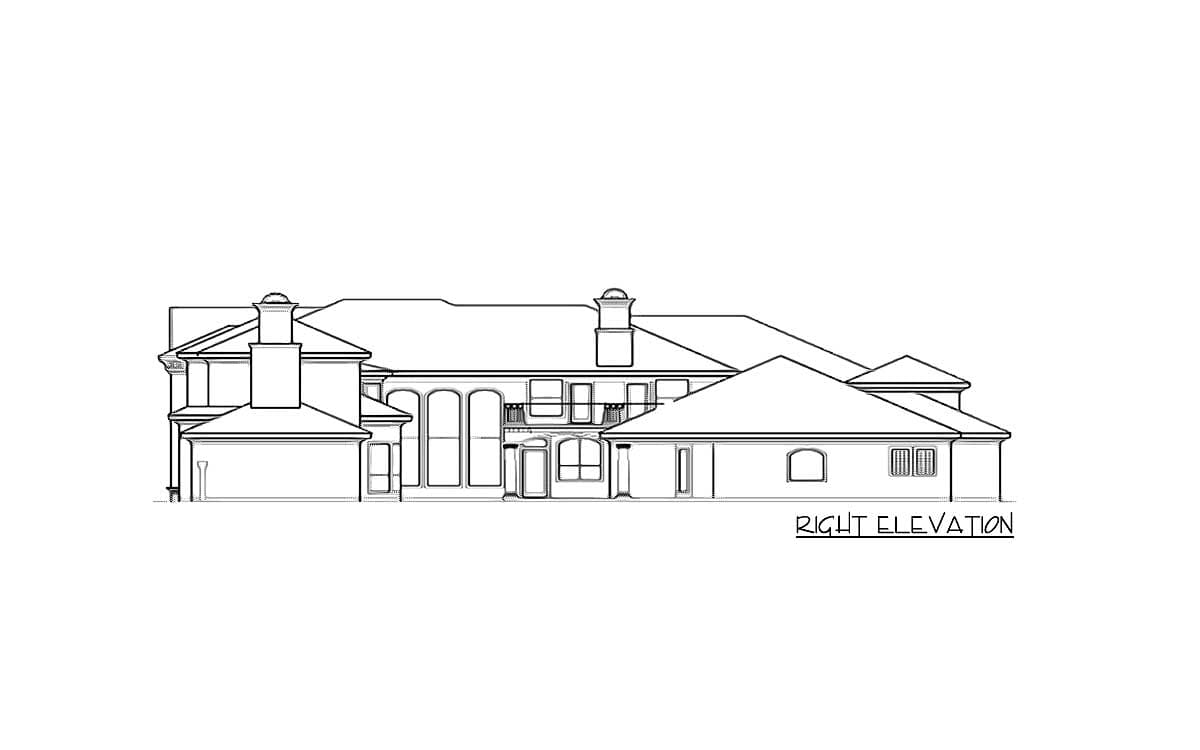

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
