Name: Plan 62854DJ: Large Modern Garage Plan with Party Deck
SKU: 62854DJ
Price: 600.0 USD
Availability: InStock

All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Large Modern Garage Plan with Party Deck

Take your outdoor entertainment game to a whole new level with this 3-car garage plan with three 8'-wide garage doors.
Stairs in back take you to a large party deck.
Inside the garage, the wall height is 13'.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Scroll

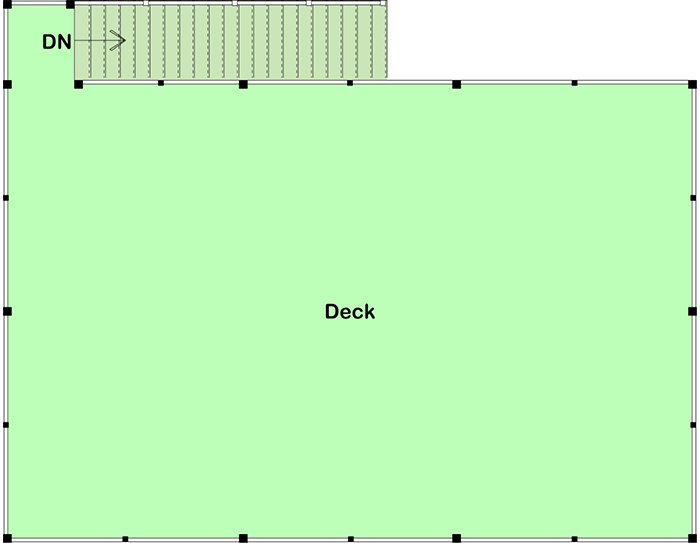

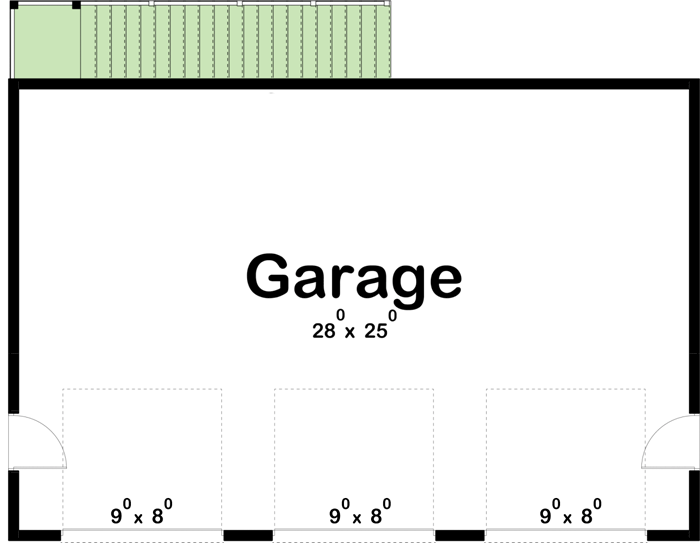

Large Modern Garage Plan with Party Deck 0 Heated s.f. 0 Beds 0 Baths 1 Floors 3 Car garage Buy This Plan PDF - Single-Build $600 5 Sets + PDF $850 CAD + PDF - Single-Build $850 PDF - Unlimited Build $1,100 CAD Unlimited + PDF $1,350 View all purchase option online About This Plan Take your outdoor entertainment game to a whole new level with this 3-car garage plan with three 8'-wide garage doors. Stairs in back take you to a large party deck. Inside the garage, the wall height is 13'. Floor Plans Main Level 2nd Floor Plan Details Square Footage Breakdown Total Heated Area: 0 sq. ft. Beds/Baths Bedrooms: 0 Foundation Type Standard Foundations: Slab Exterior Walls Standard Type(s): 2x4 Optional Type(s): 2x6 Dimensions Width: 39' 0" Depth: 31' 0" Garage Type: Detached Area: 1014 sq. ft. Count: 3 Cars Entry Location: Front Ceiling Heights Floor / Height: First Floor / 13' 0"
