Plan 9504RW

Live All on One Level

Heated S.F.

2,635

Beds

3

Baths

2.5

Stories

1

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

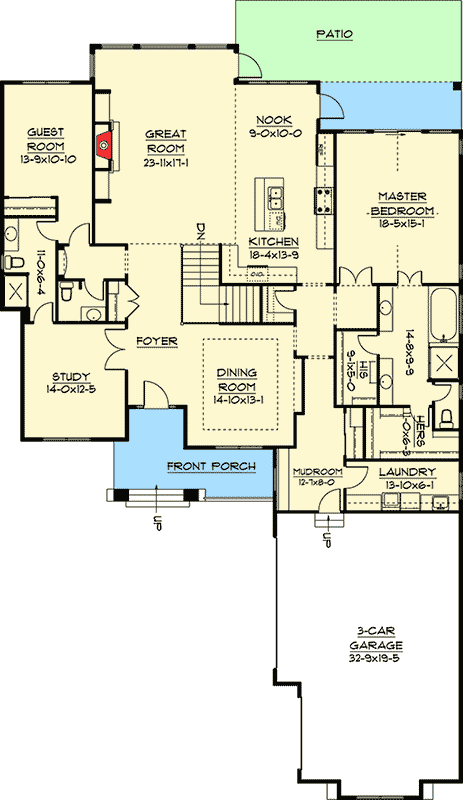

Live All on One Level - 9504RW floor plan - Main Level

Plan Details

Live all on one level in this comfortable European home plan.
Every room is well thought out and the open floor plan ensures wonderful sightlines.
Choose from a two bedroom house with study or three bedrooms.
The vaulted master suite has sliding glass doors that open to the rear patio.
Transom windows add extra light as well as curb appeal.
An over-sized three car garage is a welcome addition.

What's Included

Cover Page
4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Square Footage Breakdown

Total Heated Area:

2,635 sq. ft.

1st Floor:

2,635 sq. ft.

Deck:

561 sq. ft.

Basement Unfinished:

2,635 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

56' 6"

Depth:

92' 6"

Max Ridge Height:

26' 3"

Garage

Type:

Attached

Area:

756 sq. ft.

Count:

3 Cars

Entry Location:

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch:

7 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
