Plan 8584MS

Lodge Style with Rear View

4,673 5 4 2 4
Pageloader

Lodge Style with Rear View

Plan 8584MS

  • 4,673

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 4

    Cars

  • This magnificent lodge style home plan takes advantage of views to the back with the great room, kitchen, dining room and office space opening to the rear.
  • Vaulted spaces abound giving a great sense of space to this design.
  • The huge covered deck enjoys a commanding view and becomes an extension to the inside living spaces.
  • If you are looking for the ultimate lodge style home this plan is for you.

Each plan set is drawn to 1/4" scale and includes the following:

  • Detailed elevations
  • Foundation plan including all structural components
  • Detailed floor plans, including ceiling and floor framing information
  • Detailed roof framing plans
  • Detailed cross sections
  • All framing members called out
  • Details throughout the set of plans as appropriate for construction to current IRC code

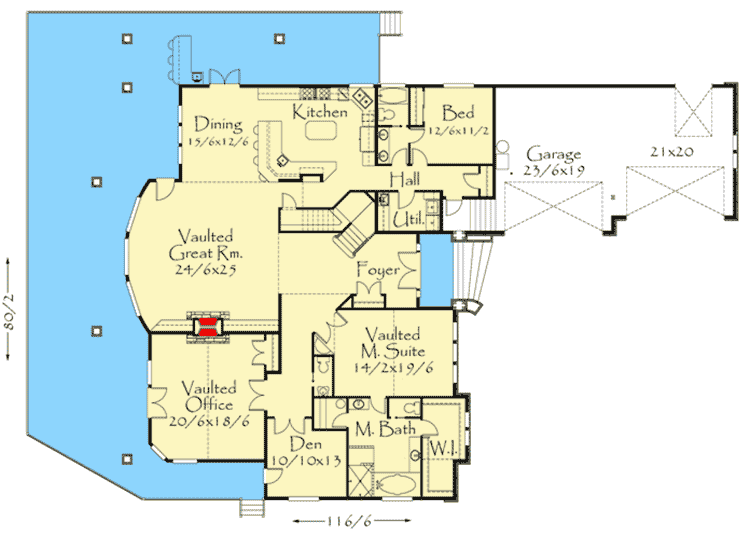

Floor Plan

Plan details

Architectural Style

Plan Collections



Lodge Style with Rear View

  • 4,673

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $2,570
  • 6 Sets $3,037
  • PDF - multi-use $3,370
  • CAD $4,673
  • CAD - multi-use $5,473
  • View all purchase option online

About This Plan

  • This magnificent lodge style home plan takes advantage of views to the back with the great room, kitchen, dining room and office space opening to the rear.
  • Vaulted spaces abound giving a great sense of space to this design.
  • The huge covered deck enjoys a commanding view and becomes an extension to the inside living spaces.
  • If you are looking for the ultimate lodge style home this plan is for you.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,673 sq. ft.
  • 1st Floor: 3,373 sq. ft.
  • 2nd Floor: 1,300 sq. ft.
  • Bonus: 286 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 2"
  • Depth: 116' 6"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 866 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Architectural Style

  • Craftsman
  • Northwest

Special features

  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • PDF

Plan Collections

  • Photo Gallery
