Plan 59365ND

Lovely 3-Bed Duplex House Plan with Matching Units Under 1200 Square Feet

Heated S.F.
2,338
Units
2
Width
Depth

Floor Plan

Plan 59365ND

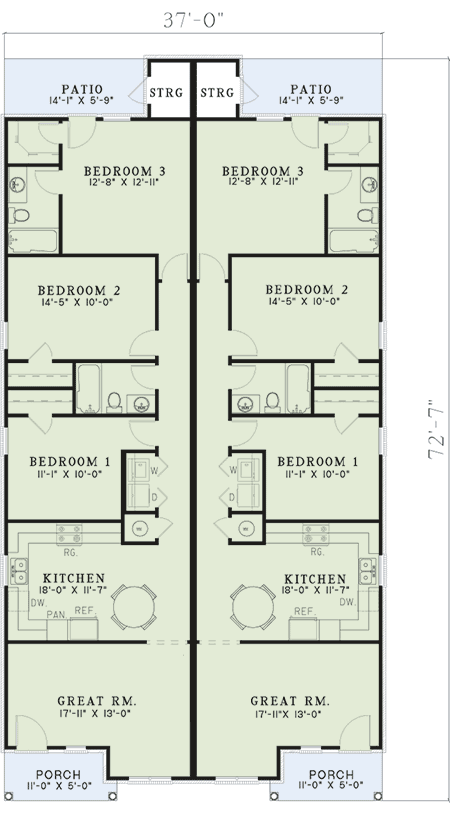

Main Level
Main Level

Plan 59365ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59365ND: Lovely 3-Bed Duplex House Plan with Matching Units Under 1200 Square Feet - Floor Plan - Main Level - Southern, Traditional

Plan Details

  • This lovely duplex house plan includes columns on the front entry porch and a pleasing interior. Each unit gives you 1,169 sq. ft. of living space, 3 bedrooms and 2 baths.
  • Round columns and a hip roof enhance this three-bedroom plan complete with a large kitchen/breakfast area and a convenient hall laundry closet.
  • A spacious great room includes a small sitting area by the front window for afternoon reading.
  • And for the handyman, the rear patio has a storage room and allows privacy from the adjoining neighbor.
  • Related Plans: Get 2-bed units with duplex house plans 59370ND and 59366ND.
Unit A
Heated Area
1,169Sq. Ft.
1169 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
18' 6"width
72' 7"depth
18'height
Unfinished Areas
26 Sq. Ft. Porch, Combined
26 Sq. Ft. Storage
Unit B
Heated Area
1,169Sq. Ft.
1169 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
18' 6"width
72' 7"depth
18'height
Unfinished Areas
26 Sq. Ft. Porch, Combined
52 Sq. Ft. Storage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

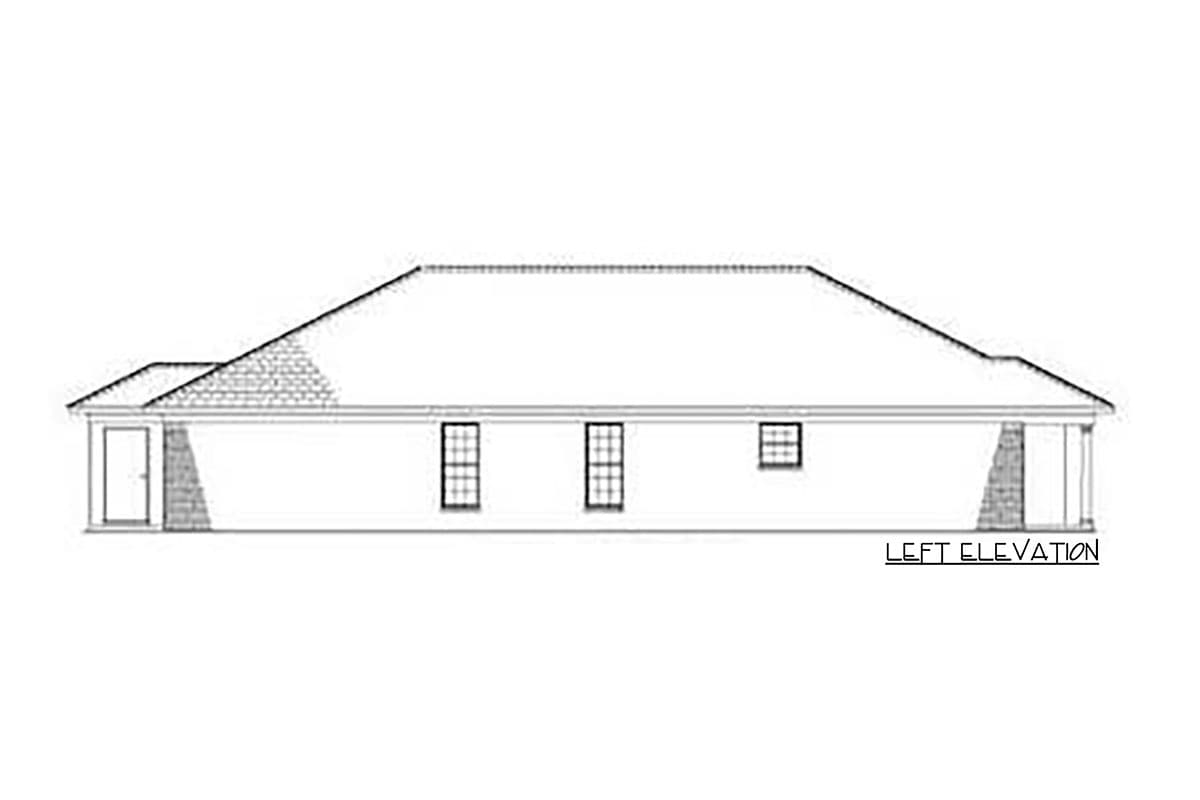

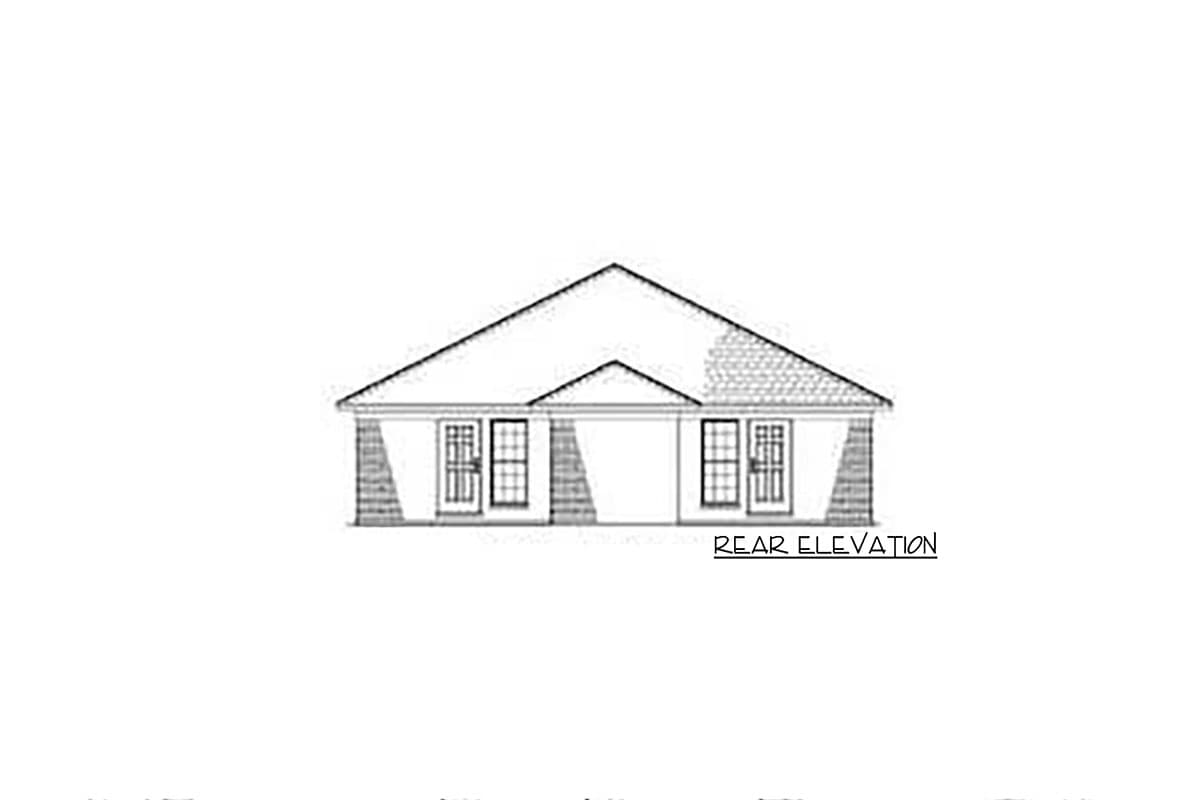

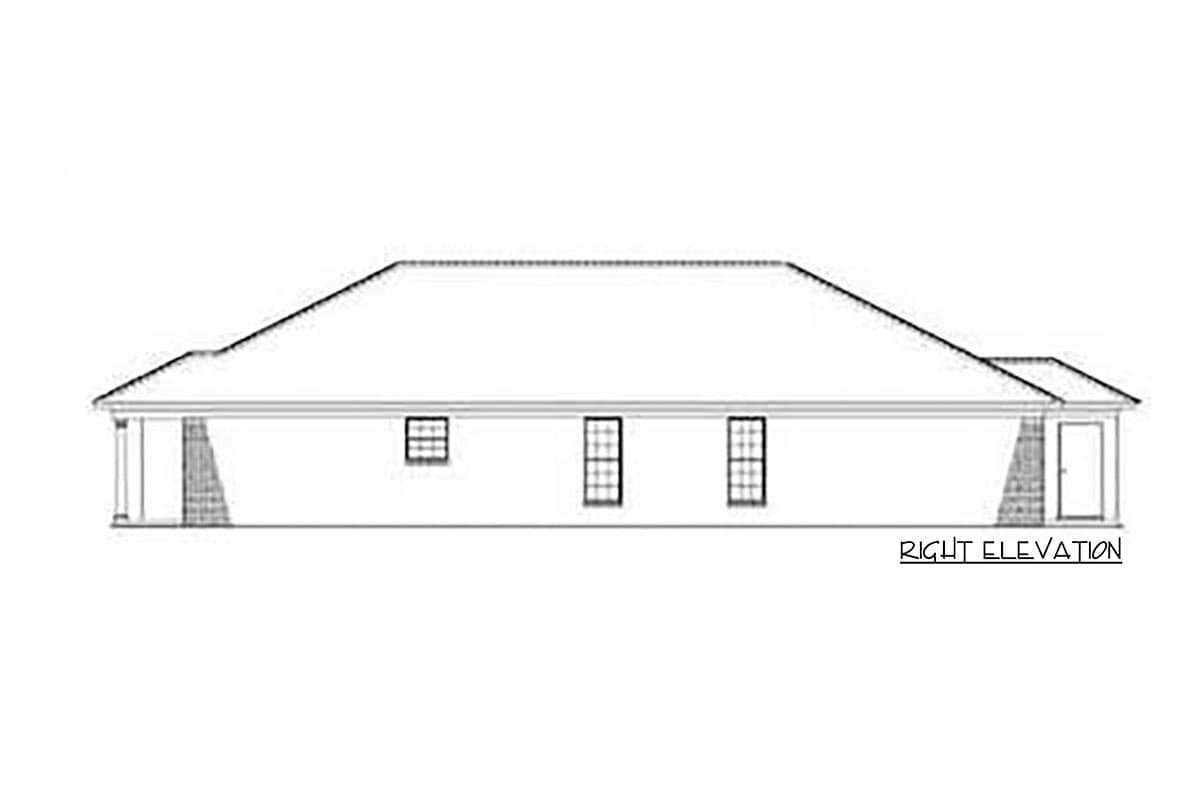

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,338 sq. ft.

1st Floor

2,338 sq. ft.

Porch, Front

110 sq. ft.

Porch, Rear

52 sq. ft.

Storage

52 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2, 3, or 4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

72' 7"

Max Ridge Height

18' 4"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

2,338 sq. ft.

1st Floor

2,338 sq. ft.

Porch, Front

110 sq. ft.

Porch, Rear

52 sq. ft.

Storage

52 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2, 3, or 4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

72' 7"

Max Ridge Height

18' 4"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Closed Floor Plans
